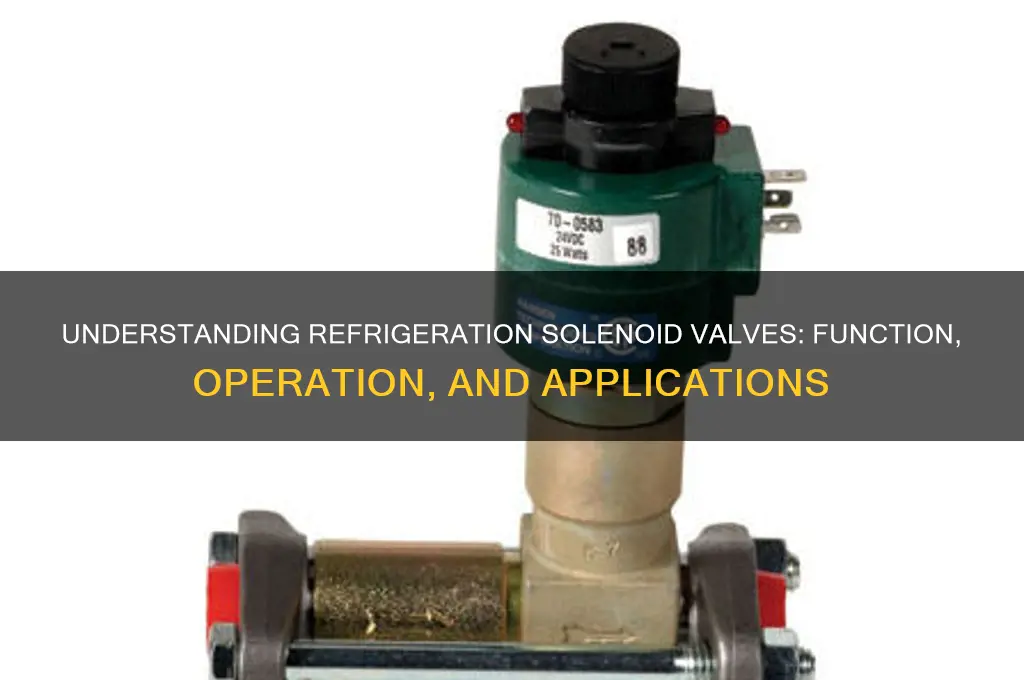

A refrigeration solenoid valve is a critical component in cooling systems, functioning as an electromechanically operated valve that controls the flow of refrigerant. When an electric current is applied to the solenoid coil, it generates a magnetic field that actuates a plunger or armature, which in turn opens or closes the valve orifice. This allows or restricts the flow of refrigerant through the system, enabling precise control of temperature and pressure. The valve operates quickly and reliably, making it essential for maintaining efficiency and performance in refrigeration and air conditioning systems. Its design ensures minimal energy consumption and is often used in applications requiring frequent or automated adjustments to refrigerant flow.
| Characteristics | Values |
|---|---|
| Operating Principle | Electromagnetic actuation: An electric current through a coil creates a magnetic field, which pulls a plunger or armature, opening or closing the valve orifice. |
| Valve Type | Typically 2-way or 3-way normally closed (NC) or normally open (NO) valves. |
| Power Source | Requires an external power supply (usually 24V AC/DC or 110V/220V AC) to energize the solenoid coil. |
| Response Time | Fast actuation, typically within milliseconds to seconds, depending on the valve size and design. |
| Flow Control | Controls the flow of refrigerant by opening or closing the valve orifice, regulating the refrigerant's passage through the system. |
| Pressure Rating | Designed to operate within specific pressure ranges, typically up to 400-500 PSI (pounds per square inch) for refrigeration applications. |
| Temperature Range | Operates within a wide temperature range, typically from -40°C to 120°C (-40°F to 248°F), depending on the valve material and design. |
| Material | Constructed from materials resistant to corrosion and compatible with refrigerants, such as brass, stainless steel, or aluminum. |
| Seal Type | Uses soft seals (e.g., rubber or synthetic materials) or metal-to-metal seals to ensure a tight shut-off when closed. |
| Coil Insulation | Coil is insulated with materials like epoxy or varnish to protect against moisture, corrosion, and electrical shorts. |
| Duty Cycle | Can be continuous duty (100% on) or intermittent duty, depending on the application and valve design. |
| Fail-Safe Mode | Normally closed (NC) valves close when de-energized, while normally open (NO) valves open when de-energized, ensuring system safety in case of power loss. |
| Applications | Used in refrigeration systems for controlling refrigerant flow, defrost cycles, hot gas bypass, and liquid line control. |
| Maintenance | Requires periodic inspection and cleaning to prevent debris buildup, ensure proper sealing, and maintain reliable operation. |
| Lifespan | Typically lasts for millions of cycles, depending on usage, maintenance, and operating conditions. |
| Size and Port Connections | Available in various sizes and port connections (e.g., sweat, flare, or threaded) to match refrigeration system requirements. |
Explore related products
What You'll Learn
- Solenoid Coil Activation: Electric current energizes the coil, creating a magnetic field to actuate the valve
- Plunger Movement: Magnetic force pulls the plunger, opening or closing the valve orifice
- Refrigerant Flow Control: Valve regulates refrigerant flow, ensuring proper cooling system operation
- Spring Return Mechanism: Spring resets the plunger when power is off, closing the valve
- Diaphragm or Direct-Acting: Design types determine how the valve seals and controls refrigerant flow
Solenoid Coil Activation: Electric current energizes the coil, creating a magnetic field to actuate the valve
Electric current is the lifeblood of a refrigeration solenoid valve's operation. When current flows through the solenoid coil, it transforms into an electromagnet, generating a magnetic field that acts as the primary force behind valve actuation. This principle, rooted in electromagnetism, is the cornerstone of solenoid valve functionality. The coil, typically wound around a ferromagnetic core, amplifies the magnetic field, ensuring sufficient strength to move the valve's plunger or armature.
Consider the activation process as a precise, energy-efficient mechanism. A modest current, often in the range of 12 to 24 volts DC or AC, is all it takes to energize the coil. This low-power requirement makes solenoid valves ideal for refrigeration systems, where energy conservation is critical. The magnetic field's polarity determines the direction of the plunger's movement, either opening or closing the valve. This binary action—on or off—ensures reliable control of refrigerant flow, a necessity for maintaining system efficiency and temperature stability.
The relationship between current and magnetic field strength is linear: higher current produces a stronger magnetic field, but practical applications rarely require such extremes. Refrigeration systems are designed to operate within specific parameters, and exceeding these can lead to overheating or premature coil failure. For instance, a 12V DC solenoid valve in a residential refrigerator typically draws around 0.2 to 0.5 amps, striking a balance between power consumption and operational reliability.
Practical tips for ensuring optimal solenoid coil activation include regular inspection for wire damage or corrosion, as these can disrupt current flow. Additionally, using a multimeter to verify voltage and resistance can preemptively identify coil issues before they escalate. For systems in harsh environments, consider coils with epoxy-coated windings for enhanced durability.
In summary, solenoid coil activation is a testament to the elegance of electromagnetic principles in practical applications. By understanding the interplay between electric current and magnetic fields, technicians and engineers can ensure the seamless operation of refrigeration solenoid valves, contributing to the longevity and efficiency of cooling systems.
Opened Cranberry Juice: Safe to Drink Without Refrigeration?
You may want to see also
Explore related products
![[FBA] NEW OEM Produced IMV708 W10408179 4389177 for Whirlpool Kitchenaid Kenmore Regrigerator Water Valve by Robertshaw Replacement Part](https://m.media-amazon.com/images/I/71LE14b-klL._AC_UY218_.jpg)
Plunger Movement: Magnetic force pulls the plunger, opening or closing the valve orifice
The plunger, a small yet pivotal component in a refrigeration solenoid valve, operates through a precise interplay of magnetic force and mechanical movement. When an electric current passes through the solenoid coil, it generates a magnetic field that exerts a pull on the plunger, typically made of ferromagnetic material. This force overcomes the spring resistance holding the plunger in its resting position, causing it to move either upward or downward, depending on the valve design. This linear motion directly controls the opening or closing of the valve orifice, regulating refrigerant flow with remarkable accuracy. For instance, in a direct-acting solenoid valve, the plunger lifts to allow refrigerant passage, while in a pilot-operated valve, it opens a smaller pilot orifice to enable pressure differential to open the main valve.
Consider the analogy of a gatekeeper: the plunger acts as the gate, and the magnetic force is the command to open or close it. This mechanism is critical in refrigeration systems, where precise control of refrigerant flow ensures efficient cooling and prevents energy waste. For optimal performance, ensure the plunger and valve seat are free from debris, as even minor obstructions can hinder movement and reduce efficiency. Regular maintenance, such as cleaning and lubricating the plunger assembly, can extend the valve’s lifespan and maintain its responsiveness.
From an analytical perspective, the plunger’s movement is governed by the principles of electromagnetism and mechanics. The force exerted on the plunger (F) is directly proportional to the current (I) in the coil and the magnetic field strength (B), as described by the equation F = I * B * L, where L is the length of the plunger within the magnetic field. This relationship highlights the importance of precise coil design and current control in achieving consistent plunger movement. For example, a 24V solenoid valve typically requires a current of 100–200 mA to generate sufficient force, depending on the plunger’s mass and spring tension.
In practical applications, understanding the plunger’s role allows technicians to troubleshoot common issues. If the valve fails to open or close, inspect the plunger for sticking due to corrosion or debris. In systems with frequent cycling, such as commercial refrigerators, consider using valves with hardened plungers or anti-corrosion coatings to withstand wear. Additionally, ensure the power supply matches the valve’s specifications; underpowered coils may not generate enough force to move the plunger, while overpowered ones can cause overheating and damage.
Finally, the plunger’s movement exemplifies the elegance of simplicity in engineering. By converting electrical energy into mechanical action, it enables precise control of refrigerant flow without complex mechanisms. This reliability makes solenoid valves indispensable in refrigeration systems, from household appliances to industrial chillers. To maximize their effectiveness, pair them with compatible control systems and monitor their performance regularly. With proper care, the plunger’s magnetic-driven motion ensures efficient, uninterrupted cooling for years to come.
Refrigerating Uncooked Eggs: Best Practices for Freshness and Safety
You may want to see also
Explore related products
Refrigerant Flow Control: Valve regulates refrigerant flow, ensuring proper cooling system operation
The refrigeration solenoid valve is a critical component in cooling systems, acting as a precise gatekeeper for refrigerant flow. Its primary function is to regulate the movement of refrigerant, ensuring that the system operates efficiently and maintains the desired temperature. This valve achieves this by opening or closing in response to an electrical signal, allowing or restricting the flow of refrigerant through the system. The solenoid valve’s ability to control flow with precision is essential for preventing overcooling or undercooling, both of which can lead to inefficiencies or system damage. For instance, in a commercial refrigeration unit, the valve might cycle on and off multiple times per hour to maintain a consistent temperature range of 35°F to 38°F, critical for preserving perishable goods.
To understand its operation, consider the internal mechanics of the solenoid valve. When an electrical current is applied to the solenoid coil, it generates a magnetic field that lifts the plunger, allowing refrigerant to pass through the valve. Conversely, when the current is removed, the plunger returns to its closed position, halting the flow. This on-off mechanism is binary but highly effective, ensuring that the refrigerant flows only when needed. For example, in a home air conditioning system, the valve might open for 15-second intervals during a cooling cycle, precisely metering refrigerant to the evaporator coil to achieve the thermostat’s set temperature.
One of the key advantages of the solenoid valve is its responsiveness and reliability. Unlike manual valves, which require physical adjustment, solenoid valves operate automatically based on system demands. This automation is particularly valuable in large-scale refrigeration systems, such as those used in supermarkets or industrial cold storage, where manual adjustments would be impractical. For optimal performance, it’s crucial to select a valve with the appropriate flow coefficient (Cv) to match the system’s refrigerant capacity. A valve with a Cv of 2.5 might be suitable for a small walk-in cooler, while a larger system could require a valve with a Cv of 10 or higher.
However, proper maintenance is essential to ensure the valve’s longevity and efficiency. Over time, debris or refrigerant oil can accumulate, causing the valve to stick or malfunction. Regular inspection and cleaning, especially in systems using R-410A or other modern refrigerants, can prevent such issues. Additionally, ensure the valve’s electrical connections are secure and free from corrosion, as a faulty signal can lead to improper operation. For DIY enthusiasts working on home refrigeration systems, it’s advisable to test the valve’s response using a multimeter before installation to confirm it opens and closes as expected.
In conclusion, the refrigeration solenoid valve’s role in controlling refrigerant flow is indispensable for maintaining system efficiency and reliability. Its ability to operate automatically, combined with precise flow control, makes it a cornerstone of modern cooling technology. By understanding its mechanics, selecting the right valve, and adhering to maintenance best practices, users can ensure their refrigeration systems perform optimally, whether in a residential setting or an industrial application.
Countertop Depth Refrigerators: Understanding Their Standard Depth and Fit
You may want to see also
Explore related products
$21.99
Spring Return Mechanism: Spring resets the plunger when power is off, closing the valve
A solenoid valve's spring return mechanism is a critical fail-safe feature, ensuring the valve defaults to a closed position when power is interrupted. This is particularly vital in refrigeration systems, where uncontrolled refrigerant flow can lead to inefficiencies, equipment damage, or safety hazards. The mechanism relies on a compression spring positioned to counteract the magnetic force generated by the solenoid coil. When the coil is energized, the magnetic field overcomes the spring's resistance, lifting the plunger to open the valve. Conversely, when power is removed, the spring immediately returns the plunger to its seated position, sealing the valve and halting refrigerant flow.
Consider the operational context: in a commercial refrigeration unit, a power outage could leave the system vulnerable to pressure imbalances or temperature spikes. The spring return mechanism acts as a passive safeguard, requiring no external energy to function. This design is especially advantageous in environments where backup power systems may not be immediately available or reliable. For instance, in a supermarket refrigeration system, the spring ensures that valves close automatically during a blackout, preventing warm air from infiltrating the cooling lines and spoiling perishable goods.
From an engineering perspective, the spring's force must be precisely calibrated to balance responsiveness and durability. Too weak, and the spring may fail to close the valve under low magnetic force; too strong, and it may impede the valve's opening when energized. Manufacturers typically specify spring constants based on the valve's size and intended application. For example, a 1/2-inch refrigeration solenoid valve might use a spring with a force of 5-10 Newtons, ensuring it can reliably close the valve while allowing the solenoid to operate efficiently under normal conditions.
Practical maintenance tips underscore the importance of inspecting the spring return mechanism periodically. Over time, springs can fatigue, corrode, or accumulate debris, compromising their ability to reset the plunger. Technicians should include spring tension checks and cleaning as part of routine valve maintenance. Replacing a worn spring is a straightforward task but critical to preventing unexpected valve failures. For DIY enthusiasts or facility managers, keeping spare springs on hand can minimize downtime in case of a malfunction.
In summary, the spring return mechanism is a simple yet indispensable component of refrigeration solenoid valves. Its passive, energy-independent operation ensures system safety and efficiency, particularly in emergency scenarios. Understanding its function, design considerations, and maintenance requirements empowers users to optimize valve performance and mitigate risks effectively. Whether in industrial cooling systems or household refrigerators, this mechanism exemplifies how mechanical ingenuity complements electrical control to achieve reliable, fail-safe operation.
Refrigerating Mead: Best Practices for Storage and Flavor Preservation
You may want to see also
Explore related products
Diaphragm or Direct-Acting: Design types determine how the valve seals and controls refrigerant flow
Solenoid valves in refrigeration systems are critical for controlling the flow of refrigerant, ensuring efficient operation and temperature regulation. Among the various designs, diaphragm and direct-acting valves stand out for their distinct mechanisms in sealing and modulating refrigerant flow. Understanding these differences is essential for selecting the right valve for specific applications, as each type offers unique advantages and limitations.
Diaphragm valves operate by using a flexible diaphragm to seal the valve orifice. When the solenoid is energized, the diaphragm lifts, allowing refrigerant to flow. This design is particularly effective in applications requiring tight shut-off and minimal leakage, such as in low-temperature refrigeration systems. The diaphragm’s flexibility ensures a reliable seal even under varying pressures, making it ideal for systems where precision is critical. However, diaphragm valves may struggle in high-pressure environments due to the diaphragm’s limited strength. For instance, in commercial refrigeration units operating at pressures up to 300 psi, diaphragm valves are often preferred for their leak-tight performance. Maintenance involves periodic inspection of the diaphragm for wear or damage, as a compromised diaphragm can lead to inefficiency or system failure.
In contrast, direct-acting valves rely on a plunger or piston to directly open or close the valve orifice. When the solenoid is activated, the plunger lifts, enabling refrigerant flow. This design is robust and capable of handling higher pressures, making it suitable for industrial refrigeration systems or applications with stringent durability requirements. Direct-acting valves are less prone to wear from high-pressure differentials but may not achieve the same level of tight shut-off as diaphragm valves. For example, in ammonia-based refrigeration systems operating at pressures exceeding 400 psi, direct-acting valves are often the preferred choice due to their resilience. However, they may require more frequent maintenance to ensure the plunger mechanism remains free of debris and operates smoothly.
The choice between diaphragm and direct-acting valves hinges on the specific demands of the refrigeration system. Diaphragm valves excel in low-pressure, high-precision applications, while direct-acting valves are better suited for high-pressure, heavy-duty environments. For instance, in a supermarket refrigeration system where multiple evaporators operate at varying pressures, diaphragm valves might be used for low-pressure display cases, while direct-acting valves could be employed for high-pressure condenser units. Proper selection ensures optimal performance, energy efficiency, and system longevity.
In practice, consider the operating pressure, temperature range, and required flow rate when choosing between these valve types. For systems with frequent cycling or fluctuating pressures, diaphragm valves may offer better sealing reliability, whereas direct-acting valves are more forgiving in harsh conditions. Regular maintenance, such as cleaning and replacing worn components, is crucial for both types to prevent leaks and ensure consistent operation. By understanding the strengths and limitations of diaphragm and direct-acting valves, technicians and engineers can make informed decisions to enhance the efficiency and reliability of refrigeration systems.
Refrigerating Fresh Pineapple: Optimal Storage Time and Tips
You may want to see also
Frequently asked questions
A refrigeration solenoid valve is an electromechanically operated valve used in refrigeration systems to control the flow of refrigerant. Its primary function is to open or close the refrigerant flow path in response to an electrical signal, allowing precise control of the cooling cycle.
A solenoid valve operates by using an electromagnetic coil to move a plunger or armature. When an electric current is applied, the coil generates a magnetic field that pulls the plunger, lifting the valve disc and allowing refrigerant to flow. When the current is removed, a spring returns the plunger and closes the valve, stopping the flow.
The main components include the solenoid coil (which generates the magnetic field), the plunger or armature (which moves to open or close the valve), the valve body (housing the flow path), the valve disc or seat (which seals the flow), and a spring (to return the valve to its closed position when power is off).
There are two main types: normally closed (NC) valves, which remain closed until energized, and normally open (NO) valves, which remain open until energized. NC valves are more common in refrigeration to prevent refrigerant flow when the system is off.
Common issues include coil burnout (due to electrical overload or age), debris clogging the valve, or a stuck plunger. To resolve these, inspect and replace the coil if burned out, clean the valve to remove debris, and ensure proper voltage and wiring. Regular maintenance can prevent many of these problems.
