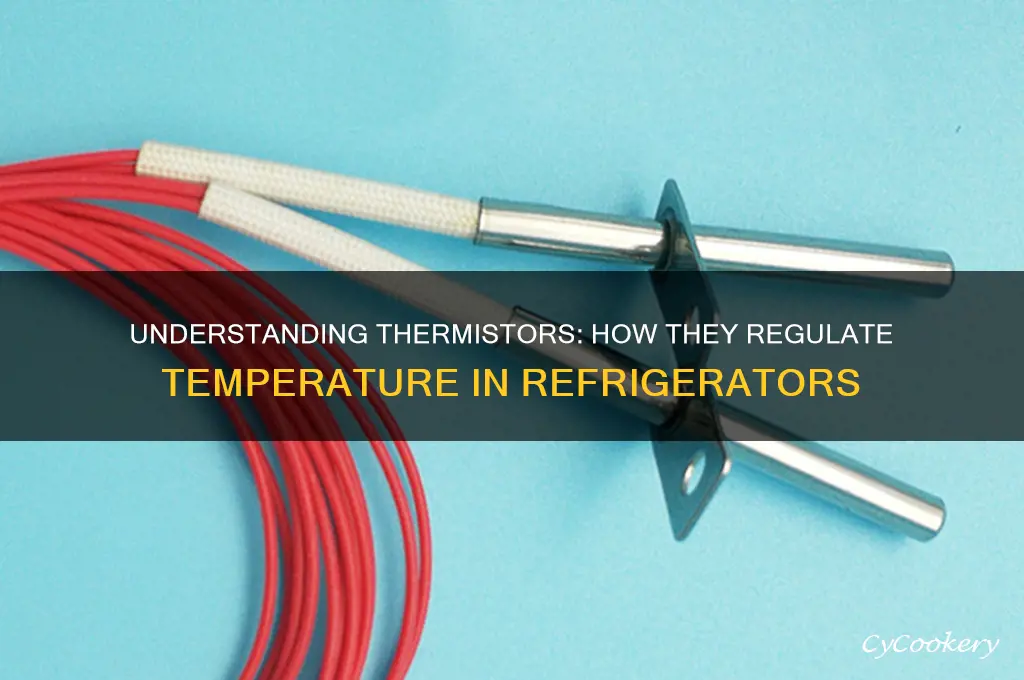

A thermistor is a temperature-sensitive resistor that plays a crucial role in maintaining the precise temperature control within a refrigerator. In this appliance, the thermistor is typically located inside the fridge compartment, where it continuously monitors the ambient temperature. It operates based on the principle that its electrical resistance changes significantly with variations in temperature. When the temperature rises, the thermistor's resistance decreases, and when it drops, the resistance increases. This resistance change is detected by the refrigerator's control board, which then adjusts the compressor's operation to either cool the interior further or allow it to warm up slightly, ensuring the set temperature is consistently maintained. This feedback mechanism is essential for energy efficiency and food preservation, as it prevents unnecessary cooling and avoids temperature fluctuations that could spoil stored items.
| Characteristics | Values |
|---|---|
| Function | Temperature sensing |
| Type | Negative Temperature Coefficient (NTC) thermistor |
| Location | Inside the refrigerator compartment, often near the evaporator coils |
| Working Principle | Resistance decreases as temperature increases |
| Temperature Range | Typically -40°C to +125°C (-40°F to +257°F) |
| Accuracy | ±0.5°C to ±2°C (±0.9°F to ±3.6°F) depending on model |
| Response Time | Milliseconds to seconds, depending on size and environment |
| Connection | Wired to the refrigerator's control board |
| Role in Refrigeration Cycle | Provides real-time temperature feedback to the control system |
| Control Mechanism | Helps regulate compressor operation and defrost cycles |
| Advantages | High sensitivity, small size, low cost, and reliability |
| Maintenance | Generally maintenance-free, but can be replaced if faulty |
| Common Issues | Failure due to age, physical damage, or electrical faults |
| Replacement | Requires matching the correct NTC thermistor type and specifications |
| Impact on Efficiency | Ensures optimal temperature control, reducing energy consumption |
| Compatibility | Specific to refrigerator models; not universally interchangeable |
Explore related products
What You'll Learn
- Temperature Sensing Mechanism: Thermistor's resistance changes with temperature, detecting fridge's internal conditions accurately
- Electrical Circuit Integration: Connected to a circuit, it triggers cooling adjustments based on resistance shifts
- Precision in Cooling Control: Ensures consistent temperature by providing real-time feedback to the thermostat
- Self-Regulating Operation: Automatically activates or deactivates the compressor to maintain set temperature
- Durability and Reliability: Designed to withstand fridge conditions, ensuring long-term, stable performance
Temperature Sensing Mechanism: Thermistor's resistance changes with temperature, detecting fridge's internal conditions accurately
Thermistors are the unsung heroes of modern refrigeration, silently ensuring your food stays fresh by precisely monitoring internal temperatures. These small, temperature-sensitive resistors operate on a simple yet ingenious principle: their electrical resistance changes dramatically with temperature fluctuations. In a refrigerator, a thermistor is strategically placed to detect the ambient air temperature, typically near the evaporator coils or within the fridge compartment. As the temperature rises, the thermistor’s resistance decreases, and as it drops, resistance increases. This predictable behavior allows the refrigerator’s control system to interpret the data and adjust cooling cycles accordingly, maintaining optimal conditions for food preservation.
To understand the mechanism, consider the thermistor’s composition. Most thermistors used in refrigerators are Negative Temperature Coefficient (NTC) types, meaning their resistance decreases as temperature increases. For example, at 25°C, an NTC thermistor might have a resistance of 10,000 ohms, but at 0°C, this could rise to 30,000 ohms. The refrigerator’s control board measures this resistance using a simple voltage divider circuit, translating it into a temperature reading. This real-time feedback loop ensures the compressor activates only when necessary, conserving energy while preventing temperature extremes that could spoil food.
Practical implementation of thermistors in refrigerators involves careful placement and calibration. For instance, placing the thermistor too close to the evaporator coils can lead to false readings, as the coils are significantly colder than the surrounding air. Ideally, it should be positioned in the center of the fridge compartment, away from direct airflow. Calibration is equally critical; manufacturers often program the control board to account for the thermistor’s specific resistance-temperature curve, ensuring accuracy within ±1°C. Homeowners can test thermistor functionality by using a multimeter to measure resistance at known temperatures, though this requires technical know-how.
One of the key advantages of thermistors over other temperature sensors, like thermocouples or RTDs, is their cost-effectiveness and reliability. Thermistors are inexpensive, durable, and highly sensitive to small temperature changes, making them ideal for consumer appliances. However, they are not without limitations. Their accuracy diminishes at extreme temperatures, and they require precise calibration to function correctly. Despite this, their role in modern refrigerators is indispensable, balancing energy efficiency with food safety.
In summary, thermistors are the backbone of a refrigerator’s temperature sensing mechanism, leveraging their temperature-dependent resistance to provide accurate and timely data. By understanding their operation, placement, and calibration, both manufacturers and users can ensure these devices perform optimally. Whether you’re a technician troubleshooting a fridge or a homeowner curious about how your appliance works, recognizing the thermistor’s role highlights its significance in everyday technology.
Refrigerating Cake Mix Batter: Tips, Tricks, and Best Practices
You may want to see also
Explore related products
Electrical Circuit Integration: Connected to a circuit, it triggers cooling adjustments based on resistance shifts
A thermistor's integration into a refrigerator's electrical circuit is a delicate dance of resistance and temperature, where subtle shifts in one trigger precise adjustments in the other. This component, often no larger than a pea, plays a pivotal role in maintaining the appliance's internal climate. When connected to the circuit, the thermistor's resistance fluctuates in response to temperature changes, acting as a sentinel that signals the need for cooling modifications. This dynamic interaction ensures that the refrigerator operates efficiently, preserving food at optimal temperatures without unnecessary energy expenditure.
Consider the process as a series of steps. First, the thermistor is strategically placed within the refrigerator, typically near the evaporator coils or in the freshest food compartment, to accurately monitor the ambient temperature. As the temperature rises, the thermistor’s resistance decreases, allowing more current to flow through the circuit. This change is detected by the refrigerator’s control board, which interprets the signal as a need for increased cooling. Conversely, when the temperature drops, resistance increases, reducing current flow and signaling the system to throttle back. This feedback loop ensures that the cooling mechanism activates only when necessary, preventing overcooling and energy waste.
Analyzing the thermistor’s role reveals its elegance in simplicity. Unlike mechanical thermostats, which rely on physical switches, thermistors offer a more precise and responsive solution. Their resistance changes are nearly instantaneous, allowing for quicker adjustments to temperature fluctuations. For instance, if the refrigerator door is frequently opened during a dinner party, the thermistor detects the rapid temperature rise and prompts the compressor to work harder, restoring the desired temperature swiftly. This responsiveness is particularly crucial in modern refrigerators, where energy efficiency and food preservation are paramount.
Practical considerations highlight the importance of proper thermistor placement and calibration. If the thermistor is positioned too close to a cooling vent or in a drafty area, it may provide inaccurate readings, leading to inefficient operation. Technicians often use multimeters to test thermistor resistance at known temperatures, ensuring it aligns with manufacturer specifications. For example, a common NTC (Negative Temperature Coefficient) thermistor might exhibit a resistance of 10 kΩ at 25°C, dropping to 2 kΩ at 50°C. Understanding these values is essential for troubleshooting and maintaining optimal performance.
In conclusion, the electrical circuit integration of a thermistor in a refrigerator is a masterclass in precision engineering. By translating temperature changes into resistance shifts, it enables the appliance to make informed cooling adjustments, balancing energy efficiency with food safety. Whether you’re a homeowner aiming to extend the life of your refrigerator or a technician diagnosing performance issues, understanding this mechanism empowers you to optimize its functionality. The thermistor’s unassuming presence belies its critical role, proving that even the smallest components can have a significant impact.
Side-by-Side Refrigerators: Can You Double Up in Your Kitchen?
You may want to see also
Explore related products
Precision in Cooling Control: Ensures consistent temperature by providing real-time feedback to the thermostat
Thermistors are the unsung heroes of modern refrigeration, ensuring your groceries stay fresh and your energy bills remain manageable. These tiny temperature-sensitive resistors are embedded within the refrigerator's cooling system, constantly monitoring the internal climate. Unlike traditional thermostats that rely on periodic checks, thermistors provide continuous, real-time feedback to the control unit. This precision is critical because even minor temperature fluctuations can compromise food safety and quality. For instance, a deviation of just 2°C can accelerate bacterial growth in perishables like dairy and meat. By delivering instantaneous data, thermistors enable the refrigerator to adjust cooling cycles proactively, maintaining a consistent temperature within a narrow margin—typically ±1°C.
Consider the operational mechanics: when the refrigerator door is opened frequently, warm air infiltrates the compartment, causing a rapid temperature rise. The thermistor detects this change almost immediately, signaling the thermostat to activate the compressor. Conversely, during periods of inactivity, it senses the drop in temperature and prompts the system to reduce cooling, preventing over-chilling and unnecessary energy consumption. This dynamic feedback loop is akin to a vigilant guard, ensuring the refrigerator operates at peak efficiency without human intervention. For homeowners, this translates to longer-lasting food and lower utility costs—a win-win scenario.
The design of thermistors also plays a pivotal role in their effectiveness. Most refrigerators use Negative Temperature Coefficient (NTC) thermistors, which decrease resistance as temperature rises. This characteristic allows for highly accurate measurements across a wide temperature range, typically from -40°C to 30°C. Manufacturers calibrate these sensors to align with the specific cooling needs of different refrigerator models, ensuring optimal performance. For example, a side-by-side refrigerator might require more precise control in the freezer compartment compared to the fresh food section, and the thermistor’s placement and sensitivity are adjusted accordingly.
Practical tips for maximizing thermistor efficiency include regular cleaning of the refrigerator coils to prevent overheating, which can skew temperature readings. Additionally, avoid overloading the fridge, as this restricts airflow and hampers the thermistor’s ability to detect accurate temperatures. For those with older models, consider upgrading to a smart refrigerator equipped with advanced thermistor technology, which often includes features like remote temperature monitoring and automated defrost cycles. These innovations not only enhance precision but also contribute to a more sustainable household.
In essence, the thermistor’s role in refrigeration is a masterclass in precision engineering. By providing real-time feedback to the thermostat, it ensures that the cooling system responds swiftly and accurately to environmental changes. This level of control is indispensable in modern kitchens, where food preservation and energy efficiency are paramount. Whether you’re storing leftovers or stocking up for the week, the thermistor works silently in the background, guaranteeing that your refrigerator remains a reliable guardian of freshness.
Proper Refrigerant Charging: How Much to Add to Your Lineset
You may want to see also
Explore related products
Self-Regulating Operation: Automatically activates or deactivates the compressor to maintain set temperature
A thermistor in a refrigerator is a temperature-sensitive resistor that plays a critical role in self-regulating operation. Its resistance changes with temperature, allowing it to act as a precise sensor for the refrigerator's control system. When the refrigerator's interior temperature deviates from the set point, the thermistor's resistance shifts, signaling the control board to activate or deactivate the compressor. This mechanism ensures the appliance maintains optimal cooling without constant manual adjustments.
Consider the process in steps: First, the thermistor continuously monitors the refrigerator's internal temperature. If the temperature rises above the set point, the thermistor's resistance decreases, triggering the control board to start the compressor. Conversely, if the temperature drops below the set point, the resistance increases, signaling the compressor to shut off. This cycle repeats automatically, creating a self-sustaining system that minimizes energy consumption while preserving food freshness.
One practical example illustrates this efficiency: In a typical household refrigerator, the thermistor might detect a temperature increase after the door is opened frequently. Within seconds, it communicates this change to the control board, which activates the compressor to restore the desired temperature. Once the set point is reached, the compressor deactivates, preventing overcooling and unnecessary energy use. This precision is particularly beneficial for refrigerators storing temperature-sensitive items like dairy or medications.
However, reliance on a thermistor for self-regulation requires careful calibration. Misalignment between the thermistor's readings and the actual temperature can lead to inefficiencies, such as the compressor running longer than necessary or failing to activate when needed. Regular maintenance, including cleaning the thermistor and ensuring proper airflow around it, is essential to maintain accuracy. For instance, dust or ice buildup on the sensor can skew readings, so periodic inspection is recommended, especially in humid environments.
In conclusion, the self-regulating operation of a refrigerator hinges on the thermistor's ability to detect temperature changes and prompt the compressor to respond accordingly. This system not only ensures consistent cooling but also optimizes energy use, making it a cornerstone of modern refrigeration technology. By understanding its function and maintaining its integrity, users can maximize both the appliance's efficiency and its lifespan.
Should Hot Food Go in the Fridge? Cooling Myths Debunked
You may want to see also
Explore related products
Durability and Reliability: Designed to withstand fridge conditions, ensuring long-term, stable performance
Thermistors in refrigerators operate in a harsh environment characterized by constant temperature fluctuations, high humidity, and exposure to condensation. These conditions demand a component that not only functions accurately but also endures over time. A thermistor designed for fridge applications must resist moisture ingress, maintain stability across temperature shifts, and avoid material degradation. For instance, a typical fridge thermistor is encased in a waterproof epoxy or glass coating, which acts as a barrier against humidity while allowing thermal conductivity. This design ensures the thermistor remains operational even after years of exposure to the fridge's internal climate.
Consider the material composition of a durable thermistor. NTC (Negative Temperature Coefficient) thermistors, commonly used in refrigerators, are often made from metal oxides like nickel, manganese, or cobalt. These materials offer high resistance to thermal shock and chemical corrosion, critical for longevity. Manufacturers subject these components to rigorous testing, including thermal cycling between -40°C and 85°C, to simulate years of fridge operation. A thermistor that survives 1,000 cycles without performance degradation is considered reliable for at least a decade of use. This level of durability is non-negotiable, as a failing thermistor can lead to inaccurate temperature control, spoiling food and increasing energy consumption.
Reliability extends beyond material choice to the thermistor's integration within the fridge system. Proper placement is key—it must be positioned in an area with consistent airflow, away from direct contact with cooling coils or defrost heaters. For example, thermistors are often mounted on the evaporator outlet or in the fridge compartment's center, where temperature fluctuations are minimal. Additionally, the wiring must be shielded to prevent damage from vibration or accidental contact with moving parts. A well-designed system ensures the thermistor remains stable, providing accurate readings to the control board without interference.
Practical maintenance tips can further enhance a thermistor's lifespan. Regularly cleaning the fridge's interior reduces dust and debris buildup, which can insulate the thermistor and skew readings. Avoid placing hot items directly into the fridge, as rapid temperature changes can stress the component. If a thermistor fails, replacement should be done by a professional, as improper installation can void warranties or cause further damage. For DIY enthusiasts, testing a thermistor's resistance with a multimeter (expecting a decrease in resistance as temperature rises) can diagnose issues before they escalate.
In summary, the durability and reliability of a thermistor in a refrigerator hinge on its material resilience, protective design, and strategic placement. By withstanding the fridge's demanding conditions, it ensures long-term, stable performance, which is essential for food safety and energy efficiency. Whether through advanced manufacturing or thoughtful maintenance, prioritizing these factors guarantees a thermistor that operates seamlessly for years, making it a cornerstone of modern refrigeration technology.
Top Places to Buy Bosch Refrigerators in Charlotte, NC
You may want to see also
Frequently asked questions
A thermistor is a temperature-sensitive resistor that changes its resistance with temperature. In a refrigerator, it acts as a temperature sensor, providing feedback to the control system to regulate cooling and maintain the desired temperature.
A thermistor measures temperature by changing its electrical resistance as the temperature fluctuates. When the temperature rises, its resistance decreases, and when the temperature drops, its resistance increases. This change in resistance is detected by the refrigerator’s control board to adjust the cooling cycle.
The thermistor is typically located inside the refrigerator compartment, often near the evaporator coils or on the walls of the fridge. Its placement ensures it accurately senses the internal temperature to maintain optimal cooling.
If the thermistor fails, the refrigerator may not accurately detect the internal temperature, leading to issues like overcooling, undercooling, or constant running. Symptoms include inconsistent temperatures, food spoilage, or error codes on the display panel. Replacement of the thermistor is usually required to resolve the issue.
