An expansion valve is a critical component in a refrigerator's cooling system, responsible for regulating the flow of refrigerant and controlling the pressure drop between the high-pressure and low-pressure sides of the system. As the refrigerant passes through the expansion valve, it undergoes a rapid decrease in pressure, causing it to expand and cool significantly. This process, known as throttling, transforms the high-pressure liquid refrigerant into a low-pressure mixture of liquid and vapor. The cooled refrigerant then enters the evaporator coil, where it absorbs heat from the surrounding air, effectively lowering the temperature inside the refrigerator. By precisely metering the refrigerant flow, the expansion valve ensures optimal cooling efficiency, maintains consistent temperatures, and prevents issues like freezing or inadequate cooling, making it an essential element in the refrigeration cycle.
| Characteristics | Values |
|---|---|
| Function | Controls the flow and pressure of refrigerant, allowing it to expand and cool as it enters the evaporator. |
| Location | Installed between the liquid line (high-pressure side) and the evaporator (low-pressure side) in the refrigeration cycle. |
| Operation | Regulates refrigerant flow by creating a pressure drop, causing the liquid refrigerant to evaporate and absorb heat. |
| Types | Thermostatic Expansion Valve (TXV), Thermal Expansion Valve, Electronic Expansion Valve (EXV), Capillary Tube (passive alternative). |
| Key Components | Diaphragm, Valve Needle, Orifice, Sensing Bulb (for TXV), Pressure Spring. |
| Working Principle | Uses temperature and pressure feedback (via sensing bulb in TXV) to adjust the valve opening, maintaining optimal evaporator superheat. |
| Effect on Refrigerant | Converts high-pressure liquid refrigerant into low-pressure, low-temperature liquid-vapor mixture. |
| Impact on Efficiency | Ensures proper refrigerant flow, prevents liquid slugging in the compressor, and maximizes heat absorption in the evaporator. |
| Maintenance | Requires periodic cleaning and calibration to ensure accurate operation and prevent clogging or sticking. |
| Failure Symptoms | Frost buildup on evaporator coils, high suction pressure, inadequate cooling, or compressor damage due to liquid slugging. |
| Latest Advancements | Smart TXVs with electronic controls for precise modulation, improved energy efficiency, and integration with IoT systems for monitoring. |
Explore related products
What You'll Learn
- Pressure Regulation Mechanism: Explains how the valve controls refrigerant pressure for efficient cooling
- Thermostatic Control Operation: Describes how temperature changes trigger valve adjustments
- Refrigerant Flow Management: Details how the valve meters refrigerant into the evaporator
- Superheat Control Function: Focuses on maintaining optimal superheat for system efficiency
- Types of Expansion Valves: Compares thermal, electronic, and capillary tube valves
Pressure Regulation Mechanism: Explains how the valve controls refrigerant pressure for efficient cooling
The expansion valve in a refrigerator is the linchpin of its cooling efficiency, acting as a precise pressure regulator for the refrigerant. As the refrigerant enters the valve under high pressure from the condenser, the valve’s mechanism restricts its flow, causing a sudden drop in pressure. This pressure reduction transforms the refrigerant from a high-pressure liquid into a low-pressure, low-temperature mixture of liquid and vapor. The science behind this lies in the Joule-Thomson effect, where gases cool upon expansion when pressure is reduced. This phase change is critical, as it allows the refrigerant to absorb heat effectively from the refrigerator’s interior, initiating the cooling process.
Consider the analogy of a garden hose: when you place your thumb over the nozzle, the water accelerates and cools slightly due to the pressure drop. Similarly, the expansion valve creates a controlled "choke point" for the refrigerant, ensuring it expands rapidly and cools to the desired temperature. Without this precise regulation, the refrigerant would remain too warm to absorb heat efficiently, rendering the cooling cycle ineffective. The valve’s design accounts for factors like refrigerant type, flow rate, and system load, ensuring optimal performance across varying conditions.
One practical example of this mechanism is the thermostatic expansion valve (TXV), commonly used in modern refrigerators. The TXV incorporates a temperature-sensing bulb attached to the evaporator outlet. This bulb monitors the superheat—the difference between the refrigerant’s actual temperature and its boiling point at the evaporator exit. If the superheat is too high, the valve restricts flow further; if too low, it opens slightly. This feedback loop ensures the refrigerant enters the evaporator at the ideal temperature and pressure, maximizing heat absorption while preventing liquid refrigerant from reaching the compressor, which could cause damage.
For DIY enthusiasts or homeowners troubleshooting their refrigerators, understanding this mechanism can be invaluable. If the refrigerator isn’t cooling properly, the expansion valve could be malfunctioning—either stuck open, causing insufficient cooling, or stuck closed, leading to ice buildup on the evaporator. A simple test involves checking the evaporator coil’s frost pattern; uneven frosting suggests improper refrigerant flow, often tied to valve issues. While professional repair is recommended, knowing how the valve operates can help diagnose problems early and prevent costly damage.
In conclusion, the expansion valve’s pressure regulation is a masterclass in precision engineering. By controlling refrigerant pressure, it ensures the system operates at peak efficiency, balancing cooling performance with energy consumption. Whether you’re a technician, homeowner, or simply curious about how your refrigerator works, grasping this mechanism highlights the elegance of thermodynamics in everyday appliances.
Thawing Frozen Spinach Safely: A Refrigerator Guide for Fresh Results
You may want to see also
Explore related products
Thermostatic Control Operation: Describes how temperature changes trigger valve adjustments
Temperature fluctuations within a refrigerator are the silent conductors of its cooling symphony, and the thermostatic expansion valve (TXV) is the maestro ensuring every note hits perfectly. This component doesn’t merely react to temperature changes; it anticipates them, adjusting refrigerant flow with surgical precision. When the evaporator coil senses a rise in temperature—say, from frequent door openings or a warm grocery load—the TXV responds by opening wider. This allows more liquid refrigerant to pass through, rapidly cooling the coil and restoring the desired temperature. Conversely, during periods of lower demand, the valve constricts, throttling back the refrigerant flow to prevent overcooling and energy waste. This dynamic interplay between temperature sensors and valve adjustments is the cornerstone of efficient refrigeration.
Consider the TXV as a thermostat’s enforcer, translating temperature readings into mechanical action. It operates based on the principle of superheat—the difference between the actual temperature of the refrigerant vapor leaving the evaporator and its saturation temperature. If superheat increases, indicating insufficient cooling, the valve opens to supply more refrigerant. If superheat decreases, suggesting overfeeding, the valve closes to reduce flow. This feedback loop ensures the evaporator operates at peak efficiency, maintaining consistent temperatures without freezing food or cycling excessively. For instance, a well-calibrated TXV can keep a refrigerator’s interior within ±1°C of the setpoint, even under varying external conditions.
The elegance of thermostatic control lies in its simplicity and reliability. Unlike electronic systems, which can fail due to power outages or sensor malfunctions, the TXV relies on mechanical principles—thermal expansion and pressure differentials—to operate. A bulb filled with a volatile fluid, attached to the evaporator outlet, senses temperature changes. As the fluid expands or contracts, it actuates a diaphragm connected to the valve stem, modulating its opening. This design requires no external power source, making it robust and low-maintenance. However, proper installation is critical; the bulb must be securely strapped to the evaporator, and the capillary tube must be free of kinks to ensure accurate temperature sensing.
For homeowners and technicians, understanding this mechanism can demystify common refrigerator issues. If the unit isn’t cooling adequately, the TXV might be stuck closed due to debris or ice buildup. Conversely, if the evaporator frosts over, the valve could be stuck open, overfeeding refrigerant. Troubleshooting involves checking the superheat value—ideally between 5°C and 15°C for most residential systems—and inspecting the valve for obstructions. Regular maintenance, such as cleaning the evaporator coil and ensuring proper airflow, can prevent these issues. Upgrading to a TXV with a removable power element allows for easier cleaning and extends the valve’s lifespan, a practical tip for those looking to enhance their refrigerator’s performance.
In essence, the thermostatic control operation of an expansion valve is a masterclass in adaptive efficiency. By seamlessly translating temperature changes into precise valve adjustments, it ensures refrigerators operate optimally under diverse conditions. This mechanism not only preserves food quality but also minimizes energy consumption, aligning with modern demands for sustainability. Whether you’re a homeowner troubleshooting a cooling issue or a technician fine-tuning a system, grasping this process empowers you to maintain a refrigerator that performs as reliably as it cools.
Step-by-Step Guide: Connecting a Refrigerant Recovery Machine Safely
You may want to see also
Explore related products
Refrigerant Flow Management: Details how the valve meters refrigerant into the evaporator
The expansion valve is the linchpin of refrigerant flow management in a refrigerator, acting as a precise regulator that controls the amount of refrigerant entering the evaporator. Its primary function is to reduce the pressure and temperature of the liquid refrigerant, transforming it from a high-pressure liquid to a low-pressure, low-temperature mixture of liquid and vapor. This phase change is critical for efficient heat absorption in the evaporator, where the refrigerant draws heat from the refrigerator’s interior, cooling the space. Without the expansion valve’s metering capability, the refrigerant would flow unchecked, leading to inefficiency, potential damage to the evaporator, and inadequate cooling performance.
Consider the process as a carefully orchestrated dosage system. The expansion valve meters refrigerant based on the evaporator’s load, ensuring only the necessary amount enters at any given time. For instance, in a domestic refrigerator, the valve might allow 0.5 to 1.5 ounces of refrigerant per minute, depending on factors like ambient temperature and door openings. This metering is dynamic, adjusting in real-time to maintain optimal cooling. Thermostatic expansion valves (TXVs), commonly used in modern systems, are particularly adept at this, as they sense superheat (the temperature difference between the refrigerant vapor leaving the evaporator and its saturation temperature) to modulate flow. This ensures the evaporator is neither overfed, which could lead to liquid refrigerant returning to the compressor (a dangerous condition called liquid slugging), nor starved, which would reduce cooling capacity.
A persuasive argument for the expansion valve’s importance lies in its role as a safeguard. By precisely metering refrigerant, it prevents the evaporator from becoming a bottleneck in the refrigeration cycle. Imagine a scenario where refrigerant flows unrestricted: the evaporator would quickly flood with liquid, reducing its ability to absorb heat effectively. Over time, this inefficiency would strain the compressor, increase energy consumption, and shorten the system’s lifespan. Conversely, a well-calibrated expansion valve ensures the evaporator operates at peak efficiency, maximizing cooling while minimizing energy waste. For homeowners, this translates to lower utility bills and a longer-lasting appliance.
Comparatively, the expansion valve’s function can be likened to a pharmacist dispensing medication—neither too much nor too little, but just the right dose for the condition. In refrigeration, this “dose” is influenced by external conditions, such as ambient temperature and system demand. For example, during a heatwave, the valve may meter more refrigerant to meet increased cooling needs, while in cooler weather, it reduces flow to conserve energy. This adaptability is a hallmark of modern refrigeration systems, made possible by advancements in valve design and control mechanisms.
In practice, maintaining the expansion valve is crucial for its metering accuracy. Over time, debris or moisture in the refrigerant can clog the valve, impairing its ability to regulate flow. Technicians often recommend regular system checks, including cleaning or replacing the valve every 5–10 years, depending on usage. For DIY enthusiasts, monitoring symptoms like inadequate cooling or ice buildup on the evaporator can signal valve issues. A simple tip: if your refrigerator struggles to maintain temperature despite a clean condenser coil, the expansion valve may be the culprit. Addressing this promptly ensures the system operates efficiently, preserving both food quality and appliance longevity.
Preserving Homemade Mayonnaise: Safe Storage Tips Without Refrigeration
You may want to see also
Explore related products
Superheat Control Function: Focuses on maintaining optimal superheat for system efficiency
The superheat control function in a refrigerator's expansion valve is a critical mechanism for ensuring the system operates at peak efficiency. Superheat refers to the amount of heat added to the refrigerant vapor after it has completely changed from a liquid to a gas state. Maintaining the optimal superheat level is essential because it directly impacts the efficiency of the heat absorption process in the evaporator. Too little superheat can lead to liquid refrigerant entering the compressor, causing damage, while too much superheat reduces the system's capacity to absorb heat effectively.
To achieve this balance, the expansion valve dynamically adjusts the refrigerant flow based on the superheat level detected at the evaporator outlet. This is typically accomplished using a thermostatic sensing bulb attached to the valve, which responds to temperature changes. For instance, if the superheat is below the desired level (often around 5°F to 15°F for most refrigeration systems), the valve restricts refrigerant flow to allow more heat absorption. Conversely, if superheat exceeds the target, the valve opens slightly to increase refrigerant flow, ensuring the evaporator coils remain fully active without overloading the compressor.
Consider a practical example: in a commercial refrigerator, the expansion valve might be calibrated to maintain a superheat of 10°F. If the evaporator temperature drops due to reduced load (e.g., during off-peak hours), the sensing bulb detects this change and signals the valve to reduce refrigerant flow, preventing liquid refrigerant from reaching the compressor. This adaptive control not only protects the system but also optimizes energy consumption by matching refrigerant flow to actual cooling demands.
Implementing superheat control requires careful calibration and monitoring. Technicians often use a refrigerant gauge to measure superheat during system commissioning, adjusting the valve settings to achieve the desired value. Regular maintenance is crucial, as dirt or debris in the sensing bulb or valve can impair accuracy. For DIY enthusiasts, investing in a superheat calculator or app can simplify the process, though professional tools like a digital manifold gauge offer greater precision.
In summary, the superheat control function is a cornerstone of efficient refrigeration, blending precision engineering with real-time adaptability. By focusing on maintaining optimal superheat, this feature ensures the system operates reliably, consumes less energy, and extends the lifespan of critical components. Whether in a home refrigerator or an industrial cooling system, mastering superheat control is key to maximizing performance and minimizing operational costs.
Safe Storage: How Long Can Uncooked Turkey Stay in the Fridge?
You may want to see also
Explore related products
Types of Expansion Valves: Compares thermal, electronic, and capillary tube valves
Expansion valves are critical components in refrigeration systems, regulating refrigerant flow to ensure efficient cooling. Among the various types, thermal, electronic, and capillary tube valves stand out, each with distinct mechanisms and applications. Understanding their differences helps in selecting the right valve for specific refrigeration needs.
Thermal expansion valves (TXVs), the most common type, rely on temperature and pressure changes to control refrigerant flow. A sensing bulb attached to the suction line monitors the superheat—the difference between the actual and saturated vapor temperatures. As the load changes, the bulb adjusts the valve opening, maintaining optimal refrigerant flow. For instance, in a household refrigerator, a TXV ensures consistent cooling by responding to door openings or ambient temperature shifts. Its self-regulating nature makes it ideal for systems requiring precise temperature control, though it demands proper installation and periodic calibration to avoid issues like freezing or inadequate cooling.

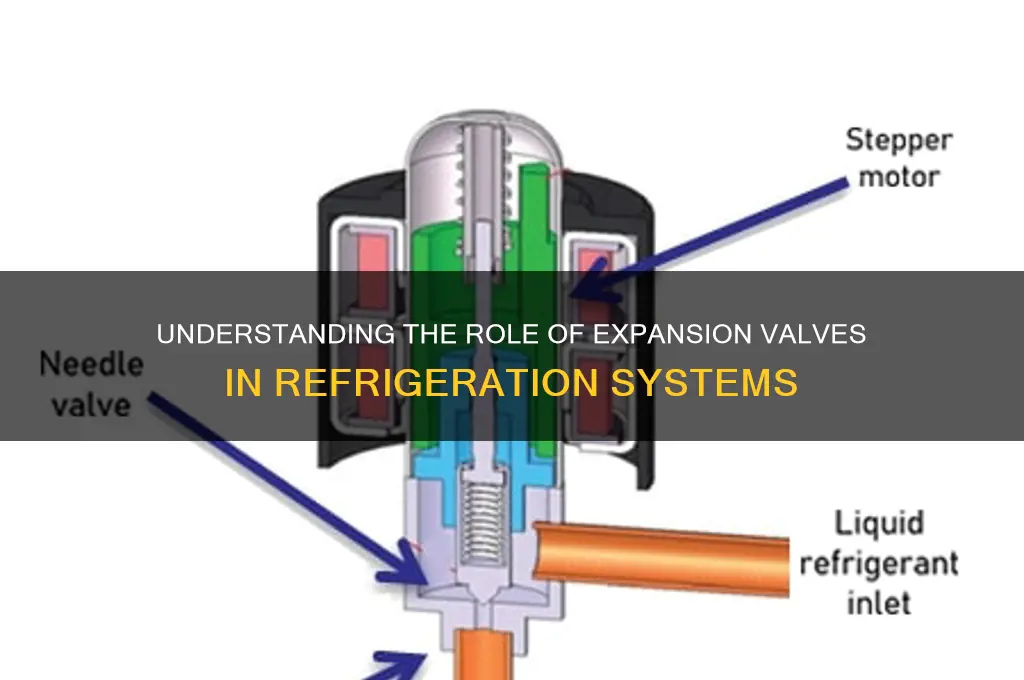

Electronic expansion valves (EXVs) offer a more advanced solution, using a stepper motor controlled by a microprocessor to modulate refrigerant flow. This allows for finer adjustments based on real-time data from sensors, such as evaporator temperature and system pressure. EXVs are particularly useful in commercial refrigeration, where energy efficiency and rapid response to load changes are critical. For example, a supermarket refrigeration system with an EXV can reduce energy consumption by up to 20% compared to traditional valves. However, their higher cost and reliance on electronic components make them less suitable for smaller, budget-conscious applications.
Capillary tube valves, the simplest and most cost-effective option, use a narrow tube to restrict refrigerant flow based on its length and diameter. Unlike TXVs and EXVs, capillary tubes lack moving parts and rely solely on the refrigerant’s pressure drop. This simplicity makes them ideal for small appliances like mini-fridges or beverage coolers, where precise control is less critical. However, their fixed orifice limits adaptability to varying loads, often resulting in less efficient operation under fluctuating conditions. For instance, a capillary tube system may struggle to maintain consistent cooling during peak usage times, leading to higher energy consumption.
In summary, the choice of expansion valve depends on the application’s requirements. TXVs provide reliable, self-regulating performance for most residential and light commercial systems. EXVs excel in demanding environments where precision and energy efficiency are paramount. Capillary tubes, while limited in functionality, offer a cost-effective solution for simple, low-load applications. Each type balances performance, complexity, and cost, ensuring there’s an optimal valve for every refrigeration scenario.
Boil Ribs, Chill Later: Mastering Prep and Storage Techniques
You may want to see also
Frequently asked questions
The expansion valve regulates the flow of refrigerant into the evaporator, controlling its pressure and temperature to ensure efficient cooling.
The expansion valve creates a narrow opening (orifice) that restricts the flow of refrigerant, causing a sudden drop in pressure and temperature as it enters the evaporator.
Common types include thermostatic expansion valves (TXV), capillary tubes, and electronic expansion valves (EXV), each with different mechanisms for controlling refrigerant flow.
The sudden pressure drop caused by the expansion valve lowers the refrigerant’s boiling point, allowing it to evaporate quickly and absorb heat from the refrigerator’s interior.
A malfunctioning expansion valve can lead to improper refrigerant flow, resulting in poor cooling, ice buildup on the evaporator, or increased energy consumption.
