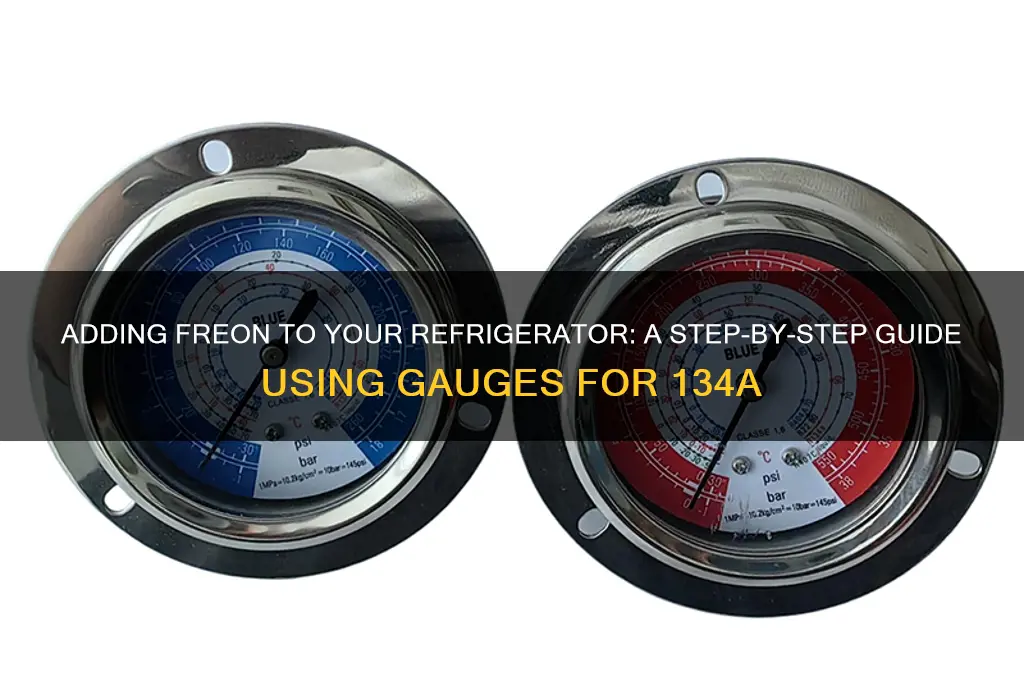

Adding freon to a refrigerator using gauges for R-134a refrigerant requires careful preparation and precision to ensure safety and efficiency. Begin by turning off the refrigerator and allowing the system to depressurize. Connect the manifold gauge set to the low-pressure side of the refrigeration system, typically the suction line, using the appropriate hose and adapter. Open the manifold valves slowly to equalize pressure and read the current system pressure. If the pressure is low, attach the freon canister to the manifold’s blue hose (low-side) and open the valve to slowly add refrigerant while monitoring the gauges. Avoid overcharging, as this can damage the compressor. Once the desired pressure is reached, close the valves, disconnect the gauges, and check for leaks using a leak detector. Always wear protective gear and follow manufacturer guidelines to ensure a safe and effective process.
| Characteristics | Values |
|---|---|
| Refrigerant Type | R-134a |
| Required Tools | Refrigerant gauges, manifold gauge set, refrigerant canister, wrenches |
| Safety Precautions | Wear safety goggles, gloves, and ensure proper ventilation |
| System Pressure Check | Check low-side and high-side pressures against manufacturer specifications |
| Connection Points | Connect gauges to service ports (low-side and high-side) |
| Adding Refrigerant | Slowly add R-134a through the low-side port while monitoring gauges |
| Target Pressure Range | Typically 0-50 psi (low-side) depending on ambient temperature |
| Overcharging Risks | Can cause high-side pressure to exceed safe limits, damaging the system |
| Leak Detection | Use soap solution or electronic leak detector before adding refrigerant |
| Cycle Testing | Run the refrigerator for 15-20 minutes after adding refrigerant to stabilize pressures |
| Disposal of Excess Refrigerant | Follow local regulations for proper disposal of unused refrigerant |
| Professional Assistance | Recommended if unsure about the process or if system issues persist |
| Environmental Impact | R-134a is a greenhouse gas; minimize leaks and handle with care |
| Compatibility Check | Ensure the refrigerator is designed for R-134a (check manual or label) |
| Pressure Gauge Accuracy | Use calibrated gauges to ensure accurate readings |
| Temperature Considerations | Ambient temperature affects target pressure; adjust accordingly |
Explore related products
What You'll Learn
- Safety Precautions: Wear protective gear, ensure proper ventilation, and handle refrigerant safely to avoid injury
- Connect Gauges: Attach manifold gauges to the refrigerator’s service ports securely for accurate pressure readings
- Evacuate System: Remove moisture and air from the system using a vacuum pump before adding refrigerant
- Add Refrigerant: Slowly charge the system with 134a while monitoring gauge pressures to avoid overfilling
- Leak Check: Inspect all connections for leaks using soap solution or electronic leak detector after charging
Safety Precautions: Wear protective gear, ensure proper ventilation, and handle refrigerant safely to avoid injury
Before handling R-134a refrigerant, prioritize your safety by wearing protective gear. Refrigerants can cause frostbite upon contact with skin and severe eye damage if splashed. Equip yourself with chemical-resistant gloves, safety goggles, and long sleeves to minimize exposure. For added protection, consider a face shield when working in confined spaces or if there’s a risk of refrigerant release. These precautions are non-negotiable, as R-134a’s low boiling point (-26.5°F) makes it hazardous in both liquid and gaseous states.
Proper ventilation is critical when adding freon to a refrigerator. R-134a is an asphyxiant, displacing oxygen in enclosed areas and posing a risk of suffocation. Work in a well-ventilated area, such as an open garage or outdoors, and use fans or open windows to ensure air circulation. If you must work indoors, monitor oxygen levels with a portable gas detector, especially in spaces smaller than 500 square feet. Never operate near open flames or sparks, as R-134a is also flammable under certain conditions.
Handling R-134a requires precision and caution. Overcharging the system can damage the compressor, while undercharging reduces efficiency. Use a refrigerant scale or gauge set to monitor the amount added, adhering to the manufacturer’s specifications (typically 3-5 ounces for a standard refrigerator). Always recover refrigerant from the system before adding more to avoid contamination or overpressure. Store refrigerant cylinders upright in a cool, dry place, away from direct sunlight or heat sources, to prevent leaks or explosions.
In the event of a refrigerant leak, act swiftly but calmly. Evacuate the area immediately if you suspect a large release, as inhaling R-134a can cause dizziness, headaches, or nausea. Use a refrigerant leak detector or soapy water to identify leaks at connections or valves. Never attempt to repair a leak without proper training or equipment. Dispose of contaminated materials and empty cylinders according to local regulations, as improper disposal can harm the environment and violate legal standards.
Finally, educate yourself on emergency procedures before starting the process. Familiarize yourself with the location of first aid supplies, including eye wash stations and burn kits. Keep the Poison Control Center’s number (1-800-222-1222) readily available. If exposed, rinse skin or eyes with water for at least 15 minutes and seek medical attention immediately. By combining protective gear, ventilation, and safe handling practices, you minimize risks and ensure a successful freon recharge.
