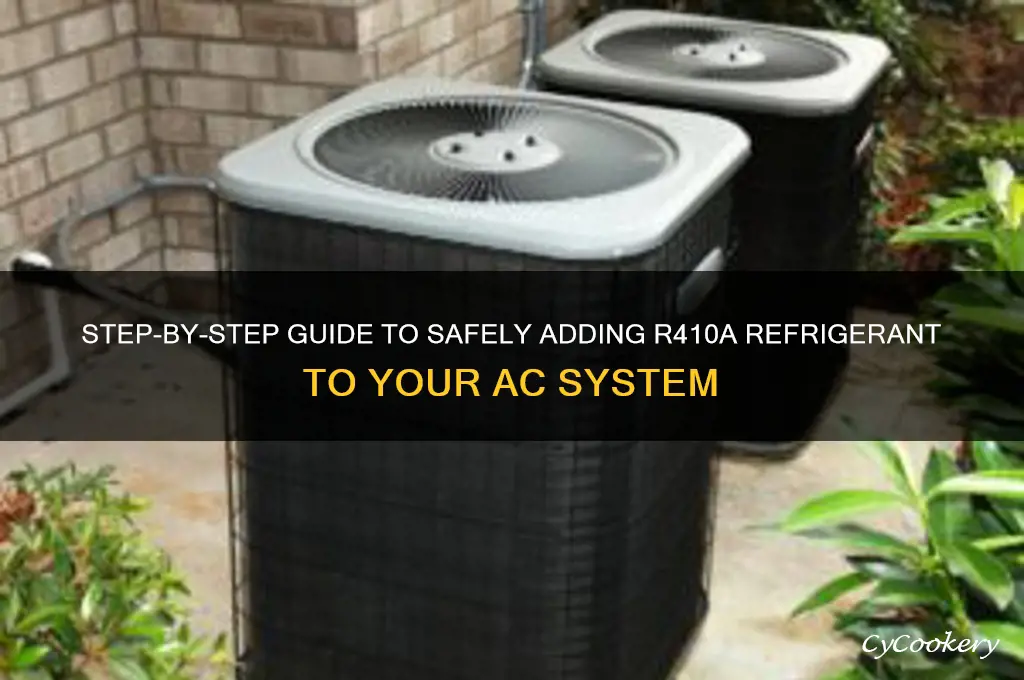

Adding R410A refrigerant to an AC system requires careful preparation and adherence to safety guidelines, as R410A operates at higher pressures than older refrigerants like R22. Before starting, ensure the system is designed for R410A, as using incompatible equipment can lead to damage or failure. Begin by evacuating the system to remove any moisture or air, using a vacuum pump to achieve a deep vacuum. Next, connect the refrigerant cylinder to the system via a charging manifold gauge set, ensuring all connections are secure and leak-free. Slowly add the refrigerant in liquid form, monitoring the system’s pressure and temperature to avoid overcharging. Always wear protective gear, such as gloves and safety goggles, and work in a well-ventilated area to minimize exposure to the refrigerant. If unsure, consult a certified HVAC technician to ensure the process is completed safely and efficiently.
| Characteristics | Values |
|---|---|
| Refrigerant Type | R-410A (a blend of R-32 and R-125) |
| Required Tools | Refrigerant manifold gauge set, vacuum pump, refrigerant scale, torque wrench, gloves, safety goggles |
| Safety Precautions | Wear protective gear, ensure proper ventilation, avoid contact with skin/eyes |
| System Preparation | Turn off the AC system, allow components to cool, check for leaks |
| Vacuuming the System | Evacuate the system to remove moisture and air (minimum 15-30 minutes) |
| Charging Method | Liquid or vapor injection based on system requirements |
| Charging Temperature | Optimal outdoor temperature: 55°F to 110°F (13°C to 43°C) |
| Charging Pressure | Follow manufacturer's specifications (typically 60-70% of total capacity) |
| Charging Procedure | Add refrigerant in small increments, monitor gauges, and avoid overcharging |
| Post-Charging Checks | Verify superheat/subcooling, check for leaks, ensure proper operation |
| Environmental Impact | R-410A is ozone-friendly but has high global warming potential (GWP) |
| Certification Requirement | EPA Section 608 certification is mandatory for handling R-410A |
| Storage and Handling | Store refrigerant in a cool, dry place; avoid exposure to direct sunlight |
| Disposal | Dispose of refrigerant according to local regulations and EPA guidelines |
| Compatibility | R-410A systems are not compatible with R-22 systems or components |
| Pressure Ratings | Higher operating pressures compared to R-22 systems |
| Manufacturer Guidelines | Always refer to the AC system's manual for specific charging instructions |
Explore related products
What You'll Learn
- Safety Precautions: Wear protective gear, ensure proper ventilation, and follow manufacturer guidelines to avoid injury
- System Preparation: Evacuate air, moisture, and old refrigerant before adding R410A to the AC system
- Charging Process: Use a manifold gauge set to add refrigerant in liquid or vapor form accurately
- Monitoring Pressure: Check superheat and subcooling levels to ensure optimal refrigerant charge and system efficiency
- Post-Charging Checks: Verify for leaks, test performance, and confirm proper operation after adding R410A
Safety Precautions: Wear protective gear, ensure proper ventilation, and follow manufacturer guidelines to avoid injury
Handling R410a refrigerant demands strict adherence to safety protocols to prevent chemical burns, frostbite, or inhalation hazards. Unlike its predecessor R22, R410a operates at significantly higher pressures, making protective gear non-negotiable. Always wear nitrile gloves resistant to refrigerant oils, safety goggles to shield against accidental splashes, and long-sleeved clothing to minimize skin exposure. In extreme cases, such as working on large commercial systems, consider a face shield for added protection. These precautions are not optional—they are essential barriers against the refrigerant’s caustic nature.
Proper ventilation is equally critical when adding R410a to an AC system. Refrigerants displace oxygen, creating a risk of asphyxiation in confined spaces. Ensure the work area is well-ventilated, ideally outdoors or in a space with continuous airflow. If working indoors, use exhaust fans or open windows to maintain air circulation. Never operate in basements, crawl spaces, or areas with limited air exchange without supplemental ventilation. Even small leaks can accumulate to dangerous levels in poorly ventilated environments, making this step as vital as wearing protective gear.
Manufacturer guidelines are your roadmap to safety and efficiency when handling R410a. Each AC system has specific requirements for refrigerant type, charge quantity, and procedural steps. Deviating from these instructions can lead to system damage, void warranties, or personal injury. For instance, overcharging the system can cause high-pressure cutouts or compressor failure, while undercharging reduces efficiency and cooling capacity. Always consult the service manual for precise charging procedures, including the correct amount of refrigerant and the use of compatible tools like electronic scales or manifold gauges.
Practical tips can further enhance safety during the refrigerant charging process. Work in pairs whenever possible—a second person can monitor for leaks, assist with equipment, and provide immediate help in case of an accident. Keep a refrigerant leak detector handy to identify even minor leaks before they escalate. Store R410a cylinders in an upright position, secured to prevent tipping, and avoid exposing them to direct sunlight or temperatures above 125°F (52°C). Finally, dispose of any residual refrigerant or contaminated materials according to local regulations to minimize environmental impact. These small but deliberate actions collectively create a safer working environment.
In summary, adding R410a refrigerant is a task that requires meticulous attention to safety. Protective gear acts as your first line of defense, ventilation prevents hazardous conditions, and manufacturer guidelines ensure precision and compliance. By integrating these precautions into your workflow, you not only protect yourself but also maintain the integrity of the AC system. Safety is not an afterthought—it is the foundation of every successful refrigerant charging procedure.
Maximizing Watermelon Freshness: Optimal Refrigerator Storage Time Guide
You may want to see also
Explore related products
System Preparation: Evacuate air, moisture, and old refrigerant before adding R410A to the AC system
Before introducing R410A refrigerant into an AC system, a critical step often overlooked is the thorough evacuation of air, moisture, and old refrigerant. This process is not merely a preliminary task but a cornerstone of ensuring the system’s efficiency, longevity, and safety. R410A operates at higher pressures than older refrigerants like R22, making contamination intolerable. Even trace amounts of air or moisture can lead to acid formation, corrosion, or compressor damage, while residual old refrigerant can compromise the new refrigerant’s performance. Skipping this step is akin to building a house on quicksand—it may function temporarily but will inevitably fail under stress.
The evacuation process begins with connecting a vacuum pump to the system’s service ports, typically located on the outdoor unit. The pump must be capable of achieving a deep vacuum, ideally below 500 microns, to ensure all contaminants are removed. This requires a two-stage pump for residential systems and may take 30 minutes to several hours, depending on system size and condition. During this phase, technicians should monitor the vacuum gauge closely, as fluctuations may indicate leaks or inadequate sealing. A common mistake is rushing this step, but patience here prevents costly repairs later.
Moisture is R410A’s silent adversary, as it reacts with the refrigerant to form hydrofluoric acid, a corrosive substance that damages internal components. To combat this, the system should be evacuated to a minimum of 500 microns, with 250 microns being ideal. After evacuation, a triple evacuation process—evacuate, break vacuum, and repeat three times—ensures thorough removal of moisture and air. This methodical approach is particularly crucial in humid climates or older systems where moisture accumulation is more likely.
Old refrigerant must also be completely purged, as mixing R410A with R22 or other refrigerants can lead to unpredictable system behavior and potential failure. This is achieved by recovering the old refrigerant using a recovery machine before evacuation. Technicians should verify the system is empty by checking for pressure equalization and ensuring no residual pressure remains in the lines. Failure to do so can result in a chemical reaction that clogs the system or damages the compressor.
In practice, this preparation phase demands precision and adherence to manufacturer guidelines. For instance, systems over 10 years old may require additional steps, such as replacing dryer-filters or checking for oil compatibility. DIY enthusiasts should note that while evacuation tools are available, the process often requires professional-grade equipment and expertise to meet the stringent requirements of R410A systems. Cutting corners here not only voids warranties but also risks turning a routine maintenance task into a system-wide catastrophe.
Fresh & Crisp: Easy Tips for Storing Collard Greens in Your Fridge
You may want to see also
Explore related products
Charging Process: Use a manifold gauge set to add refrigerant in liquid or vapor form accurately
Adding R410a refrigerant to an AC system requires precision, and the manifold gauge set is your most critical tool for this task. This device allows you to monitor system pressures and add refrigerant in either liquid or vapor form, ensuring accuracy and efficiency. The process begins with connecting the manifold gauge set to the AC system’s service ports, typically labeled as high-pressure (liquid) and low-pressure (suction) sides. Ensure all connections are secure to prevent leaks, as R410a operates at higher pressures than older refrigerants like R22.
The choice between adding refrigerant in liquid or vapor form depends on the system’s state and the manufacturer’s guidelines. Liquid charging is often preferred for new installations or when the system is completely empty, as it allows for faster and more controlled filling. To do this, connect the refrigerant cylinder to the manifold gauge set in an upright position, open the liquid valve on the cylinder, and use the manifold’s valves to control the flow into the system. Monitor the gauges closely to avoid overcharging, as R410a systems are sensitive to precise refrigerant levels.
Vapor charging, on the other hand, is typically used for topping off a system that already contains some refrigerant. In this case, the refrigerant cylinder should be inverted, allowing the vapor to flow into the system. This method requires careful attention to the suction pressure gauge, as adding too much vapor can lead to high superheat and reduced cooling efficiency. Always refer to the system’s subcooling and superheat targets, which can vary by manufacturer but generally aim for 10–15°F of subcooling and 10–12°F of superheat for optimal performance.
Regardless of the charging method, safety is paramount. R410a operates at significantly higher pressures than older refrigerants, so ensure all equipment is rated for its use. Wear protective gear, including gloves and safety goggles, and work in a well-ventilated area. If you’re unsure about any step, consult a professional, as improper charging can damage the system or pose safety risks.
In conclusion, using a manifold gauge set to add R410a refrigerant is a precise and methodical process. Whether charging in liquid or vapor form, understanding the system’s requirements and monitoring pressures carefully ensures optimal performance and longevity. With the right tools, knowledge, and caution, you can effectively charge an AC system with R410a, restoring its cooling capacity efficiently.
Easy Steps to Remove GE Refrigerator Light Bulb Cover
You may want to see also
Explore related products
Monitoring Pressure: Check superheat and subcooling levels to ensure optimal refrigerant charge and system efficiency
Superheat and subcooling are critical metrics for ensuring your AC system operates efficiently after adding R410a refrigerant. Superheat measures the temperature of the refrigerant vapor at the outlet of the evaporator coil compared to its saturation temperature, indicating how effectively the evaporator is absorbing heat. Subcooling, on the other hand, measures the liquid refrigerant’s temperature drop below its saturation point as it exits the condenser, revealing how well the condenser is rejecting heat. Both values must fall within manufacturer-specified ranges—typically 10°F to 20°F for superheat and 10°F to 15°F for subcooling—to avoid inefficiencies like liquid slugging or inadequate cooling.
To monitor these levels, start by connecting a manifold gauge set to the system’s service ports and allowing it to stabilize under normal operating conditions. Measure the suction line temperature with a thermocouple or infrared thermometer, then compare it to the suction pressure on the gauge to calculate superheat. For subcooling, measure the liquid line temperature and subtract the saturated condensing temperature (read from the gauge) from it. If superheat is too high, the system may be undercharged; if too low, it could be overcharged or restricted. Similarly, low subcooling suggests undercharging or non-condensables, while high subcooling points to overcharging or an oversized condenser.
Adjusting refrigerant charge based on these readings requires precision. Add R410a in small increments (1-2 lbs at a time) while continuously monitoring pressure and temperature. Allow the system to stabilize for 5-10 minutes after each addition to ensure accurate readings. Overcharging by as little as 10% can reduce efficiency by up to 15%, while undercharging compromises cooling capacity. Always refer to the system’s charging chart for target superheat and subcooling values, as they vary by equipment and ambient conditions.
Practical tips include ensuring the system is clean and free of debris, as dirt on coils can skew temperature readings. Use a digital manifold gauge with automatic calculations for superheat and subcooling to minimize human error. If the system is new or recently repaired, perform a nitrogen pressure test to check for leaks before adding refrigerant. Finally, document baseline readings before charging to track changes and troubleshoot future issues.
In conclusion, monitoring superheat and subcooling isn’t just a step—it’s the cornerstone of achieving optimal refrigerant charge and system efficiency. By understanding these metrics and responding to deviations with careful adjustments, technicians can ensure the AC system operates at peak performance, prolonging its lifespan and maximizing energy savings.
Rhubarb Storage Tips: How Long Does It Last in the Fridge?
You may want to see also
Explore related products
Post-Charging Checks: Verify for leaks, test performance, and confirm proper operation after adding R410A
After adding R410A refrigerant to an AC system, the post-charging checks are critical to ensure safety, efficiency, and longevity. Begin by verifying for leaks using an electronic leak detector or a soap bubble solution applied to fittings, valves, and coils. R410A operates at higher pressures than older refrigerants, making even minor leaks potentially hazardous. Focus on areas prone to stress, such as service ports and brazed joints, as leaks here can lead to rapid refrigerant loss and system failure. Immediate detection prevents further damage and ensures compliance with environmental regulations.
Next, test system performance by monitoring key metrics such as suction and discharge pressures, superheat, and subcooling. Ideal suction pressure should align with outdoor ambient temperature, typically around 68°F for a 75°F day, while discharge pressure should not exceed 400–450 psi to avoid compressor damage. Superheat should be within 8–12°F, and subcooling between 10–15°F for optimal heat transfer. Use a manifold gauge set and temperature clamps to measure these values accurately. Deviations indicate issues like overcharging, undercharging, or airflow restrictions, requiring adjustments to restore balance.
Confirm proper operation by assessing cooling capacity and airflow. Run the system for at least 15 minutes and check the evaporator coil for even frost patterns, ensuring no ice buildup, which signals airflow or refrigerant issues. Measure the temperature differential across the evaporator coil; a 15–20°F drop indicates efficient heat absorption. Inspect the condenser coil for cleanliness and proper fan operation, as restricted airflow reduces heat rejection and strains the compressor. Verify thermostat accuracy by comparing setpoint temperature to actual room temperature using a calibrated thermometer.
Finally, document all findings for future reference and compliance. Record pressures, temperatures, and refrigerant charge quantities to establish a baseline for troubleshooting or maintenance. If issues persist, consult manufacturer guidelines or seek professional assistance, as R410A systems require precise handling due to their high-pressure characteristics. These post-charging checks not only validate the success of the refrigerant addition but also safeguard the system’s performance and the user’s comfort.
Locate Your Frigidaire Refrigerator's Defrost Timer: A Quick Guide
You may want to see also
Frequently asked questions
Check the label on your AC unit or consult the owner’s manual. R410A is commonly used in newer systems (post-2010) and is often labeled as "Puron" or "R410A."
No, adding R410A refrigerant requires specialized equipment and training due to its high pressure. It’s illegal and unsafe to do it yourself—always hire a certified HVAC technician.
The amount depends on your system’s size and design. A technician will calculate the correct charge based on the manufacturer’s specifications and system requirements.
Common signs include reduced cooling performance, hissing noises, or ice buildup on the evaporator coils. However, low refrigerant is often a symptom of a leak, so a professional inspection is necessary.
