Changing Oil Pan On 6.0 Powerstroke: Step-By-Step Guide

Changing the oil pan on a 6.0 Powerstroke engine is a complex task that requires careful preparation and execution. The process involves draining the oil, removing the old oil pan, and installing a new one, ensuring that all seals and gaskets are properly replaced and secured to prevent leaks. It is important to identify the source of the leak accurately and clean the engine thoroughly before beginning the replacement process. This task may also require specialised tools and mechanical knowledge, and it is recommended to refer to detailed guides and videos for a successful oil pan replacement.

Locating the oil drain plug

To locate the oil drain plug on a 6.0 Power Stroke engine, first park your vehicle on a level surface and set the parking brake. Allow the engine to cool completely. The oil drain plug is located at the bottom of the oil pan. Place a suitable drain pan (minimum 15-quart capacity) below the drain plug. You will need a 19 mm or 3/4" box-end wrench (or a 6-point socket—do not use the open end of the wrench) to remove the drain plug.

It is important to note that the normal size of the oil drain plug is 14mm - 1.25mm. If the threads are stripped or damaged, you may need an oversized plug. The correct size for an oversized plug is M14 1.25 or M14 1.50.

It is recommended to invest in a Fumoto drain valve to prevent future issues with a stripped oil pan.

Removing the oil filter cap

To remove the oil filter cap on a 6.0 Powerstroke, you will first need to check if the cap is an OEM (Original Equipment Manufacturer) part or aftermarket. This is because the process of removing the cap may differ depending on the type of cap you have.

If you have an OEM oil filter cap, you can simply unscrew it by turning it counter-clockwise. You may need to use a specialised tool such as a fuel filter cap remover to get enough grip and avoid damaging the cap.

However, if you have an aftermarket oil filter cap, the process may be slightly different. Some aftermarket caps have a built-in filter, in which case you will need to replace the entire cap and filter assembly. In other cases, the filter may be permanently attached to the cap, and you will need to purchase a new OEM cap to use with a replacement filter.

It is important to note that using an incorrect cap and filter combination can lead to oil bypassing the filter, which can cause serious engine damage. Therefore, it is recommended to use OEM parts and replace the filter regularly, following the manufacturer's guidelines.

Additionally, when removing the oil filter cap, it is important to check for any signs of damage or wear, such as leaks or cracks. If any issues are found, it is recommended to replace the cap and filter immediately to avoid potential engine problems.

Cleaning the oil pan

To clean an oil pan, first, use a paint scraper or coarse steel wool to remove everything caked on. Then, take it to a self-service car wash and remove anything that will wash off. You can also use a pressure washer with soapy water. Next, spray it down with oven cleaner and let it sit for an hour. Finally, put it in the dishwasher with lots of dishwasher detergent on the pots and pans cycle. Repeat these steps until the oil pan is clean. After you are done, run the dishwasher empty to clean out any residue.

Other methods for cleaning an oil pan include using a scraper, wire wheel, and brakeclean; or using a degreaser, soaking in water/laundry detergent, and scrubbing with a bristle brush and steel wool scouring pads. If you are in California, you may not be able to access stronger solvents than B-12 Chemtool or Brakleen. In this case, you can soak the pan in dish soap and hot water and scrub it with a brush. Repeat this process until the pan is clean.

Before cleaning the oil pan, it is important to confirm that it is the source of the leak. Oil pan leaks can be difficult to repair, so it is important to be sure that it is the source of the problem before attempting to fix it.

Reinstalling the oil pan drain plug

To reinstall the oil pan drain plug on a 6.0 Powerstroke, follow these steps:

Firstly, ensure that the engine oil has drained completely. This is crucial before proceeding with reinstallation. Once drained, it's time to clean and then reinstall the oil pan drain plug. Use a suitable wrench or socket to tighten the drain plug, but be careful not to overtighten it. The recommended torque setting for the drain plug is 30 Nm, which equates to approximately 20-22 lb-ft of torque.

After tightening the drain plug, it's important to clean any oil residue or spillage around the drain plug area. This step ensures that you can easily detect any potential leaks. A clean work area will help you identify any new leaks that may develop after the oil change.

The next step is to locate the oil fill neck, which is usually on the passenger side of the engine. Through the oil fill neck, add the recommended amount of motor oil, which is typically around 15 quarts. Using a funnel during this process will help to reduce the risk of spillage.

Finally, check the engine oil level via the oil dipstick, which is usually on the driver's side of the engine. Verify that the crankcase has been filled to the correct level. Start the engine and keep an eye out for any leaks. Once the engine has cooled down, recheck the oil level to ensure it is optimal.

Checking for leaks

When changing the oil pan on a 6.0 Powerstroke, it is important to check for leaks to prevent future issues. Oil leaks can be caused by a variety of factors, including a dirty crankcase vent filter, a faulty oil pressure switch, or a stripped oil pressure sending unit.

To check for leaks, start by cleaning the engine and the area underneath it. This will help you identify the source of any new leaks. Look for wet marks, puddles, or oil residue, which could indicate a leak. Pay close attention to the oil pan, oil pressure switch, and oil pressure sending unit. If you notice any leaks, address them promptly.

In addition to visual inspection, you can perform a pressure test to check for leaks. This involves applying compressed air to the oil rail and listening for any leaks using a stethoscope or your ear. This can help you isolate the source of the leak.

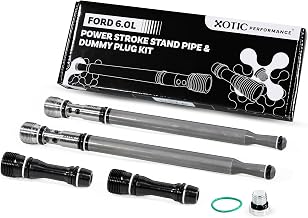

It is also important to check the condition of the O-rings, as they are prone to failure and can cause high-pressure oil leaks. Inspect the O-rings at the top and bottom of the stand pipes, as well as the rail plugs and dummy plugs in the high-pressure oil rails. If any O-rings are cut, torn, or missing, replace them.

Furthermore, oil leaks can be caused by a cracked degas bottle or wire harness chafing. Inspect the degas bottle for any cracks or leaks, especially at the seams. Check the wire harness for any signs of chafing, especially in areas where the harness touches the engine or is no longer anchored in place.

By regularly checking for leaks and addressing them promptly, you can help maintain the performance and longevity of your 6.0 Powerstroke engine.
