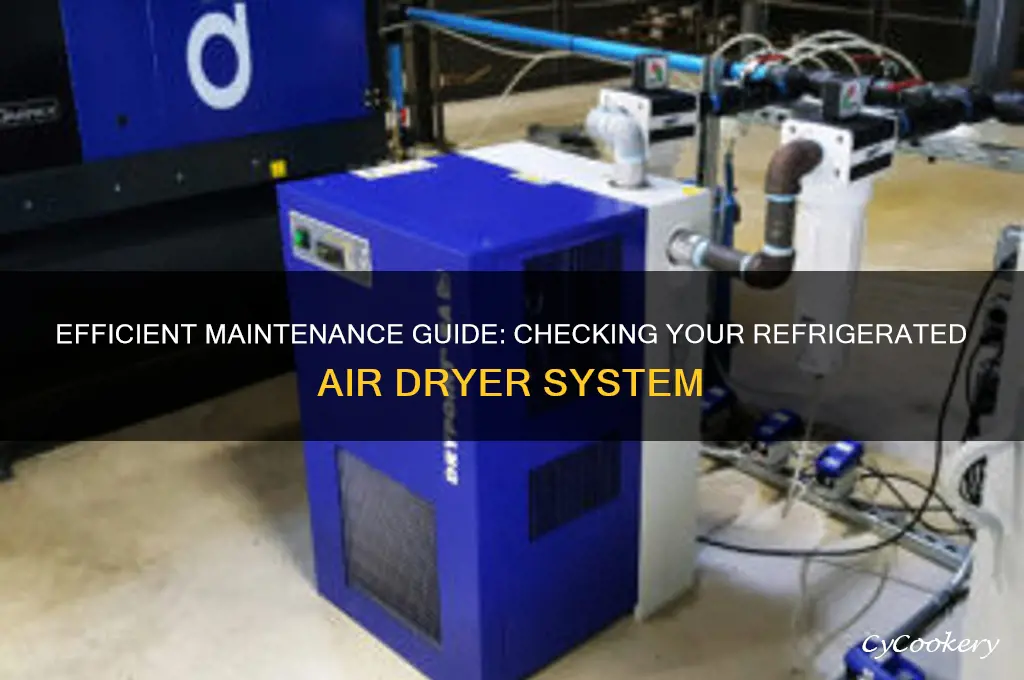

Checking a refrigerated air dryer is essential for maintaining the efficiency and reliability of compressed air systems, as it ensures the removal of moisture and contaminants from the air supply. To begin, inspect the unit’s power supply and ensure it is functioning correctly, as electrical issues can hinder performance. Next, examine the refrigerant levels and check for any leaks in the system, as low refrigerant can compromise drying capabilities. Verify the operation of the condenser and evaporator coils, cleaning them if necessary to prevent airflow restrictions and overheating. Monitor the dew point and pressure differentials to confirm the dryer is operating within optimal parameters. Finally, inspect the drain system for proper condensate removal, as clogs or malfunctions can lead to water carryover into the compressed air stream. Regular maintenance and troubleshooting of these components will prolong the dryer’s lifespan and ensure consistent air quality.
Explore related products
What You'll Learn
- Inspect Dew Point Indicator: Check for accurate readings and signs of malfunction or damage
- Examine Drain System: Ensure automatic drains are functioning and free from clogs or leaks
- Check Air Filters: Inspect for dirt buildup and replace filters if they are clogged or damaged
- Verify Pressure Dew Point: Confirm the dryer meets specified dew point requirements for optimal performance
- Inspect Electrical Connections: Look for loose wires, corrosion, or damage to ensure safe operation
Inspect Dew Point Indicator: Check for accurate readings and signs of malfunction or damage
The dew point indicator is your window into the refrigerated air dryer's performance, revealing whether it's effectively removing moisture from compressed air. A malfunctioning indicator can lead to undetected moisture buildup, leading to corrosion, equipment damage, and compromised air quality.
Regularly inspecting this component is crucial for preventative maintenance.
Visual Inspection: Begin by examining the dew point indicator for any physical damage. Look for cracks, leaks, or loose connections. Even a small crack can compromise the accuracy of readings. Ensure the display is clear and legible, free from condensation or debris that might obstruct visibility. If the indicator uses a digital display, check for error codes or unusual readings that could signal a malfunction.
Accuracy Verification: Comparing the dew point indicator reading to a known reference point is essential for accuracy verification. Use a calibrated dew point meter to measure the compressed air's dew point at the dryer's outlet. The readings should be within a few degrees Celsius of each other. Significant discrepancies indicate a potential issue with the indicator's sensor or calibration.
Trend Analysis: Tracking dew point readings over time can reveal subtle changes that might indicate a developing problem. Record readings regularly and plot them on a graph. A gradual upward trend in dew point could suggest a decline in the dryer's performance, potentially due to a failing refrigerant charge, clogged filters, or a malfunctioning control system.
Maintenance and Calibration: Regular maintenance is key to ensuring the dew point indicator's reliability. Follow the manufacturer's recommendations for cleaning and calibration intervals. Calibration involves adjusting the indicator to match a known standard, ensuring accurate readings. Neglecting calibration can lead to false readings and potentially costly consequences.
Remember, a properly functioning dew point indicator is vital for maintaining the efficiency and reliability of your compressed air system. By incorporating these inspection steps into your maintenance routine, you can identify potential issues early on, prevent costly downtime, and ensure the delivery of high-quality, dry compressed air.
Refrigerating Homemade Hummus: Optimal Storage Time and Freshness Tips
You may want to see also
Explore related products
Examine Drain System: Ensure automatic drains are functioning and free from clogs or leaks
A clogged or malfunctioning drain system in a refrigerated air dryer can lead to water accumulation, compromising air quality and system efficiency. Regular inspection of automatic drains is crucial to prevent such issues. Begin by locating the drain valve, typically positioned at the lowest point of the dryer’s separator tank. Observe the drain during operation; it should discharge water intermittently, following the cycle programmed into the dryer’s control system. If no water is expelled or the flow appears weak, this indicates a potential clog or malfunction. Use a pressure gauge to verify the system’s operating pressure, ensuring it aligns with manufacturer specifications, as low pressure can hinder proper drainage.
To troubleshoot clogs, start by disconnecting the drain line and inspecting it for debris or mineral buildup, common in areas with hard water. Flush the line with clean water or a mild vinegar solution to dissolve deposits. For persistent blockages, disassemble the drain valve and clean its internal components, ensuring the diaphragm or solenoid operates freely. If leaks are detected, examine the drain valve’s seals and fittings for wear or damage. Replace faulty components promptly, using parts recommended by the manufacturer to maintain system integrity. Always refer to the dryer’s manual for specific maintenance procedures and safety precautions.
Comparatively, manual drains require more frequent intervention but offer simplicity in maintenance. Automatic drains, however, rely on mechanical or electronic mechanisms that demand periodic verification. For timed drains, adjust the interval settings based on ambient humidity and system usage; shorter cycles may be necessary in high-moisture environments. Zero-loss drains, which expel only condensate, should be tested for proper sealing to prevent air loss. Pneumatic drains, driven by system pressure, need their sensing lines checked for obstructions. Each type has unique failure points, so tailor inspections to the specific design.
Persuasively, neglecting drain system maintenance can lead to costly consequences. Water buildup in the dryer can cause corrosion, reduce air quality, and even damage downstream equipment. For instance, moisture in compressed air systems can rust pneumatic tools or contaminate paint lines in automotive applications. Proactively addressing drain issues not only extends the dryer’s lifespan but also ensures consistent performance. Implement a monthly inspection schedule, increasing frequency in humid conditions or heavy-use scenarios. Investing time in drain maintenance yields long-term savings by avoiding emergency repairs and production downtime.
Descriptively, a well-maintained drain system operates seamlessly, almost unnoticed. During a routine check, you’ll hear the rhythmic hiss of the automatic drain discharging condensate, a sound that signifies efficiency. The drain line should remain dry between cycles, with no pooling water beneath the dryer. Transparent sight glasses, if installed, provide visual confirmation of proper operation. In colder climates, ensure the drain line is insulated to prevent freezing, which can disrupt functionality. By mastering these inspection techniques, you’ll safeguard the refrigerated air dryer’s performance, ensuring it delivers clean, dry air consistently.
Using DampRid in Your Fridge: Safe, Effective, or Risky?
You may want to see also
Explore related products
Check Air Filters: Inspect for dirt buildup and replace filters if they are clogged or damaged
Air filters are the first line of defense in a refrigerated air dryer, trapping dust, debris, and contaminants before they reach the cooling system. Over time, these filters accumulate dirt, reducing airflow and forcing the dryer to work harder, which can lead to inefficiency and premature wear. A visual inspection is the simplest way to assess filter condition. Hold the filter up to a light source; if it appears clogged or discolored, it’s time for replacement. For a more thorough check, use a pressure differential gauge to measure the drop across the filter—a reading above 5 inches of water column typically indicates excessive restriction.
Replacing filters is straightforward but requires attention to detail. Start by turning off the air dryer and releasing any residual pressure in the system. Locate the filter housing, which is usually near the air inlet, and remove the cover. Slide out the old filter, noting its orientation for proper installation of the new one. Use filters recommended by the manufacturer to ensure compatibility and performance. For systems in high-dust environments, consider replacing filters every 3–6 months; in cleaner settings, annual replacement may suffice. Always dispose of old filters properly, as they may contain harmful particles.
The consequences of neglecting air filters can be costly. Clogged filters reduce airflow, leading to higher energy consumption as the dryer struggles to maintain performance. This inefficiency not only increases operational costs but also shortens the lifespan of the dryer’s components, such as the compressor and heat exchanger. Additionally, dirty filters can allow contaminants to enter the system, compromising air quality and potentially damaging downstream equipment. Regular maintenance, including filter checks, is a small investment that pays off in longevity and reliability.
For those managing multiple air dryers or industrial systems, implementing a scheduled maintenance program is essential. Create a log to track filter replacements, noting dates and conditions observed during inspections. Pair this with a visual reminder system, such as color-coded tags, to indicate when the next check is due. In larger facilities, assign responsibility to specific team members and provide training on proper filter handling and replacement. By systematizing this task, you ensure consistency and reduce the risk of oversight, keeping your air dryers operating at peak efficiency.
Fresh Breastmilk and Refrigerated Milk: Safe Mixing Tips for Moms
You may want to see also
Explore related products
Verify Pressure Dew Point: Confirm the dryer meets specified dew point requirements for optimal performance
Pressure dew point is a critical metric for assessing the efficiency of a refrigerated air dryer, as it directly impacts the quality of compressed air in industrial applications. To verify that your dryer meets specified dew point requirements, start by consulting the manufacturer’s guidelines or system specifications, which typically outline the target dew point range—often between 35°F to 50°F (1.7°C to 10°C) for standard applications. Deviations from this range can lead to condensation, corrosion, or compromised equipment performance. Use a portable dew point analyzer or hygrometer to measure the actual dew point at the dryer’s outlet. Ensure the instrument is calibrated and suitable for the pressure range of your system, as accuracy is paramount for reliable results.
Analyzing the data from your dew point measurement requires context. For instance, if the measured dew point is consistently higher than the specified range, it may indicate issues such as refrigerant leaks, inadequate cooling capacity, or improper dryer sizing. Conversely, a dew point significantly lower than required could suggest unnecessary energy consumption, as the dryer may be overperforming. Compare the readings against ambient conditions and system load to identify anomalies. For example, a 10°F (5.5°C) difference between the ambient temperature and the dew point is a common benchmark for efficient operation, though this may vary based on specific application demands.
To troubleshoot dew point discrepancies, follow a systematic approach. First, inspect the dryer’s refrigeration system for leaks using electronic detectors or soap bubble tests. Check the evaporator coil for frost buildup, which can impede heat exchange and raise the dew point. Ensure the dryer’s controls are functioning correctly, particularly the thermostat and pressure switches, as malfunctions can lead to inconsistent cooling. If the dryer is oversized or undersized for the system, consider adjusting the load or replacing the unit to align with operational requirements. Regular maintenance, such as cleaning air filters and checking refrigerant levels, is essential to sustain optimal performance.
Practical tips can enhance the accuracy and efficiency of dew point verification. Always measure dew point under stable operating conditions, allowing the dryer to run for at least 30 minutes before taking readings to ensure thermal equilibrium. Use multiple measurement points downstream to account for variations in air distribution. For systems with variable loads, monitor dew point during peak and off-peak hours to assess performance across different conditions. Document all readings and observations for trend analysis, which can help predict maintenance needs and prevent unexpected failures. By treating dew point verification as a proactive measure, you can ensure the dryer consistently delivers dry, high-quality air for critical processes.
In conclusion, verifying the pressure dew point is not just a compliance check but a cornerstone of maintaining system integrity and efficiency. It requires a combination of precise measurement, contextual analysis, and proactive troubleshooting. By adhering to specified dew point requirements and addressing deviations promptly, you can minimize downtime, extend equipment lifespan, and optimize energy consumption. This focused approach transforms dew point verification from a routine task into a strategic practice that safeguards the reliability of your compressed air system.
Should Mojito Mix Be Refrigerated After Opening? A Guide
You may want to see also
Explore related products
Inspect Electrical Connections: Look for loose wires, corrosion, or damage to ensure safe operation
Electrical connections are the lifeblood of a refrigerated air dryer, and compromised wiring can lead to system failure or even safety hazards. A thorough inspection should begin with a visual scan of all accessible connections, looking for telltale signs of distress: frayed insulation, exposed conductors, or wires that have come loose from terminals. These issues can arise from vibration, thermal cycling, or simple wear and tear over time. For instance, a loose wire at the compressor terminal can cause intermittent operation or overheating, while corroded contacts on the control board may lead to erratic performance or complete shutdown.
Corrosion is another silent saboteur, often manifesting as a greenish or whitish residue on terminals or connectors. This buildup increases electrical resistance, leading to inefficiency and potential overheating. In humid environments, corrosion can accelerate, particularly if the dryer is located near sources of moisture or chemicals. To mitigate this, use a wire brush or fine-grit sandpaper to clean affected areas, followed by a protective coating of dielectric grease or corrosion inhibitor. For severe cases, replacement of the terminal or connector may be necessary to ensure reliable operation.
Damage to electrical components can range from minor nicks in wire insulation to cracked housings on connectors. Even small breaches in insulation can lead to short circuits or arcing, posing fire risks or damaging sensitive electronics. Inspect wires for abrasions, especially in areas where they pass through tight spaces or rub against sharp edges. If damage is detected, repair or replace the affected wiring immediately. For added protection, consider using flexible conduit or wire loom to shield cables from physical stress and environmental factors.
A systematic approach to inspecting electrical connections involves three key steps: power down the unit to eliminate shock hazards, use a flashlight to illuminate hard-to-see areas, and document findings for future reference. Pay special attention to high-current connections, such as those leading to the compressor or heating elements, as these are more prone to issues. Additionally, verify that all connections are tightened to manufacturer specifications—overtightening can strip threads or damage terminals, while undertightening can lead to poor conductivity.
Finally, consider the broader context of the dryer’s environment. Units installed in industrial settings may be exposed to dust, oil mist, or other contaminants that accelerate wear on electrical components. Regular inspections—at least quarterly in harsh conditions—can preempt failures and extend the dryer’s lifespan. Pairing visual checks with a multimeter test for continuity and resistance provides a comprehensive assessment, ensuring not only safety but also optimal performance. By treating electrical connections with the care they deserve, you safeguard both the equipment and the personnel who rely on it.
Should You Refrigerate Olive Oil? Storage Tips for Freshness
You may want to see also
Frequently asked questions
Regular checks should be performed monthly, with more detailed inspections every 6 months or as recommended by the manufacturer.
Check the air filter, condenser coils, refrigerant levels, drain trap, and electrical connections for any signs of wear, damage, or blockages.
Monitor the dew point temperature, check for consistent airflow, ensure the drain trap is functioning, and listen for unusual noises that may indicate mechanical issues.
