Checking the AC refrigerant level in your car is essential for maintaining optimal cooling performance, especially during hot weather. While some aspects of AC maintenance require professional tools and expertise, you can perform a basic inspection to determine if your refrigerant level is adequate. Start by locating the low-pressure port on your AC system, typically found on the larger of the two aluminum lines near the firewall or compressor. Use a refrigerant gauge or pressure tester to measure the pressure while the AC is running. Compare the reading to the recommended pressure range for your vehicle, which can usually be found in the owner’s manual or on a label under the hood. If the pressure is too low, it may indicate a leak or the need for a refrigerant recharge, which should be handled by a certified technician to ensure safety and compliance with environmental regulations. Regularly monitoring your AC refrigerant level can help prevent system damage and ensure your car stays cool and comfortable.
| Characteristics | Values |
|---|---|
| Method | Visual inspection, pressure gauge test, or using AC manifold gauge set. |
| Tools Required | Pressure gauge, AC manifold gauge set, thermometer, safety gloves, goggles. |
| Refrigerant Type | R-134a (most modern cars), R-12 (older cars, phased out). |
| Normal Pressure Range (Ambient Temp) | 25-45 PSI (low side), 150-250 PSI (high side) at 80°F (27°C). |
| Optimal Temperature for Testing | 70-90°F (21-32°C) for accurate readings. |
| Safety Precautions | Wear gloves and goggles; avoid contact with refrigerant or high pressure. |
| Visual Inspection | Check for oil stains, frost, or ice on AC lines or components. |
| Pressure Gauge Test | Connect gauge to low-pressure port; compare reading to ambient temperature chart. |
| Manifold Gauge Test | Connect manifold gauge set to both high and low ports; check for proper pressure balance. |
| Superheat/Subcooling | Advanced method requiring temperature measurements and calculations. |
| Professional Recommendation | Consult a certified technician if unsure or for precise refrigerant charging. |
| Frequency of Check | Annually or if AC performance issues are noticed. |
| Environmental Impact | Avoid releasing refrigerant; follow local disposal regulations. |
| Common Issues | Low refrigerant, leaks, clogged filters, or compressor failure. |
| Cost of Professional Service | $100-$300 depending on location and severity of issue. |
Explore related products
What You'll Learn
- Gather Tools: Assemble gauge set, gloves, safety goggles, and refrigerant cans for accurate and safe measurement
- Locate Ports: Identify low-pressure AC service port under the hood for gauge connection
- Connect Gauges: Attach manifold gauge set to the low-pressure port securely
- Read Levels: Observe gauge readings to compare refrigerant pressure with manufacturer specifications
- Interpret Results: Determine if refrigerant is low, overcharged, or within optimal range for performance
Gather Tools: Assemble gauge set, gloves, safety goggles, and refrigerant cans for accurate and safe measurement
Before attempting to check your car's AC refrigerant level, it's essential to gather the necessary tools to ensure accuracy and safety. A crucial component is a manifold gauge set, which typically consists of three hoses and gauges: one for low-side pressure, one for high-side pressure, and one for the refrigerant canister. These gauges provide a precise reading of the refrigerant pressure, allowing you to determine if the system is undercharged, overcharged, or functioning optimally. When selecting a gauge set, opt for one with durable hoses and clear, easy-to-read dials to minimize errors.
Equally important are personal protective equipment (PPE) items such as gloves and safety goggles. Refrigerant chemicals, particularly R-134a, can cause skin and eye irritation upon contact. Nitrile gloves are recommended over latex due to their resistance to chemicals and punctures. Safety goggles should fit snugly to protect against accidental splashes or leaks during the process. While these items may seem minor, they play a critical role in preventing injuries that could otherwise ruin your DIY maintenance experience.
Another indispensable tool is the refrigerant can, which often comes with a built-in dispensing hose. Ensure the refrigerant type matches your vehicle’s requirements—most modern cars use R-134a, but older models might still rely on R-12 (though R-12 is phased out and requires professional handling). When purchasing refrigerant, check the can’s label for the correct dosage, typically measured in ounces or grams. Overfilling the system by as little as 10% can reduce efficiency and cause damage, so precision is key.
Beyond these tools, consider having a thermometer and cleaning supplies on hand. A thermometer helps verify the evaporator’s temperature, which should ideally be between 35°F and 45°F for optimal cooling. Cleaning supplies, such as a rag and mild detergent, are useful for wiping down connections and preventing contaminants from entering the system. These additional items enhance both the accuracy of your measurement and the longevity of your AC system.
Finally, familiarize yourself with the vehicle-specific tools required for accessing the AC system. Some cars have easily accessible low-pressure ports, while others may require removing panels or components. Consult your vehicle’s manual or an online resource to identify the port locations and any unique tools needed, such as wrenches or adapters. Proper preparation not only streamlines the process but also reduces the risk of damaging sensitive components. With these tools assembled, you’re well-equipped to proceed with confidence and precision.
Samsung Smart Fridge and Alexa: A Compatible Kitchen Duo?
You may want to see also
Explore related products
Locate Ports: Identify low-pressure AC service port under the hood for gauge connection
The low-pressure AC service port is your gateway to diagnosing refrigerant issues, but finding it can feel like a scavenger hunt under the hood. Most modern vehicles locate this port on the larger, suction line between the evaporator and compressor. It’s typically capped with a blue or black dust cover, though color coding isn’t universal. Start by tracing the thicker AC line (usually insulated) from the firewall toward the engine bay. If the port remains elusive, consult your vehicle’s manual or search online forums for model-specific diagrams—a 10-minute investment that saves hours of frustration.
Once you’ve spotted the port, pause to assess its condition. Rust, corrosion, or bent threads signal potential complications during gauge connection. If the cap is missing, debris could clog the system, requiring a $20–$30 flush before proceeding. Pro tip: Carry a set of metric and standard wrenches (8–12mm or 5/16–1/2 inch) to remove stubborn caps without stripping them. Remember, this port is designed for low-pressure access, so avoid confusing it with the high-pressure port near the condenser, which operates at dangerous 200–300 PSI levels.
Connecting the gauge requires precision to avoid damaging the port or skewing readings. Attach the low-side hose from your manifold gauge set, ensuring the coupler seats firmly. If using a single-gauge kit, turn the AC to max, let the engine idle at 1500–2000 RPM, and observe the pressure. Ideal readings vary by ambient temperature: 25–45 PSI when it’s 80°F outside, for instance. If the gauge needle drops below spec, you’re likely low on refrigerant—but don’t rush to recharge without checking for leaks first.
For DIYers, a common mistake is misinterpreting port location due to aftermarket modifications or unusual layouts (e.g., Honda’s port hidden near the strut tower). If in doubt, compare your setup to a YouTube teardown video for your make/model. Some vehicles, like certain BMWs or Audis, may require specialized tools to access the port, adding $50–$100 to your toolkit. Always cross-reference your findings with a second source before proceeding to avoid costly errors.
Finally, treat the service port with care—it’s not a daily-use component but a critical diagnostic point. Over-tightening the gauge or using damaged couplers can warp the port, necessitating a $150–$300 repair. After testing, replace the cap securely to prevent moisture ingress, which accelerates corrosion. By mastering this step, you’ll transform AC troubleshooting from guesswork into a systematic process, saving time and money while ensuring your system runs efficiently.
Reusing Pickle Juice for Refrigerator Pickles: A Tasty, Eco-Friendly Hack
You may want to see also
Explore related products

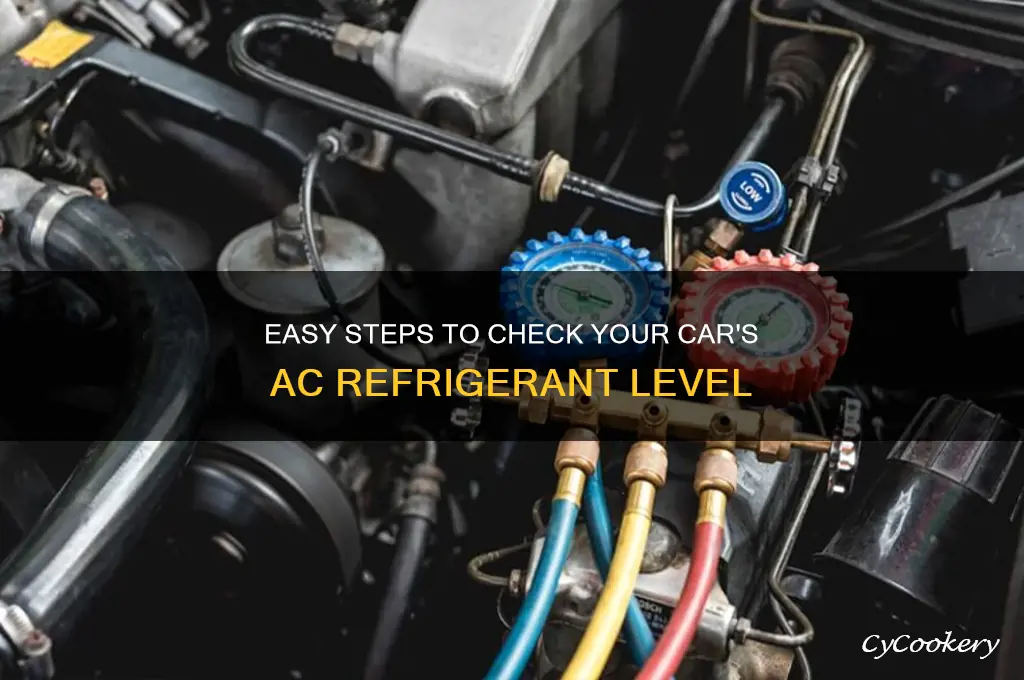

Connect Gauges: Attach manifold gauge set to the low-pressure port securely
Attaching a manifold gauge set to the low-pressure port is a critical step in diagnosing your car’s AC refrigerant level. This connection allows you to measure system pressure accurately, but it requires precision to avoid leaks or damage. Begin by locating the low-pressure port, typically found on the larger, suction line between the evaporator and compressor. It’s often labeled "L" or color-coded (usually blue). Ensure the engine is off and the AC system is depressurized before proceeding.
The process starts with cleaning the port and gauge fittings to prevent contaminants from entering the system. Use a lint-free cloth and a mild solvent if necessary. Next, attach the blue hose from the manifold gauge set to the low-pressure port. Tighten the connection by hand first, then use a wrench to secure it firmly—but avoid over-tightening, as this can strip the threads or damage the port. A snug fit is sufficient to ensure a reliable seal.
While this step seems straightforward, it’s easy to make mistakes. For instance, confusing the low-pressure port with the high-pressure port can lead to dangerous over-pressurization or inaccurate readings. Always double-check the port identification before connecting. Additionally, using damaged or worn-out gauges can compromise the integrity of the test. Inspect your manifold gauge set for cracks, leaks, or faulty valves before use.
A practical tip is to attach the gauges when the AC system is cool to avoid residual pressure. If the system has been running, wait 10–15 minutes for components to cool down. This ensures a more accurate reading and reduces the risk of refrigerant escaping during connection. Once the gauges are securely attached, you’re ready to proceed with assessing the refrigerant level, but always monitor the gauges for stability before drawing conclusions.
Creative Ways to Transform Refrigerated Cinnamon Rolls into Delicious Treats
You may want to see also
Explore related products
Read Levels: Observe gauge readings to compare refrigerant pressure with manufacturer specifications
One of the most critical steps in checking your car’s AC refrigerant level is interpreting gauge readings accurately. Modern AC systems operate within precise pressure ranges, typically between 25 and 45 psi (low side) and 150 to 250 psi (high side), depending on ambient temperature. These values aren’t arbitrary—they’re engineered to ensure optimal cooling efficiency and prevent system damage. Deviations from these ranges can indicate undercharging, overcharging, or other issues like leaks or component failure. Without understanding these specifications, you risk misdiagnosing the problem, potentially leading to costly repairs or reduced AC performance.
To read levels effectively, start by connecting your manifold gauge set to the low-pressure (suction) and high-pressure (liquid) ports of the AC system. With the engine running and the AC set to maximum cooling, observe the gauges. Compare the readings to your vehicle’s manufacturer specifications, typically found in the owner’s manual or service guide. For example, a low-side reading of 35 psi at 80°F ambient temperature might align with a properly charged system, while 20 psi could suggest undercharging. However, pressure alone isn’t conclusive—it must be cross-referenced with temperature and system behavior, such as vent air temperature and compressor engagement.
A common mistake is assuming higher pressure equals more refrigerant. Overcharging can raise high-side pressure dangerously, leading to compressor damage or burst hoses. Conversely, undercharging reduces low-side pressure, causing poor cooling and potential evaporator freeze-up. For instance, a high-side reading of 300 psi at 90°F indicates overcharging, while a low-side reading of 15 psi at 75°F suggests a severe refrigerant shortage. Always consult a temperature-pressure chart specific to your refrigerant type (e.g., R-134a or R-1234yf) to avoid misinterpretation.
Practical tips can enhance accuracy. Ensure the vehicle is on level ground and the AC is running with the fan on high. Allow the system to stabilize for 10–15 minutes before taking readings. If using a digital gauge, verify its calibration periodically, as drift can lead to false diagnostics. For older vehicles, consider the system’s age and potential wear—seals and hoses degrade over time, affecting pressure retention. If readings consistently fall outside specifications, inspect for leaks using a UV dye or electronic detector before adding refrigerant.
In conclusion, reading gauge levels is both an art and a science. It requires attention to detail, cross-referencing with manufacturer data, and an understanding of how ambient conditions influence pressure. By mastering this step, you can diagnose AC issues confidently, ensuring your system operates efficiently without unnecessary repairs. Remember, precision in this process isn’t just about fixing the AC—it’s about preserving the longevity of your vehicle’s cooling system.
Efficient Defrosting Techniques in Modern Refrigerators Explained
You may want to see also
Explore related products
$21.99
Interpret Results: Determine if refrigerant is low, overcharged, or within optimal range for performance
After assessing your vehicle's AC system, interpreting the refrigerant level is crucial for optimal performance. A low refrigerant charge can lead to poor cooling, increased fuel consumption, and potential damage to the compressor. To determine if the refrigerant is low, observe the system's behavior: if the AC blows warm air, especially on hot days, or if the cooling capacity decreases over time, it's likely low. Additionally, listen for unusual noises, such as gurgling sounds from the refrigerant lines, which may indicate an insufficient charge.
When analyzing the results, consider the refrigerant pressure readings. A low-side pressure reading significantly below the recommended range (typically 25-45 psi for most vehicles) suggests a low refrigerant level. However, be cautious not to misinterpret low pressure as a definitive sign of low refrigerant, as other factors like a clogged expansion valve or evaporator can also cause low pressure. To confirm, compare the high-side and low-side pressure readings; a large discrepancy may indicate a restriction or other issue, rather than a simple low refrigerant level.
Overcharging the AC system can be just as detrimental as undercharging. An overcharged system may exhibit symptoms such as poor cooling, high-side pressure readings exceeding the recommended range (typically 200-300 psi), and possible damage to the compressor or other components. To avoid overcharging, always refer to the manufacturer's specifications for the correct refrigerant capacity, typically listed in ounces or grams. As a general guideline, most passenger vehicles require between 15-30 ounces of refrigerant, but this can vary widely depending on the make and model.
To ensure accurate interpretation of results, follow a systematic approach: first, record baseline pressure readings with the AC system off. Then, start the engine, turn on the AC to maximum cooling, and record the high-side and low-side pressures. Compare these readings to the manufacturer's specifications, taking into account ambient temperature and humidity. If the refrigerant level is within the optimal range, the system should maintain stable pressures, provide adequate cooling, and operate efficiently. Regularly monitoring and interpreting AC refrigerant levels can help extend the life of your vehicle's AC system and ensure consistent performance.
In practice, consider using a refrigerant gauge set with temperature compensation to account for ambient conditions. For example, if the ambient temperature is 90°F (32°C), a low-side pressure reading of 35 psi may be within the optimal range, whereas the same reading at 60°F (15°C) would indicate an overcharged system. By understanding the relationship between temperature, pressure, and refrigerant level, you can make informed decisions about your vehicle's AC system. Remember, proper interpretation of results requires a combination of technical knowledge, attention to detail, and adherence to manufacturer guidelines.
Safely Adding Dye to Your Refrigeration System: A Step-by-Step Guide
You may want to see also
Frequently asked questions
Signs of low refrigerant include weak or warm air from the vents, hissing noises from the AC system, or ice buildup on the evaporator coils. You can also use a manifold gauge set to check the pressure, but this requires some technical knowledge.
Yes, you can visually inspect the AC system for leaks or use a UV dye kit to detect leaks. However, accurately measuring refrigerant levels typically requires a manifold gauge set or a refrigerant scale, which are professional tools.
The normal pressure range varies depending on the ambient temperature and the type of refrigerant (e.g., R-134a or R-1234yf). Generally, it ranges between 25–45 PSI (low side) and 150–250 PSI (high side) when the AC is running. Always refer to your vehicle’s specifications.
Recharging AC refrigerant at home is possible with DIY kits, but it requires caution. Overcharging or undercharging can damage the system. If you’re unsure, it’s best to have a professional handle it to ensure safety and accuracy.
