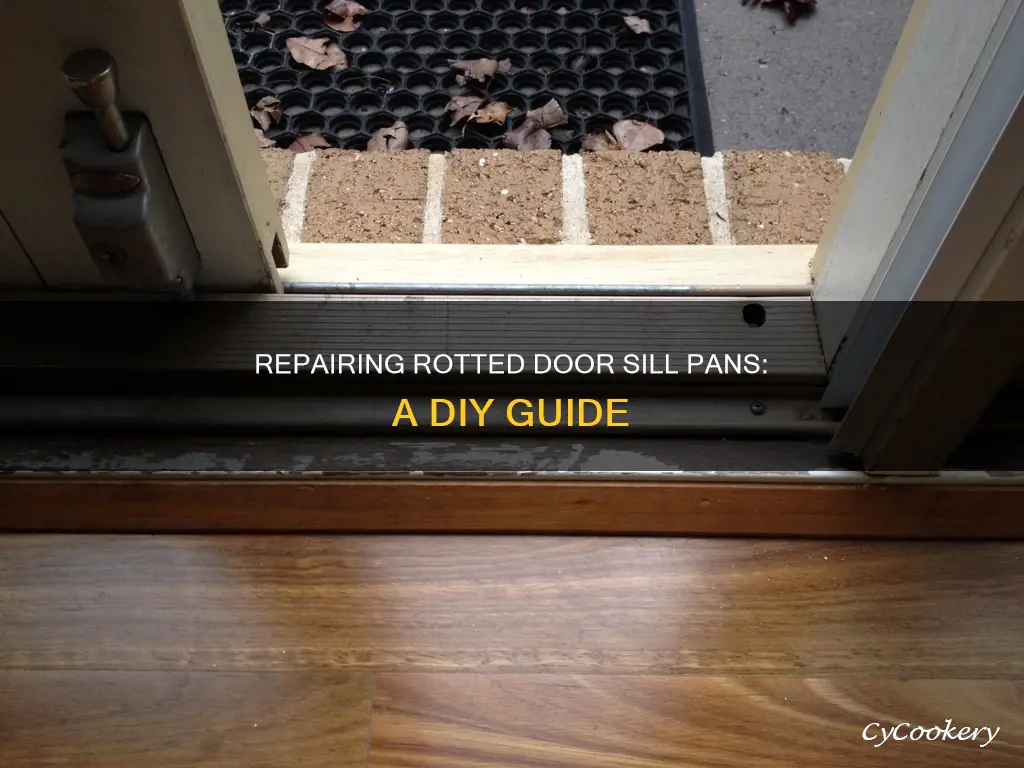

A door sill pan, or threshold, is the bottom portion of an exterior door frame. It helps to keep the elements out and provides a seal. These door sill pans can rot due to water damage, poor flashing, carpenter ants, or clogged passageways. To fix a rotted door sill pan, you must first remove the threshold and focus on the rotted door sill. You can use a reciprocal saw or chisel and hammer to remove the rotted portion. Once the rotted portion is removed, you can clean the area, treat it with polyurethane, and install a new door sill pan. You can also seal the wood with clear polyurethane to prevent future rotting.
How to Fix a Rotted Door Sill Pan
| Characteristics | Values |
|---|---|
| Cause of rot | Continuous water penetration, poor installation, poor-quality wood |
| Solution | Replace the entire door sill, treat with wood filler |
| Tools | Reciprocal saw, chisel, hammer, drill machine, screwdriver, pry bar |
| Preparation | Remove threshold, focus on the rotted door sill, remove door casings |
| Process | Measure the door sill, purchase a new sill of the same size, place the sill on the floor, cover the sill with the threshold, mark points on the sill, drill holes, place threshold and tighten screws |
| Prevention | Use laminated oak wood, seal with clear polyurethane, use flashing |
Explore related products
What You'll Learn
Identify the cause of the rot
The door sill is the bottom portion of your exterior door frame. It helps to keep water and wind out of your house. The threshold is used to cover the door sill to prevent it from rotting. It is usually made of metal.
The door sill is usually made of wood. Over time, due to exposure to weather and foot traffic, the door sill starts to rot. Continuous contact with water can cause the door sill to split and crack. In addition, the quality of the wood and errors made during installation can also cause the door sill to rot faster.
In many houses, there is a drain line under the door sill. A clogged passage and continuous water overflow can cause the sill to rot. If the drain is overflowing, clean it and remove all dust and mud before replacing the door sill. It is better to cover this drain with something other than wood.
If the door is exposed to wind-blown rain or splashback, the door jambs can get wet. When water dribbles down the jambs, it will find a crack between the jamb and the threshold, soaking the subfloor under the door. Eventually, you will end up with a rotting subfloor and a rotting rim joist.
Poor flashing can also cause the door sill to rot. Flashing helps to prevent wind-blown rain from getting in and rotting the subfloor.
Copper Pan Ratings: Are They Worth the Hype?
You may want to see also
Explore related products
Remove the threshold
To remove the threshold of a door sill pan, you will need to first remove the door casings on either side of the doorway. Use a pry bar to gently tug at them and set them aside. Next, use a circular saw to cut the threshold into three pieces. Cut almost to the bottom but do not cut all the way through. Finish the cut with a handsaw.
Now, insert a pry bar beneath each section of the threshold and pull it free. If a section is stuck, use a hammer and chisel to break it into smaller pieces before prying. Once the threshold is removed, you can focus on the rotted door sill. The door sill is usually tightly attached to the door jamb, so you may need to use a reciprocal saw to cut the rotted door sill into pieces. Alternatively, you can use a chisel and hammer to remove the cut portion.
Repeat the process until the entire door sill is removed. You may need to cut the sill into pieces before removing it as it is nailed beneath the jambs. First, cut out a large middle section, then chisel or pry out the smaller sections on the sides.
Pork Tenderloin: Perfect Pan-Searing
You may want to see also
Explore related products
Remove the rotted door sill
To remove a rotted door sill, you will first need to remove the threshold. The threshold is the metal covering on top of the door sill. Once the threshold is removed, you can focus on removing the rotted door sill.
The door sill is usually attached to the door jamb. If the door sill is tightly attached, use a reciprocal saw to cut it into pieces. You can also use a chisel and hammer to remove the cut portions. Repeat this step until you have removed the entire door sill, including the part that is beneath the door jamb.
If your door sill is made of wood, it may be easier to cut it into three pieces. First, use a circular saw to cut almost to the bottom of the threshold, but do not cut all the way through. Then, use a handsaw to cut the rest of the way through the threshold. This will give you more control and help to prevent accidentally cutting the toe kick.
If your door sill is glued or screwed onto the jamb, you will need to remove the door stop trim on either side of the door. You may be able to reuse the trim, so be careful when removing it. Once the trim is removed, you should be able to see the attachment points between the door sill and the jamb. Use a chisel to remove any remaining pieces of the rotted door sill.
Before replacing the door sill, take the time to address any water issues that may have caused the rot. Check for clogged drain lines or continuous water overflow, as these can cause the new sill to rot over time.
Replacing Oil Pan Gasket in a 2000 Ford Taurus
You may want to see also
Explore related products
Clean the drain
Cleaning the drain is an important step in fixing a rotted door sill pan. Here are some detailed instructions to guide you through the process:
First, identify the source of the clogging or blockage. Remove any debris, such as leaves, dirt, or mud, that may have accumulated in the drain. You can use a garden hose to wash away the dirt and debris, or a wet/dry vacuum to suction out the blockage. Ensure that you also check for any signs of root intrusion, as tree or plant roots can sometimes grow into drain pipes, causing blockages.
Next, inspect the drain for any signs of damage. Over time, pipes can become cracked or broken, which can lead to blockages and backups. If you notice any damage, you may need to replace a section of the pipe or repair it with a pipe relining technique. It is important to address any damage to prevent further issues and ensure the effectiveness of the drain.
Additionally, consider using a drain cleaning solution or natural remedies to help break down any remaining clogs or blockages. There are various commercial drain cleaners available, but you can also use a mixture of baking soda and vinegar, followed by hot water, to naturally clear the drain. This step will help ensure that the drain is thoroughly cleaned and maintained.
Finally, as a preventive measure, consider installing a drain cover or grate to catch debris and prevent larger objects from entering the drain. Regular maintenance, such as periodic cleaning and inspections, will also help keep your drain clear and functioning properly, reducing the risk of future blockages and water backups.
By following these steps, you can effectively clean the drain as part of the process of fixing a rotted door sill pan.
Pan-Seared Steak: Why the Extra Step?
You may want to see also
Explore related products
Place the new door sill
Once you have removed the old door sill, you can start preparing to place the new one. If you have not already, measure the length of the door sill and ensure that the new threshold is of equal size. If your new door sill is made of wood, coat it with two coats of clear polyurethane to seal the wood.
Now, you are ready to place the new door sill. Slide the new threshold into place, ensuring that both sides of the new door sill sit correctly beneath the door jamb. Place the threshold on the door sill and mark points on the door sill with a marker, going through the holes of the threshold. Use a drill machine to dig holes in the door sill on the marked places. Now, place the threshold on the door sill correctly and tighten the screws using a screwdriver.
You may prefer to match the exterior part of the door sill to the same colour as the door frame. If you wish to do this, now is the time to apply paint or another finish to the door sill.
Panning for Gold: Pan or No Pan?
You may want to see also
Frequently asked questions
You will only know about the rot problem when the door sill starts showing signs on the visible part.
If the door sill is tightly attached to the door jamb, use a reciprocal saw to cut the rotted door sill into pieces. You can also use a chisel and hammer to remove the cut portion.
The rot is likely caused by water seeping under the door sill from the outside. It could also be due to poor flashing, water damage, carpenter ants, or clogged drains.
Fix the leak that caused the rot. If there is no weather stripping along the door's bottom edge, add some. You can also use a backer rod and a quality polyurethane sealant.
Place the new sill on the floor and cover it with the threshold. Mark points on the door sill through the threshold's holes. Drill holes in the door sill and use screws to tighten the threshold.
