Fixing Stripped Threads In Aluminum Oil Pans: A Comprehensive Guide

how to fix stripped threads in aluminum oil pan

Stripped threads in an aluminium oil pan can be repaired by using a tap to clean up the threads and see if they can accept the drain plug. If the threads are beyond repair, you can use a kit to oversize the hole, tap it, and insert a helicoil to bring the threads back to their original size. It is recommended to get a professional machinist to do this repair, especially on soft metals like aluminium.

How to fix stripped threads in an aluminum oil pan

Characteristics Values
Tools Tap, drill, counterbore, driver, tapguide, wrenches
Materials Steel insert, oversized bolt, oil, grease, loctite, bonded sealing washers, captivated O-ring gasket
Techniques Running a tap through threads, using a kit, drilling out, tapping, inserting a helicoil, using a self-tapping oversized drain plug

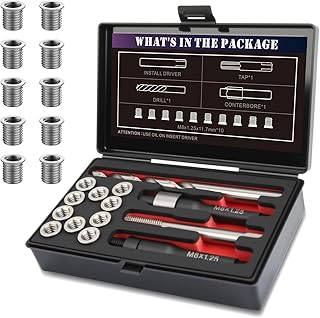

Kits TIME-SERT, M14 X 1.50 Metric Drain Plug Kit, M12x1.5 SHORT Oil pan or engine case, M12x1.75 Oil Pan thread repair, M14x1.5 Oil Pan thread repair

cycookery

Using a tap kit to clean threads

Taps are designed to cut new threads, but they can also be used to repair damaged or deformed threads. When using a tap to repair stripped threads, it is important to be gentle, as too much force can result in cutting new threads and removing too much of the existing threads. This can lead to reduced overlap between the female threads in the engine block and the male threads on the bolt, which can cause stripped threads.

To use a tap kit to clean the threads in an aluminium oil pan, follow these steps:

  • Purchase or acquire a tap kit that matches the size and pitch of the threads in your oil pan.
  • Ensure that the area around the stripped threads is clean and free of debris.
  • Align the tap with the stripped threads, being careful not to cross-thread.
  • Turn the tap slowly and gently, allowing it to cut the threads in steps rather than all at once.
  • Continue turning the tap until you have repaired the stripped threads.
  • Remove the tap and inspect the threads.
  • If necessary, use a thread chaser to clean and reshape the repaired threads.
  • Apply a penetrating oil to the threads to help prevent future issues.

It is important to note that using a tap to repair stripped threads can be tricky, and it may be necessary to try multiple times before achieving success. It is also crucial to minimise the creation of metal shavings during the process, as these can contaminate the oil pan. To avoid this, use grease or oil to lubricate the tap and remove it frequently to clean off any shavings.

cycookery

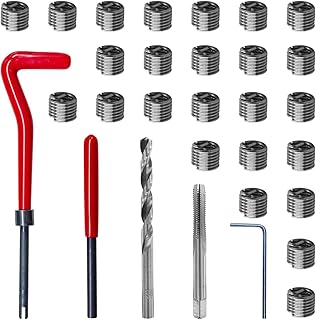

Inserting a helicoil to bring threads back to original size

A helicoil is a coiled threaded insert that can be installed into the part, providing the correct threads for the original fastener. This is a common method used to repair stripped threads.

To insert a helicoil, you will need to:

  • Drill out the original hole to match the new coil. Ensure that you drill to the end of the hole, but not deeper than necessary to avoid damaging something on the other side.
  • Thread the new hole with the correct tap for the size of the insert. These are not standard 60-degree thread taps, but specific Screw Thread Insert (STI) tools.
  • Install the helicoil insert. This process will differ depending on the thread pitch of your fastener, either coarse or fine.
  • For a coarse thread, mount the helicoil insert onto the installation tool and rotate it until the tang mates with the drive notch. Then, thread the insert into the hole to the proper depth and remove the tool.
  • For a fine thread, install the helicoil insert into the pre-coil tool, which compresses the insert to the correct size. Thread the install tool into the insert inside the pre-coil body and spin until it is fully threaded. Hold the pre-coiled assembly to the hole and thread the installer tool so that the insert threads out of the pre-coiler and into the repaired hole.
  • Remove the tang. This can be done by using a punch that fits snugly into the insert and hitting it with a hammer. The tang can also often be snapped off by hand.

The helicoil insert should now be installed, bringing the threads back to their original size.

cycookery

Using a self-tapping oversized drain plug

If you're looking for a quick, affordable solution to fix a stripped thread in an aluminum oil pan without replacing the pan, a self-tapping oversized drain plug is a great option. This method is much easier than drilling out the old threads and tapping a new, larger hole, and it doesn't require any welding.

Self-tapping oversized drain plugs are available in a range of sizes, typically in increments of 0.4 and 0.8 mm. It's important to select the correct size for your specific application. The plug should be slightly larger than the original drain plug to ensure a tight fit and effective sealing.

When installing a self-tapping oversized drain plug, it's crucial to exercise patience. The process may require some effort, especially when seating the plug for the first time. It's also important to use a suitable washer, such as a captivated O-ring style gasket, to ensure a secure seal. These washers are more forgiving if the drain plug is not perfectly square to the mating surface, reducing the risk of leakage.

While self-tapping oversized drain plugs offer a convenient and cost-effective solution, it's worth noting that they may not be suitable for all situations. For a more permanent fix, you might consider other methods such as using a thread repair kit, helicoil, or timesert. These methods typically involve drilling and tapping new threads, providing a more robust and long-lasting solution.

Catering Pan Prices in Nigeria

You may want to see also

cycookery

Using a captivated O-ring style gasket

If you are looking to fix stripped threads in an aluminum oil pan, one solution is to use a captivated O-ring style gasket. This type of gasket is much more forgiving if the drain plug is not perfectly square to the face of the oil pan. It only requires enough torque to prevent the plug from backing out.

To install a captivated O-ring style gasket, you will need to follow these steps:

  • Remove the stripped bolt or drain plug: Start by removing the stripped bolt or drain plug from the aluminum oil pan. This will allow you to access the stripped threads and prepare the surface for the new gasket.
  • Clean the surface: Before installing the new gasket, it is important to clean the surface of the oil pan thoroughly. Remove any debris, oil, or residue that may interfere with the seal.
  • Prepare the captivated O-ring gasket: Read the instructions provided with the gasket kit carefully. Some gaskets may require you to apply a sealant or lubricant to ensure a proper seal. Prepare the gasket according to the manufacturer's instructions.
  • Insert the captivated O-ring gasket: Place the gasket onto the drain hole of the oil pan, ensuring that the O-ring is seated properly within the groove on the gasket. The O-ring provides a tight seal between the gasket and the oil pan.
  • Install the new drain plug: With the gasket in place, you can now install the new drain plug. Make sure the plug is compatible with the captivated O-ring gasket and follows the manufacturer's specifications.
  • Torque the drain plug: Tighten the drain plug with the appropriate torque specification for your vehicle. Refer to the vehicle's repair manual or seek advice from a professional mechanic if you are unsure about the correct torque value.
  • Test for leaks: Once the new drain plug is installed, refill the oil and start the engine. Let it run for a few minutes, then check for any signs of leaks around the drain plug. If there are no leaks, you have successfully fixed the stripped threads using the captivated O-ring gasket.
Time Needed for PAN Card Corrections

You may want to see also

cycookery

Drilling and tapping a new, larger hole

If you are confident in your ability to drill and tap a new hole, this can be a good solution to fix stripped threads in an aluminium oil pan. However, it is important to note that this is a challenging process and it is easy to make mistakes. Drilling and tapping a new hole will require a lot of patience and careful work.

Firstly, you will need to drill out the old threads. This will require a lot of care to ensure that the new hole is exactly perpendicular to the mating surface so that the new drain plug seals correctly. Drilling out the old threads can also result in metal shavings, so it is important to try to minimise these and flush them out with oil to prevent them from causing damage to your engine.

Once the old threads have been drilled out, you will need to tap the new, larger hole. This process can be tricky, as the drain plug threads are tangent to the bottom of the pan. It is important to use a tap that is the correct size for the new hole and to take your time to ensure that the tap is straight and does not cross-thread.

After tapping the new hole, you will need to insert a new, larger drain plug. It is important to use a plug with a captivated O-ring style gasket, as this will help to ensure a good seal even if the plug is not perfectly square to the surface. When tightening the new plug, be careful not to over-tighten, as this could strip the new threads.

Overall, drilling and tapping a new, larger hole is a challenging but feasible solution to fix stripped threads in an aluminium oil pan. It requires careful work and patience, but can be a good option for those with the necessary skills and knowledge.

Frequently asked questions

You can first try running a tap through the threads to clean them and see if they can accept the drain plug. If this doesn't work, you can buy a kit to help you fix the issue. The kit will allow you to oversize the hole, tap the hole, and insert a helicoil to bring the threads back to their original size.

It is important to make sure everything is square and to try to get as many shavings out of the pan as possible. You can use grease instead of oil to lubricate the drill and tap to minimize shavings. After the repair, you can pour oil through the system to flush out any remaining shavings.

Some products that can be used include Time-Sert, self-tapping oversized drain plugs, and Helicoil.
