Marianne Martinez

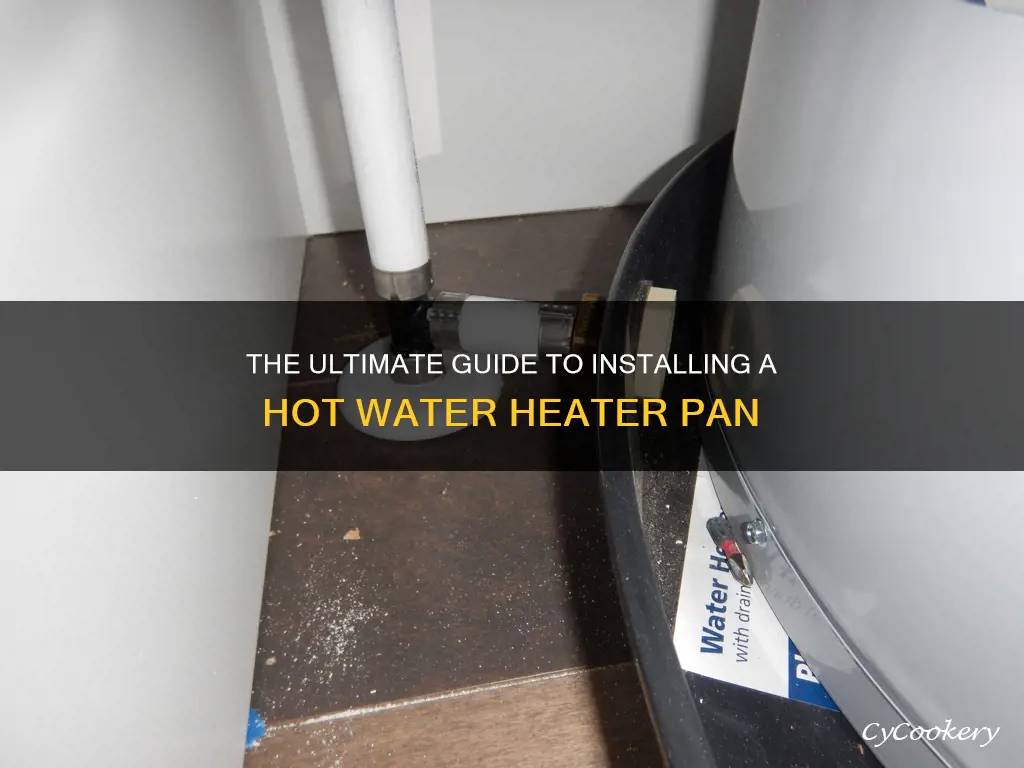

Installing a hot water heater pan is a wise decision to protect your property from water damage and give you peace of mind. Water heaters can develop leaks over time, and a drain pan will catch any leaks and divert water away from your belongings and floors. Before installing a hot water heater pan, you must first drain the water heater and detach it from plumbing, electricity, and vent. Then, you can slide the pan underneath the heater, ensuring it is centred and stable. After that, you can connect the pan's piping and rotate the heater to orient the drain opening in the correct direction. Finally, turn the heater on for a test run to ensure it has been installed correctly.
Explore related products
$17.12 $25.17
What You'll Learn
Prepare the water heater
To prepare the water heater for the installation of a hot water heater pan, begin by turning off the water heater and closing the water and gas supply valves. Next, drain the water heater of all water. Depending on your setup, you may need to disconnect the water and gas lines, as well as the hot and cold supply lines.
If your water heater is on a stand, you will need to slowly and gently tip and roll the bottom edge of the heater off its stand. You may need to fully detach the water heater from plumbing, electricity, and vent connections.
Now, carefully lift the water heater a few inches off the ground. This can be a challenging task, and you may require assistance. Once the heater is lifted, you can slide the pan underneath. Ensure that the pan is a few inches larger than the water heater on all sides so that it can effectively catch any leaks. Position the pan so that the drain opening is oriented correctly.
Finally, gently lower the water heater back down into the pan. Tip the water heater towards you and "walk" it away from you, so the back legs are resting on the wood behind the pan. Straighten the heater and slide the pan fully into place. Tip the heater towards you again, so the front legs are in the pan, and walk it towards you until all four legs are in the pan.
Restore Silver Pans: Removing Stubborn Burn Marks
You may want to see also
Explore related products
Drain the water heater
To install a hot water heater pan, you must first drain the water heater. Here is a step-by-step guide to draining your water heater:
Firstly, turn off the water heater and close the water and gas supply valves. This is an important safety step, as it will prevent any accidental activation of the heater while you are working. It will also ensure that the tank does not refill with water while you are trying to drain it.
Next, you will need to disconnect the water and gas lines. This will involve some plumbing work, so ensure you have the necessary tools and knowledge to perform this step safely. It may be advisable to consult a professional or seek further guidance if you are unsure about any aspect of the process.
Once the water and gas lines have been safely disconnected, you can begin to drain the water from the tank. Place a bucket or a suitable container under the drain valve to collect the water. Open the drain valve slowly and allow the water to flow out. You may need to open any hot water faucets in your home to allow air into the tank and facilitate the drainage process.
Continue draining the tank until the water flow slows to a trickle or stops completely. Depending on the size of your tank, this process may take some time. Be patient and ensure that you have collected all the water from the tank before proceeding to the next step.
After draining the tank, you may also want to consider flushing the water heater to remove any sediment build-up. This is not strictly necessary for the installation of the pan but can be a good maintenance practice to ensure the efficient operation of your water heater.
By following these steps, you will have successfully drained your water heater, which is the first crucial step in installing a hot water heater pan.
Positioning Spiral Ham: The Perfect Pan Setup
You may want to see also
Explore related products
$41.24
Slide the pan underneath
Installing a hot water heater pan is a great way to protect your property from potential water damage. Before sliding the pan underneath, you will need to drain the water heater of all water. This is because the tank needs to be light enough to be lifted slightly so that the pan can be inserted. Depending on the size of the tank, you may need some extra pairs of hands to help with this step.
Now, lift the water heater up by a few inches and slide the pan underneath. If you are working in a tight space, you may need to slide the pan through the side of the opening. Ensure that the pan is positioned correctly, with the pan's drain opening oriented in the right direction.
Once the pan is in position, lower the water heater back down into the pan. If your water heater has legs, tip the heater towards you and "walk" it away from you so that the back legs are resting on the wood behind the pan. Then, straighten the heater and slide the pan fully into position. Finally, tip the heater towards you again, so that the front legs are resting in the pan, and walk it towards you until all four legs are in the pan.
If you are using a pan with a detachable front, you can slide the pan under the heater and then rotate it so that the detachable side faces the front. This method means that you won't need to lift the heater completely.
Kick the Pan Masala Habit: Strategies for Success
You may want to see also
Explore related products
Connect the drain
Now that the hot water heater is in the pan, it's time to connect the drain. This will ensure that any leaks are diverted away from your floors and belongings.
First, grab your drill and attach the hole saw bit. Put on your safety goggles and carefully drill a hole at the centre of the marked outline you made earlier. This is where the PVC pipe will fit. Take your PVC pipe and measure its length, ensuring it reaches the nearest floor drain or an exterior area where water can be safely discharged. Trim the pipe to the desired length using a saw or pipe cutter.
Next, attach the PVC pipe to the hole in the pan using PVC cement, ensuring a tight seal. If you're connecting to a floor drain, make sure the pipe fits securely into the drain opening. If you're directing the water outside, consider using an elbow joint to guide the water away from your home's foundation. Secure all connections with PVC cement.
Finally, turn the heater on for a test run to check if the water drain pan has been installed properly. Regularly check the drain pan and PVC pipe for any signs of leaks or blockages. It's a good idea to inspect them every few months or during routine maintenance of your water heater.
Tapping an Oil Pan for Turbo: The Ultimate Guide
You may want to see also
Explore related products
Test for leaks
To test for leaks, you should first turn off the water heater and close the water and gas supply valves. Next, drain the water heater. Depending on your setup, you may need to disconnect the water and gas lines. If your tank is connected to the water supply pipes with flexible hoses, this process will be easier.
Once the tank is drained, you can lift it slightly and slide the pan underneath. You may need multiple people to help with this step, as it can be awkward for two people to lift the tank while a third person slides the pan underneath. Ensure that the pan drain opening is oriented correctly with the water heater.
Now, turn the heater on for a test run to see if the water drain pan has been installed correctly. If you notice any leaks, turn off the appliance's water supply and power. Open a hot water faucet inside the house to relieve pressure in the tank. Check if the leak is coming from the drain valve by inspecting the valve’s outlet with a paper towel. If the leak is coming from the drain valve nozzle, try tightening the valve by hand. If the valve continues leaking, use a wrench to tighten it slowly and carefully. Avoid applying too much pressure, as this could worsen the leak. If the valve still drips water after tightening, it will need to be replaced.
If the leak isn't coming from the drain valve, the internal tank may be damaged. Sediment buildup inside the tank can cause it to crack, leading to water slowly seeping out and pooling at the bottom of the tank and in the water heater pan. Regularly flushing and draining your hot water heater can help prevent this issue by removing sediment buildup. If the tank is cracked, it will likely need to be replaced. However, it's recommended to have a local plumber inspect the system to determine if another repairable problem is causing the leak.
KPOT: The All-You-Can-Eat Korean BBQ Experience
You may want to see also
Frequently asked questions
First, turn off the water heater and close the water and gas supply valves. Next, drain the water heater and disconnect the water and gas lines. You should then be able to slide the pan under the heater. Finally, connect the drain.
You will need a drain pan, measuring tape, a marker, a drill with a hole saw attachment, a PVC pipe, PVC cement, and a level.
The pan should be a few inches larger than your water heater on all sides. This will allow the pan to catch any leaks effectively.
Gently rock the water heater back and forth to ensure it's stable on the drain pan. If it wobbles, adjust the pan's position or add shims under the water heater to level it properly.
