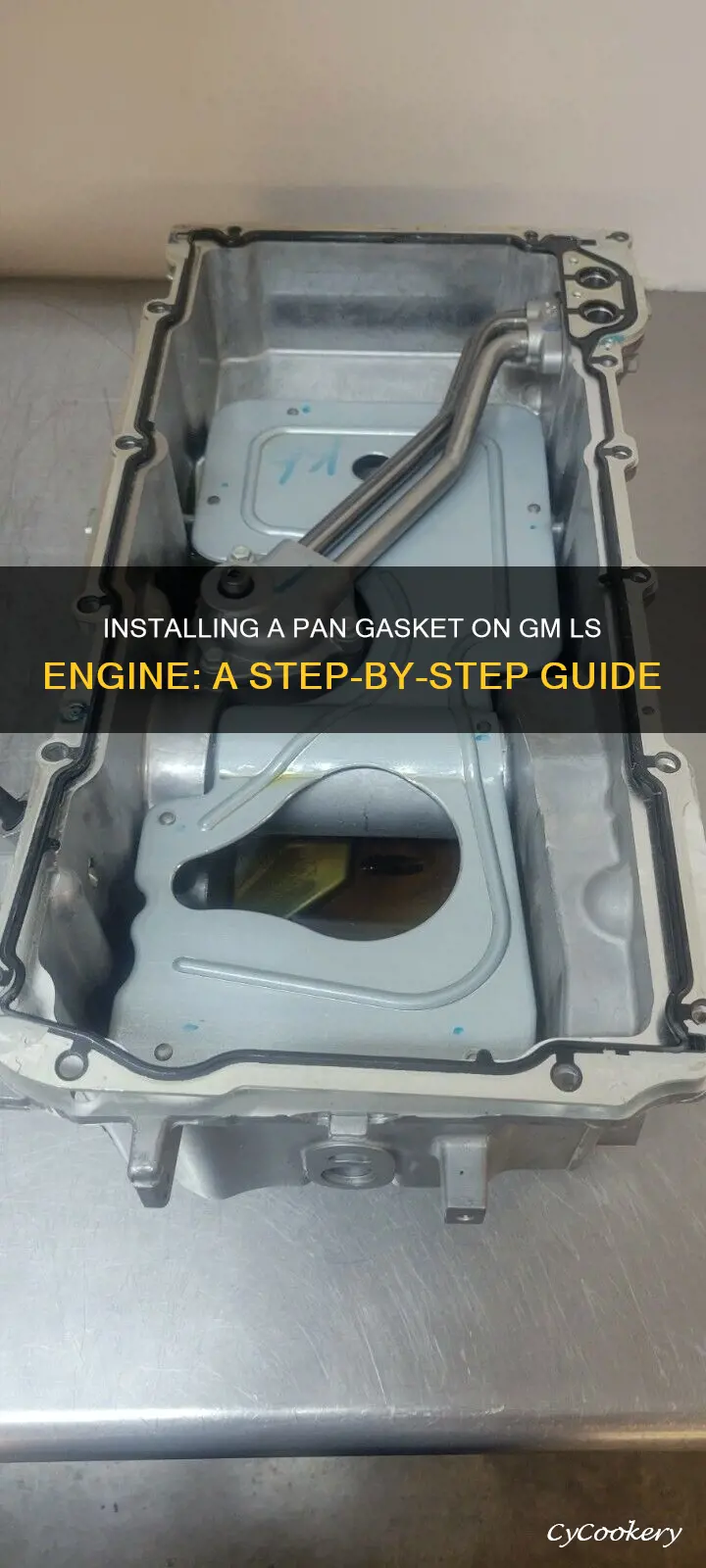

The GM LS engine uses edge-molded rubber gaskets for the oil pan gasket, timing cover gasket, and rear main bearing seal retainer plate. Gaskets can fail over time due to compression set, which occurs when the gasket becomes compressed and doesn't rebound to its original shape, causing leaks. To install a new pan gasket, the original pan must be removed, and the oil pickup tube replaced. A new pan can then be lowered into place, and the bolts tightened.
Explore related products
What You'll Learn
The GM LS engine uses edge-molded rubber gaskets
To prevent this, Fel-Pro® premium gaskets are designed with the right materials and technologies, such as PermaDry® and Printoseal®, to ensure a reliable seal. The Fel-Pro conversion set contains all the parts required to seal the lower end of the engine, including the PermaDry oil pan gasket, front and rear engine covers, front and rear crank seals, and various O-rings.
When installing a pan gasket on a GM LS engine, it is crucial to ensure proper alignment and torqueing of the bolts. The oil pan bolts should be threaded into place, starting with the center bolts, and then the rear of the oil pan should be checked to ensure it is perfectly flush with the rear of the block. This alignment is important because the bell housing bolts to the oil pan.
Additionally, a light coat of RTV can be applied along the gasket's top and bottom sides to enhance the seal. The bell housing can be removed once the bolts are TQ'd, and the front and rear covers can be placed on with the bolts loosely placed. The bolts that go through the pan should be TQ'd first, followed by the rest of the bolts. This ensures that the oil pan is sealed and aligned correctly.
It is important to note that there is no specific torque order for the pan bolts. However, it is recommended to apply high-temp RTV to the corners of the RMS cover and along the length of the bottom of the timing cover. The bolts are then torqued down to 18 lb/ft, except for the two long rear bolts, which are torqued to 106 inch-pounds.
Locating the Jeep Grand Cherokee's Oil Pan
You may want to see also
Explore related products
Gaskets can be made of rubber and aluminium
The Chevrolet Performance one-piece oil pan gaskets for GM LS-Series engines are made from aluminium and rubber. These gaskets are designed to replace the factory four-piece design, providing a more effective seal and eliminating troublesome leaks. The rubber used in these gaskets is specifically neoprene polymers, which offer superior sealing capabilities.
Fel-Pro also offers a range of gaskets for the GM LS engine, including oil pan gaskets, timing cover gaskets, and rear main seal sets. Their products feature edge-molded rubber compounds with a metal carrier to ensure a consistent and long-lasting seal. The metal carrier provides rigidity, making installation easier, and acts as a torque limiter to ensure proper loading on the gasket.
When installing a pan gasket on a GM LS engine, it is important to consider the alignment of the gasket and bolts. The oil pan should sit flat, and the alignment of the rear of the oil pan with the rear of the block is crucial. Additionally, it is recommended to apply a light coat of RTV along the gasket to improve sealing.
Overall, the choice of gasket material, such as rubber and aluminium, plays a significant role in ensuring a proper seal and preventing leaks in the GM LS engine. The use of rubber provides flexibility and sealing capabilities, while aluminium adds strength and durability to the gasket.
Fuel-Oil Mix: Causes and Solutions for This Issue
You may want to see also
Explore related products
Ensure the oil pan sits flat with no interference
When installing a new oil pan, it is important to ensure that the oil pan sits flat with no interference. This step is crucial to avoid any issues with the engine and to ensure a proper seal.
First, check that the rear of the oil pan is perfectly flush with the rear of the block. This alignment is critical as the bell housing bolts to the oil pan. In this step, you can also bolt the bell housing to the back of the block. Ensure that the oil pan is in the proper location and as straight as possible.
Next, check the gasket and bolt alignment. Thread the oil pan bolts into place and snug the center bolts.
Finally, install and tighten all the oil pan bolts, starting in the center and working outwards. Torque the bolts that thread into the block and the timing chain cover to 18 ft-lb. For the long bolts that thread into the rear cover, torque to 106 in-lb.
It is important to note that there is no specific torque order for the pan bolts. However, you should apply high-temp RTV to the corners of the RMS cover and along the length of the bottom of the timing cover.
Unlocking Pan in Budokai 3: Easy Steps
You may want to see also
Explore related products
Torque the bolts that go through the pan first
When installing a pan gasket on a GM LS engine, there are several steps to follow to ensure proper installation and sealing. One critical step in this process is torquing the bolts that go through the pan first. Here is a detailed guide to help you with this specific step:
First, it is important to understand the context of this step within the broader process of installing a pan gasket. Before torquing the bolts, you would have already removed the old gasket, cleaned the surfaces, and prepared the new gasket and pan for installation.
Now, when it comes to torquing the bolts that go through the pan, the process can be outlined in several steps. Start by placing the new oil pan into position, ensuring it sits flat and aligns perfectly with the rear of the block. This step is crucial as the bell housing bolts to the oil pan, so proper alignment is essential.
Next, you will begin threading the oil pan bolts into place. Start with the center bolts and snug them into position. Hand-tighten these bolts first to ensure the oil pan is secure and in the correct location. Then, you can move on to tightening the bolts that go through the pan.
Use the appropriate torque specifications for these bolts. For the bolts that thread into the block and the timing chain cover, torque them to 18 ft-lb. For the long bolts that thread into the rear cover, torque them to a higher value of 106 in-lb. It is important to follow the correct torque sequence to ensure even pressure and sealing.
Finally, after torquing the bolts that go through the pan, you can move on to tightening any remaining bolts, such as the bell housing bolts. Remember to refer to the service manual or seek guidance from experienced mechanics if you are unsure about the torque specifications or sequence.
Calculating Pie Pan Volume: Easy Steps to Follow
You may want to see also
Explore related products
Use a rubber hammer to break the old pan loose
When removing the original oil pan, it's important to exercise caution to avoid damaging the gasket. After all the bolts have been removed, gently wiggle the pan to loosen it. If it doesn't come loose easily, use a rubber hammer to carefully tap it and break it free from the gasket. This should be done with a light touch, as a more forceful impact could damage the gasket or the pan.
The rubber hammer is a useful tool in this process because its soft head will not damage the metal surfaces of the pan and gasket. It provides a controlled amount of force without the risk of leaving marks or causing dents. This makes it ideal for breaking the seal between the pan and the gasket without causing any damage.
It's important to inspect the gasket for any signs of wear or damage before proceeding. If the gasket is damaged, it will need to be replaced to ensure a proper seal. A damaged gasket could lead to oil leaks, so it's crucial to ensure that it is in good condition before reassembling the pan.
In some cases, the gasket may be difficult to remove, especially if it has been in place for a long time. If the rubber hammer is not effective in breaking the seal, it may be necessary to use a different tool or technique. However, it is always important to prioritize gentle methods to avoid causing damage to the surrounding components.
By carefully using the rubber hammer to break the old pan loose, you can ensure that the removal process is safe and effective, setting the stage for a successful installation of the new pan gasket in your GM LS engine.
Removing Oil Pan from 2008 Dodge Grand Caravan: Step-by-Step Guide
You may want to see also
Frequently asked questions
The GM LS engine uses edge-molded rubber gaskets for the oil pan gasket, timing cover gasket, and rear main bearing seal retainer plate.
Compression set occurs when the gasket becomes compressed and doesn't rebound to its original shape due to heat/cooling cycles and poor oil maintenance. This can cause the gasket to seep or leak over time.
Fel-Pro® gaskets are specifically designed to replace gaskets that have failed due to compression set. They use materials such as PermaDry® and Printoseal® to ensure a reliable seal.
Firstly, remove the bolts and gently wiggle the original pan loose. Apply oil to the O-ring of the new pickup tube and place it into position. Lower the new pan into place, ensuring proper alignment and no interference. Thread and tighten the oil pan bolts, starting with the center bolts and working outwards.
There doesn't appear to be a specific torque order for the pan bolts. However, it is recommended to torque them all down to 18 lb/ft, except for the two long rear bolts, which may require a different torque value.
