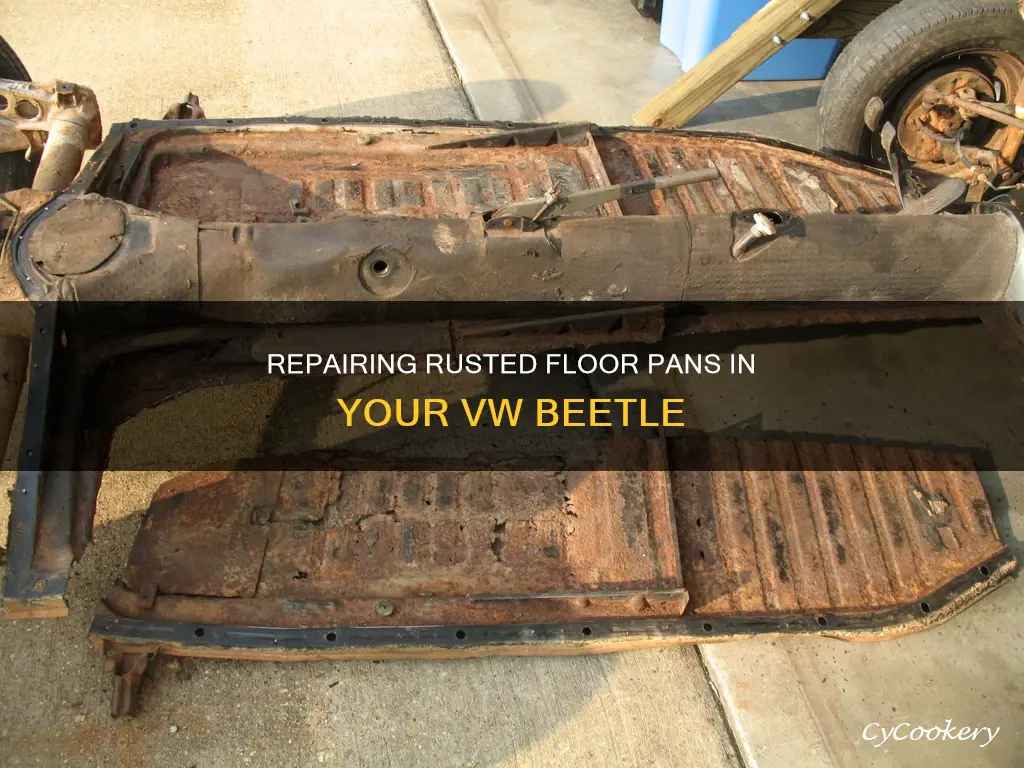

Repairing the rusted floor pans of a VW Beetle is a common problem for owners of the classic car. The flat floorpan of the air-cooled VW Beetle is one of its most distinctive features, but it is also a common source of corrosion issues. Water ingress through worn window rubbers, leaky sunroofs, or holes in surrounding sills and heater channels can cause significant rusting. To repair rusted floor pans, owners have several options, including patching up the rusted areas or cutting out the old floorpan and welding in a new metal replacement. While some choose to repair the pans with fibreglass, metal is often considered a superior material due to the difficulty of achieving a good fibreglass-to-metal bond.
| Characteristics | Values |
|---|---|
| Repair method | Cut out rusted metal and replace with a metal panel of similar thickness |
| Tools | Cut-off wheel, chisel, flat prybar, cardboard-aided design (CAD), welding tools |
| Preparation | Disconnect steering column, brake pipe, speedo cable, and petrol tank |
| Overlap | 1/4"-1/2" for rivets or screws, 1/8" or less for welds |
| Sealing | Tar, paint, seam sealer, epoxy paint, rubberized undercoating |
| Battery | Ensure a sealed battery and place a mat underneath if it sits on the repaired area |
Explore related products
![Empi Floor Pan Installation Kit for One Pan Half, Set, Compatible with/Replacement for Volkswagen Type 1 [Beetle/Bug] 1946-1979](https://m.media-amazon.com/images/I/61ovyq3saaL._AC_UY218_.jpg)
What You'll Learn
Removing the rusted floor pans
To remove the rusted floor pans, you will need to cut out the affected metal. It is recommended to cut out the rusted sections and replace them with metal panels of similar thickness (around 22 gauge). When cutting out the rusted metal, it is crucial to be cautious around components such as the brake line and pedal assembly. The new metal panel should be placed on top of the existing floor with minimal overlap, and then welded or screwed in place. The repair should be sealed completely, with tar applied to the bottom and tar or paint applied to the top.
Before beginning the repair, it is important to disconnect the steering column, brake pipe, and speedo cable. Additionally, the petrol tank may need to be removed to access all the bolts securing the floor pan. If you intend to remove the engine, disconnecting all the wiring is necessary.
Some preparatory steps can be taken to minimise future rust and seal existing holes. This includes cleaning the affected areas, applying metal prep spray, and using products such as Rust Bullet to protect the metal.
While it is possible to patch up the rusted areas, this may not be the best solution for heavily affected cars. A more comprehensive approach involves removing the body and replacing the entire floor pan, including seat runners and other fittings. This ensures a solid foundation for the rest of the bodywork.
