Rust is a common issue for Datsun Z car owners, and it's important to address it early to maintain the value of your classic car. If you've noticed rust on your car, it may be time to consider replacing the floor pans. This process can be challenging, even for experienced welders, but with patience and the right tools, it can be done. This guide will take you through the steps to replace the floor pans in your Datsun 240Z, covering everything from the initial removal to the final touches.

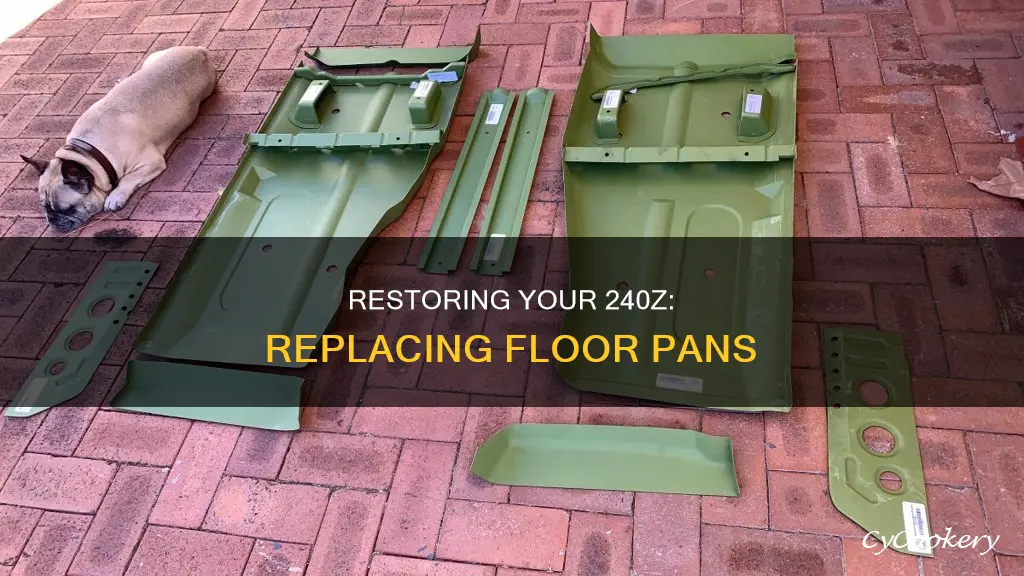

How to Replace 240Z Floor Pans
| Characteristics | Values |
|---|---|
| Reasons for replacement | Rust, preservation of car value, damage |
| Materials | Slab of beer, angle grinder with cut-off wheel, angle grinder with flap disc (coarse), pliers/vice grips, hammer & dolly, screwdriver |
| Step 1 | Cut out the bulk of the floor pan ahead of the front seat mount, leaving the flanges |
| Step 2 | Remove the flanges by splitting or cutting the strip and pulling it off with pliers |
| Step 3 | Remove the rear mount and the floor behind the front seat mount |
| Step 4 | Remove all the old floor from the rear seat mount with the peel and grind method |
| Step 5 | Slide in the new floor, ensuring the front and back openings are the same width as the new floor |
| Step 6 | Tech screw the new floor into place |
| Step 7 | Repeat step 5 for all lines of spot welds joining the floor to something else |
| Step 8 | Install new interior parts, such as carpet, seats, dashboard, and console |
| Step 9 | Attach any exterior trim and make adjustments as needed |
| Aftermarket floor pans | zeddfind pre-formed pans |
Explore related products
What You'll Learn
How to identify rust damage and why early intervention is important
Rust is a serious issue for vehicle owners due to the safety risks and hazards it poses. It is important to regularly inspect your vehicle for signs of rust and to intervene early to prevent it from spreading and causing further damage. The first signs of rust usually appear as small spots of discolouration, bubbling paint, or a rough texture on the metal surface. These spots can be caused by paint chips, peels or scratches, which leave the vehicle vulnerable to rust formation. Salt exposure, particularly from road de-icing in winter, can also accelerate the process.
To identify rust damage, you should look for surface rust, scale rust, or penetrating rust. Surface rust is the earliest stage of rust damage, appearing as small spots. If left untreated, it can develop into scale rust, which causes flaking and pitting, and indicates accelerating rust damage. Penetrating rust is the most severe form, where rust eats through the metal, creating holes and compromising the structural integrity of the frame. This can lead to accidents, breakdowns, and serious safety issues on the road.
Regular inspections and timely interventions can keep rust at bay. For small spots, you can use rust removers, sanding, and apply a rust converter followed by primer and paint. Larger rust patches may require sanding and repainting, ensuring all traces of rust are removed first. In severe cases, it is recommended to seek professional help to effectively remove rust and restore your vehicle's appearance.
When replacing the floor pans in a 240Z, the first step is to cut out the bulk of the floor pan ahead of the front seat mount, leaving the flanges that are spot-welded to the body of the car. The OEM floorboards were one continuous piece of sheet metal, so there will be no existing seam or flanges along the transmission tunnel. Next, remove the flanges by splitting or cutting the strip and tearing it from the body of the car. The front seat mount can remain, but the rear mount should be cut out to make fitting the new floor easier. With the old floor removed, you can slide in the new floor, ensuring the front and back openings match the width of the new floor. Finally, tech screw the new floor into place to secure it.
Exploring Panning on Picasa: A Beginner's Guide
You may want to see also
Explore related products
Required tools and materials for the job
To replace the floor pans of a 240Z, you will need a variety of tools and materials. The floor pans of a car, such as the Datsun Z, are prone to rust, which can be addressed by replacing the floor pans.
The required tools and materials for the job include:
- An angle grinder with a cut-off wheel and a coarse flap disc
- Pliers or vice grips
- A hammer and dolly
- A screwdriver
- A slab of beer
- Tech screws
- A lever
Some additional tools and materials that may be needed include:
- A new floor pan, which can be either a pre-formed pan or a custom fabrication
- A new battery tray, which can be made of stainless steel or aluminium
- New interior parts, such as a carpet, seats, a dashboard, and a console
- Exterior trim pieces, such as chrome trim, lighting, and bumpers
It is important to note that replacing floor pans can be a lot of hard work, even for those with decent welding skills. Seeking professional help or assistance from a shop may be a good option.
When to Replace Your Oil Pan?
You may want to see also
Explore related products
Step-by-step guide to removing the old floor pan
Before starting to remove the old floor pan of your 240Z, gather the necessary materials and tools. These include a slab of beer, an angle grinder with a cut-off wheel, an angle grinder with a coarse flap disc, a couple of pairs of pliers or vice grips, a hammer and dolly, and a screwdriver.
Once you have the required tools and materials, follow these steps:
- Cut out the bulk of the floor pan ahead of the front seat mount. Leave the flanges that are spot-welded to the body of the car on the firewall, rocker panel, and rear deck support. The OEM floorboards were a continuous piece of sheet metal, so there will be no existing seams or flanges along the transmission tunnel.
- Remove the flanges by splitting or cutting the strip in one place. Grab the end with a pair of pliers and roll it up to tear it from the body of the car.
- Repeat this step for every spot-weld joining the floor to other components.
- The front seat mount can remain in place, but the rear mount should be cut out to make it easier to fit the new floor.
- Remove the floor behind the front seat mount, leaving the front seat mount intact.
- Once the old floor is roughly cut out, use the peel and grind method to remove any remaining material from the rear seat mount. Ensure that the front and back openings are the same width as the new floor pan.
- After completely removing the old floor, you can prepare for the reinstallation of the new floor pan.
Remember to address any rust issues early to maintain the value and appearance of your classic car.
Eggs Stuck to the Pan? Try These Tips to Prevent It!
You may want to see also
Explore related products
Fitting the new floor pan
First, you need to cut out the bulk of the old floor pan, leaving only the flanges spot-welded to the body of the car. Then, remove the rear mount and the floor behind the front seat mount, using the peel and grind method to get it ready for reinstallation. Once the old floor is removed, you can slide in the new floor pan, ensuring that the front and back openings are the same width as the new floor. At this stage, the new floor can be temporarily secured with tech screws to ensure it doesn't move around during final welding.
The next step is to install the interior parts, such as the carpet, seats, dashboard, and console, ensuring they are aligned and operational. Finally, you can attach any exterior trim, making adjustments as needed to ensure a perfect fit.
It is important to address rust issues early on to maintain the value of your classic car and prevent further problems down the line.
Cleaning Stainless Steel Maple Syrup Pans: Tips and Tricks
You may want to see also
Explore related products
Interior and exterior finishing tips
When replacing the floor pans of your 240Z, there are several steps to follow for a successful and aesthetically pleasing result. Firstly, it is important to have the right tools and materials, including an angle grinder, pliers, a hammer, and a screwdriver. Begin by cutting out the bulk of the old floor pan, leaving the flanges spot-welded to the body of the car. Remove the strips where the floor is joined to other components, and clean up any remaining residue. The front seat mount can remain, but the rear mount should be cut out to make installing the new floor easier.
Now, you're ready to slide in the new floor pan. Ensure the front and back openings are the same width as the new floor, and secure it with tech screws to prevent any movement. Once the new floor is in place, it's time to reinstall the interior parts. This includes installing new carpeting, seats, and ensuring the dashboard and console are aligned and functional.
For the exterior finishing, start by attaching any exterior trim pieces, such as chrome trim, lighting, and bumpers. Take your time with this process, paying attention to the details to ensure a precise fit. Finally, don't forget to treat the new floor pan with a rust-proofing treatment to prevent future corrosion. This will help maintain the value and appearance of your classic vehicle.
Remember, when it comes to welding, if you're not confident, it's best to consult an expert to ensure the structural integrity of your 240Z's frame.
Pan-roasted Swordfish: Butter Alternatives
You may want to see also
Frequently asked questions
You will need a angle grinder with a cut-off wheel, an angle grinder with a coarse flap disc, pliers or vice grips, a hammer and dolly, and a screwdriver.
First, cut out the bulk of the floor pan ahead of the front seat mount, leaving the flanges that are spot-welded to the body of the car on the firewall, rocker panel, and rear deck support.
Once all the old floors are removed and cut out to the right shape, you can slide in the new floor. Make sure the front and back openings are the same width as the new floor. Then, tech screw the new floor into place until it can't move around.
