Tiffany Haney

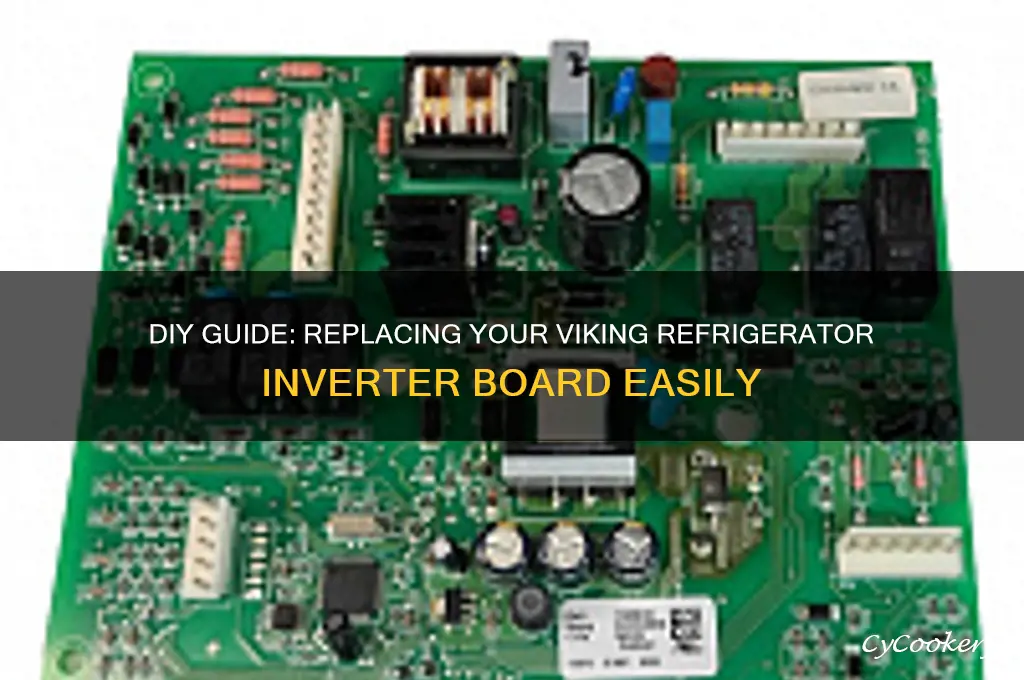

Replacing the inverter board in a Viking refrigerator can be a complex but manageable task if approached with the right tools and knowledge. The inverter board is a critical component responsible for controlling the compressor’s speed, ensuring efficient cooling and energy usage. Over time, it may fail due to wear and tear, power surges, or manufacturing defects, leading to issues like the refrigerator not cooling properly or the compressor running continuously. To replace the inverter board, you’ll need to locate it (typically near the compressor), disconnect the power supply, remove the old board, and install the new one, ensuring all connections are secure. Always refer to the refrigerator’s manual or consult a professional if unsure, as improper installation can cause further damage.

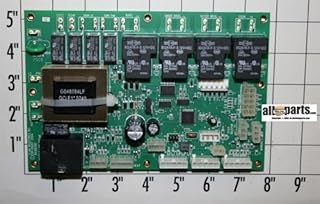

Explore related products
What You'll Learn
Identify the Correct Inverter Board Model
The inverter board is the brain of your Viking refrigerator's compressor, controlling its speed and efficiency. Replacing a faulty one requires precision, starting with identifying the correct model. A mismatch can lead to improper cooling, increased energy consumption, or even permanent damage to the appliance.
Before ordering a replacement, gather the necessary information to ensure compatibility.
Begin by locating the model and serial number of your Viking refrigerator. These are typically found on a label inside the fresh food compartment, on the door frame, or behind the kickplate. Note these numbers carefully, as they are essential for identifying the specific inverter board model designed for your appliance. Manufacturers often produce multiple variations, even within the same refrigerator series, so accuracy is crucial.
In some cases, the inverter board model number may be listed directly on the board itself. If accessible, carefully remove the rear panel of the refrigerator and locate the board. Look for a label or imprint that displays the model number, usually a combination of letters and numbers. This direct approach eliminates any guesswork and ensures you order the exact replacement needed.
If you cannot find the model number on the board or the refrigerator label, consult the user manual. Most manuals include a section dedicated to technical specifications, listing the compatible inverter board model. If you've misplaced the manual, visit the Viking website or contact their customer support. Provide them with your refrigerator's model and serial number, and they should be able to provide the correct inverter board information.
Online resources can also be valuable tools. Appliance repair forums and communities often have members who have encountered similar issues and can offer guidance. Search for your refrigerator model and "inverter board replacement" to find relevant discussions. Additionally, some websites specialize in appliance parts and may have detailed compatibility charts or search functions that allow you. to input your refrigerator model and find the corresponding inverter board.
Remember, taking the time to accurately identify the correct inverter board model is a critical step in the replacement process. It ensures a seamless installation, optimal performance, and extends the lifespan of your Viking refrigerator. By following these steps and utilizing available resources, you can confidently select the right part and proceed with the repair.
Strawberries Without Refrigeration: How Long Do They Stay Fresh?
You may want to see also
Explore related products
Tools Needed for Replacement Process
Replacing a Viking refrigerator inverter board requires a precise set of tools to ensure a smooth and safe process. The first essential tool is a nut driver set, specifically one that includes sizes compatible with the screws securing the inverter board. Viking refrigerators often use standard metric screws, so a set with 4mm, 5mm, and 6mm drivers will typically suffice. These tools provide the necessary torque without stripping the screw heads, which is crucial for maintaining the integrity of the appliance.
Equally important is a multimeter, a device used to test electrical continuity and voltage. Before removing the old inverter board, use the multimeter to confirm that the power is disconnected to avoid electrical shock. After installation, the multimeter can verify that the new board is functioning correctly, ensuring the refrigerator operates as expected. This step is not just precautionary—it’s diagnostic, helping you identify potential issues before they escalate.
A magnetic parts tray is a small but invaluable tool for this task. During the replacement process, you’ll handle multiple screws and small components. A magnetic tray keeps these parts organized and prevents them from being lost or misplaced. This simple tool saves time and frustration, especially when working in tight spaces like the back panel of a refrigerator.
Finally, thermal paste is often overlooked but critical for maintaining proper heat dissipation from the inverter board. Apply a thin, even layer of thermal paste between the board and its heat sink to ensure efficient cooling. Without this, the board may overheat, leading to premature failure. High-quality thermal paste, such as Arctic Silver 5, is recommended for its longevity and thermal conductivity.
In summary, the tools needed for replacing a Viking refrigerator inverter board—a nut driver set, multimeter, magnetic parts tray, and thermal paste—are not just conveniences but necessities. Each tool plays a specific role in ensuring the replacement is done safely, efficiently, and effectively, minimizing the risk of errors and maximizing the lifespan of the new component.
Reheating Refrigerated Breast Milk: Safe Practices for Your Baby's Nutrition
You may want to see also
Explore related products
![[WR49X10283 Inverter OEM Mania] WR49X10283 (Item Code: 519306299) New OEM Produced for GE Refrigerator Inverter No Wire VCC3 1156 K8 F 90 - AP5669522 PS6883663 2677747 WR55X10490](https://m.media-amazon.com/images/I/61AsIGXRxbL._AC_UY218_.jpg)
![[WR49X10283 Inverter OEM Mania] WR49X10283 (Item code: 519306299) NEW OEM Produced for GE Refrigerator Inverter Control with 2 JUMPER WIRES - AP5669522 PS6883663 2677747 WR55X10490](https://m.media-amazon.com/images/I/61B8+ax7bhL._AC_UY218_.jpg)
![[What's Up?] WR87X29409 Refrigerator Compressor Inverter Board- GE Compatiblel, Part Number: WR87X29409/Code:519308519 (Replace WR55X26038,WR55X11099,WR55X11138,WR55X10855,WR55X20326,WR55X20752)](https://m.media-amazon.com/images/I/71UrfdZBG4L._AC_UY218_.jpg)
![[WR87X29409 No Wire OEM Mania] WR87X29409 (Item Code: 519308348) Refrigerator Compressor Inverter Board Replaces AP6332922 WR55X26038 WR55X11099 WR55X11138 4864662 WR55X10855 WR55X20326 WR55X20752](https://m.media-amazon.com/images/I/61sv6bIDupL._AC_UY218_.jpg)
Safely Disconnect Power Supply
Before attempting any repair on your Viking refrigerator, ensuring your safety is paramount. The inverter board, a critical component in modern refrigerators, operates on electrical power, making it essential to disconnect the power supply correctly. Failure to do so can result in electrical shocks, short circuits, or damage to the appliance. This step is not just a precaution; it’s a fundamental rule in appliance repair.
To safely disconnect the power supply, start by locating the refrigerator’s power source. Most Viking refrigerators are hardwired into a dedicated circuit, typically a 120-volt outlet. If your model uses a standard plug, unplug it directly from the wall. For hardwired units, switch off the corresponding circuit breaker in your home’s electrical panel. Label the breaker to avoid confusion, especially if your panel lacks clear markings. Verify the power is off using a non-contact voltage tester on the outlet or wiring terminals to ensure no live current remains.
While disconnecting power, avoid common mistakes that compromise safety. Never attempt to pull out a hardwired refrigerator without first turning off the breaker, as this can damage wires or cause injury. If the unit is on casters, secure it in place to prevent accidental movement during the process. Additionally, refrain from using metal tools near exposed wiring, as they can conduct electricity. Always wear insulated gloves and work in a dry environment to minimize risk.
A comparative analysis of power disconnection methods reveals that using the circuit breaker is more reliable than simply unplugging the refrigerator. Breakers ensure all power is cut, whereas a plug may still carry residual current if the outlet is faulty. For hardwired models, this step is non-negotiable. If you’re unsure about your electrical setup, consult a professional electrician to avoid hazards.
In conclusion, safely disconnecting the power supply is a critical step in replacing a Viking refrigerator inverter board. By following these specific instructions—locating the power source, using the correct method for your model, and verifying power is off—you minimize risks and create a safe working environment. Treat this step with the attention it deserves, as it lays the foundation for a successful and hazard-free repair.
Fresh Cranberries: Refrigeration Required or Not? A Storage Guide
You may want to see also
Explore related products
![[WR55X20817 Inverter OEM Mania] WR55X20817 (Item Code: 519306336) Refrigerator Compressor Inverter Board Replaces WR55X10155, WR55X10504](https://m.media-amazon.com/images/I/51Zc+xJqBVL._AC_UY218_.jpg)
![[W10449006 Inverter OEM Mania] W10449006 (Item Code:519306306) New OEM Produced for Whirlpool Refrigerator Inverter Board VCC3 1156 09 B 01 Replacement Part 4446958 AP6021557 PS11754881 EAP11754881](https://m.media-amazon.com/images/I/61DWmmg-WqL._AC_UY218_.jpg)
Remove Old Inverter Board Steps
Before tackling the removal of the old inverter board in your Viking refrigerator, ensure you’ve disconnected the appliance from its power source. This step is non-negotiable for safety, as working with live electrical components can lead to severe injury or damage. Once the power is off, locate the inverter board, typically housed near the compressor or in a designated compartment at the bottom rear of the unit. Familiarize yourself with its position and the surrounding components to avoid accidental damage during removal.
The removal process begins with accessing the inverter board. This often requires removing a protective panel or cover, secured by screws or clips. Use the appropriate screwdriver or tool to detach these fasteners, keeping track of their placement for reassembly. Once the cover is off, inspect the area for any debris or signs of damage that might have contributed to the inverter board’s failure. This step not only aids in removal but also provides insights into potential maintenance needs.
With the board exposed, carefully disconnect the wiring harnesses attached to it. These connectors are typically plug-and-play, but they can be delicate. Gently press the release tabs (if present) and pull the connectors straight out to avoid bending pins or damaging the wiring. Label each connector with its corresponding port or take a photo for reference during reinstallation. This attention to detail ensures a smooth and error-free replacement process.
Finally, remove the inverter board itself. It’s usually secured with screws or mounting brackets. Loosen these fasteners and lift the board out carefully, being mindful of any attached sensors or components. Inspect the mounting area for corrosion or residue, cleaning it if necessary to ensure optimal performance of the new board. Proper removal sets the stage for a successful replacement, minimizing the risk of complications during installation.
Refrigerating Tissue Samples: Optimal DNA Preservation Timeframe Explained
You may want to see also
Explore related products
Install New Board and Test Functionality
With the old inverter board removed, it's time to install the new one. This step requires precision and attention to detail to ensure a proper fit and connection. Begin by aligning the new board with the mounting holes on the refrigerator's control panel. Secure it in place using the screws provided, being careful not to overtighten, as this can damage the board or the surrounding components.
Next, reconnect the wiring harnesses, ensuring each connector is firmly seated and locked into place. Refer to the manufacturer's instructions or a wiring diagram to confirm the correct connections, as incorrect wiring can lead to malfunctions or damage. Pay particular attention to the high-voltage connections, as these are critical for the inverter's operation. A helpful tip is to label the wires before disconnection to simplify the reassembly process.
After installation, it's crucial to test the new inverter board's functionality. Start by restoring power to the refrigerator and observing the compressor's operation. Listen for any unusual noises, such as grinding or buzzing, which could indicate a problem. Check the refrigerator's temperature settings and ensure they are functioning correctly, as the inverter board plays a significant role in temperature control. Allow the refrigerator to run for at least 30 minutes to stabilize, then verify that the temperature is within the desired range.
A comparative analysis of the old and new boards can provide valuable insights. Compare the performance of the refrigerator before and after the replacement, noting any improvements in cooling efficiency, noise levels, or energy consumption. This analysis can help confirm the success of the replacement and identify any potential issues that may require further attention. For instance, if the refrigerator was previously struggling to maintain temperature, a significant improvement post-replacement would indicate a successful fix.
In the event of any issues during testing, it's essential to troubleshoot systematically. Check all connections, inspect the board for damage, and consult the manufacturer's documentation for error codes or diagnostic procedures. Common problems may include faulty wiring, incorrect settings, or a defective board. By following a structured approach, you can identify and resolve issues efficiently, ensuring the refrigerator operates optimally. Remember, patience and thoroughness are key to a successful inverter board replacement and testing process.
Mixing Refrigerated and Fresh Formula: What Parents Need to Know
You may want to see also
Frequently asked questions
Signs include the refrigerator not cooling properly, unusual noises from the compressor, error codes on the display, or the compressor failing to start. If these issues persist after basic troubleshooting, the inverter board may be faulty.
You’ll need a Phillips screwdriver, a flathead screwdriver, needle-nose pliers, and possibly a multimeter to test electrical connections. Ensure the refrigerator is unplugged before starting the replacement.
The inverter board is typically located near the compressor, often mounted on the back or bottom of the refrigerator. Refer to your model’s manual for the exact location.
If you’re comfortable with basic electrical work and appliance repairs, you can replace the inverter board yourself. However, if you’re unsure or the issue persists, it’s best to hire a certified technician to ensure proper installation and safety.
