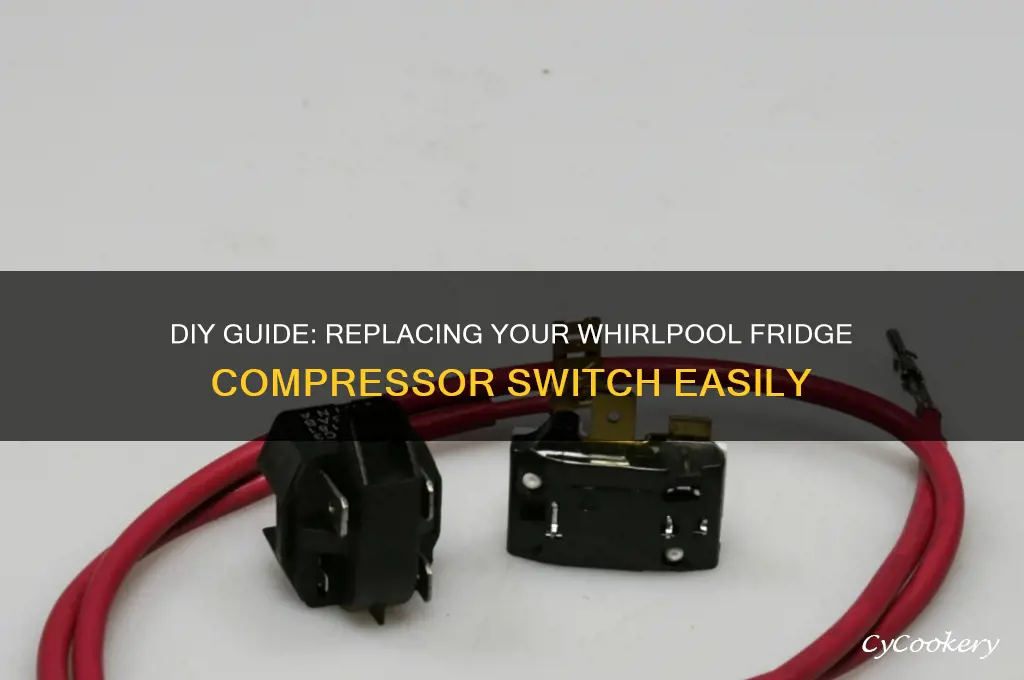

Replacing a Whirlpool refrigerator compressor switch can be a straightforward DIY task if approached with the right tools and knowledge. The compressor switch, often located near the compressor, plays a crucial role in controlling the refrigerator's cooling cycle. Over time, it may wear out or malfunction, leading to issues like the compressor not starting or running continuously. To replace it, start by unplugging the refrigerator and locating the switch, typically found on the side or back of the unit. After identifying the switch, carefully disconnect the wires and remove the old switch. Install the new switch by aligning it properly and reconnecting the wires, ensuring a secure fit. Finally, plug the refrigerator back in and test the compressor to confirm it operates correctly. Always refer to your specific Whirlpool model's manual for detailed instructions and safety precautions.
| Characteristics | Values |
|---|---|
| Tools Required | Screwdriver (Phillips and flathead), socket set, multimeter, work gloves |
| Parts Needed | Replacement compressor switch (Whirlpool-compatible), electrical tape |
| Difficulty Level | Intermediate |
| Time Required | 1-2 hours |
| Safety Precautions | Unplug refrigerator, wear gloves, avoid touching electrical components |
| Steps | 1. Unplug refrigerator 2. Locate compressor (usually at bottom rear) 3. Remove access panel 4. Identify and disconnect old switch 5. Test switch with multimeter 6. Install new switch 7. Reassemble and plug in refrigerator |
| Common Issues | Faulty switch causing compressor not to start, refrigerator not cooling |
| Compatibility | Whirlpool, Maytag, Kenmore refrigerators with similar compressor designs |
| Cost of Replacement Switch | $15-$50 (depending on model and retailer) |
| Warranty Consideration | Check if replacement voids warranty; use OEM parts if under warranty |
| Additional Tips | Clean compressor area during replacement, check for loose wires |
| Professional Help | Recommended if unsure about electrical work or diagnosing issues |
Explore related products
![[2025 Upgraded] BlueStars WPW10448876 Washer Water Level Pressure Switch - Compatible with Whirlpool, Maytag, Amana, Kenmore Washer - W10448876 10448876 2312075 AP6021553 PS11754877 WPW10448876VP](https://m.media-amazon.com/images/I/71wto4ODgdL._AC_UY218_.jpg)
What You'll Learn
Identify the Correct Switch Model
Before replacing a Whirlpool refrigerator compressor switch, pinpointing the exact model is crucial. Whirlpool manufactures numerous switches, each designed for specific refrigerator models and compressor types. Installing the wrong switch can lead to inefficiency, damage, or even safety hazards. Start by locating the model and serial number of your refrigerator, typically found on a label inside the fresh food compartment or near the bottom hinge of the door. These numbers are your key to identifying the compatible switch model.
Once you have the refrigerator’s model and serial number, consult the Whirlpool parts diagram or user manual. These resources often list the specific compressor switch model required for your unit. If the manual is unavailable, Whirlpool’s official website or authorized parts distributors can provide this information. Cross-reference the part number with the switch you intend to purchase to ensure compatibility. For example, a Whirlpool refrigerator model WRX735SDBM might require a different switch than a WRF535SMBM, despite both being French door models.
In some cases, visual inspection alone may not suffice. Compressor switches can look similar but differ in voltage ratings, terminal configurations, or mounting styles. For instance, a switch rated for 120V may not function correctly in a system designed for 240V. Use a multimeter to test the existing switch’s voltage and resistance, then match these specifications with the replacement part. If unsure, contact Whirlpool customer support or a certified technician for guidance.
Finally, consider the age and condition of your refrigerator. Older models may have discontinued switches, requiring you to source a compatible alternative or retrofit a newer part. Online forums and appliance repair communities can be invaluable resources for finding solutions to such challenges. Always prioritize safety and functionality over convenience when selecting a replacement switch. A correctly identified switch ensures your refrigerator operates efficiently, prolonging its lifespan and maintaining food safety.
Refrigerating Cooked Jam: Best Practices for Preservation and Freshness
You may want to see also
Explore related products
Safety Precautions Before Starting
Before attempting to replace a Whirlpool refrigerator compressor switch, ensure the appliance is completely powered off. Unplug the refrigerator from the electrical outlet or switch off the dedicated circuit breaker. This critical step eliminates the risk of electric shock, which can occur even if the unit appears inactive. Verify the power is off by checking the interior lights or using a non-contact voltage tester on the outlet. Never assume the refrigerator is safe to work on without confirming the absence of electrical current.
Refrigeration systems operate under high pressure and contain refrigerants that can cause injury if mishandled. Wear safety goggles to protect your eyes from potential chemical splashes or debris. Additionally, don a pair of insulated gloves to guard against accidental contact with live wires or sharp components. These precautions are especially important when working near the compressor, where refrigerant lines and electrical connections are concentrated.
Allow the refrigerator to sit unplugged for at least 5–10 minutes before beginning the repair. This waiting period ensures that the compressor’s start capacitor, which stores electrical energy, has sufficient time to discharge. Attempting to handle the compressor switch immediately after powering down increases the risk of electrical arcing or shock. Patience here is a simple yet effective safety measure.
Familiarize yourself with the refrigerator’s layout by consulting the user manual or online diagrams specific to your Whirlpool model. Identify the location of the compressor switch, typically found near the compressor itself, often at the bottom rear of the unit. Knowing the exact placement prevents accidental damage to nearby components and ensures you work efficiently. Missteps in this area can lead to costly repairs or void warranties.
Work in a well-ventilated area to minimize exposure to refrigerants or dust stirred up during the repair. If the refrigerator must remain in an enclosed space, open windows or use a fan to improve air circulation. Avoid using flammable substances or open flames nearby, as refrigerants can ignite under certain conditions. These environmental precautions reduce the risk of respiratory issues or fire hazards during the replacement process.
Easy Steps to Remove Your Refrigerator Freezer Bottom Panel
You may want to see also
Explore related products
Steps to Access the Compressor
Accessing the compressor in a Whirlpool refrigerator is a critical step in replacing the compressor switch, but it requires precision and caution. Begin by unplugging the refrigerator to ensure safety and prevent electrical hazards. Next, locate the compressor, typically found at the bottom rear of the unit. Remove the lower back access panel by unscrewing it with a Phillips-head screwdriver. Be mindful of any sharp edges on the panel to avoid injury. Once removed, you’ll have a clear view of the compressor and its components, setting the stage for the switch replacement.
Analyzing the compressor area reveals its complexity, with various wires, tubes, and components tightly packed. Before proceeding, take a moment to identify the compressor switch, usually a small rectangular or cylindrical device attached to the compressor. It’s essential to avoid touching any refrigerant lines or electrical connections unnecessarily, as this can cause damage or leaks. If you’re unsure about any part, consult the refrigerator’s manual or take a photo for reference. Understanding the layout ensures you work efficiently and avoid accidental damage.
Persuasively, the key to a successful compressor access is organization and patience. Gather your tools—screwdriver, pliers, and possibly a flashlight—before starting. Work methodically, removing only the necessary screws and panels to avoid misplacement or confusion during reassembly. If the compressor area is dusty or dirty, use a soft brush or compressed air to clean it gently. This not only improves visibility but also prevents debris from entering sensitive components. A clean workspace reduces the risk of errors and ensures a smoother repair process.
Comparatively, accessing the compressor in a Whirlpool refrigerator differs from other brands due to its design nuances. For instance, some models may require removing an additional insulation panel or navigating around a condenser coil. If you’ve worked on other refrigerators, don’t assume the process will be identical. Always refer to model-specific instructions or online resources for Whirlpool units. This tailored approach ensures you account for unique features and avoid common pitfalls associated with generic repair guides.
Descriptively, the compressor area is a hub of activity, with the switch playing a pivotal role in regulating the unit’s cooling cycle. As you access it, you’ll notice the switch’s wiring connected to the compressor and the refrigerator’s control board. Take note of the wire colors and their positions, as they must be reconnected correctly during the replacement. The switch itself is often secured with a mounting bracket or clip, which may require gentle prying or unscrewing. Handling these components with care ensures the integrity of the repair and the longevity of the new switch.
Military Mortuary Affairs: Refrigerated Shipping of Fallen Heroes Explained
You may want to see also
Explore related products
Removing the Old Switch Properly
Before attempting to replace the compressor switch on your Whirlpool refrigerator, it's crucial to understand the importance of properly removing the old switch. A hasty or careless removal can lead to damage to the surrounding components, wiring, or even the new switch itself. The compressor switch is typically located near the compressor, often mounted on the side or top of the compressor unit. To begin the removal process, start by unplugging the refrigerator from the power source to prevent electrical shock or short circuits.
The first step in removing the old switch is to locate and access it. This may require removing a panel or cover that protects the compressor and its components. Use a screwdriver or other appropriate tool to carefully remove any screws or fasteners holding the panel in place. Be gentle and avoid forcing any components, as this can cause damage. Once the panel is removed, you should have a clear view of the compressor switch. Take note of the wiring connections and their positions, as you'll need to replicate these when installing the new switch.
As you prepare to disconnect the wiring, it's essential to understand the wiring configuration. Most compressor switches have two or three wires connected to them, typically color-coded for identification. Common wire colors include black (line), white (neutral), and green or bare copper (ground). Before disconnecting any wires, take a photo or make a diagram of the existing connections to ensure you can reconnect them correctly later. To disconnect the wires, gently grasp the wire connector or terminal and pull it straight away from the switch. Avoid pulling on the wire itself, as this can damage the insulation or connection.
When removing the old switch, be cautious not to damage the surrounding components or wiring. Use a pair of needle-nose pliers or a small flathead screwdriver to carefully pry the switch out of its mounting bracket or holder. If the switch is secured with screws or fasteners, remove these first before attempting to pry the switch out. Take your time and work carefully to avoid bending or breaking any components. Once the old switch is removed, inspect the mounting bracket and surrounding area for any signs of damage or corrosion. If necessary, clean the area with a soft brush or compressed air to remove any debris or residue.
In some cases, you may encounter switches with additional features, such as a thermal overload protector or a start relay. If your old switch has these components, take note of their positions and connections, as you may need to transfer them to the new switch. Be sure to consult the manufacturer's instructions or a qualified technician if you're unsure about handling these components. By taking a methodical and careful approach to removing the old switch, you'll minimize the risk of damage and ensure a successful replacement. Remember to keep track of the wiring connections, work gently, and inspect the surrounding components for any issues before proceeding with the installation of the new compressor switch.
Standard Kitchen Refrigerator Sizes: What’s Normal for Your Home?
You may want to see also
Explore related products
Installing and Testing the New Switch
With the old switch removed, it's time to install the new one. This process requires precision and attention to detail to ensure a proper connection and avoid future malfunctions. Begin by aligning the new switch with the mounting holes on the compressor. Secure it firmly using the provided screws, being careful not to overtighten, as this can damage the switch or the compressor housing. Most switches will have a torque specification, typically around 5-7 inch-pounds, so use a torque screwdriver if available to ensure accuracy.
Once the switch is securely mounted, reconnect the wires. Refer to your notes or photos from the removal process to ensure correct wire placement. Most switches will have color-coded terminals, but double-check the wiring diagram on the new switch or your refrigerator's manual for confirmation. Use needle-nose pliers to gently straighten any bent wire ends before inserting them into the terminals. Crimp the terminals securely, ensuring a tight connection.
Before buttoning everything up, it's crucial to test the new switch. This simple step can save you from future headaches. With the refrigerator unplugged, use a multimeter set to the continuity setting. Touch one probe to each terminal on the switch. With the switch in the "on" position, the multimeter should beep, indicating a complete circuit. If there's no beep, double-check your wiring and switch orientation.
Test the switch in both the "on" and "off" positions to ensure it's functioning correctly. If the multimeter shows continuity in both positions, the switch is faulty and needs to be replaced.
Finally, reassemble the refrigerator panels, ensuring all screws are tightened securely. Plug the refrigerator back in and listen for the compressor to start. If it doesn't, double-check your work, focusing on the switch connections and wiring. A properly installed and tested switch should result in a functioning compressor and a cool refrigerator once again. Remember, if you're unsure about any step, consult a qualified appliance repair technician.
Does Your Refrigerator Cycle On and Off? Understanding Its Operation
You may want to see also
Frequently asked questions
You will need a screwdriver (flathead and Phillips), needle-nose pliers, a multimeter for testing, and possibly a socket wrench for removing the compressor panel.
The compressor switch is typically located near the compressor, often mounted on the side or top of it. Access it by removing the lower back panel or the compressor compartment cover.
If you have basic electrical knowledge and tools, you can replace the switch yourself. However, if you’re unsure or uncomfortable working with electrical components, it’s best to hire a professional.
Use a multimeter to check for continuity across the switch terminals. If there is no continuity in the "on" position or if the switch is stuck, it needs to be replaced.
