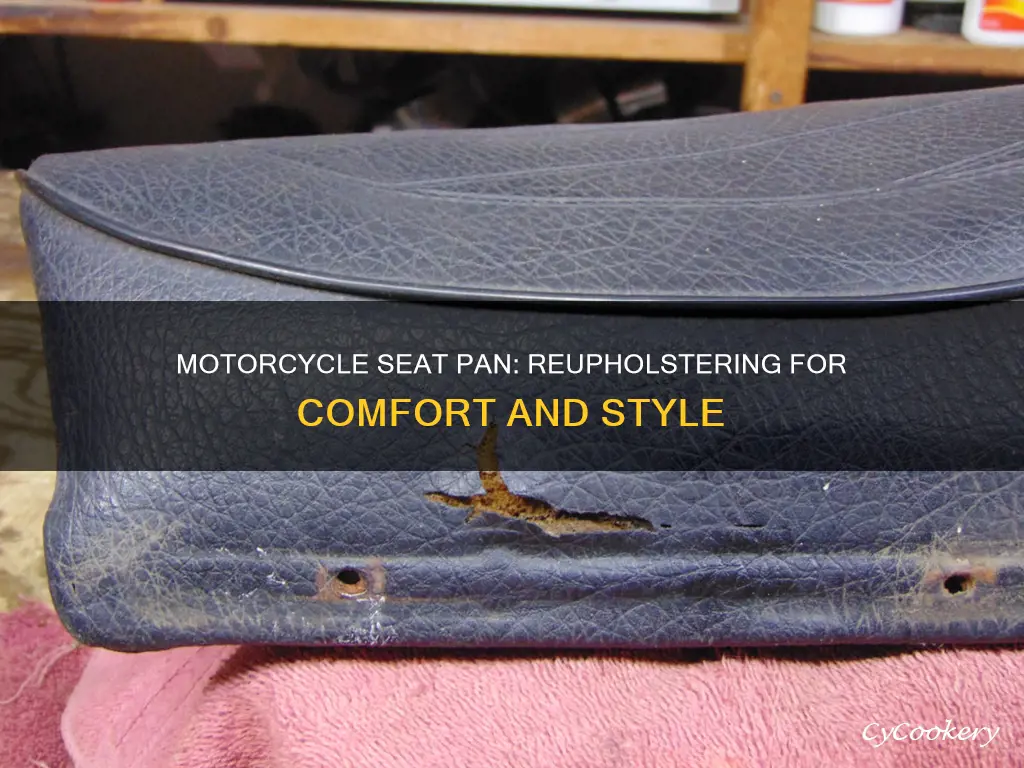

Reupholstering a metal motorcycle seat pan can be a challenging task, but with the right tools and guidance, it is achievable. Whether you're working with vinyl, leather, or faux leather, the process typically involves drilling holes and using rivets, screws, or staples to attach the cover securely. Some prefer to use adhesives like glue or Velcro for a cleaner look, but it's important to ensure a strong bond to avoid shifting. Before beginning, it's crucial to measure and plan the placement of holes and fasteners carefully to achieve a snug fit for the seat cover.
Explore related products
What You'll Learn
Using rivets
Reupholstering a motorcycle seat pan with rivets is a straightforward process, but it requires careful planning and execution to achieve a clean and professional result. Here is a step-by-step guide to help you through the process:
Planning and Preparation:
Before you begin, gather the necessary materials, including a rivet tool, rivets, washers, a drill, and a press or punch. Measure and mark the holes for the rivets, ensuring they are evenly spaced and drilled with a press to save time and drill bits. If your seat pan is made of metal, you will need to drill small holes along the border for the rivets. Determine the size of the holes based on the rivets you will be using.
Applying Foam and Covering:
Cover the seat pan with foam and shape it accordingly. You can use closed-cell foam to prevent moisture absorption and odour. Then, cover the foam with your desired material, such as vinyl or leather. Pull the material tight over the foam, leaving enough material to overhang on the bottom side of the pan, where it will be riveted. If you're using thin material that might tear, use thin washers between the rivet and the pan for a stronger hold and to prevent tearing.
Riveting Process:
Place the washers over the drilled holes and secure the material to the pan by riveting from underneath. Ensure the rivets are fairly close together, approximately every 2 inches, to provide a secure hold. Stretch the cover medium-snug before drilling and riveting each section. Be careful not to make the cover too tight, as it may need to be adjusted. If you do get a rivet too tight, simply drill it out and redo it.
Finishing Touches:
Once the riveting is complete, you can add weather stripping around the edge of the seat pan to prevent it from cutting through your seat over time. You can also glue a piece of material to the bottom of the pan to cover the rivets and give a cleaner look.
Pan Pacific's Pool: A Relaxing Escape?
You may want to see also
Explore related products
Drilling holes
First, it is important to measure and mark the hole locations before drilling. This ensures that the holes are evenly spaced and aligned correctly. It is recommended to drill pilot holes first, which are smaller than the final holes and act as a guide. These pilot holes can be drilled along the outside edges of the seat pan. When drilling into metal, it is essential to use the right type of drill bits designed for metal drilling to ensure effectiveness and avoid damage.
The next step is to choose the appropriate drill bit size for the main holes. The size of the drill bit will depend on the type of fastener being used, such as rivets or screws. It is crucial to select a bit that corresponds to the fastener size to ensure a secure fit. For example, if using "pan head" self-drilling screws, short lengths, such as 1/2", are recommended.
When drilling the holes, it is essential to use a drill press if possible. A drill press provides more control and precision than a handheld drill, helping to ensure that the holes are drilled straight and reducing the risk of errors. Drilling at a slow speed and applying light pressure can also help achieve cleaner holes.
After drilling the holes, it is important to deburr and clean the holes to remove any sharp edges or debris. This step ensures that the fasteners will sit smoothly and securely in the holes. It is also crucial to be cautious and aware of the drill's depth to avoid drilling all the way through the seat pan, which can damage the upholstery.
Finally, it is worth noting that drilling holes is a permanent alteration to the seat pan. If you plan on changing the upholstery frequently, you may want to consider using screws instead of rivets, as screws can be easily removed, whereas rivets would require drilling to be removed.
Salvaging Burned Pots and Pans
You may want to see also
Explore related products
$19.99
Attaching vinyl
When it comes to attaching vinyl to a metal motorcycle seat pan, there are several methods you can use. Here is a step-by-step guide:
Prepare the Materials and the Seat Pan
Firstly, gather your materials, including the vinyl, any foam padding, and the necessary tools for attachment. Prepare the seat pan by cleaning and smoothing the surface to ensure a secure attachment. If you are using foam padding, cut it to the desired shape and size, ensuring it fits snugly on the seat pan.
Mark and Drill Holes
Before attaching the vinyl, decide on the placement of the holes for rivets, screws, or staples. Mark these spots with a pen or marker, ensuring they are evenly spaced. If using rivets or screws, drill holes at the marked spots. For a neater finish, consider using a drill press if available.
Attach the Vinyl
Now, you can attach the vinyl using your chosen method:
- Rivets: Stretch the vinyl over the seat pan and foam (if used). Ensure the vinyl is smooth and taut. Carefully align the holes in the vinyl with the drilled holes in the seat pan. Secure the rivets in place, checking that they are evenly spaced. Use washers with the rivets for added strength and to prevent tearing.
- Screws: Similar to using rivets, stretch the vinyl over the seat pan and align the holes. Secure self-tapping metal screws through the vinyl and into the drilled holes. Washers can also be used with screws for added strength.
- Staples: For this method, you will need a stapler and staples of appropriate length. Place the vinyl over the seat pan, then stretch and smooth it out. Adjust the pressure on your compressor to the correct depth, typically around 70-80 pounds. Start stapling from the centre, working outwards, ensuring the staples secure the vinyl without penetrating through it.
- Adhesives: Clean the surface of the seat pan to ensure the adhesive bonds effectively. Apply a suitable adhesive, such as contact cement or neoprene glue, to the back of the vinyl and/or the seat pan, following the adhesive's instructions. Carefully position the vinyl onto the seat pan, smoothing out any wrinkles or bubbles. Allow the adhesive to dry completely before use.
Remember to refer to specific instructions and safety guidelines provided by the manufacturers of your chosen attachment method and materials.
Hot Water Heat: Myth or Method?
You may want to see also
Explore related products
Using glue
One popular option is to use contact cement, which provides a very strong bond. To use contact cement, apply it to both surfaces, let it dry for about 15 minutes, and then press the surfaces together. It is important to note that once the glued surfaces make contact, they cannot be repositioned, so careful alignment is crucial. This method is suitable for attaching foam padding to the seat pan and can also be used for gluing vinyl to the metal seat pan.
Another type of glue used for reupholstering motorcycle seats is neoprene glue, which is effective for adhering materials such as fake leather to the seat. However, it is important to be cautious when using neoprene glue, as it can become a gooey mess if not applied correctly.
When working with glue, it is essential to follow safety precautions. Some glues may have strong fumes, so ensure adequate ventilation during application and drying. Additionally, always read and follow the manufacturer's instructions for the specific glue you are using, as curing or drying times may vary.
While glue can provide a strong bond, some people prefer methods that allow for easier adjustments or corrections, such as Velcro or staples. These alternative methods offer more flexibility and can be more forgiving for beginners. Nevertheless, with careful planning and execution, using glue can be a reliable and durable option for reupholstering a metal motorcycle seat pan.
Replacing Oil Pan in a 2006 Chevy Colorado: Step-by-Step Guide
You may want to see also
Explore related products
Stapling
When reupholstering a metal motorcycle seat pan, stapling is a possible method to fasten the cover in place. However, it is important to note that stapling may not be the best option for metal seat pans, as it can be difficult to staple into the hard material.
If you do choose to use stapling as your method, there are a few things to keep in mind. First, you will need to use a stapler that is powerful enough to penetrate the metal of the seat pan. A manual staple gun or a cheap powered one may not be strong enough, so it is recommended to use a commercial-grade electric stapler or an air stapler. An air stapler with a long nose is ideal for moto saddle upholstery.
Before you begin stapling, it is important to set the depth correctly. This will involve adjusting the pressure on your compressor or stapler. If you have an owner's manual for your stapler, follow the instructions provided. If not, a pressure of around 70-80 pounds is often a good starting point. Test the depth on an area of the pan away from where the cover will sit, to ensure that the staples are secure without damaging the vinyl.
Once you have the correct depth, you can begin stapling. Start by centring your cover on the foam and stapling a few staples in an easy-to-secure spot, then work outward from that point. This will create a tight fit and allow you to pull and adjust the cover as needed. Remember to use staples that are long enough to penetrate the metal seat pan but not so long that they protrude too far on the other side.
While stapling is one option for reupholstering a metal motorcycle seat pan, there are also other methods such as using rivets, screws, or adhesive that may be more suitable or easier to work with. Ultimately, the best method will depend on your personal preference and the specific requirements of your project.
Cheesecake Roasting Pan: Why and How?
You may want to see also
Frequently asked questions
Pop rivets are the most popular method of attaching a seat cover to a metal seat pan. Drill holes and use washers with the rivets for a stronger hold. You can also use industrial-strength upholstery adhesive, or contact cement.
Marine-grade vinyl is a popular choice for seat covers as it is durable and can be used to cut your own cover using your old cover as a template. You can also use suede, leather, or fake leather.
Use a bread knife or a dremel rotary tool to cut the dense foam to match your sitting position. Use neoprene glue to attach the foam to the metal seat pan.
