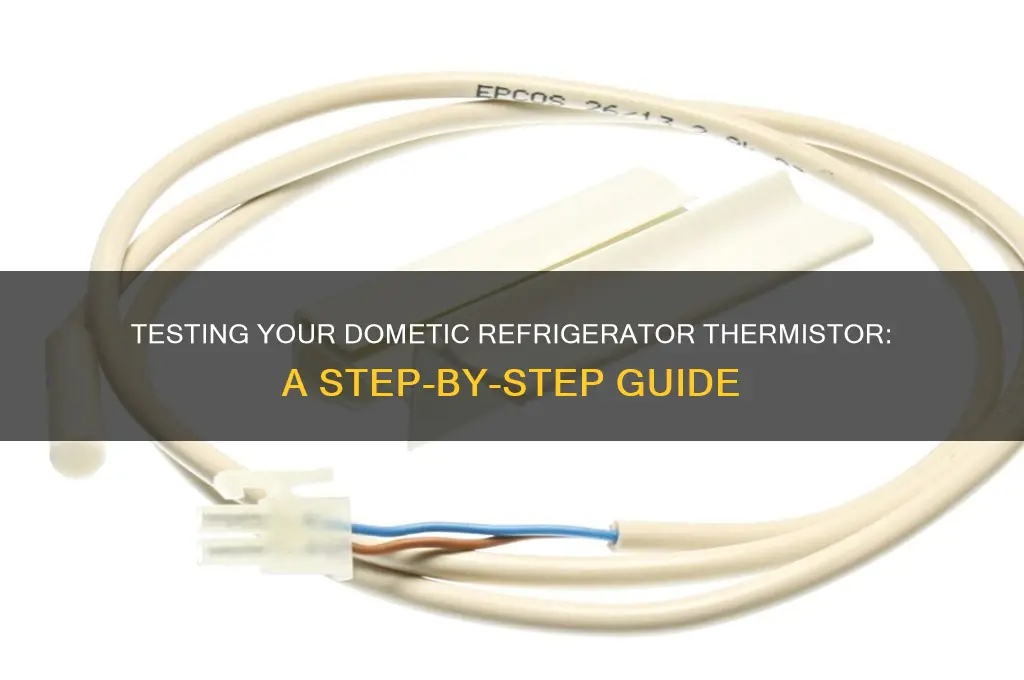

Testing a Dometic refrigerator thermistor is essential for ensuring accurate temperature control and diagnosing potential cooling issues. The thermistor, a temperature-sensitive resistor, plays a critical role in monitoring the refrigerator’s internal temperature and relaying this information to the control board. To test it, start by locating the thermistor, typically found inside the refrigerator compartment, attached to the evaporator fins or suspended in the air. Use a multimeter set to the resistance (ohms) scale to measure the thermistor’s resistance at a known temperature, such as room temperature or by placing it in ice water (which should read close to 0°C or 32°F). Compare the resistance value to the manufacturer’s specifications or a resistance-temperature chart to verify its accuracy. If the readings are inconsistent or out of range, the thermistor may be faulty and require replacement. This simple test helps identify whether the thermistor is functioning correctly or if it’s contributing to temperature regulation problems in your Dometic refrigerator.
| Characteristics | Values |
|---|---|
| Tools Required | Multimeter, Thermistor resistance chart, Insulated gloves, Safety goggles |
| Thermistor Location | Typically near the evaporator coils or inside the refrigerator compartment |
| Normal Resistance Range | Varies by model; check manufacturer's chart (e.g., 10kΩ at 25°C) |
| Temperature Coefficient | Negative (resistance decreases as temperature increases) |
| Testing Procedure | 1. Power off refrigerator. 2. Locate thermistor. 3. Disconnect wires. |
| Multimeter Setting | Resistance (Ω) or ohms setting |
| Expected Readings | Compare measured resistance to temperature using resistance chart |
| Faulty Thermistor Symptoms | Inconsistent cooling, temperature fluctuations, error codes |
| Replacement Threshold | Replace if resistance deviates significantly from chart values |
| Safety Precautions | Ensure refrigerator is unplugged before testing |
| Common Models | Dometic RM2652, RM4401, RM7401 (check specific model for accuracy) |
| Resistance at 0°C | Approximately 30kΩ (varies by model) |
| Resistance at 25°C | Approximately 10kΩ (varies by model) |
| Resistance at 50°C | Approximately 3kΩ (varies by model) |
| Troubleshooting Tips | Check wiring connections, inspect for physical damage, verify temperature |
Explore related products
What You'll Learn
- Thermistor Resistance Testing: Measure resistance at varying temperatures using a multimeter for accurate readings
- Continuity Check: Ensure thermistor circuit continuity to verify proper electrical connection
- Temperature Calibration: Compare thermistor readings with known temperature sources for calibration
- Wiring Inspection: Examine wires for damage or loose connections affecting thermistor performance
- Control Board Diagnostics: Test thermistor input at the control board for signal accuracy
Thermistor Resistance Testing: Measure resistance at varying temperatures using a multimeter for accurate readings
Thermistors are temperature-sensitive resistors, and their resistance changes predictably with temperature. To test a Dometic refrigerator thermistor, you’ll need to measure its resistance at varying temperatures to ensure it’s functioning correctly. This process requires a multimeter, a heat source (like a cup of hot water or ice bath), and a reference chart for expected resistance values at specific temperatures. For example, a typical NTC (Negative Temperature Coefficient) thermistor might show 10,000 ohms at 25°C, 3,000 ohms at 50°C, and 30,000 ohms at 0°C. Deviations from these values indicate a faulty thermistor.
Begin by setting your multimeter to the resistance (ohms) setting. Place the thermistor in a stable temperature environment, such as room temperature, and record its resistance. Next, submerge the thermistor in an ice bath (0°C) or hot water (around 50°C) and measure the resistance again after allowing it to stabilize for 2–3 minutes. Compare these readings to the manufacturer’s specifications or a generic NTC thermistor chart. A discrepancy of more than ±5% suggests the thermistor is failing and should be replaced. Always ensure the thermistor is fully immersed and not touching the container to avoid inaccurate readings.
While testing, be mindful of potential pitfalls. For instance, using a multimeter with low resolution can lead to imprecise measurements, especially at lower resistance values. Additionally, rapid temperature changes can cause the thermistor to respond slowly, so patience is key. If you’re unsure about the expected resistance values, consult the Dometic refrigerator manual or contact the manufacturer for specific data. This method not only diagnoses thermistor issues but also helps calibrate temperature control systems for optimal performance.
In practice, this testing method is both cost-effective and straightforward, making it ideal for DIY troubleshooting. For example, if your Dometic refrigerator isn’t maintaining temperature, testing the thermistor can pinpoint whether the issue lies with the sensor or another component. By systematically measuring resistance at multiple temperatures, you can isolate the problem and avoid unnecessary repairs or part replacements. Remember, accuracy is critical—use a reliable multimeter and ensure temperature stability during each measurement for trustworthy results.
