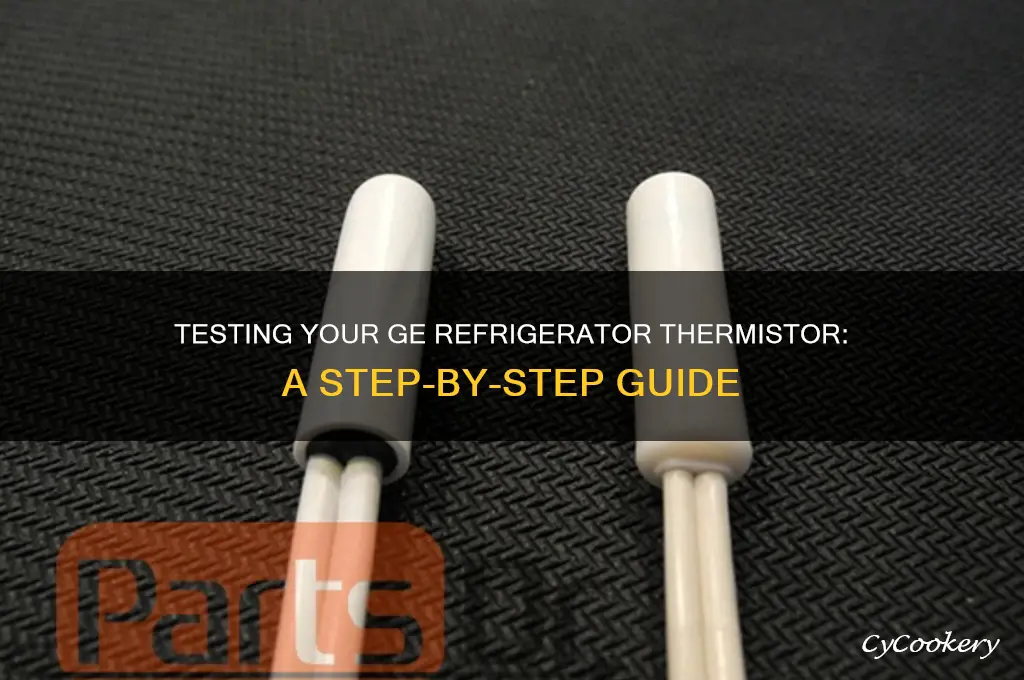

Testing a GE refrigerator thermistor is a crucial step in diagnosing temperature control issues, as the thermistor monitors the appliance's internal temperature and sends data to the control board. To begin, locate the thermistor, typically found near the evaporator coils or inside the fresh food compartment, depending on the model. Disconnect the refrigerator from power for safety, then remove the thermistor from its housing, ensuring not to damage the wires. Using a multimeter set to the resistance (ohms) scale, measure the thermistor's resistance at varying temperatures, such as in ice water (0°C) or boiling water (100°C), and compare the readings to the manufacturer's specifications. If the resistance values deviate significantly, the thermistor may be faulty and require replacement. Always consult the refrigerator's manual or a professional technician for model-specific guidance.
| Characteristics | Values |
|---|---|
| Thermistor Resistance Range | Typically 10kΩ at 77°F (25°C), but check GE manual for specific model. |
| Multimeter Required | Digital multimeter with resistance (ohms) measurement capability. |
| Temperature vs. Resistance Chart | Refer to GE refrigerator manual or service guide for accurate values. |
| Testing Temperature Range | Test at known temperatures (e.g., ice bath for 32°F, room temp for 77°F). |
| Thermistor Location | Usually located inside the refrigerator or freezer compartment. |
| Wiring Connections | Two wires connected to the thermistor (ensure proper identification). |
| Expected Resistance Tolerance | ±1% to ±5% depending on the model and manufacturer specifications. |
| Diagnostic Mode Access | Some GE models require entering diagnostic mode to test thermistors. |
| Common Fault Symptoms | Inconsistent temperatures, error codes related to temperature sensing. |
| Replacement Part Number | Varies by model; check GE parts catalog or manual. |
| Safety Precautions | Unplug refrigerator before testing to avoid electrical hazards. |
Explore related products
What You'll Learn
- Thermistor Resistance Testing: Use a multimeter to measure resistance at varying temperatures for accuracy
- Location Identification: Locate the thermistor in the evaporator or fresh food compartment
- Wiring Inspection: Check for loose or damaged wires connected to the thermistor
- Continuity Check: Test for continuity to ensure the thermistor is not open or shorted
- Temperature Calibration: Verify readings against known temperatures using a calibrated thermometer
Thermistor Resistance Testing: Use a multimeter to measure resistance at varying temperatures for accuracy
A thermistor's resistance changes with temperature, making it a critical component in GE refrigerators for accurate temperature control. To ensure your refrigerator’s thermistor is functioning correctly, resistance testing at varying temperatures is essential. This method not only verifies the thermistor’s accuracy but also helps diagnose issues like inconsistent cooling or faulty temperature readings. By comparing measured resistance values against the manufacturer’s specifications, you can pinpoint whether the thermistor is the root cause of your refrigerator’s problems.
To perform thermistor resistance testing, you’ll need a multimeter capable of measuring resistance (ohms) and a way to control the thermistor’s temperature. Start by locating the thermistor, typically found near the evaporator coils or inside the fresh food compartment. Disconnect the thermistor from the refrigerator’s control board, ensuring the unit is unplugged to avoid electrical hazards. Set your multimeter to the resistance (ohms) setting, and place the thermistor in a controlled temperature environment, such as a cup of ice water (0°C) or a pot of boiling water (100°C). Record the resistance reading at each temperature and compare it to the expected values provided in the GE refrigerator’s service manual.
For example, at 0°C, a typical NTC (Negative Temperature Coefficient) thermistor might show a resistance of around 15,000 ohms, while at 100°C, it could drop to approximately 2,000 ohms. Deviations from these values indicate a malfunctioning thermistor. Be mindful of the thermistor’s sensitivity—even small temperature fluctuations can significantly alter resistance readings. Use a thermometer to verify the test temperatures and ensure accuracy. If you lack access to precise temperature sources, consider using a temperature-controlled chamber or consulting a professional for assistance.
Caution is key during this process. Avoid exposing the thermistor to extreme temperatures beyond its operational range, as this can cause permanent damage. Additionally, handle the thermistor carefully to prevent physical damage or dislodging its connections. If you’re unsure about any step, refer to GE’s troubleshooting guides or seek expert advice. Misdiagnosis can lead to unnecessary part replacements or further complications.
In conclusion, thermistor resistance testing is a straightforward yet powerful diagnostic tool for GE refrigerator owners. By systematically measuring resistance at controlled temperatures, you can accurately assess the thermistor’s health and address cooling issues effectively. This method not only saves time and money but also ensures your refrigerator operates at peak efficiency, preserving your food and extending the appliance’s lifespan.
