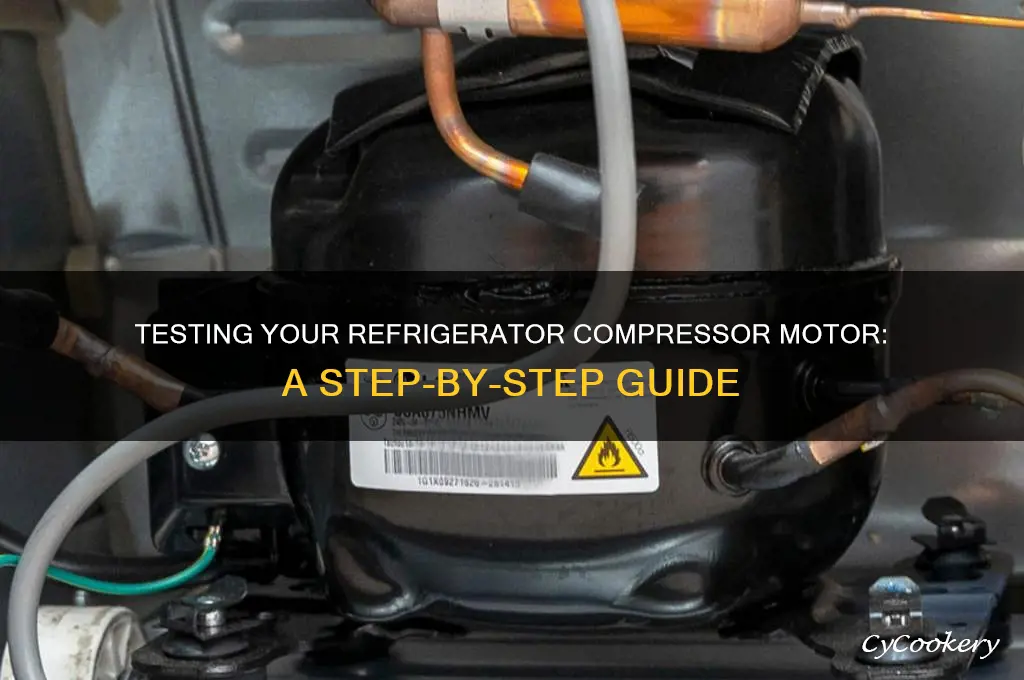

Testing a refrigerator compressor motor is a critical step in diagnosing issues with your refrigerator's cooling system. The compressor motor is the heart of the refrigeration cycle, responsible for circulating refrigerant and maintaining optimal temperatures. To test it, start by unplugging the refrigerator and locating the compressor, typically found at the bottom rear of the unit. Use a multimeter to check for continuity across the motor terminals; a lack of continuity indicates a faulty motor. Additionally, inspect the start relay and overload protector, as these components often fail before the motor itself. If the motor runs but doesn’t cool effectively, check for refrigerant leaks or system obstructions. Proper testing ensures accurate diagnosis and helps determine whether the motor needs repair or replacement.
| Characteristics | Values |
|---|---|
| Tools Required | Multimeter, insulated gloves, screwdriver, capacitor tester (if applicable) |
| Safety Precautions | Unplug refrigerator, discharge capacitor, wear insulated gloves |
| Test Type | Resistance test, continuity test, capacitor test (if applicable) |
| Resistance Test Range | Typically 1-50 ohms (varies by model; check manufacturer specs) |
| Continuity Test Result | Continuous circuit (beep on multimeter) |
| Capacitor Test (if applicable) | Test for capacitance value (e.g., 10-100 µF) and check for leaks/bulges |
| Start Relay/Overload Test | Test for continuity or resistance (specific to relay/overload components) |
| Voltage Test | Ensure input voltage matches refrigerator's rated voltage (e.g., 120V/240V) |
| Compressor Pins | Typically 3 pins: Start, Run, and Common (C) |
| Expected Outcome | Normal resistance/continuity readings, no capacitor issues, proper voltage |
| Common Faults | Open circuit, short circuit, high resistance, faulty capacitor |
| Professional Assistance | Recommended if tests are inconclusive or repairs are needed |
Explore related products
What You'll Learn
- Safety Precautions: Ensure power is disconnected before testing to prevent electrical hazards
- Visual Inspection: Check for physical damage, burn marks, or loose connections on the motor
- Continuity Test: Use a multimeter to verify if the motor windings have continuity
- Capacitor Check: Test the start and run capacitors for proper functionality and values
- Amperage Draw: Measure current draw during operation to ensure it’s within specifications
Safety Precautions: Ensure power is disconnected before testing to prevent electrical hazards
Before testing a refrigerator compressor motor, the first and most critical step is to disconnect the power supply. This isn't merely a suggestion—it's a non-negotiable safety measure. Refrigerator compressors operate on high voltage, typically 110-120 volts in residential settings, and even a brief exposure can result in severe electrical shock or fatal accidents. The risk isn't just theoretical; statistics from the U.S. Consumer Product Safety Commission show that electrical hazards account for thousands of injuries annually, many of which could have been prevented by proper power disconnection. Always unplug the refrigerator or switch off the circuit breaker dedicated to the appliance. Verify the power is off using a non-contact voltage tester before proceeding.
The process of disconnecting power may seem straightforward, but it’s riddled with potential pitfalls. For instance, simply turning off the refrigerator’s control panel does not guarantee the compressor is de-energized. Some models retain residual power in the system, which can still pose a hazard. Similarly, relying solely on a wall switch is insufficient, as the circuit breaker might still be live. To mitigate these risks, follow a systematic approach: locate the correct circuit breaker in your electrical panel, flip it off, and then test the outlet with a voltage tester. If working on older appliances or in environments with outdated wiring, consider using insulated gloves and standing on a rubber mat for added protection.
A common misconception is that testing a compressor motor requires only basic electrical knowledge. However, the reality is that even experienced technicians prioritize safety above all else. For example, capacitors in the compressor circuit store electrical energy even after power is disconnected. These components can deliver a dangerous shock if handled improperly. To address this, discharge the capacitor using a screwdriver with an insulated handle across its terminals—a step often overlooked by amateurs. This simple action neutralizes the stored charge, significantly reducing the risk of accidental electrocution during testing.
Finally, consider the environment in which you’re working. Testing a compressor motor often involves removing panels or accessing tight spaces, increasing the likelihood of accidental contact with live wires or components. Ensure the work area is well-lit and free of clutter to minimize distractions. If working alone, inform someone of your task and expected completion time. While these precautions may seem excessive, they are essential for preventing accidents that can have long-term consequences. Remember, the goal isn't just to test the motor—it's to do so safely, ensuring both the appliance and the technician remain unharmed.
Reversing Door Swing on KitchenAid Fridge: A Step-by-Step Guide
You may want to see also
Explore related products
Visual Inspection: Check for physical damage, burn marks, or loose connections on the motor
A visual inspection is often the first and most straightforward step in diagnosing issues with a refrigerator compressor motor. Before reaching for tools or meters, take a moment to examine the motor for obvious signs of distress. Physical damage, such as cracks or dents, can indicate mechanical stress or impact, which may impair the motor’s function. Burn marks on the motor or its wiring suggest overheating, a common culprit behind compressor failure. Loose connections, though seemingly minor, can disrupt electrical flow and lead to intermittent operation or complete shutdown. These visual cues are not just clues—they’re red flags that demand attention.
Begin by unplugging the refrigerator to ensure safety. Locate the compressor motor, typically found at the bottom rear of the unit, and remove the access panel if necessary. Use a flashlight to illuminate the area, as poor lighting can cause you to miss critical details. Inspect the motor housing for any deformities or discoloration, paying close attention to areas near terminals and wiring. Check the wiring harness for frayed or melted insulation, and ensure all connections are secure and free of corrosion. Even a small crack or loose wire can escalate into a major issue if left unaddressed.
Comparing the motor’s current state to its expected condition can provide valuable insights. A well-maintained compressor motor should appear clean, intact, and free of abnormalities. If you notice any deviations, such as charring around terminals or oil leaks from the motor casing, these are signs of internal damage. For instance, oil leakage often indicates worn bearings or a failing seal, while charring suggests electrical arcing. While some issues, like minor surface rust, may be cosmetic, others, like burn marks, require immediate action to prevent further damage.
Persuasive as it may seem to skip this step and jump to electrical testing, a thorough visual inspection can save time and effort. It’s the diagnostic equivalent of a doctor’s physical exam—quick, non-invasive, and often revealing. By identifying visible problems early, you can avoid unnecessary troubleshooting or costly repairs. For example, a loose wire connection might be the sole reason your refrigerator isn’t cooling, and tightening it could resolve the issue without further intervention. This step is not just precautionary; it’s proactive.
In conclusion, a visual inspection is a critical yet often overlooked aspect of testing a refrigerator compressor motor. It requires no specialized tools, just keen observation and attention to detail. By systematically checking for physical damage, burn marks, and loose connections, you can pinpoint potential issues before they escalate. Treat this step as your first line of defense in diagnosing compressor problems, and you’ll be better equipped to determine whether further testing or repairs are necessary.
Butter & Oleo Shelf Life: Refrigerator Storage Duration Explained
You may want to see also
Explore related products
Continuity Test: Use a multimeter to verify if the motor windings have continuity
A faulty compressor motor can bring your refrigerator to a grinding halt, leaving your food at risk. Before condemning the entire unit, a simple continuity test using a multimeter can pinpoint whether the motor windings are the culprits. This test checks if the electrical circuit within the windings is complete, allowing current to flow. If the windings are broken or damaged, the circuit will be open, and the motor won't function.
A multimeter, set to the ohms (resistance) setting, becomes your diagnostic tool. Touch the probes to the motor's terminals, typically labeled "common" and "start" or "run." A reading close to zero ohms indicates continuity, meaning the windings are intact. A reading of "OL" (open loop) signifies a break in the circuit, pointing towards a faulty winding.
This test is crucial because it isolates the problem to the motor windings themselves. Other issues, like a faulty capacitor or relay, can mimic motor failure. By confirming continuity, you eliminate the windings as the source of the problem, narrowing down your troubleshooting path.
Remember, safety first! Always disconnect the refrigerator from power before performing any tests. Additionally, consult your refrigerator's manual for specific terminal locations and safety precautions.
While a failed continuity test strongly suggests winding damage, it's not always definitive. Other factors, like loose connections or internal shorts, can also cause an open circuit. If you're unsure about the results, consulting a qualified appliance repair technician is recommended. They possess the expertise and tools to accurately diagnose and repair complex motor issues.
How Often Should You Add Refrigerant to Your AC?
You may want to see also
Explore related products
$11.29 $11.89
Capacitor Check: Test the start and run capacitors for proper functionality and values
Capacitors are the unsung heroes of a refrigerator compressor motor, providing the initial jolt and sustained power needed for operation. A faulty capacitor can lead to a motor that hums but doesn’t start, cycles irregularly, or fails to run altogether. Testing both the start and run capacitors is a critical step in diagnosing compressor issues, as these components degrade over time due to heat, voltage fluctuations, or age. Before proceeding, ensure the refrigerator is unplugged to avoid electrical hazards, and discharge the capacitors using a screwdriver with an insulated handle to prevent shocks.
To test a capacitor, you’ll need a multimeter with a capacitance setting or a dedicated capacitor tester. Start with the start capacitor, typically rated between 5 and 20 microfarads (μF). Set the multimeter to the capacitance mode, connect the leads to the capacitor terminals, and compare the reading to the value printed on the capacitor. A variance of ±5% is acceptable; anything beyond that indicates a faulty component. Repeat the process for the run capacitor, usually rated between 5 and 60 μF, depending on the motor. If your multimeter lacks a capacitance setting, perform a resistance test: a functional capacitor should show a brief spike in resistance before dropping to zero, indicating it’s charging and discharging properly.
While testing, pay attention to physical signs of capacitor failure, such as bulging, leaking, or a burnt odor, which often accompany electrical malfunctions. These symptoms are red flags even if the multimeter readings appear normal. Additionally, if the motor hums but doesn’t start, the start capacitor is likely the culprit, whereas frequent cycling or overheating points to a failing run capacitor. Always replace capacitors with exact matches in terms of voltage and capacitance ratings to ensure compatibility and safety.
A common mistake is assuming a capacitor is bad based solely on age or appearance. While capacitors do wear out over time—typically lasting 5 to 10 years—they should only be replaced if testing confirms a malfunction. Conversely, don’t overlook capacitors as a potential issue if the motor behaves erratically. Proper testing saves time and money by pinpointing the problem before replacing expensive components like the compressor itself.
In conclusion, testing start and run capacitors is a straightforward yet essential skill for diagnosing refrigerator compressor issues. With the right tools and knowledge, you can accurately assess capacitor health, avoiding unnecessary repairs or replacements. Remember, capacitors are small but mighty—their proper functioning is vital to keeping your refrigerator running smoothly.
Should Frank's RedHot Sauce Be Refrigerated? The Ultimate Guide
You may want to see also
Explore related products
Amperage Draw: Measure current draw during operation to ensure it’s within specifications
A refrigerator compressor motor's amperage draw is a critical indicator of its health and efficiency. Excessive current can signal impending failure, while insufficient draw may indicate a mechanical issue or improper voltage supply. To assess this, you’ll need a clamp meter capable of measuring AC current accurately. Ensure the meter is rated for the expected amperage range of your compressor, typically between 1 to 10 amps for residential units, though larger commercial models may draw more. Always consult the manufacturer’s specifications for precise values.
Begin by isolating the compressor circuit to avoid interference from other components. Turn off the refrigerator and unplug it, then reconnect the power through the clamp meter. Place the meter’s jaw around one of the compressor’s power wires, ensuring it’s securely closed. Power the unit and observe the reading. Compare this value to the rated amperage listed on the compressor’s data plate or in the manual. A variance of ±10% is generally acceptable, but deviations beyond this range warrant further investigation. For example, a motor rated at 5 amps drawing 6.5 amps may be overheating due to worn bearings or insufficient lubrication.
Caution is essential during this process. Never attempt to measure amperage with the refrigerator running if you’re unsure of the procedure, as mishandling high-voltage circuits can result in electrical shock or damage. If the reading is abnormally high, immediately shut off power and inspect for short circuits or grounded windings. Conversely, a low amperage draw could indicate a faulty start relay, capacitor, or internal motor issue. In such cases, disassemble the compressor compartment and test individual components using a multimeter to pinpoint the problem.
Practical tips can streamline this diagnostic process. For instance, if the compressor is difficult to access, consider using an extension cord with the clamp meter to measure current without disassembling the unit. Additionally, record baseline amperage readings during normal operation for future reference. This data can help identify gradual performance degradation before it leads to complete failure. Regularly monitoring amperage draw not only extends the compressor’s lifespan but also ensures energy efficiency, reducing utility costs and environmental impact.
In conclusion, measuring amperage draw is a straightforward yet powerful method to evaluate a refrigerator compressor motor’s condition. By adhering to safety protocols and interpreting readings accurately, you can diagnose issues early, prevent costly repairs, and maintain optimal performance. Whether you’re a homeowner or a technician, mastering this technique is an invaluable skill in appliance maintenance.
Refrigerated Cookie Dough: Safe Storage Time and Tips
You may want to see also
Frequently asked questions
Check if the refrigerator is cooling adequately, listen for unusual noises from the compressor, and use a multimeter to test the motor’s resistance and continuity.
You’ll need a multimeter to measure resistance and continuity, a screwdriver to access the motor, and safety gear like gloves and goggles.
Yes, but ensure the refrigerator is unplugged to avoid electrical hazards. Test the motor terminals directly using a multimeter.
Common signs include inadequate cooling, excessive noise, frequent cycling on and off, or the motor not starting at all.
Use a multimeter to check the capacitors for proper capacitance. A faulty capacitor will show a significant deviation from its rated value or no reading at all.
