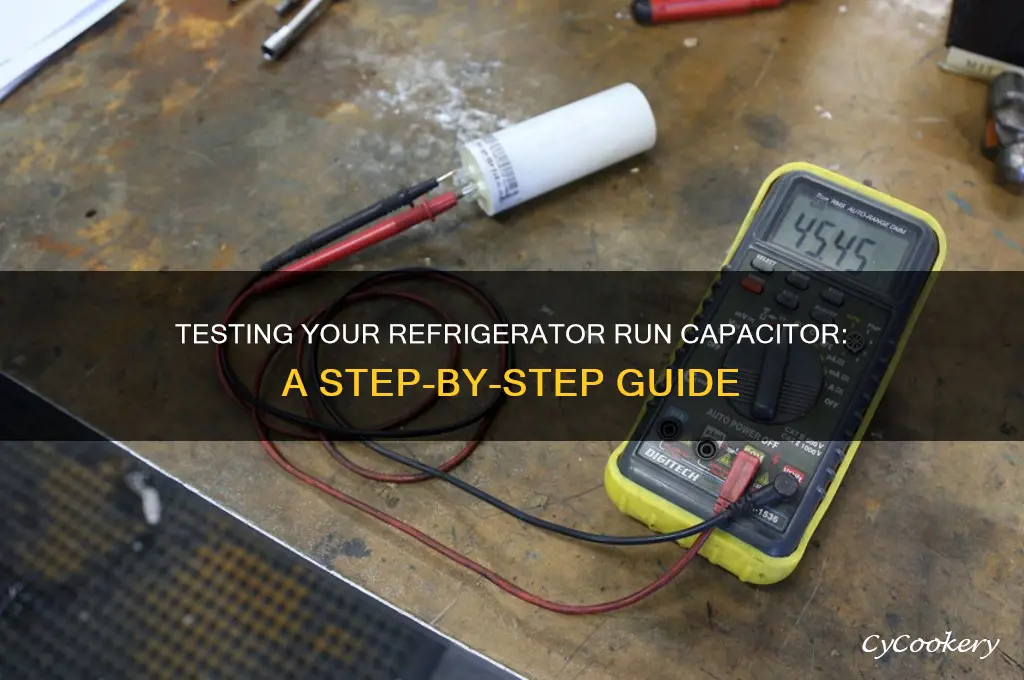

Testing a refrigerator run capacitor is essential for diagnosing issues with the compressor or fan motor, as a faulty capacitor can cause the appliance to stop cooling. To begin, ensure the refrigerator is unplugged for safety. Locate the capacitor, typically found near the compressor or motor, and discharge it using a screwdriver with an insulated handle to prevent electrical shock. Next, use a multimeter set to the capacitance or resistance mode to check the capacitor’s readings against its rated specifications. If the multimeter shows no continuity or a significant deviation from the expected values, the capacitor is likely defective and needs replacement. Always handle capacitors with care and consider consulting a professional if unsure about the process.
| Characteristics | Values |
|---|---|
| Tools Required | Multimeter (set to capacitance or resistance mode), insulated gloves |
| Safety Precautions | Unplug refrigerator, discharge capacitor, wear insulated gloves |
| Capacitor Location | Near the compressor, usually in a black or metallic casing |
| Capacitance Range (Typical) | 5-20 µF (microfarads) for refrigerator run capacitors |
| Tolerance | ±5% to ±10% of rated capacitance |
| Voltage Rating | Matches or exceeds the refrigerator's operating voltage (e.g., 370V) |
| Testing Method | Measure capacitance directly or check for continuity (ESR test) |
| Expected Multimeter Reading | Within ±5% to ±10% of the rated capacitance value |
| Failure Indicators | Open circuit (infinite resistance), short circuit (0 ohms), or out of tolerance capacitance |
| Replacement Criteria | Replace if capacitance is out of tolerance or if physical damage is visible |
| Common Symptoms of Bad Capacitor | Compressor not starting, humming noise, frequent cycling, warm fridge |
| Additional Checks | Inspect for bulging, leaking, or burning on the capacitor body |
Explore related products
What You'll Learn
- Safety Precautions: Always disconnect power before testing to avoid electrical hazards and personal injury
- Visual Inspection: Check for bulges, leaks, or damage indicating capacitor failure or wear
- Multimeter Testing: Use a multimeter to measure capacitance and verify proper functionality
- Symptoms of Failure: Identify issues like compressor not starting or fan running slowly
- Replacement Steps: Safely remove the old capacitor and install a compatible new one
Safety Precautions: Always disconnect power before testing to avoid electrical hazards and personal injury
Before testing a refrigerator run capacitor, the first and most critical step is to disconnect the power supply. This isn't merely a suggestion—it's a non-negotiable safety measure. Refrigerators operate on high-voltage electricity, typically 120 or 240 volts, depending on your region. Even a momentary contact with live wires can result in severe electrical shock, burns, or even fatalities. By unplugging the refrigerator or switching off the circuit breaker, you eliminate the risk of accidental electrocution, ensuring a safe testing environment.
Analyzing the potential consequences of skipping this step underscores its importance. A live capacitor stores electrical energy, even when the appliance is turned off. Attempting to test it without disconnecting power can lead to short circuits, arcing, or damage to your multimeter. Moreover, the risk extends beyond the tester; nearby individuals or pets could also be endangered if an accident occurs. This simple precaution takes mere seconds but prevents a cascade of hazardous outcomes.
To implement this safety measure effectively, follow a systematic approach. First, locate the refrigerator’s power cord and unplug it from the wall outlet. If the unit is hardwired, switch off the dedicated circuit breaker in your electrical panel. Wait at least 10 minutes to allow any residual charge in the capacitor to dissipate. Verify the power is off by testing an outlet with a non-contact voltage tester or plugging in a functioning lamp. Only proceed with testing once you’re certain the appliance is completely de-energized.
Comparing this practice to other electrical safety protocols highlights its universality. Whether you’re a professional technician or a DIY enthusiast, the principle remains the same: never work on live circuits. This rule applies to testing capacitors, replacing compressors, or even simple repairs like changing a light bulb in an appliance. By treating every electrical component as potentially live until proven otherwise, you cultivate a safety-first mindset that minimizes risks across all tasks.
Finally, consider the long-term benefits of adhering to this precaution. Beyond preventing immediate injury, it fosters a habit of caution that extends to other home maintenance tasks. For instance, the discipline of double-checking power disconnection translates to safer handling of power tools, electronics, or even automotive repairs. In essence, this single step isn’t just about testing a capacitor—it’s about embedding safety into every interaction with electrical systems.
