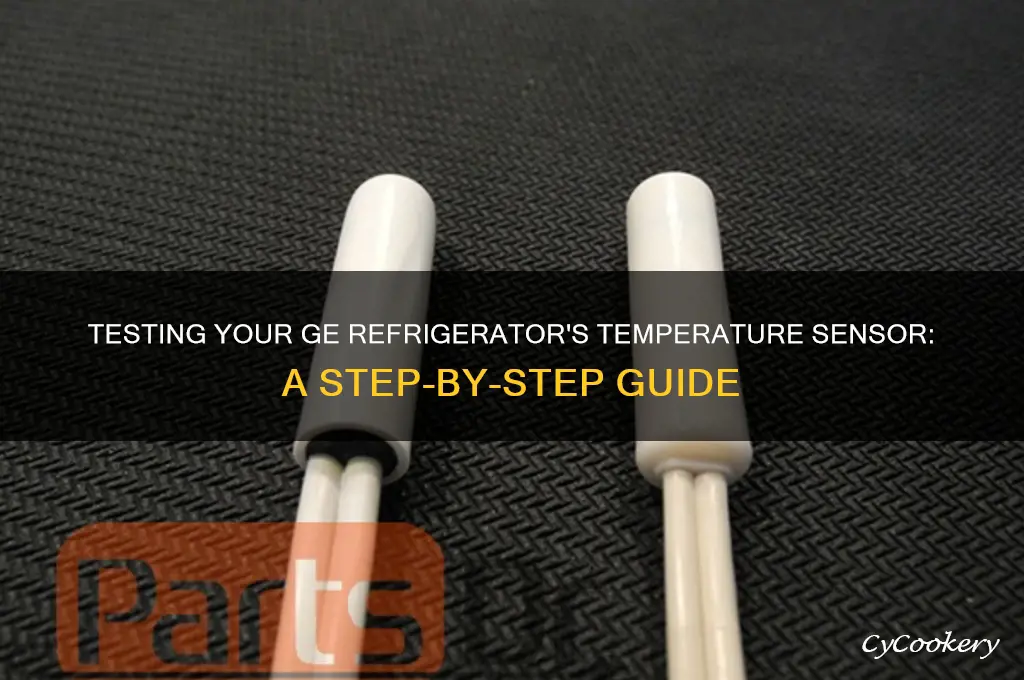

Testing the temperature sensor in a GE refrigerator is essential for ensuring accurate cooling and preventing food spoilage. The sensor monitors the internal temperature and communicates with the control board to maintain optimal conditions. To test it, start by unplugging the refrigerator or turning off the power at the circuit breaker for safety. Locate the sensor, typically found inside the fresh food compartment or freezer, often near the evaporator coils. Use a multimeter set to the resistance (ohms) setting to measure the sensor’s resistance at different temperatures, such as room temperature and after placing it in ice water (which should read close to 0°F). Compare the readings to the manufacturer’s specifications to determine if the sensor is functioning correctly. If the readings are inconsistent or out of range, the sensor may need to be replaced. Always consult the refrigerator’s manual or a professional technician for guidance specific to your model.
| Characteristics | Values |
|---|---|
| Tools Needed | Multimeter, Phillips head screwdriver |
| Sensor Location | Typically behind a cover plate inside the refrigerator compartment, near the air duct |
| Sensor Type | Thermistor (resistance changes with temperature) |
| Normal Resistance Range | Varies by model, typically 5-10 kΩ at room temperature (check your refrigerator's manual) |
| Testing Procedure | 1. Unplug refrigerator or turn off power at circuit breaker. 2. Locate and access sensor. 3. Set multimeter to resistance (ohms) setting. 4. Touch multimeter probes to sensor terminals. 5. Compare reading to expected range for your model and current temperature. |
| Expected Results | Resistance should decrease as temperature increases. Significant deviation from expected range indicates a faulty sensor. |
| Safety Precautions | Always disconnect power before working on refrigerator. Handle sensor carefully to avoid damage. |
| Additional Tips | Consult your refrigerator's manual for specific sensor location and resistance values. If unsure, contact a qualified appliance repair technician. |
Explore related products
What You'll Learn
Tools Needed for Testing
Testing a GE refrigerator temperature sensor requires a few essential tools to ensure accuracy and safety. The multimeter, a cornerstone of electrical diagnostics, is indispensable for this task. It measures voltage, resistance, and continuity, allowing you to verify the sensor’s functionality. Opt for a digital multimeter with a clear display and auto-ranging capabilities to simplify the process, especially for those less experienced with electronics. Ensure the multimeter is rated for the voltage range your refrigerator operates on, typically 120V for household appliances.
Beyond the multimeter, a set of insulated screwdrivers is crucial for accessing the sensor. Refrigerators often have panels secured with screws, and using the correct size and type (Phillips or flathead) prevents damage to the appliance. Insulated handles are a safety must, as they protect against accidental electrical contact while working near live components. Additionally, a small flashlight or headlamp can illuminate tight spaces, making it easier to locate the sensor and read multimeter values in dimly lit areas.
For those seeking precision, a thermometer is a valuable tool to cross-reference the sensor’s readings. Place a calibrated thermometer near the sensor’s location to compare its displayed temperature with the sensor’s output. This step helps identify whether the issue lies with the sensor itself or another component in the cooling system. Choose a thermometer with a quick response time and a range suitable for refrigerator temperatures, typically between 32°F and 42°F (0°C to 5.5°C).
Lastly, a notepad and pen are often overlooked but highly practical. Documenting readings, observations, and steps taken during the test creates a reference for troubleshooting or future repairs. Note the sensor’s resistance values at different temperatures, as these can be compared against GE’s specifications for your model. This organized approach saves time and reduces the likelihood of errors, ensuring a systematic and effective diagnosis.
In summary, the right tools—a multimeter, insulated screwdrivers, a thermometer, and documentation supplies—transform testing a GE refrigerator temperature sensor from guesswork into a precise, actionable process. Each tool plays a unique role, contributing to a comprehensive assessment that identifies issues accurately and efficiently.
Should Banana Bread Be Refrigerated After Baking? Tips for Freshness
You may want to see also
Explore related products
Locating the Sensor in the Fridge
The temperature sensor in a GE refrigerator is a critical component for maintaining optimal cooling performance. Locating it is the first step in any diagnostic or testing process. Typically, GE refrigerators place the sensor in the fresh food compartment, often near the top or back, where it can accurately measure the ambient temperature. This positioning ensures the sensor is not influenced by direct airflow from the vents, providing a more stable reading. Understanding this placement is essential before attempting any tests or calibrations.
To locate the sensor, start by removing any obstructions in the refrigerator, such as food items or shelves, that might block access to the top or back areas. In most GE models, the sensor is a small, cylindrical device connected to a wire harness. It’s often tucked behind a plastic cover or clipped to the interior wall. For example, in the GE Profile series, the sensor is usually found behind a vent panel at the top of the fridge. Gently pry off the panel using a flathead screwdriver, taking care not to damage any components. Once exposed, the sensor will be clearly visible, allowing you to proceed with testing or inspection.
While locating the sensor is straightforward, it’s important to avoid common mistakes that could damage the component. For instance, pulling forcefully on the wire harness or bending the sensor can cause malfunctions. Always handle the sensor with care and ensure the refrigerator is unplugged before attempting to access it. Additionally, consult your refrigerator’s manual for model-specific guidance, as sensor placement can vary slightly between GE models. This precautionary approach ensures both your safety and the integrity of the appliance.
Comparing GE refrigerators to other brands highlights the consistency in sensor placement within the fresh food compartment. However, GE models often integrate the sensor more discreetly, requiring users to remove panels or covers for access. This design choice prioritizes aesthetics but demands a bit more effort during troubleshooting. By familiarizing yourself with these nuances, you’ll be better equipped to locate and test the sensor efficiently, ensuring your refrigerator operates at its best.
Should You Store Perfume in the Fridge? Pros, Cons, and Tips
You may want to see also
Explore related products
Steps to Check Sensor Accuracy
A faulty temperature sensor can lead to inconsistent cooling, spoiled food, and higher energy bills. Testing the accuracy of your GE refrigerator’s sensor is a straightforward process that requires minimal tools and time. Begin by locating the sensor, typically found inside the refrigerator compartment near the air duct or behind a cover panel. Once identified, you’ll need a multimeter to measure its resistance, which varies with temperature. This step is crucial because the sensor’s resistance should align with the actual temperature, as specified in the manufacturer’s chart.
To test the sensor, first unplug the refrigerator or turn off power at the circuit breaker for safety. Remove the sensor from its housing, ensuring not to damage any wires. Set your multimeter to the ohms (resistance) setting and touch the probes to the sensor’s terminals. Compare the resistance reading to the temperature inside the refrigerator using a reliable thermometer. For example, at 32°F (0°C), a typical GE sensor might read around 15,000 ohms. If the readings don’t match the chart, the sensor may be inaccurate and require replacement.
While testing, consider environmental factors that could skew results. Ensure the refrigerator door has been closed for at least 30 minutes to stabilize the internal temperature. Avoid testing immediately after adding warm food or during frequent door openings, as these can temporarily alter readings. Additionally, inspect the sensor for physical damage, such as cracks or corrosion, which could affect its performance regardless of resistance values.
If the sensor passes the resistance test but the refrigerator still isn’t maintaining temperature, investigate other components like the evaporator fan or control board. However, if the sensor fails, replacing it is a cost-effective solution compared to professional repairs. GE sensors are typically available online or at appliance parts stores, and installation involves reversing the removal steps. Always consult your refrigerator’s manual for model-specific guidance.
In conclusion, testing your GE refrigerator’s temperature sensor is a practical skill that ensures your appliance runs efficiently. By combining resistance measurements with environmental awareness, you can diagnose issues accurately and take appropriate action. Regular checks can prevent food waste and extend the life of your refrigerator, making this a valuable task for any homeowner.
Should You Let Dough Rise Before Refrigerating? Tips for Perfect Results
You may want to see also
Explore related products
Interpreting Temperature Readings
Temperature readings from your GE refrigerator’s sensor are only as useful as your ability to interpret them accurately. A reading of 38°F in the fresh food compartment, for instance, might seem within the ideal range (37°F to 40°F), but if it consistently hovers at 38°F without fluctuation, it could indicate a failing sensor or compressor issue. Conversely, a reading that swings wildly between 35°F and 42°F suggests poor calibration or airflow obstruction. Understanding these nuances is critical, as misinterpreting data can lead to food spoilage or unnecessary repairs.
To interpret readings effectively, establish a baseline by monitoring the sensor’s output over 24 hours under normal conditions. Use a high-quality external thermometer placed in the center of the refrigerator for comparison. If the sensor reads 39°F while the thermometer shows 42°F, the sensor is likely underreporting. Conversely, a 3°F discrepancy in the opposite direction may indicate oversensitivity. GE recommends a maximum variance of ±2°F between the sensor and an external thermometer for optimal performance.
When testing, avoid common pitfalls that skew results. Do not open the refrigerator door frequently during testing, as this introduces external heat and disrupts stability. Similarly, ensure the sensor is not obstructed by food items or ice buildup, which can insulate it from accurate readings. For French door models, test both compartments separately, as dual evaporator systems may show slight temperature differences. If the freezer sensor reads -1°F but the fresh food section is 45°F, the issue likely lies in the damper or airflow system, not the sensors themselves.
Finally, contextualize readings with environmental factors. A refrigerator in a hot garage will naturally work harder, potentially causing the sensor to report higher temperatures. In such cases, a reading of 41°F might still be acceptable if the external thermometer confirms consistency. However, if the sensor shows 50°F in a climate-controlled kitchen, immediate troubleshooting is necessary. By combining technical data with situational awareness, you can distinguish between normal variations and genuine malfunctions, ensuring your GE refrigerator operates efficiently.
Refrigerating Moles: Safe Storage Duration and Freshness Tips
You may want to see also
Explore related products
![[DA32-00006W Sensor OEM Mania] DA32-00006W New OEM Produced for Refrigerator Defrost Temperature Sensor Replacement Part](https://m.media-amazon.com/images/I/51B4bM8s50L._AC_UL320_.jpg)
Troubleshooting Common Sensor Issues
A malfunctioning temperature sensor in your GE refrigerator can lead to inconsistent cooling, spoiled food, and higher energy bills. Before assuming the sensor itself is faulty, consider external factors like air circulation, door seals, and power supply issues. Ensure the refrigerator is level, the coils are clean, and the door gaskets are sealing properly. If these basics are in order, the sensor might indeed be the culprit.
Testing the sensor requires a multimeter, a tool that measures electrical resistance. Locate the sensor, typically found near the evaporator coils or inside the fresh food compartment. Disconnect the sensor from the wiring harness and set your multimeter to the ohms (resistance) setting. Touch the multimeter probes to the sensor’s terminals. Compare the resistance reading to the temperature-resistance chart in your refrigerator’s manual or online resources. For example, at 32°F (0°C), a common sensor might show around 15,000 ohms. Deviations from expected values indicate a faulty sensor.
If the sensor tests within range, the issue may lie in the control board or wiring. Inspect the wiring harness for damage or loose connections. Gently tug on each wire to ensure they’re securely attached. If the wiring is intact, the control board might be misinterpreting the sensor’s signals. In this case, consult a professional, as control board diagnostics require specialized knowledge and tools.
Preventive maintenance can extend sensor life. Avoid exposing the sensor to extreme temperatures or physical damage during cleaning. Periodically check the sensor’s placement to ensure it’s not obstructed by food items or ice buildup. If you’re unsure about any step, refer to GE’s official troubleshooting guides or contact their customer support for model-specific advice.
Replacing a faulty sensor is a straightforward task for most DIYers. Purchase a compatible replacement part from GE or authorized dealers. Follow the manufacturer’s instructions for installation, ensuring the new sensor is securely connected and properly positioned. After replacement, monitor the refrigerator’s performance for at least 24 hours to confirm the issue is resolved. Regular testing and maintenance can save you from unexpected breakdowns and costly repairs.
How Long Can Eggs Safely Sit Unrefrigerated? A Guide
You may want to see also
Frequently asked questions
The temperature sensor is typically located inside the refrigerator compartment, often near the top or back, clipped to the evaporator cover or air duct. Refer to your refrigerator’s manual for the exact location.
You’ll need a multimeter to measure the sensor’s resistance. Additionally, you may need a screwdriver to access the sensor if it’s hidden behind a panel.
Set your multimeter to the resistance (ohms) setting. Disconnect the sensor from the wiring harness and place the multimeter probes on the sensor’s terminals. Compare the resistance reading to the manufacturer’s specifications for the correct temperature.
The resistance varies with temperature. At 32°F (0°C), the sensor typically reads around 5,000 ohms. Use a temperature-to-resistance chart specific to your GE model for accurate comparisons.
