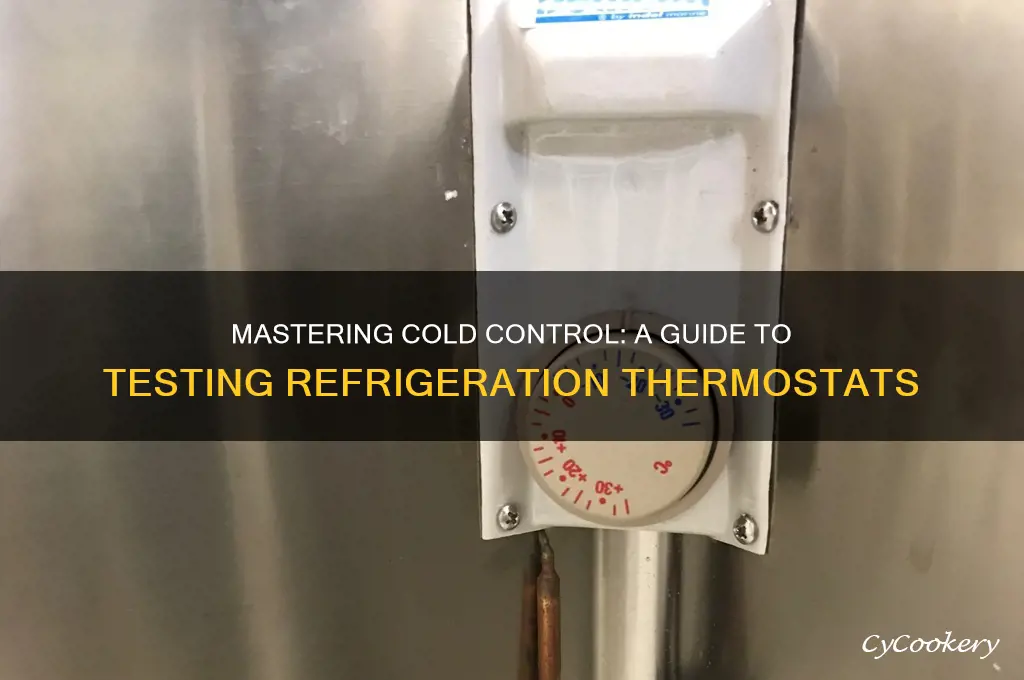

Testing refrigeration thermostats, also known as cold controls, is essential for ensuring the proper functioning of cooling systems. These components regulate temperature by cycling the compressor on and off, maintaining optimal conditions within the refrigerator or freezer. To test a thermostat, start by verifying the set temperature against the actual internal temperature using a reliable thermometer. Next, adjust the thermostat to a lower setting and observe if the compressor shuts off when the desired temperature is reached. If the compressor fails to stop, the thermostat may be faulty. Additionally, check for continuity using a multimeter when the thermostat is in both the on and off positions to ensure the electrical circuit is functioning correctly. Regular testing helps prevent temperature fluctuations, extends the lifespan of the appliance, and ensures food safety.
| Characteristics | Values |
|---|---|
| Tools Required | Multimeter, screwdriver, insulated gloves, safety goggles |
| Safety Precautions | Disconnect power, wear protective gear, avoid contact with refrigerant |
| Testing Method | Continuity test, resistance measurement, temperature calibration |
| Continuity Test | Set multimeter to continuity mode; test thermostat contacts (closed at set temp, open when colder) |
| Resistance Measurement | Measure resistance at different temperatures (specifications vary by model) |
| Temperature Calibration | Adjust thermostat knob and verify temperature accuracy with a thermometer |
| Expected Results | Contacts close at set temperature, open below set temperature |
| Common Faults | Stuck contacts, inaccurate temperature control, electrical failure |
| Replacement Criteria | Replace if contacts fail continuity test or temperature is inconsistent |
| Applicable Refrigeration Systems | Walk-in coolers, reach-in refrigerators, ice machines, display cases |
| Frequency of Testing | Annually or when temperature issues arise |
| Professional Assistance | Recommended for complex systems or refrigerant handling |
Explore related products
What You'll Learn
- Calibration Procedures: Verify accuracy using temperature standards and adjust set points accordingly for precise control
- Temperature Range Testing: Check functionality across operational limits to ensure reliability in all conditions
- Cycle Time Analysis: Measure on/off cycles to confirm proper operation and prevent short cycling
- Electrical Continuity Checks: Test contacts for consistent conductivity under varying temperature conditions
- Failure Mode Simulations: Induce faults (e.g., open/short circuits) to evaluate safety and shutdown mechanisms
Calibration Procedures: Verify accuracy using temperature standards and adjust set points accordingly for precise control
Accurate calibration of refrigeration thermostats is critical for maintaining optimal temperatures, ensuring energy efficiency, and preserving perishable goods. To verify accuracy, begin by sourcing a certified temperature standard, such as a calibrated thermometer or a precision temperature probe, with an accuracy of ±0.5°C or better. Place this standard alongside the thermostat’s sensor within the refrigeration unit, ensuring both are exposed to the same air circulation. Record the temperature readings simultaneously, comparing the thermostat’s displayed value to the standard’s measurement. Discrepancies of more than 1°C indicate a need for calibration.
Calibration involves adjusting the thermostat’s set point to align with the verified temperature standard. Most mechanical thermostats feature an adjustment screw or knob, typically located near the temperature dial. Turn this screw clockwise to increase the set point or counterclockwise to decrease it, making incremental adjustments of no more than 0.5°C at a time. After each adjustment, allow the system to stabilize for at least 30 minutes before rechecking the temperature against the standard. For digital thermostats, access the calibration menu via the control panel, input the offset value directly, and save the changes. Always refer to the manufacturer’s manual for model-specific instructions.
Precision in calibration is particularly vital in commercial refrigeration, where even minor temperature deviations can compromise food safety or product quality. For example, a walk-in cooler maintaining 4°C may require calibration to ensure it does not fluctuate above 5°C or below 3°C. In such cases, use a data logger to monitor temperature over 24 hours post-calibration, verifying consistency across different times of day. For home refrigerators, a simpler approach suffices: place a glass of water with a thermometer inside and compare its temperature to the thermostat’s reading after 2 hours. Adjust as needed to achieve accuracy within ±1°C.
Caution must be exercised during calibration to avoid over-adjustment or damage to the thermostat. Over-tightening mechanical screws can strip threads, while incorrect digital inputs may void warranties or cause system malfunctions. Always document initial and final set points, as well as any adjustments made, for future reference. Regularly repeat the calibration process every 6–12 months, or after significant repairs or power outages, to ensure ongoing accuracy. For units in critical applications, such as pharmaceutical storage, consider professional calibration services to meet stringent regulatory standards.
In conclusion, calibration procedures are a cornerstone of reliable refrigeration control. By systematically verifying accuracy against temperature standards and making precise adjustments, users can maintain optimal performance, extend equipment lifespan, and safeguard stored contents. Whether for commercial or residential use, this proactive approach ensures thermostats function as intended, delivering consistent results in even the most demanding environments.
Refrigerated Crawfish Lifespan: How Long Can You Safely Enjoy Boiled Crawfish?
You may want to see also
Explore related products
Temperature Range Testing: Check functionality across operational limits to ensure reliability in all conditions
Refrigeration thermostats, often referred to as cold controls, are critical components in maintaining precise temperature conditions within cooling systems. Temperature range testing is a vital procedure to verify that these controls function accurately across their operational limits, ensuring reliability in diverse environmental conditions. This process involves subjecting the thermostat to extreme temperatures, both high and low, to confirm it activates and deactivates as specified by the manufacturer. For instance, a typical household refrigerator thermostat should reliably engage the compressor at around 38°F (3°C) and disengage at approximately 34°F (1°C) to maintain optimal food storage conditions.
To conduct temperature range testing, begin by calibrating a precision thermometer to ensure accurate temperature readings. Place the thermostat and thermometer in a controlled environment, such as a climate chamber, capable of simulating the full operational temperature range. Gradually adjust the chamber to the lower limit of the thermostat’s specified range, typically around -10°C (14°F) for freezer applications, and observe whether the control activates the cooling system as expected. Record the exact temperature at which the thermostat responds. Repeat this process at the upper limit, often around 15°C (59°F) for refrigerators, to ensure deactivation occurs correctly. Any deviation from the manufacturer’s specifications indicates a potential malfunction requiring calibration or replacement.
A comparative analysis of different thermostat models reveals varying performance under extreme conditions. For example, mechanical thermostats may exhibit slower response times at temperature extremes compared to their digital counterparts, which often incorporate advanced sensors for quicker and more precise control. However, mechanical thermostats are generally more durable and less prone to electronic failure, making them suitable for harsher environments. Understanding these differences helps in selecting the appropriate thermostat for specific applications, ensuring both efficiency and longevity.
Practical tips for effective temperature range testing include allowing sufficient time for the thermostat to stabilize at each temperature point, typically 15–20 minutes, to ensure accurate readings. Avoid rapid temperature changes, as these can stress the thermostat and yield unreliable results. Additionally, document all test data, including response temperatures and any anomalies, for future reference and troubleshooting. Regular testing, especially in commercial refrigeration systems, can prevent costly downtime and spoilage by identifying issues before they escalate.
In conclusion, temperature range testing is an indispensable practice for validating the functionality of refrigeration thermostats across their operational limits. By systematically evaluating performance at extreme temperatures, technicians can ensure these controls maintain reliability in all conditions, safeguarding the integrity of stored goods and optimizing system efficiency. Whether for residential or industrial applications, this testing method remains a cornerstone of preventive maintenance in refrigeration technology.
Refrigerating Kimbap: Storage Tips for Freshness and Flavor Preservation
You may want to see also
Explore related products
Cycle Time Analysis: Measure on/off cycles to confirm proper operation and prevent short cycling
Short cycling, where a refrigeration system turns on and off too frequently, wastes energy, stresses components, and compromises cooling efficiency. Cycle time analysis directly addresses this issue by quantifying the duration of on and off periods. To perform this test, use a stopwatch or a multimeter with a timer function. Record the time the compressor runs (on cycle) and the time it remains off (off cycle) over a 24-hour period. Ideal cycle times vary by system and ambient conditions, but a general rule is 10–15 minutes on and 15–20 minutes off for residential refrigerators. Commercial units may differ, so consult manufacturer specifications.
Analyzing cycle times reveals underlying issues. For instance, excessively short on cycles (under 5 minutes) often indicate an oversized system, inadequate insulation, or a malfunctioning thermostat. Conversely, prolonged on cycles (over 20 minutes) may signal low refrigerant, dirty coils, or a failing compressor. Off cycles that are too short (under 10 minutes) suggest the thermostat is set too low or the system is struggling to maintain temperature. By correlating cycle times with ambient temperature and system behavior, you can pinpoint inefficiencies and potential failures before they escalate.
To conduct a cycle time analysis, start by ensuring the refrigerator is operating under normal conditions—no frequent door openings, stable ambient temperature, and clean coils. Set the thermostat to its recommended setting (typically 37–41°F for refrigerators, 0–5°F for freezers). Record the start and end times of each on and off cycle, noting any anomalies like unusual noises or temperature fluctuations. For precision, use a data logger or smartphone app to automate data collection. Compare your findings to manufacturer guidelines or industry standards to determine if adjustments are needed.
Preventing short cycling requires proactive measures. Ensure the thermostat is calibrated correctly—a miscalibrated sensor can cause the system to shut off prematurely. Verify that the evaporator and condenser coils are clean, as dirt reduces heat exchange efficiency, forcing longer on cycles. Check for proper airflow around the unit and ensure door seals are intact to minimize cold air loss. If cycle times remain abnormal after these steps, consider replacing the thermostat or consulting a technician to inspect the compressor and refrigerant levels.
In conclusion, cycle time analysis is a diagnostic powerhouse for refrigeration systems. It transforms vague symptoms like "not cooling well" into actionable data, enabling targeted repairs and optimizations. By monitoring on/off cycles, you not only extend the lifespan of the equipment but also reduce energy consumption and operational costs. Make this analysis a routine part of your maintenance regimen, especially during seasonal transitions when ambient temperatures fluctuate, to ensure consistent performance year-round.
Refrigerating Silverware: Is It Safe or a Shiny Mistake?
You may want to see also
Explore related products
$17.37 $23.99
Electrical Continuity Checks: Test contacts for consistent conductivity under varying temperature conditions
Electrical continuity checks are a cornerstone of testing refrigeration thermostats and cold controls, ensuring that the system responds accurately to temperature changes. By verifying consistent conductivity across thermostat contacts, you confirm the device’s ability to engage and disengage the compressor as needed. This process involves simulating temperature shifts to observe how the contacts behave, mimicking real-world conditions without disassembling the unit. A multimeter is your primary tool here, measuring resistance across the contacts to determine if the circuit opens or closes as intended.
To perform this test, start by setting your multimeter to the continuity or resistance mode. With the refrigeration unit unpowered, locate the thermostat’s control contacts, typically found near the temperature adjustment dial. Place the multimeter probes on these contacts and note the reading. At room temperature, the contacts should either show continuity (low resistance) or no continuity (high resistance), depending on the thermostat’s design. Gradually adjust the temperature control to its coldest setting and observe if the contacts switch states as expected. For example, a normally closed (NC) contact should open (no continuity) when the set temperature is reached, while a normally open (NO) contact should close (continuity).
A critical aspect of this test is simulating varying temperature conditions. Use a temperature-controlled environment or a heat source, such as a hairdryer, to raise the thermostat’s sensing bulb temperature. Monitor the multimeter readings as the temperature changes, ensuring the contacts respond consistently. For instance, if the thermostat is set to 35°F (1.7°C), the contacts should switch states when the sensing bulb reaches this temperature. Inconsistent readings, such as intermittent continuity or delayed responses, indicate a faulty thermostat that requires replacement.
Practical tips include ensuring the multimeter leads are securely connected to avoid false readings. If testing a capillary tube thermostat, handle the tube with care to prevent kinking, which can affect accuracy. For digital thermostats, verify the display aligns with the actual temperature and contact behavior. Always disconnect power before testing to prevent electrical hazards. By systematically checking conductivity under varying conditions, you can diagnose thermostat issues with precision, ensuring optimal refrigeration performance.
Novolog Vial Storage: How Long Can It Stay Unrefrigerated?
You may want to see also
Explore related products
$29.99 $31.52
Failure Mode Simulations: Induce faults (e.g., open/short circuits) to evaluate safety and shutdown mechanisms
Testing refrigeration thermostats and cold controls requires a systematic approach to ensure reliability and safety. One critical method is failure mode simulation, where faults such as open or short circuits are intentionally induced to evaluate the system’s response. This process mimics real-world scenarios where electrical failures can occur, allowing engineers to assess whether safety and shutdown mechanisms activate as designed. By deliberately stressing the system, you can identify weaknesses before they lead to costly failures or safety hazards.
To perform failure mode simulations, start by isolating the thermostat or cold control unit in a controlled environment. Use a multimeter to verify the baseline functionality of the circuit, ensuring it operates within specified parameters. Next, introduce an open circuit by disconnecting a critical wire or using a test switch. Observe how the system responds: does it shut down immediately, or does it continue operating until a secondary safety mechanism activates? Record the time lag, if any, and note whether any warning indicators (e.g., alarms or error codes) are triggered. Repeat this process for short circuits by bridging wires with a low-resistance conductor, such as a jumper wire, to simulate a direct electrical path. Monitor for overheating, voltage spikes, or unexpected behavior that could indicate a design flaw.
A comparative analysis of open versus short circuit faults reveals distinct failure modes. Open circuits typically result in a loss of functionality, such as the compressor failing to engage or the fan stopping abruptly. In contrast, short circuits often lead to excessive current draw, which can damage components or trip circuit breakers. Both scenarios are critical to test because they challenge different aspects of the safety system. For instance, an open circuit tests the system’s ability to detect and respond to a lack of signal, while a short circuit evaluates its capacity to handle overcurrent conditions without causing harm.
Practical tips for effective failure mode simulations include using a variable resistor (rheostat) to gradually increase resistance and simulate a developing open circuit, allowing you to observe the system’s response at various stages of failure. For short circuit testing, employ a current-limited power supply to prevent accidental damage to the unit. Always disconnect power before making physical alterations to the circuit, and use insulated tools to avoid electrical hazards. Document each test case with detailed notes, including the fault type, duration, and system response, to facilitate post-test analysis and troubleshooting.
The ultimate takeaway from failure mode simulations is their ability to uncover latent defects that might otherwise go unnoticed during standard operation. By systematically inducing faults, engineers can validate the robustness of safety and shutdown mechanisms, ensuring they comply with industry standards such as UL or IEC regulations. This proactive approach not only enhances product reliability but also reduces the risk of field failures, protecting both equipment and end-users. Incorporating these simulations into routine testing protocols is a best practice for manufacturers and maintenance professionals alike.
Should Eggs Be Refrigerated? Debunking Myths and Best Storage Practices
You may want to see also
Frequently asked questions
You will need a multimeter, a screwdriver to access the control, and possibly a temperature probe or thermometer to verify the setpoint.
Set the thermostat to a specific temperature, then use a multimeter to check for continuity. The circuit should open (no continuity) when the temperature reaches the setpoint and close (continuity) when it drops below.
Common signs include the refrigerator not cooling properly, cycling on and off too frequently, or failing to maintain a consistent temperature. Testing for continuity and verifying the setpoint can help diagnose the issue.
