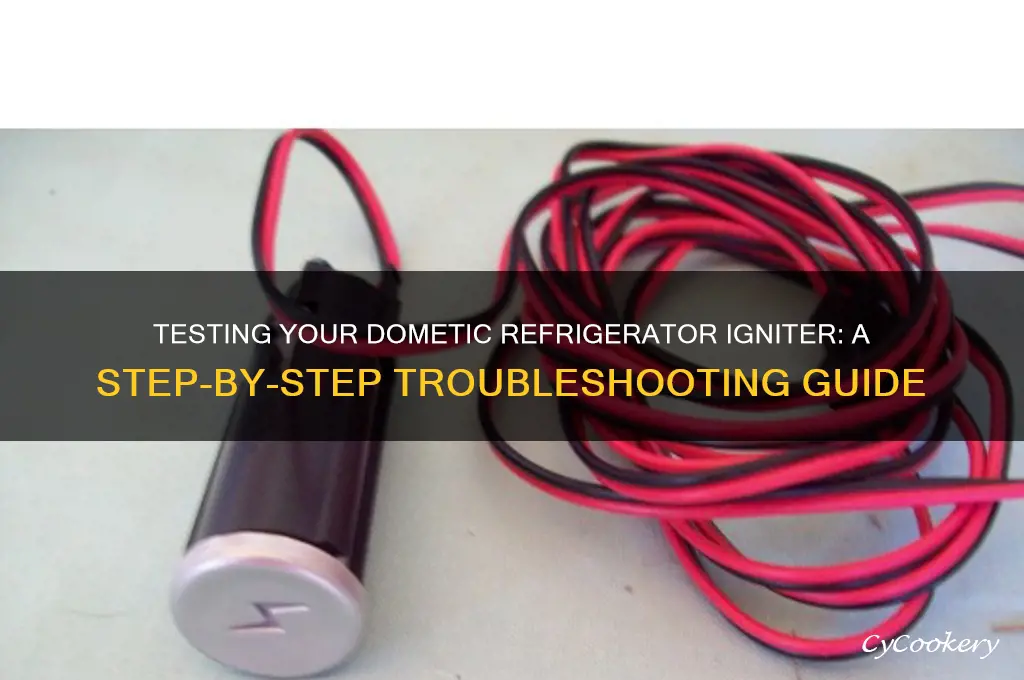

Testing the igniter on a Dometic refrigerator is a crucial step in diagnosing issues with the appliance's gas operation. The igniter is responsible for sparking the gas to ignite the burner, ensuring proper cooling. To test it, start by ensuring the refrigerator is turned off and disconnected from power for safety. Locate the igniter, typically found near the burner assembly, and inspect it for visible damage or debris. Using a multimeter set to the ohms setting, check the igniter's continuity by placing the probes on its terminals; a reading of infinity suggests a faulty igniter. Additionally, observe the igniter during operation—it should glow orange when functioning correctly. If it fails to glow or shows no continuity, replacement is necessary to restore the refrigerator's functionality.
| Characteristics | Values |
|---|---|
| Igniter Type | Typically a Piezo igniter or Glow Pin igniter |
| Tools Required | Multimeter, Needle-nose pliers, Screwdriver |
| Safety Precautions | Turn off gas supply, Ensure proper ventilation, Avoid open flames |
| Testing Method (Piezo Igniter) | 1. Disconnect power. 2. Access igniter. 3. Connect multimeter to igniter terminals. 4. Press igniter button and check for voltage (typically 15-20 kV). |
| Testing Method (Glow Pin Igniter) | 1. Disconnect power. 2. Access igniter. 3. Connect multimeter to igniter terminals. 4. Check for continuity (low resistance indicates good igniter). |
| Expected Results (Piezo) | Voltage reading within specified range when button is pressed. |
| Expected Results (Glow Pin) | Continuity (low resistance) when tested with multimeter. |
| Common Issues | Cracked igniter, Loose connections, Burned-out element |
| Replacement Needed If | No voltage/continuity detected, Physical damage observed |
| Additional Tips | Clean igniter tip, Check gas supply, Inspect burner assembly |
| Reference Sources | Dometic manuals, Online repair guides, Appliance forums |
Explore related products
What You'll Learn
- Prepare Tools and Safety Gear: Gather multimeter, gloves, and ensure power is disconnected for safe testing
- Locate Igniter Component: Identify igniter position near burner assembly in the refrigerator’s lower compartment
- Check for Continuity: Use multimeter to test igniter’s resistance; replace if no continuity is detected
- Inspect for Damage: Examine igniter for cracks, burns, or wear that could cause malfunction
- Test Voltage Supply: Verify power reaches igniter by checking voltage at the connector with a multimeter
Prepare Tools and Safety Gear: Gather multimeter, gloves, and ensure power is disconnected for safe testing
Before attempting to test the igniter on your Dometic refrigerator, it’s crucial to prioritize safety and efficiency by gathering the right tools and protective gear. A multimeter is your primary instrument for this task, as it allows you to measure voltage, resistance, and continuity—key parameters to diagnose the igniter’s functionality. Ensure your multimeter is in good working condition and set to the appropriate range for the measurements you’ll be taking. Alongside this, insulated gloves are non-negotiable. They protect your hands from electrical shocks and hot surfaces, especially since you’ll be working near the refrigerator’s power source and potentially heated components.
The first step in this process is to disconnect power to the refrigerator. This cannot be overstated: working on a live electrical circuit is dangerous and can lead to severe injury or damage to the appliance. For a Dometic refrigerator, this typically involves unplugging the unit from the power source or turning off the circuit breaker that supplies electricity to it. If your refrigerator is in an RV or mobile setting, ensure the battery is disconnected as well. Double-check that the power is off by using your multimeter to test for voltage at the refrigerator’s electrical terminals before proceeding.
Once power is confirmed to be disconnected, organize your workspace to ensure easy access to all components. Lay out your tools within reach, including the multimeter, gloves, and any additional items like a screwdriver for accessing the igniter. A cluttered workspace increases the risk of accidents, so keep the area tidy and well-lit. If you’re working in an RV or tight space, consider using a portable work light to illuminate the area around the refrigerator’s igniter assembly.
While gloves and a multimeter are essential, consider additional safety gear depending on your environment. Safety goggles can protect your eyes from debris or sparks, especially if you’re working in a dusty or confined space. A fire extinguisher should also be nearby as a precautionary measure, though the risk of fire is low if power is properly disconnected. These extra steps may seem excessive, but they reinforce a safety-first mindset, which is critical when dealing with electrical systems.
Finally, take a moment to familiarize yourself with the igniter’s location and the refrigerator’s manual. Dometic refrigerators vary in design, and knowing exactly where the igniter is located will save time and reduce the risk of accidental damage. The manual often includes diagrams and troubleshooting tips specific to your model, which can guide your testing process. With tools, safety gear, and knowledge in hand, you’re now prepared to proceed with confidence, ensuring a safe and effective diagnosis of your refrigerator’s igniter.
