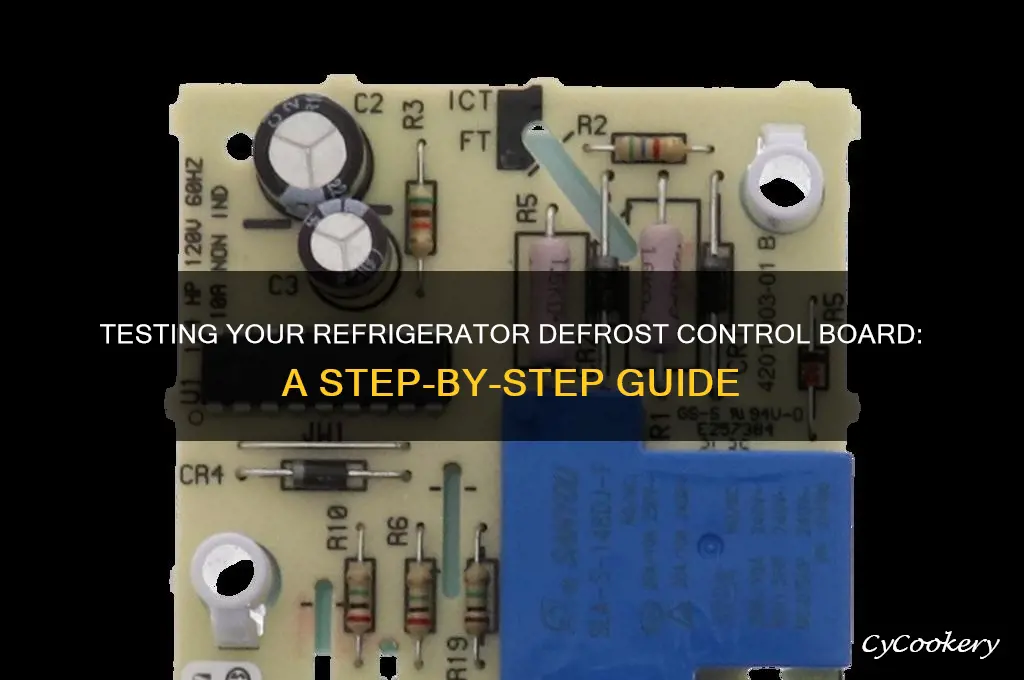

Testing a refrigerator defrost control board is essential for diagnosing issues related to improper defrost cycles, which can lead to ice buildup, reduced cooling efficiency, or food spoilage. The defrost control board manages the timing and operation of the defrost heater, thermostat, and fan, ensuring the evaporator coils remain ice-free. To test the board, start by unplugging the refrigerator for safety. Locate the control board, typically found behind the rear panel or inside the control panel, and inspect it for visible damage like burnt components or loose connections. Use a multimeter to check for continuity in the board’s relays and sensors, ensuring they function within specified ranges. Additionally, simulate a defrost cycle by manually activating the board’s test points or using a jumper wire to verify if the defrost heater and fan operate correctly. If the board fails any of these tests, it may need replacement to restore proper refrigerator function.
| Characteristics | Values |
|---|---|
| Visual Inspection | Check for burn marks, corrosion, or damaged components on the board. |
| Power Supply Test | Ensure 120V AC is supplied to the board when the refrigerator is plugged in. |
| Continuity Test | Use a multimeter to test for continuity in the defrost heater circuit. |
| Resistance Check | Measure resistance of the defrost heater (typically 20-100 ohms). |
| Voltage Output Test | Verify the board outputs the correct voltage to the defrost heater. |
| Thermostat Functionality | Test the defrost thermostat for continuity (closed at freezing temps). |
| Timer or Adaptive Defrost Test | Check if the defrost cycle initiates at the correct interval. |
| Relay Testing | Test the defrost relay for proper switching during the defrost cycle. |
| Grounding Check | Ensure the board and components are properly grounded. |
| Replacement Verification | If tests fail, replace the board and retest functionality. |
| Tools Required | Multimeter, screwdriver, and basic electrical testing equipment. |
| Safety Precautions | Unplug the refrigerator before testing to avoid electrical shock. |
Explore related products
What You'll Learn
Tools Needed for Testing
Testing a refrigerator defrost control board requires precision and the right tools to diagnose issues accurately. A multimeter is indispensable for this task, as it measures voltage, resistance, and continuity—key parameters to assess the board’s functionality. Opt for a digital multimeter with auto-ranging capabilities to simplify readings, especially if you’re not experienced with manual adjustments. Ensure the multimeter has probes in good condition to avoid faulty connections during testing.
Beyond the multimeter, a set of small screwdrivers is essential for accessing the control board. Refrigerators often use security screws, so a kit with interchangeable bits, including Torx and hex heads, will save time and frustration. Handle these tools carefully to avoid stripping screws, which can complicate reassembly. Additionally, a flashlight or headlamp is invaluable for illuminating the tight, dimly lit spaces where the control board is typically located.
For advanced diagnostics, a soldering iron and desoldering pump may be necessary if you suspect a faulty connection or need to replace components on the board. Choose a temperature-controlled soldering iron to prevent overheating sensitive circuitry. Practice on a scrap board first if you’re unfamiliar with soldering to avoid damaging the control board. Always work in a well-ventilated area and use lead-free solder for safety.
Lastly, a notepad and pen are often overlooked but crucial for documenting test results and observations. Record voltage readings, component conditions, and any anomalies to track patterns or compare with troubleshooting guides. This systematic approach ensures you don’t overlook critical details and helps in communicating issues to a professional if repairs are beyond your expertise. With these tools in hand, you’ll be well-equipped to tackle testing a refrigerator defrost control board effectively.
Secure Your Fridge: How to Lock Your Refrigerator Safely
You may want to see also
Explore related products
Safety Precautions Before Testing
Before testing a refrigerator defrost control board, ensure the appliance is unplugged from the power source. This fundamental step eliminates the risk of electrical shock, a hazard that can cause severe injury or even be fatal. Even if the refrigerator appears to be off, residual electricity may still be present in the system, making disconnection from the power supply non-negotiable. Verify the power is off by checking the refrigerator’s lights or using a non-contact voltage tester on the outlet.
Next, consider the environment in which you’re working. Testing should be conducted in a well-lit, dry area to minimize the risk of accidents. Wet hands or a damp workspace can increase the likelihood of electrical shock, so ensure your hands are dry and the area is free from spills or moisture. Additionally, wear insulated gloves as a precautionary measure, especially if you’re unsure about the condition of the wiring or components.
Another critical precaution is to avoid touching exposed wires or terminals during testing. The defrost control board often contains live wires and components that can retain charge even when the refrigerator is unplugged. Use insulated tools, such as screwdrivers with rubber grips, to handle any connections or components. If you need to probe or measure circuits, use a multimeter with insulated leads and ensure the device is set to the appropriate voltage or resistance range to prevent damage to the board or the tester.
Finally, be mindful of the refrigerator’s coolant system. While testing the defrost control board, you may need to access areas near the evaporator coils or coolant lines. Avoid puncturing or damaging these components, as coolant leaks can be hazardous. If you’re unsure about handling these parts, consult a professional to prevent accidental exposure to refrigerants or physical injury. These precautions collectively create a safer environment for diagnosing and repairing your refrigerator’s defrost control board.
Where to Buy Kenmore Refrigerator Parts: A Comprehensive Guide
You may want to see also
Explore related products
Checking for Power Supply Issues
A faulty power supply can masquerade as a defective defrost control board, leading to unnecessary part replacements. Before condemning the board, verify the incoming voltage. Most refrigerators operate on 120V AC. Use a multimeter set to AC voltage and check the power cord's prongs. If the reading falls outside the 110-130V range, the issue lies with your home's electrical system, not the refrigerator.
Refrigerating Unbaked Dough: Safe Storage Beyond 48 Hours Explained
You may want to see also
Explore related products
Testing Defrost Timer Functionality
The defrost timer is a critical component in your refrigerator's defrost control board, responsible for initiating the defrost cycle at regular intervals to prevent ice buildup on the evaporator coils. A malfunctioning timer can lead to excessive frost, reduced cooling efficiency, or even compressor damage. To test its functionality, you’ll need a multimeter, basic electrical knowledge, and a systematic approach. Start by locating the timer, typically found near the compressor or behind the control panel, and disconnect power to the refrigerator to ensure safety.
Begin the test by setting your multimeter to the resistance (ohms) setting. Identify the timer’s terminals, usually labeled "T," "D," and "C" for terminal, defrost, and common, respectively. With the refrigerator unplugged, measure the resistance between the "T" and "C" terminals. A functioning timer should show infinite resistance (open circuit) in the run mode and near-zero resistance (closed circuit) when manually advancing it to the defrost mode. If the readings do not change, the timer is likely faulty and needs replacement.
For a more dynamic test, manually advance the timer into defrost mode using a flathead screwdriver or similar tool. Plug the refrigerator back in and observe the defrost heater, located near the evaporator coils. If the heater activates (you can test this with the multimeter for continuity or feel for warmth), the timer is functioning correctly in initiating the defrost cycle. However, if the heater remains inactive, the timer may be failing to send the necessary signal, indicating a malfunction.
A comparative analysis of the timer’s behavior can provide additional insights. Compare the actual defrost cycle duration (typically 20–30 minutes) to the manufacturer’s specifications. If the cycle is significantly shorter or longer, the timer’s timing mechanism may be worn out. Additionally, listen for the distinct "click" sound when the timer switches modes; its absence could suggest mechanical failure. These observations, combined with multimeter readings, offer a comprehensive assessment of the timer’s health.
In conclusion, testing the defrost timer requires a blend of technical precision and observational skill. By measuring resistance, manually advancing the timer, and monitoring the defrost cycle, you can accurately diagnose its functionality. If the timer fails any of these tests, replacing it is the most cost-effective solution to restore your refrigerator’s efficiency. Always prioritize safety by disconnecting power during testing and consult a professional if unsure about any step.
Can LED Bulbs Safely Light Up Your Refrigerator? Find Out Here
You may want to see also
Explore related products
Inspecting for Burned or Damaged Components
Visual inspection is your first line of defense when troubleshooting a refrigerator defrost control board. Before reaching for multimeters or schematics, carefully examine the board for any signs of physical damage. Look for charred or discolored components, which indicate overheating or electrical arcing. Pay close attention to resistors, capacitors, and transistors, as these are common failure points. A single burned resistor, for instance, can disrupt the entire defrost cycle, leading to ice buildup in the freezer.
While inspecting, note the condition of solder joints. Cold or cracked solder can cause intermittent connections, leading to erratic defrost behavior. Use a bright light and magnifying glass to spot hairline fractures or dull, grainy solder surfaces. If you find suspect joints, reheating them with a soldering iron and fresh solder may restore functionality, but proceed with caution to avoid heat damage to nearby components.
Compare the board to reference images or diagrams if available. Manufacturers often provide visual guides highlighting critical components and their expected appearance. Discrepancies, such as missing parts or unusual markings, can signal previous repair attempts or factory defects. For example, a missing diode or a capacitor with a bulging top are red flags that warrant further investigation or replacement.
Finally, consider the board’s environment. Moisture, dust, or corrosion around components can accelerate wear and cause failures. Clean the board gently with compressed air and isopropyl alcohol if necessary, but avoid abrasive materials that could scratch traces or damage sensitive parts. If corrosion is severe, particularly around connectors or terminals, replacement may be the most practical solution.
In summary, a meticulous visual inspection can reveal critical issues before advanced testing. By identifying burned components, faulty solder joints, or environmental damage, you can narrow down the problem efficiently. This step not only saves time but also prevents unnecessary part replacements, making it an indispensable skill in refrigerator diagnostics.
Refrigerating Leftover Rice: Safe Storage Tips for Freshness and Flavor
You may want to see also
Frequently asked questions
Signs of a faulty defrost control board include excessive frost buildup in the freezer, refrigerator not cooling properly, or the defrost cycle not functioning. Use a multimeter to test for continuity or voltage at the board's terminals to confirm if it’s defective.
You’ll need a multimeter to check for continuity, voltage, and resistance, a screwdriver to access the control board, and possibly a wiring diagram for your specific refrigerator model to identify the correct terminals.
Yes, you can test the board in place by disconnecting the wires and using a multimeter to check for continuity or voltage. However, ensure the refrigerator is unplugged to avoid electrical hazards during testing.
