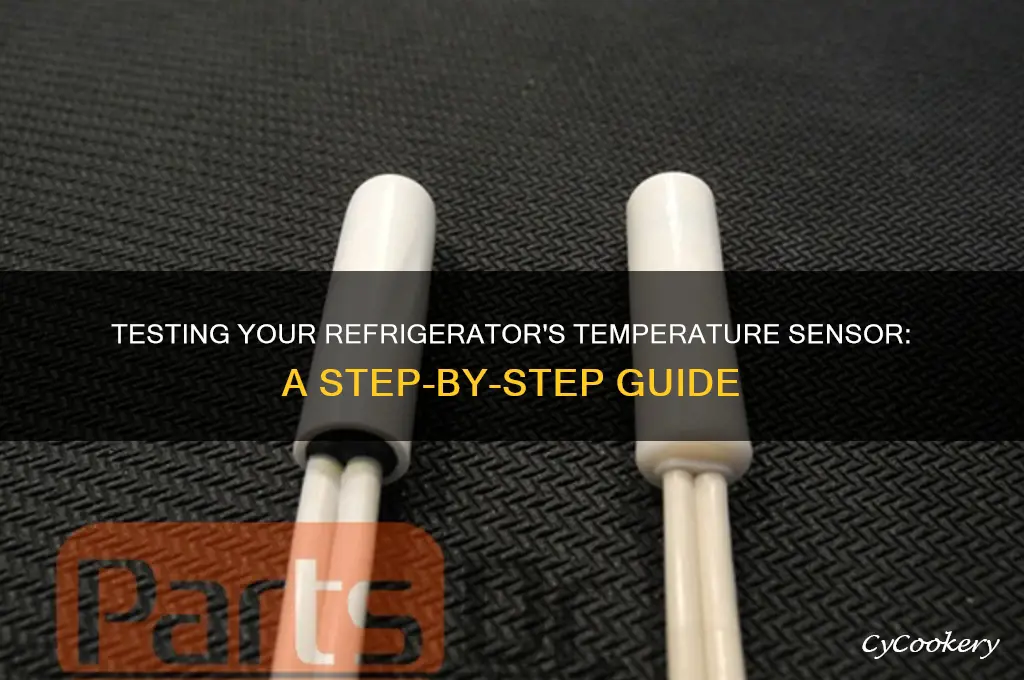

Testing a refrigerator temperature sensor is crucial for ensuring your appliance maintains the correct internal temperature, preserving food safety and efficiency. The process typically involves using a multimeter to check the sensor’s resistance, which should correspond to the ambient temperature according to its specifications. Begin by unplugging the refrigerator for safety, then locate the sensor, often found near the evaporator coils or inside the fridge compartment. Disconnect the sensor from its wiring harness and measure its resistance at the current room temperature, comparing the reading to the manufacturer’s resistance chart. If the values match, the sensor is functioning correctly; if not, it may need replacement. Additionally, you can verify its accuracy by placing it in a controlled environment, such as a cup of ice water or a heated area, and checking if the resistance changes as expected. Regular testing ensures the sensor is reliable, preventing potential food spoilage or energy inefficiency.
| Characteristics | Values |
|---|---|
| Tools Required | Multimeter, screwdriver, insulated gloves |
| Safety Precautions | Unplug refrigerator, wear insulated gloves |
| Sensor Location | Inside the refrigerator compartment, often near the evaporator coils |
| Normal Resistance Range (at Room Temp) | 5-10 kΩ (varies by model, check manufacturer specs) |
| Testing Method | Measure resistance with multimeter probes on sensor terminals |
| Temperature vs. Resistance | Resistance decreases as temperature increases (Negative Temperature Coefficient, NTC) |
| Expected Resistance Change | ~0.4-0.6 kΩ per degree Celsius change (typical NTC behavior) |
| Faulty Sensor Symptoms | Inconsistent cooling, excessive frost, compressor running constantly |
| Replacement Needed If | Resistance out of range, no change in resistance with temperature |
| Calibration Check | Compare readings with a separate thermometer at known temperatures |
| Manufacturer Guidelines | Refer to user manual or service manual for model-specific details |
Explore related products
What You'll Learn
- Tools Needed: Thermometer, multimeter, screwdriver, gloves, safety goggles, and a notepad for recording
- Safety Precautions: Unplug refrigerator, avoid water contact, and ensure proper ventilation during testing
- Sensor Location: Identify sensor position, typically near evaporator coils or inside fridge compartment
- Temperature Calibration: Compare sensor reading with external thermometer at stable temperatures
- Electrical Testing: Use multimeter to check sensor resistance and continuity for accuracy
Tools Needed: Thermometer, multimeter, screwdriver, gloves, safety goggles, and a notepad for recording
Testing a refrigerator temperature sensor requires precision and the right tools to ensure accuracy and safety. A thermometer is your primary instrument for verifying the actual temperature inside the fridge, serving as a benchmark against the sensor’s readings. Opt for a digital thermometer with a probe for quick and precise measurements, ensuring it’s calibrated to within ±1°F for reliability. Place it near the sensor to compare readings directly, noting any discrepancies that could indicate a faulty sensor.
While the thermometer assesses temperature, a multimeter is essential for diagnosing electrical issues within the sensor itself. Set the multimeter to measure resistance (ohms) and touch the probes to the sensor’s terminals. Consult the refrigerator’s manual for the expected resistance range at room temperature, as this varies by model. A reading outside this range suggests the sensor is malfunctioning. For example, a sensor showing infinite resistance may have an open circuit, while zero resistance could indicate a short.
Safety should never be overlooked, which is why gloves and safety goggles are critical. Gloves protect your hands from sharp edges or cold surfaces, especially when handling components inside the freezer compartment. Safety goggles shield your eyes from potential debris or electrical sparks when working with the multimeter. These precautions are small but vital steps to prevent injuries during the testing process.
A screwdriver is often necessary to access the temperature sensor, which is typically located behind a panel or cover. Use the appropriate type (flathead or Phillips) to avoid damaging screws or components. Work methodically, keeping track of removed parts to ensure easy reassembly. If the sensor is hardwired, label connections before disconnecting them to simplify reinstallation.
Finally, a notepad for recording is indispensable for documenting findings. Note the thermometer and multimeter readings, the sensor’s location, and any anomalies observed. This record not only helps in diagnosing the issue but also provides a reference for future testing or professional repairs. Clear, organized notes can save time and reduce confusion, especially when troubleshooting complex problems. Together, these tools form a comprehensive kit for effectively testing a refrigerator temperature sensor.
How to Fix a Refrigerator That’s Not Cooling Properly
You may want to see also
Explore related products
Safety Precautions: Unplug refrigerator, avoid water contact, and ensure proper ventilation during testing
Before attempting to test a refrigerator temperature sensor, prioritize safety to prevent accidents and damage. Start by unplugging the refrigerator from the power source. This simple step eliminates the risk of electrical shock, which can be fatal. Even if the refrigerator seems inactive, residual electricity may still be present in the system. Unplugging ensures a completely safe environment for handling internal components.
Water and electricity are a dangerous combination, so avoid any contact between the two during testing. If cleaning is necessary before accessing the sensor, ensure the area is completely dry. Use a clean, absorbent cloth to wipe down surfaces, and allow ample time for air drying. Moisture near electrical components can cause short circuits or damage the sensor, rendering the test inaccurate or harmful.
Proper ventilation is critical when working with refrigerator components. Testing often involves exposing the sensor, which may release refrigerant gases or odors. These substances can be harmful if inhaled in confined spaces. Work in a well-ventilated area, such as a room with open windows or near an exhaust fan. If the refrigerator is in a cramped space, consider relocating it temporarily to a more open area before beginning the test.
Combining these precautions—unplugging the refrigerator, avoiding water contact, and ensuring ventilation—creates a safe testing environment. Each step addresses a specific risk: electrical hazards, water-related damage, and exposure to harmful substances. By adhering to these guidelines, you not only protect yourself but also maintain the integrity of the refrigerator and its components. Safety should never be an afterthought; it’s the foundation of any successful repair or diagnostic process.
How to Store Fresh Basil in the Refrigerator: Tips and Tricks
You may want to see also
Explore related products
Sensor Location: Identify sensor position, typically near evaporator coils or inside fridge compartment
The refrigerator temperature sensor is a critical component for maintaining optimal food storage conditions, but its effectiveness hinges on its placement. Typically, you’ll find the sensor near the evaporator coils or inside the fridge compartment. This strategic positioning allows it to accurately measure the coldest areas, ensuring the thermostat responds appropriately. If the sensor is misplaced or obstructed, temperature readings can be skewed, leading to food spoilage or energy inefficiency. Identifying its location is the first step in diagnosing or testing its functionality.
To locate the sensor, start by unplugging the refrigerator for safety. Remove any shelves or drawers that might obstruct your view of the interior. Near the evaporator coils, the sensor is often attached to a clip or bracket, with a wire leading to the control board. Inside the fridge compartment, it’s usually mounted on the rear wall or ceiling, sometimes concealed behind a plastic cover. Use a flashlight to inspect these areas carefully, as the sensor can be small and easily overlooked. If you’re unsure, consult the refrigerator’s manual for a diagram or contact the manufacturer for guidance.
Once located, assess the sensor’s environment. Ensure it’s not blocked by food items, ice buildup, or debris, as this can interfere with its readings. For example, a sensor buried behind a gallon of milk will register a warmer temperature than the actual fridge interior. Similarly, frost accumulation near the evaporator coils can insulate the sensor, causing it to underestimate the cold. Clearing these obstructions can sometimes resolve temperature issues without further testing.
Comparing sensor placement across different refrigerator models reveals design variations. Top-freezer models often place the sensor near the evaporator coils in the freezer compartment, while side-by-side models may position it in the fridge section. French door refrigerators sometimes use multiple sensors for zoned cooling. Understanding these differences helps in troubleshooting, as a sensor in the wrong location or a missing secondary sensor can mimic a faulty reading. Always consider the specific design of your refrigerator when evaluating sensor performance.
In conclusion, identifying the temperature sensor’s location is a straightforward yet crucial task. By knowing where to look—near the evaporator coils or inside the fridge compartment—you can quickly assess its condition and environment. This knowledge not only aids in testing the sensor but also ensures your refrigerator operates efficiently, preserving food quality and energy consumption. Take the time to locate and inspect the sensor regularly, as it’s a small effort with significant long-term benefits.
Using an Upright Freezer as a Fridge: Pros, Cons, and Tips
You may want to see also
Explore related products
Temperature Calibration: Compare sensor reading with external thermometer at stable temperatures
A reliable refrigerator temperature sensor is crucial for food safety, but how can you trust its accuracy? One straightforward method is to compare its reading with an external thermometer at stable temperatures. This process, known as temperature calibration, ensures your sensor isn’t drifting from the actual temperature, which could lead to spoiled food or inefficient energy use. By verifying the sensor’s accuracy, you can either confirm its reliability or identify the need for adjustment or replacement.
To begin, select a stable temperature environment, such as a refrigerator set at its usual operating temperature (ideally between 35°F and 38°F or 2°C and 3°C). Place a calibrated external thermometer, preferably a digital one with a probe, on the middle shelf of the refrigerator, away from the walls and other items. Allow both the sensor and the external thermometer to stabilize for at least 30 minutes to ensure consistent readings. This step eliminates variables like temporary temperature fluctuations caused by door openings or recent compressor cycles.
Next, compare the refrigerator’s internal temperature display with the external thermometer’s reading. A discrepancy of more than ±2°F or ±1°C indicates a potential issue with the sensor. For example, if the refrigerator displays 37°F but the external thermometer reads 40°F, the sensor is underreporting the temperature. Document these readings for reference, as consistent discrepancies may require professional calibration or sensor replacement. If the difference is minor, you can adjust the refrigerator’s temperature setting slightly to compensate, but this is a temporary solution.
While this method is effective, it’s important to account for potential limitations. External thermometers can also have inaccuracies, so ensure yours is calibrated before use. Additionally, the placement of the thermometer matters; avoid areas near vents or the refrigerator door, as these locations can skew readings. For best results, repeat the test at different stable temperatures, such as after adjusting the refrigerator’s thermostat, to confirm consistency. This approach not only tests the sensor but also helps you understand how your refrigerator responds to changes.
In conclusion, temperature calibration by comparing sensor readings with an external thermometer is a practical and accessible way to verify your refrigerator’s accuracy. It’s a simple yet effective diagnostic tool that can save you from food spoilage and energy inefficiency. By incorporating this method into your regular maintenance routine, you ensure your refrigerator operates at its optimal performance, safeguarding both your food and your appliance’s longevity.
Refrigerating Durian: Best Practices for Freshness and Flavor Preservation
You may want to see also
Explore related products
Electrical Testing: Use multimeter to check sensor resistance and continuity for accuracy
A multimeter is an indispensable tool for diagnosing refrigerator temperature sensor issues, offering precise measurements of resistance and continuity that directly correlate with sensor accuracy. To begin, locate the sensor, typically found near the evaporator coils or inside the fridge compartment, and disconnect it from the control board to isolate the component. Set your multimeter to the resistance (ohms) setting, then touch the probes to the sensor’s terminals. Compare the reading to the manufacturer’s specifications, usually found in the appliance manual or online. For instance, a common range for thermistors, a type of temperature sensor, is 5 to 100 kΩ at room temperature, with resistance decreasing as temperature rises. Deviations from these values indicate a faulty sensor.
Continuity testing complements resistance measurements by verifying the sensor’s electrical pathway. Switch the multimeter to the continuity setting (often marked with a diode symbol or a sound wave) and reattach the probes to the terminals. A continuous beep or low resistance reading confirms an intact circuit, while no response suggests an open circuit or damaged sensor. This step is particularly useful for identifying physical breaks or corrosion in the sensor wiring. For example, if a sensor shows proper resistance but fails continuity, the issue likely lies in the wiring rather than the sensor itself, narrowing down the repair focus.
Practical tips enhance the accuracy of these tests. Ensure the refrigerator is unplugged to prevent electrical hazards and allow the sensor to stabilize at room temperature before testing, as residual cold can skew resistance readings. If the sensor is encased in a protective sleeve, remove it carefully to access the terminals directly. For thermistors, use a controlled heat source, such as a hairdryer, to apply warmth gradually while monitoring resistance changes. A healthy sensor will respond predictably, with resistance dropping as temperature increases. Document readings at different temperatures to create a reference curve, aiding in diagnosis and comparison against manufacturer data.
Cautions are essential to avoid misinterpretation or damage. Avoid applying excessive heat, as this can alter the sensor’s properties permanently. Be mindful of probe placement; incorrect terminal contact can yield false readings. If the sensor is part of a sealed system, consult a professional to prevent voiding warranties or causing further damage. Lastly, remember that resistance and continuity are interrelated but distinct metrics. A sensor may pass one test but fail the other, requiring both checks for a comprehensive assessment. By combining these tests with careful observation, you can pinpoint sensor issues with confidence and decide whether repair or replacement is necessary.
How to Easily Reverse or Switch Your Refrigerator Door Swing
You may want to see also
Frequently asked questions
Check if the refrigerator is not maintaining the set temperature, if the compressor runs constantly, or if the temperature fluctuates unusually. A multimeter can also test the sensor's resistance, which should change with temperature.
You will need a multimeter to measure resistance, a thermometer for accurate temperature comparison, and possibly a screwdriver to access the sensor.
The sensor is typically located inside the refrigerator compartment, near the evaporator coils or behind a cover. Consult your refrigerator's manual for the exact location.
The resistance varies by model, but it typically ranges from 1,000 to 10,000 ohms at room temperature. Check your refrigerator's specifications for the exact range.
Yes, you can test the sensor in place using a multimeter. Place the sensor in ice water (0°C) or warm water (50°C) to check its resistance at known temperatures. Compare the readings to the expected values.
