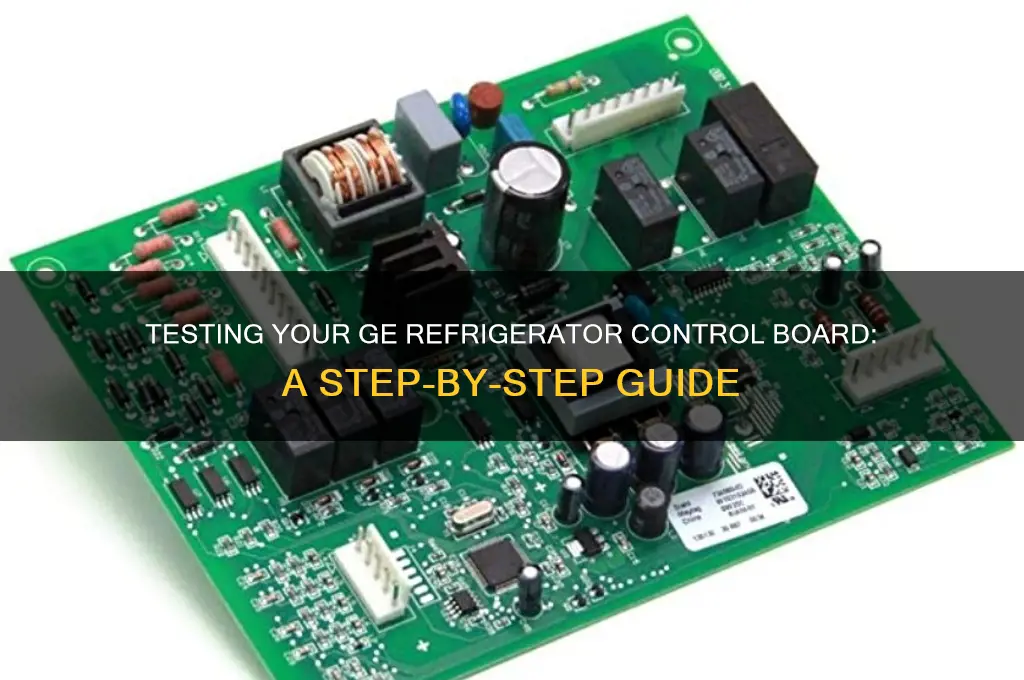

Testing a GE refrigerator control board is a critical step in diagnosing issues related to temperature regulation, display malfunctions, or unresponsive controls. The process typically involves checking for power supply continuity, inspecting for visible damage or burnt components, and using a multimeter to test voltage outputs and sensor connections. Begin by unplugging the refrigerator and safely accessing the control board, then systematically evaluate each component according to the manufacturer’s guidelines. Understanding the control board’s function and its interaction with other refrigerator systems is essential for accurate troubleshooting and determining whether the board needs repair or replacement.
| Characteristics | Values |
|---|---|
| Tools Required | Multimeter, Phillips screwdriver, insulated gloves |
| Safety Precautions | Unplug refrigerator, discharge capacitor, avoid contact with live wires |
| Control Board Location | Typically behind the refrigerator’s control panel or back panel |
| Visual Inspection | Check for burnt components, loose connections, or corrosion |
| Power Supply Test | Verify 120V AC input to the control board using a multimeter |
| Output Voltage Test | Test 12V DC output for the display and other components |
| Continuity Test | Check continuity of relays, fuses, and connectors |
| Resistance Test | Measure resistance of sensors and heating elements |
| Capacitor Discharge | Discharge high-voltage capacitor before testing |
| Error Code Diagnosis | Refer to GE manual for error codes displayed on the control panel |
| Replacement | Replace control board if tests indicate failure |
| Reassembly | Reattach panel and reconnect power after testing |
| Professional Assistance | Consult a technician if unsure or if issues persist |
Explore related products
What You'll Learn
Symptoms of a faulty control board
A refrigerator's control board is its brain, managing temperature, defrost cycles, and compressor operation. When it malfunctions, the symptoms can be subtle or dramatic, often mimicking other issues. One telltale sign is inconsistent cooling. If your fridge or freezer fluctuates wildly in temperature despite correct settings, the control board might be failing to regulate the compressor or fans effectively. This can lead to spoiled food or frost buildup, even if the thermostat seems accurate.
Another symptom is unresponsive or erratic display behavior. Modern GE refrigerators often feature digital displays that show temperature settings and error codes. If the display flickers, shows random characters, or fails to respond to button presses, the control board could be at fault. In some cases, the display might remain blank entirely, leaving you guessing about the appliance’s status. Testing the control board in such scenarios involves checking for power supply issues or loose connections before assuming it’s defective.
Unusual noises or cycles can also indicate a faulty control board. For instance, if the compressor runs continuously without cycling off, or if the defrost cycle fails to activate, the board might be misinterpreting sensor data. Similarly, clicking sounds from the control panel area could suggest relay switches are failing, a common issue with aging boards. These symptoms often require a multimeter to test voltage outputs and confirm whether the board is sending incorrect signals.
Lastly, error codes specific to GE refrigerators, such as "CF" (communication failure) or "Er" (general error), often point directly to control board issues. These codes appear when the board fails to communicate with sensors or other components. While some codes can be reset by unplugging the fridge for a few minutes, persistent errors typically require replacing the control board. Always consult the user manual or GE’s troubleshooting guide to interpret codes accurately before proceeding with repairs.
Should Your Refrigerator Fan Run Continuously? Facts and Myths Explained
You may want to see also
Explore related products
Tools needed for testing the control board
Testing a GE refrigerator control board requires a precise set of tools to diagnose issues accurately. The first essential tool is a multimeter, which measures voltage, resistance, and continuity. A digital multimeter with auto-ranging capabilities is ideal, as it simplifies the process by automatically selecting the correct range for the measurement. Ensure the multimeter has sharp probes for secure contact with the control board’s terminals. Without this tool, you’ll lack the ability to verify electrical signals, making it impossible to pinpoint faults.
Equally critical is a magnetic screwdriver set with various head sizes, including Phillips and flathead. These screwdrivers are necessary for accessing the control board, which is often secured behind panels or covers. Opt for screwdrivers with ergonomic handles to prevent slipping, especially when working in tight spaces. A misplaced turn or stripped screw can complicate the repair process, so precision and the right tool are non-negotiable.
For advanced diagnostics, a refrigerator control board tester can be a game-changer. This specialized tool connects directly to the control board and provides real-time data on its functionality. While not mandatory, it streamlines testing by eliminating guesswork and offering clear error codes. If you’re a professional technician or plan to handle multiple repairs, investing in this tool can save time and reduce frustration.
Lastly, don’t overlook the importance of safety gear, such as insulated gloves and safety goggles. The control board operates on live electricity, and accidental contact can result in shocks or short circuits. Insulated gloves provide a protective barrier, while goggles shield your eyes from potential debris or sparks. Skipping safety gear is a risk not worth taking, as it ensures you can focus on the task without fear of injury.
In summary, testing a GE refrigerator control board demands a multimeter for electrical measurements, a magnetic screwdriver set for access, a specialized tester for advanced diagnostics, and safety gear for protection. Each tool plays a unique role, and their combined use ensures a thorough and safe evaluation of the control board’s condition.
Fruitcake Storage: Should It Be Refrigerated or Kept at Room Temperature?
You may want to see also
Explore related products
Step-by-step testing procedure
Testing a GE refrigerator control board requires a systematic approach to diagnose issues accurately. Begin by unplugging the refrigerator or turning off the circuit breaker to ensure safety. Locate the control board, typically found behind the refrigerator’s display panel or inside the control panel housing. Carefully remove the panel cover using a screwdriver, taking note of screw placements for reassembly. Inspect the board for visible signs of damage, such as burnt components, loose connections, or corrosion, which may indicate the need for replacement.
Next, perform a visual and physical inspection of the control board’s connectors and wiring harnesses. Ensure all connections are secure and free from debris. Use a multimeter to test for continuity in the wiring, setting it to the ohms (Ω) function. Place one probe on each end of the wire; a reading of zero or close to it indicates a good connection. If the multimeter shows an open circuit (OL), the wire may be damaged and require replacement. This step helps isolate whether the issue lies in the wiring or the control board itself.
Proceed to test the control board’s functionality using a multimeter set to the voltage (V) or direct current (DC) mode. Identify the input and output pins on the board, typically labeled or indicated in the refrigerator’s service manual. Apply power to the board and measure the voltage at key points, such as the power supply input and relay outputs. Compare your readings to the specifications provided in the manual; discrepancies suggest a faulty component or board. For example, if the relay output shows no voltage when activated, the relay may be defective.
To further diagnose the control board, simulate inputs to test its response. Use a jumper wire to bypass switches or sensors temporarily, mimicking signals the board would receive during normal operation. Observe the board’s behavior, such as whether it activates the compressor, fans, or lights as expected. If the board fails to respond correctly, it likely requires replacement. However, if it functions properly during simulation, the issue may lie elsewhere, such as with sensors or switches.
Conclude the testing process by reassembling the control panel and restoring power to the refrigerator. Monitor its operation for at least 24 hours to ensure all functions, including temperature regulation and defrost cycles, work correctly. If problems persist, consult a professional technician for further diagnosis. This step-by-step procedure ensures a thorough evaluation of the control board, helping you determine whether repair or replacement is necessary.
Should You Refrigerate Crackers? Storage Tips for Freshness and Crunch
You may want to see also
Explore related products
Interpreting test results and diagnostics
Testing a GE refrigerator control board requires a systematic approach to interpreting test results and diagnostics. Begin by understanding that the control board acts as the brain of your refrigerator, managing temperature, defrost cycles, and compressor operations. When diagnosing issues, a multimeter becomes your primary tool to measure voltage, resistance, and continuity across various components. For instance, a common test involves checking the continuity of the defrost heater; a reading of infinity (OL) suggests a broken heater, while a low resistance value indicates it’s functioning correctly. Always compare your readings to the manufacturer’s specifications, typically found in the service manual or online resources.
Interpreting diagnostics often involves deciphering error codes displayed on the control panel. GE refrigerators use a series of blinking lights or alphanumeric codes to signal specific issues. For example, a "CF" error indicates a communication failure between the control board and the user interface, while "PF" denotes a power failure. Cross-reference these codes with the troubleshooting guide to narrow down potential causes. Remember, error codes are not always definitive; they point to a system or component failure but may require further testing to identify the root cause.
One critical aspect of diagnostics is testing the control board’s power supply. Ensure the board is receiving the correct voltage (typically 120V AC) by testing the input terminals. If voltage is present but the board isn’t functioning, suspect a faulty relay or damaged circuitry. Use a multimeter to check the output relays for proper switching; a relay stuck in the "on" or "off" position can cause erratic behavior. For example, if the compressor isn’t running, test the compressor relay by measuring voltage at its output terminal—no voltage suggests a relay failure.
Practical tips can streamline the interpretation process. Always disconnect power before testing to avoid electrical hazards. Label wires and connectors before removal to simplify reassembly. If you’re unsure about a reading, retest the component or consult a professional. Keep a log of your findings, including error codes, voltage readings, and visual observations, to track patterns or inconsistencies. For advanced diagnostics, consider using a diagnostic tool like the GE Service Flash Tool, which can provide detailed insights into the control board’s performance.
Finally, understanding the interplay between components is key to accurate interpretation. For instance, a faulty temperature sensor can send incorrect data to the control board, leading to improper cooling or defrost cycles. Test sensors by measuring their resistance at varying temperatures; a significant deviation from the expected range indicates a malfunctioning sensor. By combining error code analysis, multimeter testing, and component interaction knowledge, you can confidently diagnose control board issues and determine whether repair or replacement is necessary.
Should Urine Samples Be Refrigerated? Essential Storage Tips Explained
You may want to see also
Explore related products
Replacing or repairing the control board
The control board in a GE refrigerator is its brain, managing temperature, defrost cycles, and compressor operation. When it malfunctions, symptoms like erratic cooling, unresponsive displays, or complete shutdowns emerge. Before deciding between repair and replacement, testing is crucial to diagnose the issue accurately. A multimeter becomes your primary tool, checking for continuity in relays, voltage at input/output pins, and resistance across components. Online forums and GE service manuals often provide specific test points for your model, ensuring you target the right areas.
Repairing a control board is feasible for minor issues like loose connections, corroded pins, or blown fuses. Start by unplugging the refrigerator and accessing the board, typically located behind the control panel or in the back. Inspect for visible damage—burn marks, melted components, or cracked solder joints. Use a soldering iron to reattach loose wires or replace blown fuses with exact matches. However, exercise caution: soldering near sensitive components risks heat damage, and incorrect fuse ratings can worsen the problem. If unsure, consult a professional or opt for replacement.
Replacement is often the more practical choice for severe damage, outdated boards, or recurring issues. GE offers OEM control boards, ensuring compatibility and performance. Third-party options are cheaper but may lack quality assurance. When replacing, match the part number exactly and follow the manufacturer’s installation guide. Disconnect power, remove the old board, and transfer wires one at a time to avoid confusion. After installation, test the refrigerator’s functions immediately—temperature control, lighting, and compressor operation—to confirm success.
Choosing between repair and replacement hinges on cost, technical skill, and the board’s condition. Repairing saves money but requires precision and troubleshooting expertise. Replacement, while pricier, offers reliability and peace of mind. Consider the refrigerator’s age and overall condition—investing in a new board for an older unit may not be cost-effective. Weighing these factors ensures you make an informed decision tailored to your situation.
Can Heated Almond Milk Be Refrigerated? Storage Tips Revealed
You may want to see also
Frequently asked questions
Look for symptoms like the refrigerator not cooling, erratic temperature control, unresponsive display, or error codes on the panel. These issues often indicate a faulty control board.
You’ll need a multimeter to check for continuity and voltage, a screwdriver to access the control board, and the refrigerator’s wiring diagram for reference.
Yes, you can perform basic tests like checking for power supply and continuity at the board’s connectors using a multimeter, but some tests may require removing the board for thorough inspection.
First, unplug the refrigerator. Then, access the control board, check for visible damage, test voltage at the input terminals, and verify continuity of key components using a multimeter. Compare readings to the wiring diagram for accuracy.
