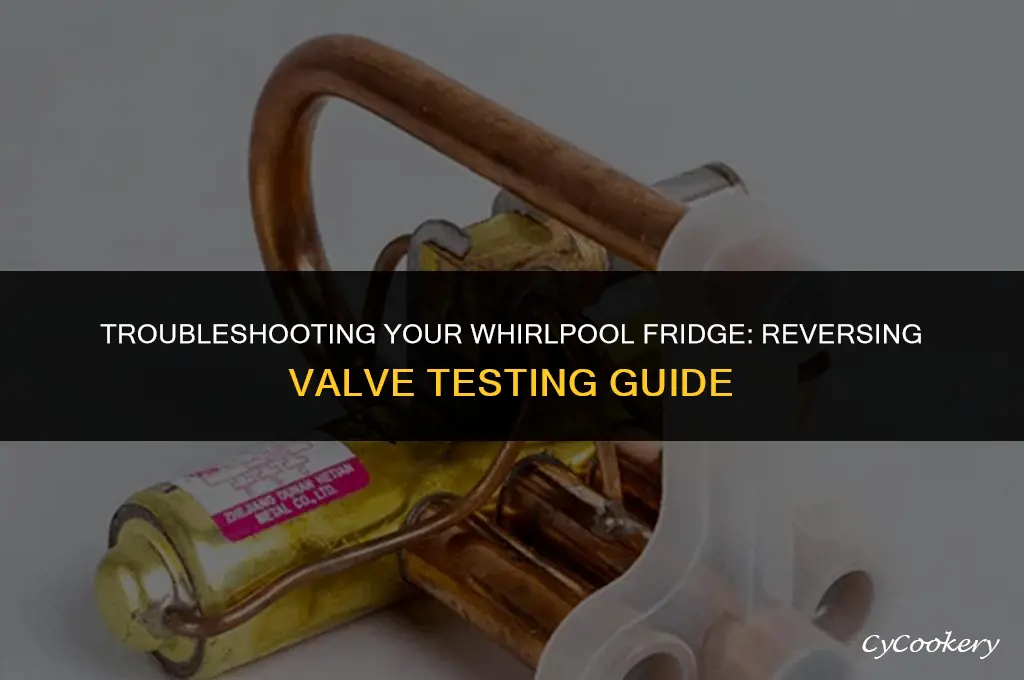

Testing the reversing valve on a Whirlpool refrigerator is a crucial step in diagnosing and resolving issues related to the appliance's cooling system. The reversing valve is responsible for switching the flow of refrigerant between the condenser and evaporator coils, allowing the refrigerator to cool efficiently. If the valve is malfunctioning, it can lead to inadequate cooling or other performance problems. To test the reversing valve, you'll need to follow a series of steps that involve checking the valve's electrical connections, verifying its physical condition, and observing its operation during the cooling cycle. This process requires basic knowledge of refrigerator mechanics and the use of a multimeter to check electrical continuity. By following these steps, you can determine whether the reversing valve is functioning properly or if it needs to be replaced.
Explore related products
![[FBA] NEW OEM Produced IMV708 W10408179 4389177 for Whirlpool Kitchenaid Kenmore Regrigerator Water Valve by Robertshaw Replacement Part](https://m.media-amazon.com/images/I/71LE14b-klL._AC_UY218_.jpg)
What You'll Learn
- Safety Precautions: Ensure power is off and unplugged before starting the test to avoid electrical hazards
- Tools Required: Gather necessary tools such as a multimeter, screwdriver, and gloves for safe testing
- Accessing the Valve: Locate and access the reversing valve, typically found at the back of the refrigerator
- Testing Continuity: Use a multimeter to test for continuity in the valve's electrical connections
- Interpreting Results: Understand what the multimeter readings indicate about the valve's functionality and whether it needs replacement
Safety Precautions: Ensure power is off and unplugged before starting the test to avoid electrical hazards
Before initiating the test on a Whirlpool refrigerator's reversing valve, it is crucial to adhere to strict safety protocols to prevent electrical hazards. The first and foremost precaution is to ensure that the power to the refrigerator is completely turned off and the unit is unplugged from the electrical outlet. This step is non-negotiable and must be verified before proceeding. Failure to do so could result in severe electrical shocks or damage to the appliance.
Once the power is confirmed to be off, it is advisable to wait for a few minutes to allow any residual electrical charge to dissipate. This waiting period is a critical safety measure, as it minimizes the risk of electrical components still being energized. During this time, it is important to ensure that the area around the refrigerator is clear of any obstructions or hazards that could interfere with the testing process or pose a tripping risk.
When preparing to test the reversing valve, it is essential to have the necessary tools and equipment readily available. This includes a multimeter set to the appropriate voltage or resistance setting, as well as any other specialized tools recommended by Whirlpool for this specific model. It is also important to have a clear understanding of the testing procedure and the expected results, as this will help in identifying any potential issues with the reversing valve.
During the testing process, it is crucial to follow the manufacturer's instructions precisely and to take accurate readings. Any deviations from the recommended procedure could lead to incorrect results or damage to the appliance. It is also important to be aware of any warning signs or indicators that may suggest a problem with the reversing valve, such as unusual noises or vibrations.
In conclusion, ensuring that the power is off and unplugged before starting the test is a fundamental safety precaution that must be strictly followed when testing a Whirlpool refrigerator's reversing valve. By adhering to this protocol and following the manufacturer's instructions carefully, the risk of electrical hazards can be significantly minimized, allowing for a safe and effective testing process.
Easy Steps to Replace the Seal on Your Frigidaire Refrigerator
You may want to see also
Explore related products
Tools Required: Gather necessary tools such as a multimeter, screwdriver, and gloves for safe testing
To safely and effectively test a Whirlpool refrigerator reversing valve, it is crucial to gather the necessary tools beforehand. A multimeter is essential for measuring electrical resistance and continuity, which are key parameters in diagnosing the functionality of the reversing valve. Ensure the multimeter is set to the appropriate settings for the tests you will be conducting. Additionally, a screwdriver is required to access the reversing valve, which is typically located at the back of the refrigerator. Depending on the model, you may need either a flathead or Phillips screwdriver.
Personal safety should always be a priority when working with electrical appliances. Therefore, it is recommended to wear insulated gloves to protect your hands from electrical shocks. The gloves should be specifically designed for electrical work, providing adequate insulation and dexterity. Furthermore, it is advisable to unplug the refrigerator from the power source before beginning any testing procedures to eliminate the risk of electric shock.
Before starting the test, ensure that the refrigerator is turned off and unplugged for at least 30 minutes to allow any residual electrical charge to dissipate. This waiting period is crucial for your safety and the accuracy of the test results. Once the refrigerator is properly prepared, you can proceed with accessing the reversing valve. Remove the back panel of the refrigerator using the appropriate screwdriver. Be cautious not to damage any components or wiring during this process.
With the reversing valve exposed, you can now use the multimeter to test its continuity. Set the multimeter to the continuity setting and touch the probes to the terminals of the reversing valve. A continuous reading indicates that the valve is functioning correctly. If there is no reading or an open reading, it suggests that the reversing valve is faulty and may need to be replaced. After completing the test, ensure that all components are securely fastened, and the back panel is properly reattached.
In conclusion, gathering the necessary tools, such as a multimeter, screwdriver, and insulated gloves, is vital for safely testing a Whirlpool refrigerator reversing valve. Following the proper safety precautions and testing procedures will help you accurately diagnose the functionality of the valve and determine if any repairs or replacements are necessary.
Phasing Out R-22: Understanding the AC Refrigerant Transition
You may want to see also
Explore related products
Accessing the Valve: Locate and access the reversing valve, typically found at the back of the refrigerator
To access the reversing valve on a Whirlpool refrigerator, begin by ensuring the appliance is unplugged to avoid any electrical hazards. Then, carefully move the refrigerator away from the wall to gain access to the rear area. The reversing valve is typically located near the compressor, which is a large component at the back of the fridge. Look for a cylindrical or rectangular valve with electrical connections and refrigerant lines attached.
Once you've located the reversing valve, you'll need to remove any protective covers or panels that may be obstructing access. This can usually be done by gently prying off the covers with a flathead screwdriver or a similar tool. Be cautious not to damage any components or wiring during this process.
With the valve exposed, you can proceed to test its functionality. One common method is to use a multimeter to check for continuity in the valve's electrical circuit. Set the multimeter to the continuity setting and touch the probes to the valve's electrical terminals. If the multimeter beeps or shows a reading of zero ohms, the valve is functioning properly. If there is no beep or the reading is infinite ohms, the valve may be faulty and require replacement.
Another way to test the reversing valve is to observe its operation during a defrost cycle. When the refrigerator enters the defrost mode, the valve should shift to allow hot refrigerant to flow through the evaporator coils, melting any frost buildup. If the valve fails to shift or the defrost cycle does not occur as expected, this could indicate a problem with the valve or the defrost control system.
In conclusion, accessing and testing the reversing valve on a Whirlpool refrigerator involves careful disassembly, electrical testing, and observation of the defrost cycle. By following these steps, you can diagnose potential issues with the valve and determine if it needs to be replaced or if other components are at fault.
Refrigerating Ningxia Red: Best Practices for Storage and Freshness
You may want to see also
Explore related products
Testing Continuity: Use a multimeter to test for continuity in the valve's electrical connections
To test the continuity of the electrical connections in the reversing valve of a Whirlpool refrigerator, you'll need a multimeter. This tool will help you determine if there's an unbroken path for electrical current to flow through the valve's connections, which is crucial for its proper operation. Begin by setting your multimeter to the continuity test setting, typically indicated by a symbol that looks like a sound wave or a series of parallel lines.
Next, locate the electrical connections on the reversing valve. These are usually found on the side of the valve where the wires are attached. Carefully disconnect the wires from the valve, ensuring that you note which wire goes where to avoid confusion when reconnecting them later. Touch the multimeter's probes to each pair of disconnected wires. If the multimeter beeps or shows a reading of zero ohms, this indicates that there's continuity in the connection. If the multimeter doesn't beep or shows a high resistance reading, this suggests a break in the circuit and you may need to replace the valve or repair the connection.
It's important to test each connection individually to ensure that all are functioning correctly. After testing, reconnect the wires securely, making sure they're not loose or damaged. If you're unsure about any part of this process, it's always best to consult the refrigerator's user manual or seek assistance from a professional technician. Remember, safety first: always unplug the refrigerator before beginning any electrical tests.
How Opening Your Fridge Impacts Freezer Temperature and Efficiency
You may want to see also
Explore related products
Interpreting Results: Understand what the multimeter readings indicate about the valve's functionality and whether it needs replacement
To interpret the results of the multimeter readings, it's essential to understand the expected values for a functioning reversing valve. Typically, a good reversing valve should show a resistance reading between 10 and 30 ohms when measured with a multimeter. If the reading is significantly higher or lower than this range, it may indicate a problem with the valve.
When analyzing the multimeter readings, consider the following:
- Continuity Test: If the multimeter shows no reading or an open circuit (often indicated by an "OL" or overload symbol), this suggests that the valve is not functioning and may need replacement. A continuous reading within the expected resistance range indicates that the valve is likely operational.
- Resistance Readings: A reading within the 10-30 ohms range is generally considered normal. However, if the resistance is too low, it could indicate a short circuit within the valve, which is also a sign of malfunction. Conversely, a very high resistance reading may suggest an open circuit or a valve that is not functioning properly.
- Comparison with Manufacturer's Specifications: Always refer to the manufacturer's guidelines for the specific resistance values expected for your Whirlpool refrigerator model. Some models may have slightly different specifications, and it's crucial to use the correct values for accurate interpretation.
- Environmental Factors: Ensure that the refrigerator is unplugged and the valve is at room temperature when taking the readings. Temperature can affect resistance, so it's important to account for this when interpreting the results.
- Multiple Readings: Take several readings to ensure consistency. If the readings vary significantly, this could indicate an intermittent problem with the valve, which may still require replacement.
Based on the multimeter readings and the above considerations, you can determine whether the reversing valve is functioning correctly or if it needs replacement. If the valve is found to be faulty, it's recommended to consult a professional technician for replacement to ensure the refrigerator operates efficiently and safely.
