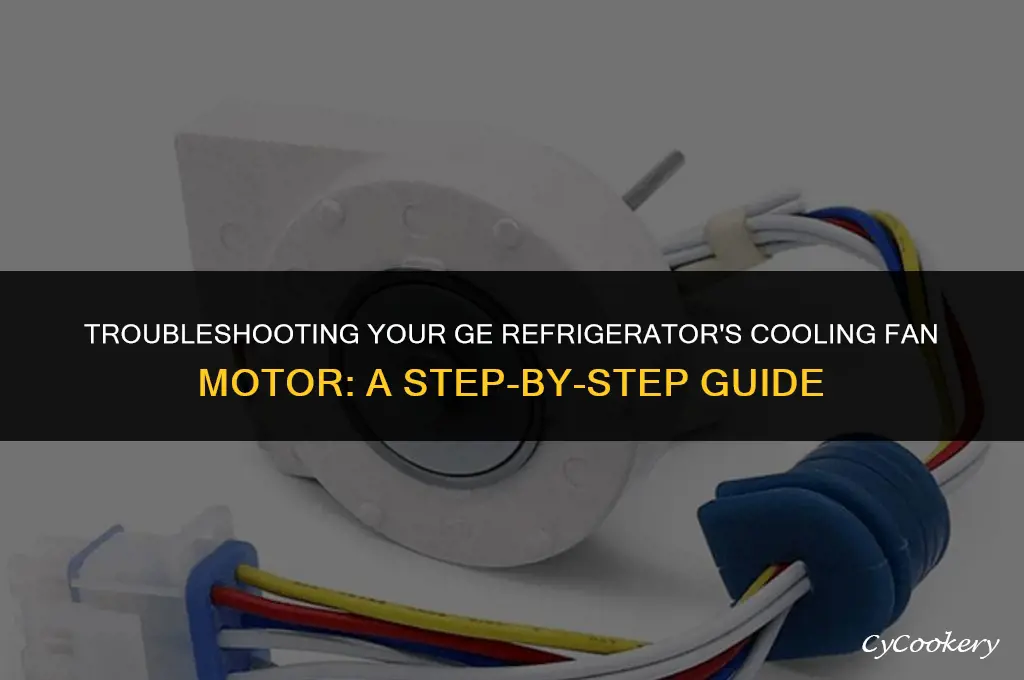

To test the cooling fan motor of a GE refrigerator, begin by unplugging the appliance to ensure safety. Then, locate the fan motor, typically found at the back or bottom of the fridge. Remove any protective covers or panels to access the motor. Next, use a multimeter set to the continuity test setting to check for electrical continuity between the motor's terminals. If the multimeter shows no continuity, the motor may be faulty. Additionally, inspect the fan blades for any obstructions or damage that could impede airflow. If the motor appears to be in good condition but is not functioning properly, it may be necessary to replace it. Always refer to the refrigerator's user manual for specific testing procedures and safety guidelines.
| Characteristics | Values |
|---|---|
| Test Type | Electrical and mechanical test |
| Tools Required | Multimeter, screwdriver, gloves |
| Safety Precautions | Unplug refrigerator, wear gloves |
| Test Frequency | Annually or when issues arise |
| Expected Outcome | Fan motor should spin freely and consistently |
| Common Issues | Fan not spinning, unusual noises, inconsistent cooling |
| Motor Type | AC induction motor |
| Voltage Rating | Typically 120V AC |
| Current Draw | Varies by model, usually 1-2 amps |
| Fan Speed | Approximately 1500-2000 RPM |
| Test Procedure | 1. Unplug refrigerator. 2. Access fan motor. 3. Check electrical connections. 4. Test voltage and current. 5. Manually spin fan blades. 6. Listen for unusual noises. 7. Reassemble and test operation. |
| Troubleshooting Tips | Check for obstructions, ensure proper voltage, replace worn bearings |
| Replacement Part | Exact model number required |
| Estimated Replacement Cost | $50-$150 depending on model |
| DIY Difficulty Level | Moderate |
| Professional Assistance | Recommended if unsure or for complex issues |
Explore related products
What You'll Learn
- Safety Precautions: Ensure the refrigerator is unplugged before attempting any repairs or tests
- Accessing the Fan: Locate and remove the necessary panels to access the cooling fan motor
- Visual Inspection: Check the fan blades for damage or debris that could impede rotation
- Electrical Testing: Use a multimeter to test the fan motor's electrical connections and continuity
- Operational Check: Reconnect the fan motor and test its operation by simulating a cooling cycle
Safety Precautions: Ensure the refrigerator is unplugged before attempting any repairs or tests
Before attempting any repairs or tests on a GE refrigerator cooling fan motor, it is crucial to ensure the appliance is unplugged. This safety precaution is not just a recommendation; it is a necessary step to prevent electrical shock or other injuries. The cooling fan motor operates on electricity, and even if the refrigerator is turned off, residual electrical currents can still be present. Unplugging the refrigerator guarantees that no electrical power reaches the motor during testing or repair, significantly reducing the risk of accidents.
In addition to unplugging the refrigerator, it is advisable to wait for a few minutes before beginning any work. This waiting period allows any residual electrical charges to dissipate completely. Furthermore, ensure that the work area is well-lit and that you have all the necessary tools and equipment within reach. This preparation not only enhances safety but also makes the testing or repair process more efficient.
When working with electrical components like the cooling fan motor, it is essential to use insulated tools to prevent any accidental contact with live electrical parts. Wearing protective gear, such as gloves and safety glasses, can also provide an additional layer of protection. If you are unsure about any aspect of the testing or repair process, it is always best to consult the refrigerator's user manual or seek assistance from a qualified technician.
Remember, safety should always be the top priority when dealing with electrical appliances. By following these precautions, you can minimize the risk of injury and ensure a successful and safe testing or repair of the GE refrigerator cooling fan motor.
Refrigerating Cannoli Filling: Shelf Life and Storage Tips
You may want to see also
Explore related products
Accessing the Fan: Locate and remove the necessary panels to access the cooling fan motor
To access the cooling fan motor in a GE refrigerator, you'll need to locate and remove the necessary panels. Start by unplugging the refrigerator to ensure safety. Then, examine the back of the fridge to identify the access panel for the fan motor. This panel is typically located near the bottom and may be secured with screws or clips.
Carefully remove the screws or release the clips to detach the panel. Be cautious not to damage any components as you work. Once the panel is removed, you should have a clear view of the fan motor. Take note of the wiring and connections, as you may need to refer to them later during the testing process.
If the fan motor is not immediately visible, consult the refrigerator's user manual or a GE service guide for specific instructions on accessing the motor for your particular model. It's essential to follow the manufacturer's guidelines to avoid causing damage to the appliance or injuring yourself.
Remember to handle all components with care and keep track of the screws and panels you remove. This will make reassembly easier once you've completed the testing process.
Easy Steps to Separate Your Norcold Refrigerator Door Panel
You may want to see also
Explore related products
Visual Inspection: Check the fan blades for damage or debris that could impede rotation
Begin the visual inspection by ensuring the refrigerator is unplugged to avoid any electrical hazards. Remove the back panel of the refrigerator to access the cooling fan motor. The fan blades should be free of any obstructions or foreign objects that could hinder their movement. Check for any signs of wear or damage, such as cracks or chips, which could affect the fan's performance.
Inspect the fan blades for any accumulation of dust or debris. Even a small amount of buildup can cause the fan to work inefficiently, leading to cooling issues. Use a soft brush or cloth to gently clean the blades if necessary. Be careful not to apply too much pressure, which could damage the delicate components.
Examine the fan's mounting bracket and screws for any signs of rust or corrosion. If any damage is found, it may be necessary to replace the affected parts to ensure the fan is securely attached. Check the electrical connections for any signs of fraying or loose wires. If any issues are detected, it is recommended to consult a professional technician for repair.
During the inspection, pay attention to the fan's overall condition. If the fan appears to be in poor shape or is making any unusual noises, it may be nearing the end of its lifespan. In such cases, it is advisable to replace the fan motor to prevent any potential cooling problems.
After completing the visual inspection, reassemble the refrigerator and plug it back in. Monitor the refrigerator's performance over the next few days to ensure the cooling system is functioning properly. If any issues persist, it may be necessary to perform further testing or consult a professional for assistance.
Should You Refrigerate Yeast? Storage Tips for Freshness and Longevity
You may want to see also
Explore related products
Electrical Testing: Use a multimeter to test the fan motor's electrical connections and continuity
To test the electrical connections and continuity of a GE refrigerator cooling fan motor, you'll need a multimeter. This tool will help you determine if the motor is receiving power and if there are any breaks in the circuit. First, ensure the refrigerator is unplugged to avoid any electrical shocks. Then, locate the fan motor, which is typically found at the back of the refrigerator, near the condenser coils.
Using the multimeter, set it to the continuity test symbol, which looks like a sound wave. Touch the probes to each end of the fan motor's electrical connector. If the multimeter beeps, this indicates that there is continuity and the connection is good. If it doesn't beep, there may be a break in the circuit, and you'll need to inspect the wiring and connections more closely.
Next, set the multimeter to the voltage test symbol, which looks like a 'V'. With the refrigerator plugged in, touch the probes to the fan motor's electrical connector. The multimeter should display a voltage reading. If it doesn't, this could indicate a problem with the power supply to the fan motor.
It's important to note that the voltage and continuity tests should be done with the refrigerator in different states. For the continuity test, the refrigerator should be unplugged to ensure safety. For the voltage test, it needs to be plugged in to measure the actual voltage supplied to the fan motor.
When testing electrical components, always follow safety precautions. Wear insulated gloves and use a multimeter with insulated probes. If you're unsure about any part of the testing process, it's best to consult a professional. Remember, the goal is to ensure the fan motor is functioning correctly and safely.
Storing Food in Aluminum: Safe Refrigeration Practices Explained
You may want to see also
Explore related products
Operational Check: Reconnect the fan motor and test its operation by simulating a cooling cycle
To perform an operational check on the fan motor of a GE refrigerator, begin by ensuring the appliance is unplugged to avoid any electrical hazards. Locate the fan motor, typically situated at the back of the refrigerator near the condenser coils. Carefully reconnect the fan motor by attaching the wires to their respective terminals, ensuring a secure and proper connection.
Once the fan motor is reconnected, plug the refrigerator back in and turn it on. Allow the appliance to reach its normal operating temperature. To simulate a cooling cycle, open the refrigerator door and let it run for a few minutes. This will cause the fan motor to engage as it attempts to cool the interior of the fridge.
Listen closely to the sound of the fan motor. A healthy fan motor should operate quietly and smoothly. Any unusual noises, such as rattling or grinding, could indicate a problem. Additionally, check for any signs of overheating, such as excessive heat emanating from the fan motor or a burning smell.
If the fan motor does not engage during the simulated cooling cycle, it may be necessary to check the wiring connections again or consult the refrigerator's user manual for further troubleshooting steps. In some cases, a faulty fan motor may need to be replaced to ensure proper cooling and prevent potential damage to the refrigerator's components.
Regularly performing operational checks on the fan motor can help maintain the efficiency and longevity of the refrigerator. By catching potential issues early, you can avoid more costly repairs down the line and ensure your appliance continues to operate at its best.
Refrigerating Canned Oysters: Optimal Storage Time and Safety Tips
You may want to see also
Frequently asked questions
To test the cooling fan motor, you will need a multimeter set to the continuity test setting, a screwdriver to remove the back panel, and possibly a replacement motor if the current one is faulty.
First, unplug the refrigerator. Then, remove the back panel using a screwdriver. The cooling fan motor is typically located near the condenser coils at the back of the fridge.
Inspect the motor for any signs of wear, overheating, or damage. Check the fan blades for obstructions and ensure they spin freely. Also, examine the electrical connections for any signs of corrosion or loose wiring.
Set the multimeter to the continuity test setting. Touch the probes to each end of the motor's electrical connector. If the multimeter beeps or shows a reading, the motor has continuity and is likely functioning properly. If there is no beep or reading, the motor may be faulty and need replacement.
