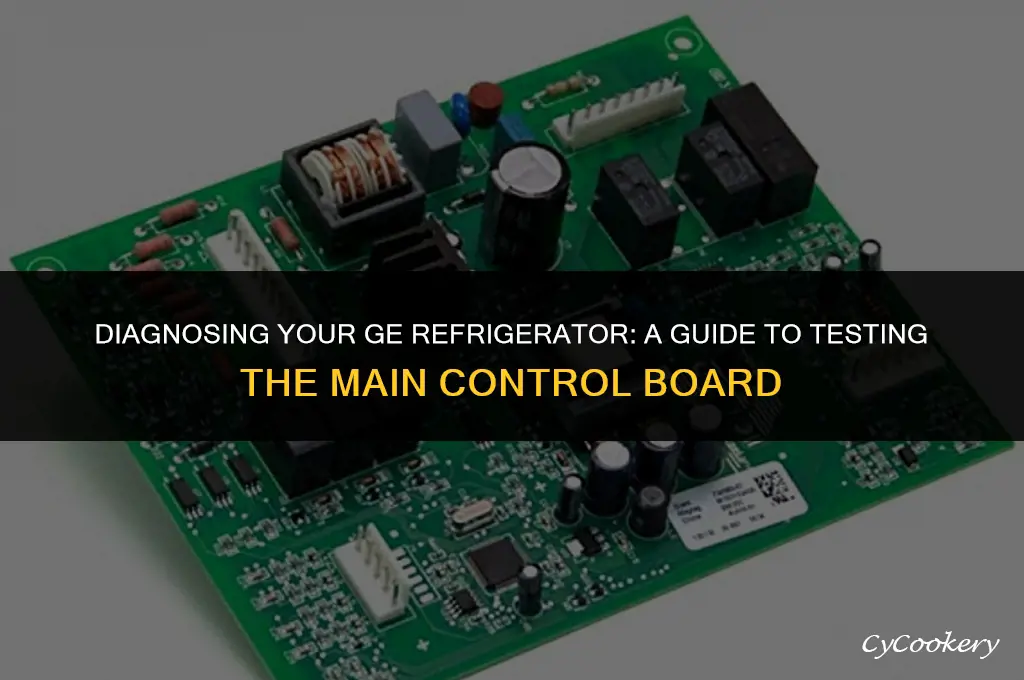

Testing the main control board on a GE refrigerator is a crucial step in diagnosing and troubleshooting any issues with the appliance. The control board is the brain of the refrigerator, responsible for regulating temperature, managing the defrost cycle, and controlling other essential functions. To begin testing, you'll need to locate the control board, which is typically found at the back of the refrigerator, either in the top or bottom section. Once you've accessed the control board, you can use a multimeter to check for continuity and ensure that the board is receiving power. It's also important to inspect the board for any visible signs of damage, such as burnt components or loose connections. If you're not comfortable performing these tests yourself, it's recommended to consult a professional technician to avoid causing further damage to the appliance.
Explore related products
What You'll Learn
- Power Supply Check: Ensure the refrigerator is plugged in and the outlet is functioning. Check for any tripped breakers or fuses
- Visual Inspection: Look for signs of damage or wear on the control board, such as burnt components, loose connections, or corrosion
- Diagnostic Mode: Enter the refrigerator's diagnostic mode to check for error codes. This usually involves pressing a specific button combination
- Component Testing: Use a multimeter to test individual components on the control board, such as resistors, capacitors, and transistors
- Sensor Verification: Check the sensors connected to the control board, like the temperature sensor, to ensure they are functioning correctly
Power Supply Check: Ensure the refrigerator is plugged in and the outlet is functioning. Check for any tripped breakers or fuses
Before diving into the intricacies of testing the main control board on a GE refrigerator, it's crucial to rule out the simplest of issues: power supply problems. Ensuring that the refrigerator is properly plugged in and that the outlet is functioning correctly can save you a lot of time and trouble. Start by visually inspecting the power cord for any signs of damage or wear. If the cord appears intact, check the outlet by plugging in another appliance to see if it functions. If the outlet is dead, you may need to reset a tripped breaker or replace a blown fuse.
To check for tripped breakers, locate your home's circuit breaker box and look for any switches that are in the "off" position or not aligned with the others. Flip the switch to the "on" position to reset the breaker. If you have a fuse box instead, you'll need to remove the fuse and inspect it for any signs of damage. If the fuse is blown, replace it with a new one of the appropriate amperage rating.
If the outlet and power cord are both in good working order, the next step is to check the refrigerator's power supply at the main control board. Unplug the refrigerator and remove the back panel to access the board. Look for any loose or disconnected wires and ensure that all connections are secure. If you're comfortable doing so, you can use a multimeter to test the voltage at the board's power input terminals. If the voltage is present, the issue may lie elsewhere in the control board's circuitry.
When testing the main control board, it's important to be methodical and patient. Start by identifying the board's power input terminals and tracing the wiring back to the power cord. Check for any signs of damage or corrosion along the way. If you find any issues, you may need to replace the affected components or consult a professional for further assistance.
Remember, safety should always be your top priority when working with electrical appliances. Before beginning any testing or repairs, unplug the refrigerator and ensure that you're working in a well-lit, dry environment. If you're unsure about any aspect of the testing process, it's best to consult a professional rather than risk injury or damage to your appliance.
