Testing the overload capacitor in a Whirlpool refrigerator is a crucial step in diagnosing electrical issues that may cause the compressor to fail or not start. The overload capacitor is designed to protect the compressor motor from overheating by temporarily providing additional power during startup. To test it, you’ll need a multimeter set to the capacitance or resistance (ohms) setting. First, unplug the refrigerator to ensure safety, then locate the capacitor, typically found near the compressor. Discharge the capacitor by connecting a screwdriver with an insulated handle across its terminals to avoid electrical shock. Next, set your multimeter to the appropriate setting and connect the probes to the capacitor’s terminals. A functional capacitor should show a reading within its specified range, usually printed on its body. If the multimeter reads zero or infinity, the capacitor is faulty and needs replacement. Always consult the refrigerator’s manual or a professional if unsure about the process.
| Characteristics | Values |
|---|---|
| Tools Required | Multimeter, insulated gloves, screwdriver |
| Safety Precautions | Unplug refrigerator, discharge capacitor, wear insulated gloves |
| Capacitor Location | Near the compressor, usually in a relay or start device assembly |
| Capacitor Function | Provides extra voltage to start the compressor motor |
| Testing Method | Set multimeter to capacitance (uF) or resistance (ohms) mode |
| Normal Capacitance Range | Typically 10-20 uF (microfarads) for Whirlpool refrigerators |
| Open Capacitor Reading | Infinite resistance (OL) on multimeter |
| Shorted Capacitor Reading | Very low resistance (close to 0 ohms) on multimeter |
| Visual Inspection | Check for bulging, leaking, or burnt marks on the capacitor |
| Replacement Criteria | Replace if readings are out of range, or visual damage is present |
| Capacitor Voltage Rating | Match replacement capacitor voltage rating (e.g., 370V or 250V) |
| Reassembly Steps | Reconnect wires, secure capacitor, and reattach relay assembly |
| Post-Testing | Plug in refrigerator and monitor compressor operation |
| Common Symptoms of Failure | Compressor not starting, clicking noise, or frequent cycling |
| Professional Assistance | Consult a technician if unsure or if issues persist after replacement |
Explore related products
What You'll Learn
- Safety Precautions: Ensure power is off, wear protective gear, and discharge capacitor before testing
- Tools Required: Multimeter, insulated screwdriver, gloves, and capacitor tester for accurate diagnosis
- Capacitor Removal: Locate, disconnect wires, and remove the capacitor carefully to avoid damage
- Multimeter Testing: Set multimeter to capacitance mode, connect leads, and check readings against specs
- Symptoms of Failure: Identify compressor humming, not starting, or overheating as capacitor failure signs
Safety Precautions: Ensure power is off, wear protective gear, and discharge capacitor before testing
Before testing a Whirlpool refrigerator's overload capacitor, prioritize safety to prevent electrical shocks or damage. Always disconnect the appliance from its power source. Unplug the refrigerator or switch off the circuit breaker dedicated to it. Verify the power is off using a non-contact voltage tester on the outlet or capacitor terminals. This step is non-negotiable, as capacitors can retain a charge even when the appliance is unplugged, posing a risk of electrical discharge.
Protective gear is your second line of defense. Wear insulated gloves rated for electrical work to minimize contact risks. Safety goggles shield your eyes from potential debris or sparks during testing. While not always necessary, a face shield adds an extra layer of protection, especially if you're unfamiliar with handling capacitors. These precautions may seem excessive, but they're essential when dealing with components that store electrical energy.
Discharging the capacitor is a critical step often overlooked. Even after power disconnection, capacitors can hold a charge for hours or even days. Use a screwdriver with an insulated handle and a metal blade to short the capacitor terminals. Hold the blade across both terminals for 10–15 seconds to dissipate stored energy. This step ensures the capacitor is safe to handle and prevents unexpected shocks during testing. Always double-check the discharge by testing voltage across the terminals with a multimeter before proceeding.
Consider the environment and your approach. Work in a well-lit, dry area to avoid slips or missteps. Keep a clear workspace, free of clutter, to minimize tripping hazards. If working with a helper, communicate clearly to avoid accidental power restoration or interference. While these precautions may extend preparation time, they significantly reduce the risk of injury or equipment damage. Safety isn’t just a step—it’s the foundation of any successful repair or diagnostic procedure.
Using GE LED Fridge Bulb in Dryer: Safe or Risky?
You may want to see also
Explore related products
Tools Required: Multimeter, insulated screwdriver, gloves, and capacitor tester for accurate diagnosis
Testing a Whirlpool refrigerator's overload capacitor requires precision and the right tools. Among these, a multimeter is indispensable. This device measures voltage, resistance, and continuity, allowing you to assess whether the capacitor is functioning correctly. When using a multimeter, set it to the capacitance mode if available, or use the resistance mode to check for a brief charge and discharge cycle, which indicates a working capacitor. Always ensure the refrigerator is unplugged before testing to avoid electrical hazards.
An insulated screwdriver is another critical tool in this process. Its primary purpose is to safely remove the capacitor from the refrigerator’s compressor. The insulation prevents electrical shocks, especially when working near live components. When using the screwdriver, apply gentle pressure to avoid damaging the capacitor terminals or surrounding wiring. This tool bridges the gap between safety and functionality, ensuring you can access the capacitor without risking injury or equipment damage.
Gloves are often overlooked but essential for personal safety. Insulated gloves protect your hands from electrical shocks and sharp edges while handling the capacitor or other components. Opt for gloves rated for electrical work, such as rubber or latex gloves with high dielectric strength. Wearing gloves also minimizes the risk of short-circuiting components with skin contact, which can lead to inaccurate readings or damage.
For the most accurate diagnosis, a capacitor tester is highly recommended. Unlike a multimeter, a capacitor tester provides a direct reading of the capacitor’s health, including its capacitance value and whether it’s within the manufacturer’s specifications. This tool eliminates guesswork and ensures you’re not misinterpreting multimeter readings. If the tester indicates the capacitor is out of range, replacement is typically necessary. Combining a capacitor tester with other tools ensures a comprehensive and reliable assessment.
In summary, each tool plays a unique role in testing a Whirlpool refrigerator’s overload capacitor. The multimeter offers versatility, the insulated screwdriver ensures safe access, gloves protect you from hazards, and the capacitor tester provides definitive results. Together, these tools enable an accurate diagnosis, helping you determine whether the capacitor is the source of your refrigerator’s issues or if further investigation is needed. Always prioritize safety and precision when working with electrical components.
Can Regular Glass Go in the Fridge? Safety Tips Revealed
You may want to see also
Explore related products
Capacitor Removal: Locate, disconnect wires, and remove the capacitor carefully to avoid damage
The capacitor in your Whirlpool refrigerator is a small but mighty component, often tucked away near the compressor. Locating it is your first step. Typically, it’s housed in a black or metallic casing, connected to the compressor’s wiring harness. Use a flashlight to inspect the area around the compressor, as the capacitor is usually mounted nearby. Once identified, take a photo of the wiring connections for reference—this ensures you reconnect everything correctly later.
Disconnecting the wires requires precision and care. Most capacitors have two or three wires attached, often color-coded or labeled. Use a flathead screwdriver to gently pry off the wire connectors, taking note of their positions. Avoid pulling directly on the wires, as this can damage the internal components. If the connectors are stubborn, wiggle them gently side-to-side rather than forcing them. Label each wire with tape or a marker if the photo isn’t clear enough, as misplacing a wire can lead to compressor failure.
Removing the capacitor itself demands a delicate touch. It’s usually secured with a single mounting screw or clip. Loosen the screw with a screwdriver, ensuring it’s fully detached before attempting to lift the capacitor. If it’s clipped in, use a pair of needle-nose pliers to carefully release the clip. Hold the capacitor by its base, not the wires, and lift it straight out. Avoid tilting or shaking it, as internal components can shift and cause damage. Place it on a clean, flat surface, away from sharp objects or debris.
Caution is key throughout this process. Capacitors store electrical charge, even when the refrigerator is unplugged. Discharge it safely by touching a screwdriver across its terminals for 10–15 seconds before handling. Wear insulated gloves and safety goggles to protect against accidental shocks or debris. If the capacitor shows signs of leakage, swelling, or burning, dispose of it immediately and replace it with a new one. Proper removal not only protects the capacitor but also ensures the longevity of your refrigerator’s compressor.
Should Pumpkin Pie Be Refrigerated? Storage Tips for Freshness
You may want to see also
Explore related products

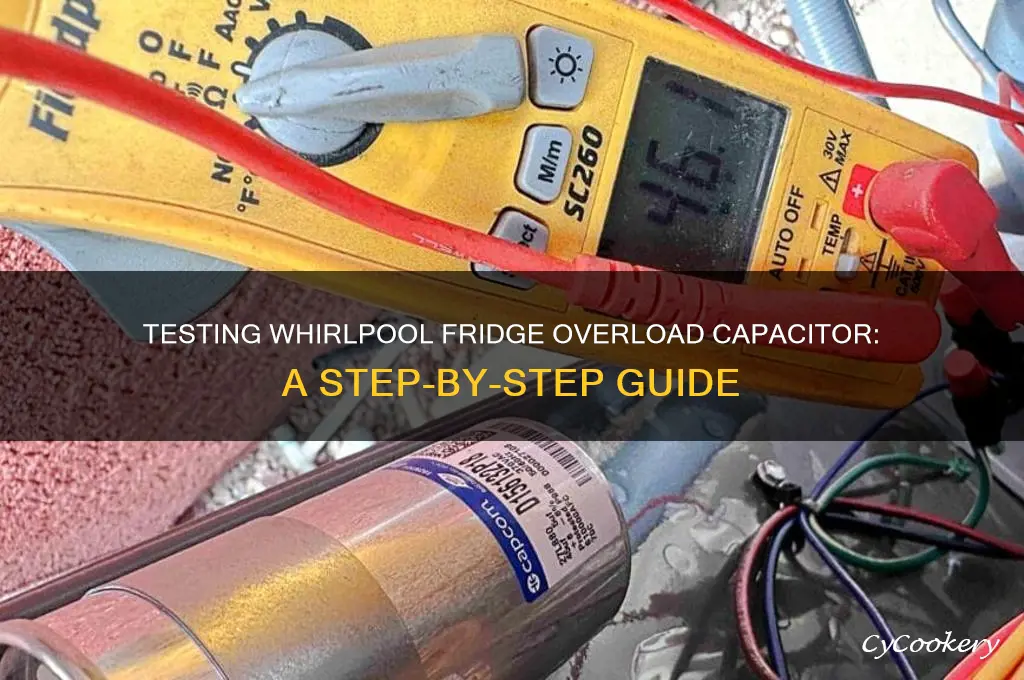

Multimeter Testing: Set multimeter to capacitance mode, connect leads, and check readings against specs
Testing a Whirlpool refrigerator's overload capacitor with a multimeter is a precise task that requires attention to detail. Begin by setting your multimeter to capacitance mode, ensuring it’s calibrated to measure microfarads (μF), the unit typically used for capacitors in appliances. This step is critical because capacitors store electrical energy, and an inaccurate reading could lead to misdiagnosis. For instance, a Whirlpool refrigerator’s overload capacitor often ranges between 10 to 20 μF, depending on the model. If your multimeter doesn’t have a capacitance setting, you’ll need to use the resistance mode to test for continuity, but this method is less definitive.
Once the multimeter is set, connect the leads to the capacitor terminals. The red lead goes to the positive terminal, and the black lead to the negative terminal. If the capacitor is still connected to the refrigerator’s compressor, disconnect it first to avoid interference from other components. A common mistake is reversing the leads, which can yield incorrect readings or damage the multimeter. After connecting, observe the reading. A functional capacitor should display a value within the manufacturer’s specified range. If the reading is significantly lower or higher, or if the multimeter shows "OL" (open loop), the capacitor is likely faulty and needs replacement.
Comparing multimeter readings to specifications is where diagnostics become actionable. For example, if your Whirlpool refrigerator’s capacitor is rated at 15 μF and the multimeter reads 5 μF, the capacitor has lost its charge-holding capacity. This discrepancy indicates the capacitor cannot effectively start the compressor, leading to symptoms like the refrigerator not cooling. Conversely, a reading of 14.8 μF is within acceptable tolerance, suggesting the capacitor is functioning correctly. Always refer to the appliance’s manual or service guide for exact specifications, as tolerances can vary.
Practical tips can streamline this process. First, discharge the capacitor before testing by placing a resistor across its terminals for safety. A 10,000-ohm resistor works well for this purpose. Second, if your multimeter lacks a capacitance setting, use the resistance mode to check for a momentary drop in resistance followed by a steady rise—a sign the capacitor is charging. However, this method is less reliable than direct capacitance measurement. Finally, test the capacitor at room temperature, as extreme cold or heat can skew readings. By following these steps and precautions, you can accurately diagnose a Whirlpool refrigerator’s overload capacitor and determine whether it needs replacement.
Does Cookie Icing Need Refrigeration? Storage Tips for Freshness
You may want to see also
Explore related products
Symptoms of Failure: Identify compressor humming, not starting, or overheating as capacitor failure signs
A humming compressor that fails to start or runs excessively hot often signals a failing overload capacitor in your Whirlpool refrigerator. This small component acts as a vital energy reservoir, providing the initial jolt needed to start the compressor motor. When it weakens or fails, the motor struggles to overcome its starting inertia, leading to these telltale symptoms.
Humming without starting is the most common indicator. The compressor emits a low, continuous hum, but the refrigerator fails to cool. This occurs because the capacitor can't deliver sufficient voltage to the motor's start winding, preventing it from reaching operational speed. Overheating is another red flag. A failing capacitor forces the compressor to work harder, drawing excessive current and generating heat. This not only damages the compressor but also poses a fire hazard.
To confirm capacitor failure, start by unplugging the refrigerator and locating the capacitor, typically near the compressor. Discharge any stored energy by shorting the capacitor terminals with a screwdriver (ensuring the power is off). Use a multimeter set to the capacitance range to test the capacitor. Compare the reading to the manufacturer's specifications, usually printed on the capacitor. A significant deviation indicates a faulty component.
Replacing a failed capacitor is a relatively straightforward DIY task. Ensure you purchase a replacement with the exact same specifications (voltage, capacitance, and terminal type). Discharge the old capacitor before removal and install the new one, ensuring proper polarity. After replacement, plug in the refrigerator and monitor the compressor's operation. If the humming persists or overheating continues, consult a qualified technician to diagnose other potential issues.
Remember, while a failing capacitor is a common culprit, other factors can cause similar symptoms. If you're unsure about the diagnosis or uncomfortable with electrical repairs, always seek professional assistance. Promptly addressing capacitor failure not only restores your refrigerator's cooling capacity but also prevents further damage to the compressor, saving you from potentially costly repairs down the line.
Fractionating Refrigerants: Identifying the Best for Separation Processes
You may want to see also
Frequently asked questions
The overload capacitor is a component in the refrigerator's compressor start relay that helps the compressor motor start smoothly. Testing it is crucial because a faulty capacitor can cause the compressor to fail to start, leading to cooling issues or complete refrigerator failure.
The overload capacitor is typically located near the compressor, often attached to the start relay. Access it by removing the lower back panel of the refrigerator or the panel covering the compressor.
You’ll need a multimeter to test the capacitor. Ensure the refrigerator is unplugged before testing to avoid electrical hazards.
Set the multimeter to the capacitance (uF) setting. Disconnect the capacitor from the circuit, attach the multimeter leads to the capacitor terminals, and compare the reading to the capacitor’s rated value (usually printed on it). A significant deviation indicates a faulty capacitor.
Common signs include the compressor not starting, clicking noises from the compressor, or the refrigerator not cooling properly. If the capacitor fails the multimeter test, it likely needs replacement.
