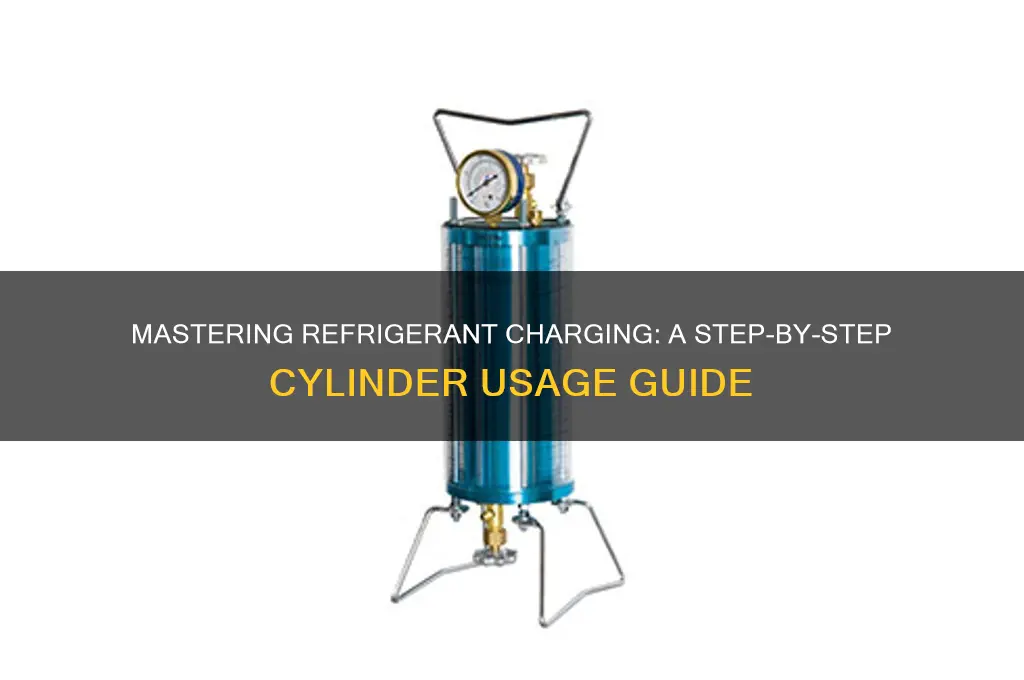

Using a refrigerant charging cylinder is a critical process in HVAC and refrigeration systems, requiring precision and adherence to safety guidelines. The cylinder serves as a container for refrigerant, allowing technicians to accurately measure and transfer the substance into a system during maintenance or repairs. To use it effectively, start by ensuring the cylinder is properly secured in an upright position and connected to the system via charging hoses. Always verify the refrigerant type matches the system requirements to avoid contamination or damage. Use a manifold gauge set to monitor pressure levels and control the flow, ensuring the refrigerant is added slowly and in accordance with manufacturer specifications. Safety gear, such as gloves and goggles, is essential to protect against refrigerant exposure. Regularly inspect the cylinder and hoses for leaks or damage to maintain efficiency and prevent environmental hazards. Following these steps ensures a safe and accurate refrigerant charging process.
Explore related products
$17.55 $18.57
What You'll Learn
- Safety Precautions: Wear protective gear, ensure proper ventilation, and handle cylinder with care to avoid accidents
- Connecting Hoses: Attach charging hoses securely to the cylinder and system for leak-free refrigerant transfer
- Reading Gauges: Monitor pressure gauges to ensure accurate refrigerant charging and prevent overcharging or undercharging
- Charging Process: Open valves slowly, control refrigerant flow, and follow system specifications for precise charging
- Post-Charging Steps: Close valves, disconnect hoses, and store the cylinder upright in a cool, dry place
Safety Precautions: Wear protective gear, ensure proper ventilation, and handle cylinder with care to avoid accidents
Refrigerant charging cylinders are pressurized vessels containing chemicals that can cause severe injury if mishandled. Before engaging with these cylinders, prioritize personal protective equipment (PPE). Wear safety goggles to shield your eyes from potential chemical splashes or debris. Don heavy-duty gloves resistant to refrigerants, as direct skin contact can lead to frostbite or chemical burns. A long-sleeved shirt and pants made from durable material provide an additional barrier against leaks or spills. Respiratory protection is equally crucial; use a mask with cartridges designed for chemical vapors, especially in confined spaces.
Proper ventilation is non-negotiable when working with refrigerant charging cylinders. These cylinders release gases that can displace oxygen, leading to asphyxiation in poorly ventilated areas. Always operate in a well-ventilated workspace, preferably outdoors or in a room with open windows and fans. If indoor work is unavoidable, use exhaust systems to maintain air circulation. Monitor the area with a gas detector to ensure refrigerant levels remain within safe limits, typically below 1,000 parts per million (ppm) for most refrigerants. Never work alone in enclosed spaces; have a colleague nearby in case of emergencies.
Handling a refrigerant charging cylinder requires precision and caution. Always inspect the cylinder for damage, such as dents, corrosion, or faulty valves, before use. Secure the cylinder in an upright position using a chain or strap to prevent tipping, which can cause catastrophic failure. When connecting hoses, ensure fittings are compatible and tightened securely to avoid leaks. Move the cylinder slowly and deliberately, avoiding sudden impacts or drops. Store cylinders away from heat sources, direct sunlight, or flammable materials, as refrigerants under pressure can ignite or explode under extreme conditions.
Accidents with refrigerant charging cylinders often stem from complacency or haste. Take your time to double-check connections and procedures. If a leak occurs, immediately evacuate the area and ventilate it thoroughly before attempting repairs. Familiarize yourself with emergency protocols, including the location of eyewash stations and first aid kits. Regularly attend safety training sessions to stay updated on best practices. By treating each step with the gravity it deserves, you minimize risks and ensure a safe working environment for yourself and others.
