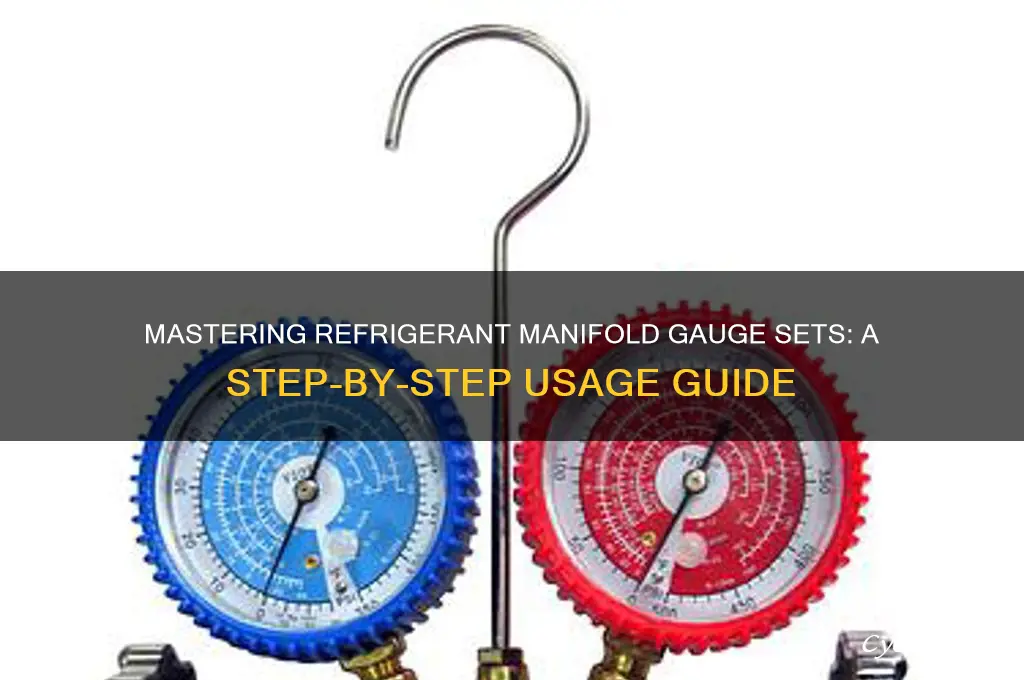

A refrigerant manifold gauge set is an essential tool for HVAC technicians and professionals working with air conditioning and refrigeration systems. It allows users to monitor and adjust the pressure and vacuum levels of refrigerants during installation, maintenance, or repair processes. To use this tool effectively, technicians must first understand its components, including the high and low-pressure gauges, hoses, and valves. By connecting the manifold gauge set to the system, users can measure and compare the pressure readings, ensuring they are within the recommended range for the specific refrigerant being used. Proper usage involves evacuating the system, adding or removing refrigerant, and monitoring the pressure to achieve optimal performance and efficiency in cooling systems. This process requires careful attention to safety guidelines and manufacturer instructions to prevent accidents and ensure accurate results.
Explore related products
$98.67 $107.72
What You'll Learn
- Understanding Gauge Components: Identify high/low-side gauges, hoses, valves, and their functions for accurate refrigerant management
- Connecting to System: Attach hoses to service ports correctly, ensuring proper engagement and sealing to prevent leaks
- Reading Pressure Levels: Interpret gauge readings to diagnose system issues like undercharge, overcharge, or blockages
- Charging Refrigerant: Add refrigerant safely, monitoring pressures to avoid overfilling and comply with system specifications
- Evacuating and Recovery: Use gauges to evacuate air/moisture or recover refrigerant during maintenance or repairs
Understanding Gauge Components: Identify high/low-side gauges, hoses, valves, and their functions for accurate refrigerant management
A refrigerant manifold gauge set is a critical tool for HVAC technicians, but its complexity can be daunting. Understanding the individual components—high and low-side gauges, hoses, and valves—is essential for accurate refrigerant management. Each part plays a distinct role in monitoring pressure, controlling flow, and ensuring system integrity. Without this knowledge, even experienced technicians risk misdiagnosis, inefficient repairs, or system damage.
The high-side and low-side gauges are the eyes of the manifold set, providing real-time pressure readings from the refrigerant system. The high-side gauge monitors pressure in the condenser, typically ranging from 200 to 400 PSI, depending on the refrigerant type and ambient temperature. For example, R-22 systems often operate at 250 PSI on the high side during normal conditions. The low-side gauge, on the other hand, measures pressure in the evaporator, usually between 60 and 120 PSI. R-410A systems, for instance, may show a low-side reading of 100 PSI during cooling. Accurate interpretation of these gauges ensures the system operates within safe and efficient parameters.
Hoses and valves are the circulatory system of the manifold set, facilitating refrigerant flow and control. The hoses, typically color-coded (red for high-side, blue for low-side, and yellow for liquid), connect the manifold to the system. Valves, such as the center valve and individual hose valves, regulate refrigerant movement. For instance, closing the high-side valve isolates the condenser, allowing technicians to test for leaks or adjust charge without affecting other components. Proper handling of these components prevents cross-contamination and ensures precise control during charging or recovery processes.
Mastering these components requires practice and attention to detail. Always verify hose connections are tight and valves are in the correct position before engaging the system. For example, when charging refrigerant, open the low-side valve slowly to avoid overcharging, and monitor the gauge readings closely. Regularly inspect hoses for cracks or wear, as a single faulty component can compromise the entire operation. By understanding the functions of each part and applying best practices, technicians can achieve accurate refrigerant management and maintain system longevity.
Should Mae Ploy Be Refrigerated? Storage Tips for Your Favorite Sauce
You may want to see also
Explore related products
Connecting to System: Attach hoses to service ports correctly, ensuring proper engagement and sealing to prevent leaks
Attaching hoses to service ports is a critical step in using a refrigerant manifold gauge set, as improper connections can lead to leaks, system damage, or inaccurate readings. Begin by identifying the correct service ports on the HVAC system: the high-pressure port (typically red) for the discharge line and the low-pressure port (typically blue) for the suction line. Ensure the ports are clean and free of debris, using a soft brush or compressed air if necessary. Thread the corresponding hoses onto the ports by hand, turning clockwise until snug, then tighten with a wrench, being careful not to overtighten, as this can damage the fittings or seals.
The quality of the connection hinges on proper engagement and sealing. Use thread sealant or Teflon tape on the threads of the service ports if they are prone to leaks, but avoid over-application, as excess material can interfere with the connection. When attaching the hoses, ensure the couplers are fully seated and aligned with the ports. A common mistake is cross-threading, which occurs when the hose is not aligned correctly before tightening. To prevent this, start threading by hand and ensure the threads catch smoothly before applying additional torque.
Practical tips can further enhance the reliability of the connection. Always use hoses with the correct size and type of fittings for the system’s service ports. For R-410A systems, for example, use hoses rated for higher pressures to avoid failure. After connecting the hoses, perform a visual inspection to confirm they are secure and aligned. A slight tug test can verify the hoses are firmly attached, but avoid excessive force. If using a manifold with a dual-hose setup, ensure the hoses are not twisted or kinked, as this can restrict refrigerant flow and affect gauge accuracy.
Cautions are equally important to avoid common pitfalls. Never force a connection if resistance is felt, as this may indicate misalignment or damage to the threads. If a leak is detected after connecting the hoses, do not attempt to tighten further while the system is under pressure, as this can exacerbate the issue. Instead, release the pressure, disconnect the hoses, and reattach them carefully. Regularly inspect hoses and fittings for wear, cracks, or corrosion, replacing them as needed to maintain system integrity.
In conclusion, attaching hoses to service ports correctly is a foundational skill in using a refrigerant manifold gauge set. By ensuring proper engagement, sealing, and alignment, technicians can prevent leaks, protect the system, and obtain accurate readings. Attention to detail, combined with practical techniques and awareness of potential pitfalls, transforms this step from a routine task into a safeguard for efficient and reliable HVAC service.
Does Maple Syrup Need Refrigeration After Opening? Essential Storage Tips
You may want to see also
Explore related products
Reading Pressure Levels: Interpret gauge readings to diagnose system issues like undercharge, overcharge, or blockages
Interpreting pressure levels on a refrigerant manifold gauge set is a critical skill for diagnosing HVAC system issues. The gauges provide real-time data on suction and discharge pressures, which directly reflect the system’s refrigerant charge, airflow, and mechanical efficiency. For example, a low suction pressure paired with a normal discharge pressure often indicates an undercharge, while high pressures on both gauges can signal an overcharge or blockage. Understanding these relationships allows technicians to pinpoint problems without relying on guesswork.
To diagnose undercharging, observe the suction pressure gauge while the system is running. If the reading falls below the manufacturer’s specified range (typically 60–70 PSI for R-22 or 100–120 PSI for R-410A), the system likely lacks sufficient refrigerant. However, low suction pressure alone isn’t conclusive—check the superheat temperature using a thermometer at the suction line. If superheat exceeds the recommended value (e.g., 10–15°F for R-22), confirm an undercharge. Conversely, if superheat is within range, suspect a restriction or airflow issue instead.
Overcharging manifests as elevated pressures on both gauges, but the pattern differs from blockages. In an overcharged system, the suction pressure rises above the normal range, while the discharge pressure increases moderately. For instance, an R-410A system with a suction pressure of 150 PSI and discharge pressure of 280 PSI suggests excess refrigerant. This condition reduces efficiency, increases energy consumption, and risks compressor damage. To resolve it, recover refrigerant until pressures stabilize within specifications.
Blockages, such as a clogged filter-drier or metering device, create distinct pressure patterns. Suction pressure drops significantly (e.g., below 40 PSI for R-22), while discharge pressure spikes excessively (e.g., above 300 PSI for R-410A). This imbalance occurs because the refrigerant flow is restricted, starving the evaporator and overworking the compressor. Always inspect the system for physical obstructions before assuming a refrigerant issue. Replacing a clogged component often restores normal operation.
Mastering pressure interpretation requires practice and attention to detail. Cross-reference gauge readings with temperature measurements and manufacturer guidelines to avoid misdiagnosis. For instance, ambient temperature affects pressure—a system operating in 90°F weather will show higher pressures than in 70°F conditions. Use PT charts (pressure-temperature charts) to verify refrigerant state and ensure accurate troubleshooting. With experience, technicians can swiftly identify undercharge, overcharge, or blockages, ensuring optimal system performance.
Streaking Plates and Refrigeration: A Guide to Delayed Incubation Techniques
You may want to see also
Explore related products
Charging Refrigerant: Add refrigerant safely, monitoring pressures to avoid overfilling and comply with system specifications
Charging refrigerant into a system demands precision and vigilance to ensure both safety and efficiency. Overfilling can lead to high-pressure events, component damage, or even system failure, while undercharging results in poor performance and energy inefficiency. The manifold gauge set is your critical tool for monitoring pressures during this process, allowing you to add refrigerant in controlled increments while adhering to the system’s specifications. Always refer to the manufacturer’s guidelines for the correct refrigerant type and charge amount, as these vary by system size, design, and application.
Begin by connecting the manifold gauge set to the system’s service valves, ensuring all hoses are secure and free of leaks. With the system running, observe the low-side and high-side pressures on the gauges. Compare these readings to the manufacturer’s recommended pressures for the ambient temperature. If the system is undercharged, slowly open the refrigerant cylinder valve and allow the refrigerant to flow into the system. Use the manifold’s charging valve to control the flow rate, adding refrigerant in small increments—typically no more than 1-2 pounds at a time for residential systems. Monitor the gauges continuously to avoid exceeding the recommended pressures.
A common mistake is relying solely on pressure readings without considering superheat or subcooling, which are critical for proper charging. For example, on a fixed orifice system, the low-side pressure should align with the evaporator’s superheat value, typically 10-15°F for air conditioning systems. Use a temperature clamp or digital thermometer to measure the suction line temperature and calculate superheat. Similarly, on a TXV system, monitor subcooling by measuring the liquid line temperature and pressure, aiming for 10-15°F of subcooling. These measurements ensure the refrigerant charge is optimized for heat transfer efficiency.
Safety precautions are paramount during this process. Always wear protective gear, including gloves and safety goggles, to guard against refrigerant exposure or accidental leaks. Ensure the area is well-ventilated to prevent inhalation of refrigerant fumes. Never charge a system that is not running, as this can lead to liquid refrigerant flooding the compressor, causing damage. Additionally, avoid overcharging by stopping the charging process when the target pressures and temperatures are achieved, even if the refrigerant cylinder is not empty.
In conclusion, charging refrigerant safely requires a methodical approach, combining pressure monitoring, temperature measurements, and adherence to system specifications. By using the manifold gauge set effectively and following best practices, you can avoid overfilling, ensure optimal system performance, and extend the lifespan of the equipment. Remember, precision and patience are key—rushing the process or ignoring critical measurements can lead to costly mistakes and system failures.
Should You Refrigerate Tylenol? Storage Tips for Pain Relief Medication
You may want to see also
Explore related products
Evacuating and Recovery: Use gauges to evacuate air/moisture or recover refrigerant during maintenance or repairs
Evacuating a system to remove air and moisture is a critical step in HVAC maintenance, as even trace amounts of contaminants can compromise efficiency and longevity. Using a refrigerant manifold gauge set, connect the yellow hose to the vacuum pump and the blue and red hoses to the system’s low and high-side ports, respectively. With the pump running, open the low-side valve to initiate evacuation, monitoring the gauge to ensure it reaches a minimum of 500 microns or lower, depending on manufacturer specifications. This process dehydrates the system by boiling off moisture, which is then captured by the pump’s oil, so inspect the oil afterward for milky discoloration, replacing it if necessary.
Recovery of refrigerant during repairs is both legally mandated and environmentally responsible, as releasing refrigerants like R-410A or R-22 into the atmosphere contributes to ozone depletion and global warming. Attach the manifold’s high-side hose to the recovery cylinder and the low-side hose to the system, then open the high-side valve to transfer the refrigerant. Monitor the cylinder’s pressure to avoid overfilling—most cylinders have a maximum capacity of 80–90% to prevent liquid refrigerant from damaging the pump. Always ensure the recovery machine is compatible with the refrigerant type, as mixing different chemicals can lead to hazardous reactions or equipment failure.
A common mistake during evacuation is insufficient time, often due to impatience or misreading gauge values. For residential systems, maintain the vacuum for at least 30 minutes to ensure thorough moisture removal, while larger commercial systems may require up to 2 hours. During recovery, use a digital scale to weigh the refrigerant cylinder before and after the process, ensuring the amount recovered matches the system’s charge capacity, typically listed on the unit’s data plate. This precision prevents under-recovery, which can leave residual refrigerant in the system, or over-recovery, which risks cylinder rupture.
Practical tips include insulating hoses to prevent condensation during evacuation, especially in humid environments, and using a core removal tool to attach the manifold to the recovery cylinder securely. Always wear gloves and safety goggles, as refrigerants can cause frostbite or chemical burns upon contact. After completing evacuation or recovery, close all valves, turn off the pump, and disconnect hoses in reverse order to prevent oil backflow into the system. Regularly calibrate manifold gauges and replace cracked hoses to maintain accuracy and safety, as even minor leaks can render the process ineffective or hazardous.
Refrigerating Baby Food: Safety Tips and Storage Guidelines for Parents
You may want to see also
Frequently asked questions
A refrigerant manifold gauge set is a diagnostic tool used in HVAC and refrigeration systems to measure pressure, evacuate systems, and add or recover refrigerant. It helps technicians diagnose issues, charge systems, and ensure proper operation.
Connect the hoses to the manifold gauges: yellow for high-pressure side (liquid line), blue for low-pressure side (suction line), and red for the refrigerant cylinder. Then, attach the hoses to the corresponding service ports on the system.
Always wear safety gear, such as gloves and goggles, to protect against refrigerant leaks or pressure-related injuries. Ensure the system is off before connecting the gauges, and avoid overcharging or undercharging the system.
The blue gauge (low side) measures suction pressure, while the red gauge (high side) measures discharge pressure. Compare these readings to the system’s specifications to diagnose issues like undercharging, overcharging, or restrictions.
No, ensure the gauge set is compatible with the refrigerant type (e.g., R-22, R-410A). Using incompatible refrigerants can damage the gauges or compromise accuracy. Always check the manufacturer’s guidelines.
