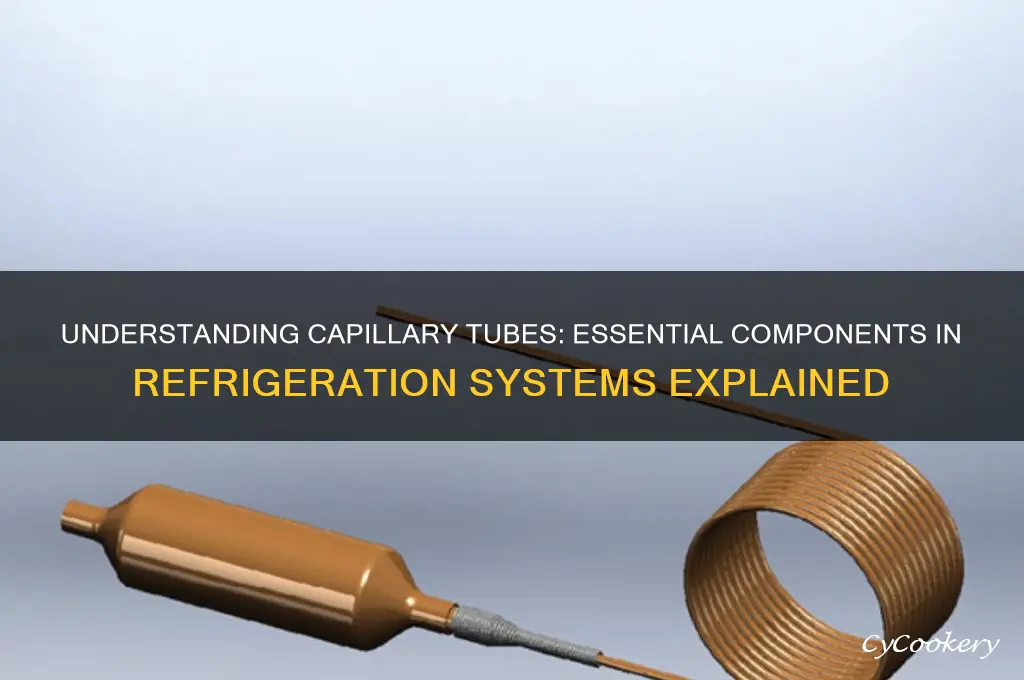

A capillary tube, often referred to as a cap tube, is a crucial component in refrigeration systems, serving as a metering device that regulates the flow of refrigerant between the condenser and the evaporator. Typically made of copper and ranging in length from a few inches to several feet, the cap tube’s narrow diameter restricts the refrigerant, causing a pressure drop that converts the high-pressure liquid refrigerant into a low-pressure, low-temperature mixture of liquid and vapor. This process is essential for efficient heat absorption in the evaporator, making the cap tube a simple yet vital element in the refrigeration cycle, particularly in smaller systems like household refrigerators and air conditioners.
| Characteristics | Values |
|---|---|
| Definition | A capillary tube is a long, narrow tube made of copper or stainless steel used as a metering device in refrigeration systems. |
| Function | Meters and controls the flow of refrigerant from the condenser to the evaporator, ensuring proper pressure drop and refrigerant distribution. |
| Diameter | Typically ranges from 0.03125 inches (0.79 mm) to 0.125 inches (3.18 mm). |
| Length | Varies depending on system requirements, but can range from a few inches to several feet. |
| Material | Primarily copper or stainless steel, chosen for their corrosion resistance and compatibility with refrigerants. |
| Pressure Drop | Creates a significant pressure drop, reducing the refrigerant pressure from the high-pressure side (condenser) to the low-pressure side (evaporator). |
| Refrigerant Flow | Allows for a controlled and consistent flow of refrigerant, ensuring efficient heat transfer and cooling performance. |
| Applications | Commonly used in small to medium-sized refrigeration systems, such as household refrigerators, freezers, and air conditioning units. |
| Advantages | Simple design, low cost, easy installation, and minimal maintenance requirements. |
| Disadvantages | Limited capacity control, sensitivity to changes in refrigerant charge, and potential for clogging or restriction. |
| Maintenance | Requires periodic cleaning and inspection to prevent blockages and ensure proper operation. |
| Alternatives | Other metering devices like thermostatic expansion valves (TXVs) or electronic expansion valves (EEVs) can be used in more complex or precise systems. |
Explore related products
What You'll Learn
- Cap Tube Function: Controls refrigerant flow, ensuring proper system pressure and efficient cooling in refrigeration cycles
- Cap Tube Design: Thin copper tube with specific length and diameter for accurate refrigerant metering
- Cap Tube vs. Expansion Valve: Compares cap tube’s simplicity to expansion valve’s complexity in refrigeration systems
- Cap Tube Installation: Requires precise positioning and insulation to prevent refrigerant flashing prematurely
- Cap Tube Troubleshooting: Common issues include clogging, kinking, or incorrect sizing affecting system performance
Cap Tube Function: Controls refrigerant flow, ensuring proper system pressure and efficient cooling in refrigeration cycles
The cap tube, a slender copper tube with an internal diameter typically ranging from 0.03 to 0.09 inches, acts as the metering device in smaller refrigeration systems like household refrigerators and freezers. Its primary function is to control the flow of refrigerant from the high-pressure liquid state to the low-pressure vapor state, ensuring the system operates at optimal pressure levels. This precise regulation is critical for efficient heat exchange in the evaporator, where the refrigerant absorbs heat from the refrigerated space, cooling it effectively. Without the cap tube’s metering action, the system could experience overfeeding or underfeeding of refrigerant, leading to inefficiencies such as poor cooling performance or excessive energy consumption.
Consider the cap tube as the system’s throttle, akin to a carburetor in an engine, but for refrigerant flow. Its design leverages the principles of capillary action and pressure drop to restrict the flow rate. As high-pressure liquid refrigerant enters the cap tube, the narrow diameter creates a significant pressure drop, converting the liquid into a low-pressure, two-phase mixture (liquid and vapor) by the time it exits. This process is essential for maintaining the correct evaporator temperature, typically around 0°F to 40°F (-18°C to 4°C), depending on the application. For example, in a domestic refrigerator, the cap tube ensures the evaporator coils operate at a temperature sufficient to keep food chilled without freezing, while in a freezer, it maintains temperatures below 0°F (-18°C) for proper food preservation.
One practical tip for technicians is to verify the cap tube’s integrity during system maintenance. Clogs or restrictions in the cap tube, often caused by debris or refrigerant oil, can lead to inadequate cooling or system lockout. Flushing the system with a compatible solvent and replacing the cap tube if necessary can restore proper function. Additionally, when sizing a cap tube for a new installation, it’s crucial to match the tube’s length and diameter to the system’s refrigerant charge and evaporator load. Mismatched cap tubes can result in either flooding (excess refrigerant) or starvation (insufficient refrigerant), both of which compromise efficiency.
Comparatively, the cap tube offers advantages over other metering devices like thermal expansion valves (TXVs) in smaller systems due to its simplicity and cost-effectiveness. While TXVs provide dynamic flow control based on evaporator load, they are more complex and expensive, making them impractical for compact, budget-conscious applications. The cap tube’s fixed orifice design, though less adaptable, is perfectly suited for systems with relatively stable cooling demands, such as residential refrigerators. However, it’s important to note that cap tubes are not ideal for systems requiring precise temperature control under varying loads, where a TXV would be more appropriate.
In conclusion, the cap tube’s role in controlling refrigerant flow is indispensable for maintaining system pressure and ensuring efficient cooling in refrigeration cycles. Its design simplicity, combined with its ability to meter refrigerant accurately, makes it a cornerstone component in smaller refrigeration systems. By understanding its function and limitations, technicians and engineers can optimize system performance, troubleshoot issues effectively, and ensure longevity in applications ranging from home appliances to small commercial units. Proper care and correct sizing of the cap tube are key to maximizing its benefits and avoiding common pitfalls.
Understanding Refrigerator Condensation: Where Does the Moisture Go?
You may want to see also
Explore related products
Cap Tube Design: Thin copper tube with specific length and diameter for accurate refrigerant metering
A capillary tube, often referred to as a cap tube, is a critical component in refrigeration systems, particularly in smaller units like household refrigerators and air conditioners. Its primary function is to meter the refrigerant flow, ensuring the system operates efficiently by maintaining the correct pressure and temperature differentials. The design of a cap tube is deceptively simple yet highly precise: a thin copper tube with a specific length and diameter tailored to the system’s requirements. This precision is essential because even minor deviations in dimensions can significantly impact performance, leading to issues like insufficient cooling or excessive energy consumption.
The length and diameter of a cap tube are not arbitrary; they are calculated based on factors such as the type of refrigerant, desired cooling capacity, and operating conditions. For instance, R-134a systems typically use cap tubes with diameters ranging from 0.040 to 0.070 inches, while the length can vary from a few inches to several feet. These dimensions create a pressure drop that restricts refrigerant flow, ensuring it evaporates at the correct rate in the evaporator coil. A longer or narrower tube increases resistance, reducing flow, while a shorter or wider tube allows more refrigerant to pass, potentially leading to flooding or inadequate cooling.
Designing a cap tube requires careful consideration of the system’s unique characteristics. Engineers use mathematical models and empirical data to determine the optimal dimensions, often relying on software tools to simulate performance under various conditions. For example, a cap tube designed for a high-efficiency mini-split system might have a diameter of 0.050 inches and a length of 48 inches to balance refrigerant flow and pressure drop. Practical tips for technicians include verifying the tube’s dimensions before installation and ensuring it is free from kinks or obstructions, as these can disrupt flow and compromise performance.
Comparatively, cap tubes offer advantages over other metering devices like thermal expansion valves (TXVs) in smaller systems due to their simplicity, low cost, and reliability. However, they lack the ability to adjust to changing conditions, making them less suitable for systems with variable loads. For instance, a cap tube in a residential refrigerator works well because the cooling demand remains relatively constant, whereas a commercial freezer with fluctuating loads might require a TXV for better control. Understanding these trade-offs is crucial for selecting the right metering device.
In conclusion, the cap tube’s design is a testament to the precision required in refrigeration engineering. Its thin copper construction, specific length, and diameter are engineered to meter refrigerant flow accurately, ensuring optimal system performance. While it may seem like a minor component, its role is indispensable, and proper design and installation are key to achieving efficient and reliable cooling. Whether you’re an engineer, technician, or enthusiast, appreciating the cap tube’s intricacies can deepen your understanding of refrigeration systems and their operation.
Refrigerating Monkey Bread: Tips for Storage and Freshness
You may want to see also
Explore related products
Cap Tube vs. Expansion Valve: Compares cap tube’s simplicity to expansion valve’s complexity in refrigeration systems
In refrigeration systems, the cap tube and the expansion valve are both critical components responsible for metering the refrigerant flow and controlling the pressure drop from the high-pressure side to the low-pressure side. However, their design, functionality, and complexity differ significantly. A cap tube is a simple, inexpensive, and reliable device consisting of a long, narrow tube that restricts refrigerant flow based on its internal diameter and length. It operates passively, relying on the refrigerant’s thermodynamic properties to self-regulate the flow, making it ideal for smaller, less demanding systems like household refrigerators and freezers. In contrast, the expansion valve is a more sophisticated component, often used in larger, more complex systems such as commercial refrigeration or air conditioning units. It actively controls refrigerant flow through a mechanical or electronic mechanism, allowing for precise adjustments based on system load and temperature demands.
Consider the installation and maintenance requirements of each. Cap tubes are straightforward to install, requiring minimal expertise and no additional calibration. Their simplicity translates to lower upfront costs and reduced likelihood of failure, as there are no moving parts to wear out. However, this simplicity comes with a trade-off: cap tubes offer limited control over the refrigerant flow, which can lead to inefficiencies under varying load conditions. Expansion valves, on the other hand, demand careful installation and periodic calibration to ensure optimal performance. Their complexity introduces higher initial costs and a greater potential for malfunctions, but they provide superior control and efficiency, particularly in systems with fluctuating demands. For instance, a thermostatic expansion valve (TXV) can adjust refrigerant flow in real-time, maintaining consistent evaporator temperatures even as ambient conditions change.
From a performance perspective, the choice between a cap tube and an expansion valve hinges on the specific application. In residential refrigerators, where cooling loads are relatively stable and precision is less critical, cap tubes excel due to their reliability and cost-effectiveness. A typical household refrigerator with a cap tube system can maintain temperatures within ±2°C of the set point, sufficient for food preservation. Conversely, in commercial refrigeration systems, where temperature stability is paramount and cooling loads can vary widely, expansion valves are indispensable. For example, a supermarket refrigeration system equipped with TXVs can maintain temperatures within ±0.5°C, ensuring product freshness and energy efficiency.
When troubleshooting, the simplicity of cap tubes becomes a double-edged sword. Diagnosing issues often involves checking for blockages or improper installation, as there are no internal mechanisms to fail. However, their passive nature means that problems like overfeeding or underfeeding of refrigerant are harder to correct without replacing the entire tube. Expansion valves, while more complex, offer diagnostic advantages. Technicians can adjust superheat settings or replace individual components, such as the sensing bulb or power element, to resolve issues. For instance, if a TXV is overfeeding, adjusting the superheat setting from 5°C to 8°C can restore optimal performance without replacing the valve.
In conclusion, the decision between a cap tube and an expansion valve should be guided by the system’s size, load variability, and precision requirements. Cap tubes offer unmatched simplicity and reliability for smaller, stable systems, while expansion valves provide the control and efficiency needed for larger, dynamic applications. Understanding these differences allows technicians and engineers to select the most appropriate component, ensuring optimal performance and longevity of the refrigeration system. For practical advice, always consult the manufacturer’s specifications and consider the long-term operational costs when making your choice.
Fresh Basil Storage: Easy Refrigerator Tips to Keep Leaves Green
You may want to see also
Explore related products
Cap Tube Installation: Requires precise positioning and insulation to prevent refrigerant flashing prematurely
A cap tube, often no thicker than a pencil lead, is the unsung hero of refrigeration systems, regulating refrigerant flow with precision. Its installation, however, demands meticulous attention to detail. Improper positioning or inadequate insulation can lead to refrigerant flashing prematurely, causing inefficiencies or system failure. This delicate component requires a thoughtful approach to ensure optimal performance.
Consider the cap tube’s placement: it must be positioned at a specific angle and height relative to the evaporator inlet. A deviation of even a few degrees can disrupt the refrigerant’s flow rate, leading to inadequate cooling or excessive pressure drop. For instance, a cap tube installed too low may cause liquid refrigerant to accumulate, while one placed too high can result in vapor entering the evaporator prematurely. Manufacturers often specify a 2- to 3-inch vertical drop from the cap tube’s inlet to the evaporator, but this varies by system design. Always consult the equipment manual for precise guidelines.
Insulation is equally critical. The cap tube must be wrapped in high-quality insulation material to maintain the refrigerant’s temperature and prevent heat gain. Without proper insulation, ambient heat can cause the refrigerant to flash into vapor before reaching the evaporator, reducing the system’s efficiency. Use closed-cell foam or rubber insulation with a thickness of at least ½ inch, ensuring no gaps or exposed areas. Pay special attention to joints and bends, as these are prone to heat infiltration.
A common mistake during installation is neglecting to secure the cap tube properly. Vibration or movement can cause the tube to shift, altering its alignment and flow characteristics. Use soft clamps or ties to secure the tube, avoiding tight bends or kinks that could restrict refrigerant flow. Additionally, ensure the tube is free from debris or oil residue, as contaminants can obstruct the narrow passage and disrupt performance.
Finally, test the system post-installation to verify proper operation. Monitor the evaporator’s superheat and subcooling values, adjusting as needed to achieve the manufacturer’s recommended range. A well-installed cap tube ensures consistent refrigerant flow, maximizing energy efficiency and prolonging the system’s lifespan. Precision in positioning and insulation is not just a best practice—it’s a necessity for reliable refrigeration.
Refrigerated Vegetable Soup: Safe Storage Duration and Freshness Tips
You may want to see also
Explore related products
Cap Tube Troubleshooting: Common issues include clogging, kinking, or incorrect sizing affecting system performance
Cap tubes, those slender copper or aluminum tubes in refrigeration systems, play a critical role in metering refrigerant flow. Despite their simplicity, they’re prone to issues that can cripple system performance. Clogging, kinking, and incorrect sizing are the trifecta of troubles technicians face. Clogging often stems from debris or moisture in the system, acting like a bottleneck that restricts refrigerant flow. Kinking, usually caused by mishandling during installation, disrupts the tube’s internal diameter, leading to erratic cooling. Incorrect sizing, a design or replacement oversight, results in either insufficient or excessive refrigerant flow, both of which compromise efficiency. Understanding these issues is the first step in diagnosing and resolving cap tube-related problems.
Consider a scenario where a refrigeration system struggles to maintain temperature despite a functioning compressor. The culprit could be a clogged cap tube. To troubleshoot, start by checking for signs of oil or debris accumulation at the tube’s inlet or outlet. Flushing the system with a compatible solvent or replacing the cap tube may be necessary. For kinking, inspect the tube for bends or deformities, especially near bends or where it passes through tight spaces. Straightening a kinked tube is rarely effective; replacement is usually the best course of action. Always handle cap tubes with care during installation to prevent damage. Incorrect sizing requires a more analytical approach—refer to the manufacturer’s specifications or consult a refrigeration manual to ensure the tube’s internal diameter matches the system’s requirements.
Persuasive as it may sound, prevention is far easier than repair. Regular maintenance, such as installing filters or driers to trap moisture and debris, can significantly reduce the risk of clogging. When replacing a cap tube, double-check its length and diameter to avoid sizing errors. For DIY enthusiasts or technicians, investing in a tube bender ensures smooth, kink-free installations. Remember, a well-maintained cap tube ensures consistent refrigerant flow, which directly translates to energy efficiency and system longevity. Neglecting these small components can lead to costly repairs or premature system failure.
Comparatively, cap tube issues share similarities with other metering device problems, such as those in thermal expansion valves. However, their simplicity makes them both a blessing and a curse. While they lack moving parts, their susceptibility to physical damage and contamination demands meticulous attention. Unlike valves, cap tubes offer no adjustability, making correct sizing at installation paramount. Technicians must approach troubleshooting with a systematic mindset: inspect for clogs, check for kinks, and verify sizing before considering other system faults. This methodical approach ensures that cap tube issues are addressed efficiently, minimizing downtime and maximizing performance.
Descriptively, imagine a cap tube as the system’s lifeline, delicately balancing refrigerant flow to maintain optimal cooling. When compromised, the entire system suffers. A clogged tube resembles a choked artery, starving the evaporator of refrigerant. A kinked tube acts like a pinched hose, disrupting the smooth flow of fluid. Incorrect sizing is akin to wearing ill-fitting shoes—uncomfortable and inefficient. By visualizing these analogies, technicians can better appreciate the importance of cap tube health. Regular inspections, coupled with a proactive mindset, ensure this vital component continues to perform its silent yet essential role in refrigeration systems.
