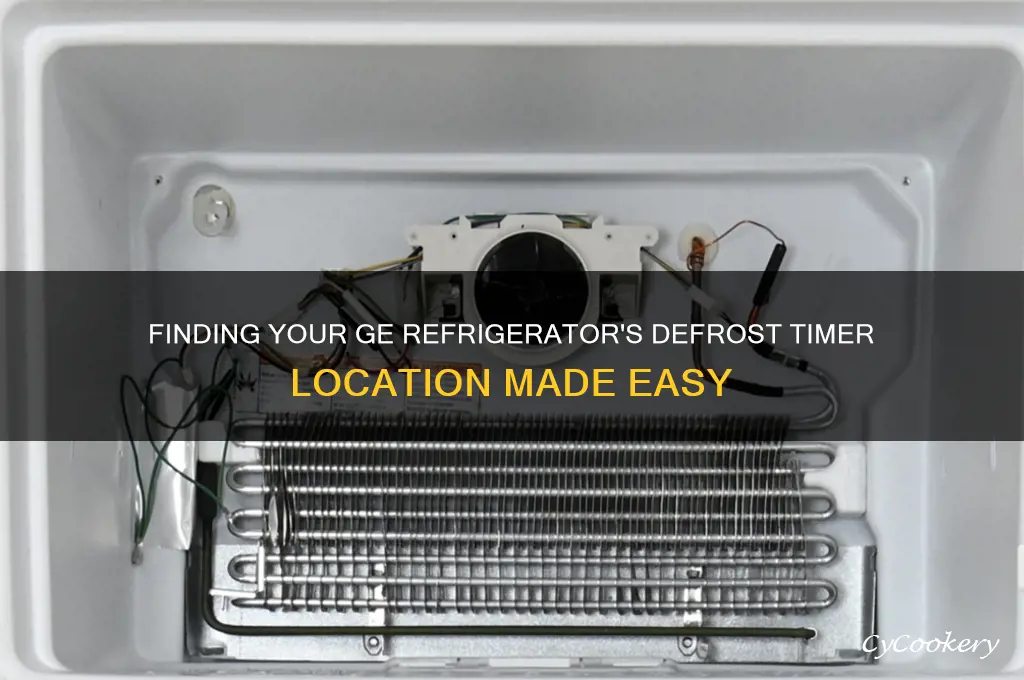

The location of the defrost timer in a GE refrigerator can vary depending on the model, but it is typically found in one of a few common areas. In many GE refrigerators, the defrost timer is located behind the control panel at the top of the refrigerator compartment, often accessible by removing a few screws or a cover plate. Alternatively, it may be situated near the bottom of the refrigerator, either behind the kickplate or inside the fresh food compartment, usually behind a removable panel. Some models might also have the defrost timer mounted on the back of the refrigerator, near the compressor or evaporator coils. Consulting the user manual or model-specific diagrams can provide precise guidance for locating the defrost timer in your particular GE refrigerator.
| Characteristics | Values |
|---|---|
| Location | Typically located behind the refrigerator, near the compressor or on the back wall of the cabinet. |
| Appearance | Small, rectangular or square box with wires connected to it. |
| Function | Controls the defrost cycle to prevent ice buildup in the freezer. |
| Models | Varies by GE refrigerator model; common locations include behind the kickplate or inside the control panel. |
| Access | May require removing the lower back panel or kickplate for access. |
| Replacement | Can be replaced if faulty; part number varies by model. |
| Testing | Can be tested with a multimeter to check for continuity. |
| Common Issues | Failure can lead to excessive frost buildup or defrosting problems. |
| Compatibility | Specific to GE refrigerator models; check model number for compatibility. |
| Manual Reference | Consult the refrigerator's user manual for exact location and instructions. |
Explore related products
What You'll Learn
Top Freezer Models: Timer Behind Kick Plate or Control Panel
In GE's top freezer refrigerator models, the defrost timer's location often hinges on the design era and specific model. For many older units, the timer is tucked behind the kick plate, a removable panel at the bottom front of the fridge. This placement offers easy access for troubleshooting or replacement, typically requiring only a screwdriver to remove the plate. However, newer models frequently relocate the timer to the control panel, often integrated with other electronic components. This shift reflects advancements in design, prioritizing compactness and centralized control. Knowing your model’s age and design can save time when hunting for this critical component.
For those with older GE top freezer models, accessing the defrost timer behind the kick plate is straightforward. Start by unplugging the refrigerator for safety. Next, use a screwdriver to remove the screws securing the kick plate, then gently pull it away from the unit. The timer, a small cylindrical or rectangular device with wires attached, should be visible. If the timer needs testing or replacement, follow manufacturer guidelines or consult a technician. This location is ideal for DIY repairs, as it avoids the complexity of disassembling internal components.
Newer GE top freezer models often house the defrost timer within the control panel, usually located inside the refrigerator compartment. To access it, remove the control panel cover by unscrewing or snapping it off, depending on the design. The timer may be integrated with the thermostat or other electronic controls, making it less exposed than in older models. While this placement streamlines the fridge’s exterior, it can complicate repairs, as internal components may need to be moved or disconnected. Always refer to the user manual for model-specific instructions.
Comparing the two locations, the kick plate placement in older models offers convenience for quick fixes, while the control panel integration in newer units reflects modern design priorities. For homeowners, understanding this evolution helps in diagnosing issues and deciding whether to attempt a repair or call a professional. If your fridge is defrosting improperly or cycling incorrectly, the timer is a prime suspect, and its location dictates the approach to inspection or replacement. Always prioritize safety by unplugging the unit before attempting any repairs.
In practice, identifying the defrost timer’s location in GE top freezer models is a matter of knowing your fridge’s age and design. Older units favor accessibility with the timer behind the kick plate, while newer models prioritize integration within the control panel. Both placements serve their purpose, but the shift underscores the importance of consulting model-specific resources. Whether you’re a DIY enthusiast or a cautious homeowner, understanding this distinction ensures efficient troubleshooting and maintenance, keeping your refrigerator running smoothly.
