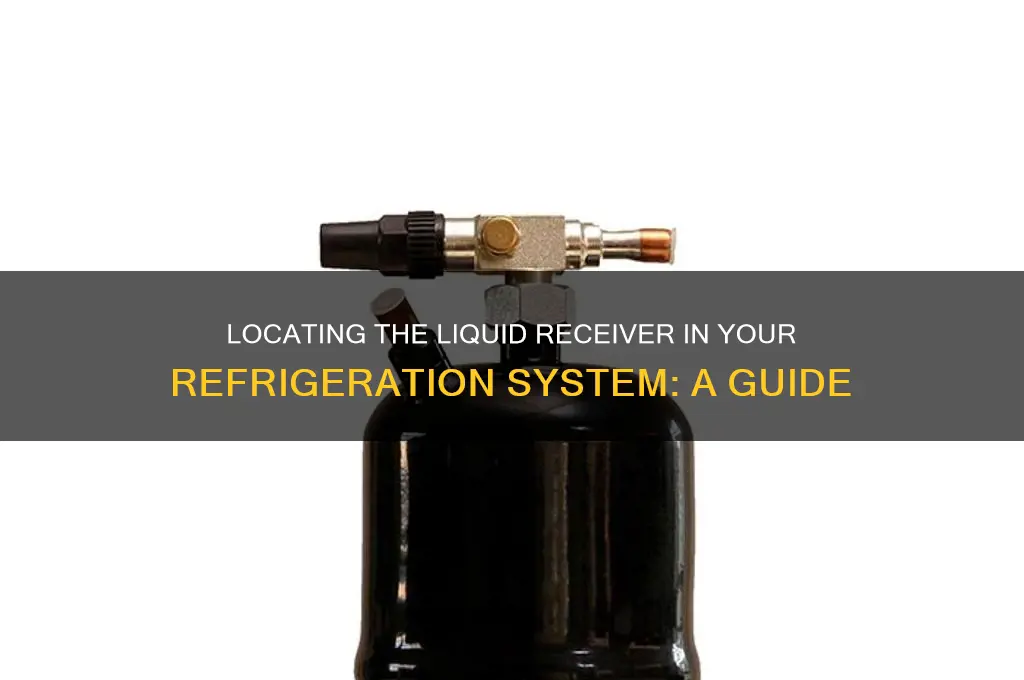

The liquid receiver in a refrigeration system is a crucial component that serves as a temporary storage vessel for liquid refrigerant. Typically located in the outdoor unit or near the condenser, it plays a vital role in ensuring the system operates efficiently by separating liquid refrigerant from vapor and preventing liquid from entering the compressor, which could cause damage. The receiver also helps to maintain proper refrigerant flow, stabilize system pressure, and accommodate excess refrigerant during off-cycles or low-load conditions. Understanding its location and function is essential for proper installation, maintenance, and troubleshooting of refrigeration systems.
| Characteristics | Values |
|---|---|
| Location | Typically located between the condenser and the expansion valve in a refrigeration system. |
| Purpose | Stores liquid refrigerant, ensures proper subcooling, and prevents liquid slugging to the expansion valve. |
| Shape | Cylindrical or horizontal tank with a larger diameter than the connecting pipes. |
| Material | Usually made of steel or other materials compatible with the refrigerant used. |
| Components | Inlet and outlet ports, liquid level indicator, safety relief valve, and sometimes a strainer or filter. |
| Functionality | Acts as a reservoir, separates liquid and vapor, and maintains a steady supply of subcooled liquid refrigerant. |
| Subcooling | Ensures that the liquid refrigerant is below its saturation temperature, improving system efficiency. |
| Capacity | Sized based on the system's refrigerant charge and operating conditions. |
| Pressure Rating | Designed to withstand the maximum operating pressure of the refrigeration system. |
| Maintenance | Requires periodic inspection, cleaning, and checking for leaks or corrosion. |
| Applications | Commonly used in medium to large-scale refrigeration systems, such as commercial and industrial applications. |
| Alternatives | In some systems, a receiver may be omitted if proper subcooling can be achieved through other means, like a subcooling heat exchanger. |
Explore related products
What You'll Learn
- Location in System: Typically found at condenser outlet, collects liquid refrigerant after condensation
- Purpose: Ensures liquid separation, prevents vapor entry into expansion valve
- Design Types: Includes float, thermosiphon, and gravity receivers for efficient operation
- Maintenance Tips: Regularly check for leaks, clean strainers, and monitor refrigerant levels
- Troubleshooting: Address issues like overcharging, clogging, or improper installation promptly
Location in System: Typically found at condenser outlet, collects liquid refrigerant after condensation
The liquid receiver in a refrigeration system is strategically positioned at the condenser outlet, a location that serves a critical function in the refrigeration cycle. This placement ensures that the receiver collects liquid refrigerant immediately after it has undergone condensation, a process where the refrigerant transitions from a high-pressure vapor to a high-pressure liquid. By intercepting the refrigerant at this stage, the receiver acts as a buffer, preventing liquid refrigerant from flowing directly into the expansion valve or metering device, which could lead to inefficiencies or damage.
Consider the refrigeration cycle as a relay race, where each component passes the refrigerant to the next. The condenser, responsible for shedding heat and condensing the refrigerant, hands off the liquid refrigerant to the receiver. This handoff is crucial because the receiver not only stores the liquid but also separates any entrained gases or non-condensable substances, ensuring that only pure liquid refrigerant proceeds to the next stage. For instance, in a commercial refrigeration system, the receiver might hold 3-5 gallons of liquid refrigerant, depending on the system size, providing a reserve that maintains stable operation during peak demand.
From a practical standpoint, installing the liquid receiver at the condenser outlet requires careful consideration of piping and orientation. The receiver should be mounted vertically to allow for proper separation of liquid and vapor, with the inlet near the bottom and the outlet near the top. Additionally, the receiver must be equipped with a liquid line filter-drier to capture moisture and debris, safeguarding the system from contamination. Technicians should also ensure that the receiver is insulated to prevent heat gain, which could cause the refrigerant to flash into vapor prematurely.
Comparing this setup to alternative designs highlights its advantages. In systems without a receiver, liquid refrigerant flows directly to the expansion valve, increasing the risk of liquid slugging the compressor or flooding the evaporator. The receiver’s presence mitigates these risks by providing a holding area for the refrigerant, allowing for better control of the refrigerant flow rate and ensuring that the expansion valve receives a steady supply of liquid. This is particularly important in systems with fluctuating loads, such as those in supermarkets or industrial cooling applications.
In conclusion, the liquid receiver’s location at the condenser outlet is a deliberate design choice that enhances the efficiency and reliability of refrigeration systems. By collecting and conditioning the liquid refrigerant post-condensation, the receiver plays a pivotal role in maintaining system integrity. Whether you’re a technician installing a new system or a facility manager maintaining an existing one, understanding this component’s function and proper placement is essential for optimal performance and longevity.
Refrigerating Uncooked Stuffing: Tips for Safe Storage and Preparation
You may want to see also
Explore related products
Purpose: Ensures liquid separation, prevents vapor entry into expansion valve
In refrigeration systems, the liquid receiver is strategically positioned between the condenser and the expansion valve to serve as a critical buffer. Its primary function is to ensure complete liquid separation from any residual vapor, a process vital for system efficiency. Without this separation, vapor could enter the expansion valve, leading to erratic cooling performance, potential valve damage, and reduced equipment lifespan. This component acts as a safeguard, maintaining the integrity of the refrigeration cycle by supplying only subcooled liquid refrigerant to the expansion valve.
Consider the analogy of a fuel filter in a car: just as it prevents contaminants from reaching the engine, the liquid receiver filters out vapor to protect the expansion valve. This comparison highlights the receiver’s role in maintaining system purity and functionality. In practice, the receiver’s design includes a dip tube that draws liquid from the bottom, minimizing vapor entrainment. For optimal performance, ensure the receiver is installed upright and sized appropriately—typically holding 3 to 5 minutes of refrigerant flow at design conditions.
From a troubleshooting perspective, symptoms like fluctuating evaporator pressure or frost buildup on the suction line may indicate vapor contamination due to a malfunctioning receiver. Inspect for signs of refrigerant flooding or inadequate subcooling, which can occur if the receiver is undersized or improperly located. Regular maintenance, such as checking for refrigerant oil levels and cleaning strainers, ensures the receiver operates effectively. For systems in high-humidity environments, consider adding a dryer within the receiver to absorb moisture and prevent acid formation.
Persuasively, investing in a high-quality liquid receiver is a cost-effective measure to avoid costly repairs and downtime. Systems without receivers or with poorly maintained ones often experience premature expansion valve failures, leading to inefficiencies and higher energy consumption. For instance, a study on commercial refrigeration units found that systems with properly functioning receivers consumed 15-20% less energy compared to those without. This underscores the receiver’s role not just as a protective device, but as a contributor to overall system sustainability.
Finally, when designing or retrofitting a refrigeration system, prioritize the liquid receiver’s placement and specifications. Position it after the condenser and before any filter-drier, ensuring it operates at a pressure slightly above the condenser’s to facilitate liquid flow. For systems using R-410A or similar high-pressure refrigerants, select receivers rated for at least 50% higher than the maximum working pressure. By adhering to these guidelines, you ensure the receiver fulfills its purpose—seamlessly separating liquid, preventing vapor intrusion, and safeguarding the expansion valve for reliable, long-term operation.
Launching a Successful Refrigerated Transport Business: Essential Steps and Tips
You may want to see also
Explore related products
Design Types: Includes float, thermosiphon, and gravity receivers for efficient operation
Liquid receivers in refrigeration systems are critical for separating liquid refrigerant from vapor, ensuring efficient operation and preventing damage to compressors. Among the various design types, float, thermosiphon, and gravity receivers stand out for their unique mechanisms and applications. Each type addresses specific operational needs, making them suitable for different refrigeration scenarios.
Float receivers, for instance, utilize a float mechanism to maintain a consistent liquid level in the receiver. This design is particularly effective in systems where refrigerant flow rates fluctuate significantly. The float valve opens or closes based on the liquid level, ensuring that the compressor always receives the correct amount of refrigerant. This precision makes float receivers ideal for medium to large-scale refrigeration systems, such as those used in industrial cooling or commercial HVAC units. For optimal performance, ensure the float mechanism is calibrated to the system’s operating pressure and temperature range, typically between 100–300 psi for medium-pressure refrigerants like R-410A.
Thermosiphon receivers, on the other hand, rely on natural convection to separate liquid and vapor. In this design, the receiver is positioned above the condenser, allowing the denser liquid refrigerant to flow downward into the receiver while the lighter vapor rises. This passive system is highly efficient and requires minimal maintenance, making it a popular choice for smaller refrigeration units, such as those in supermarkets or walk-in coolers. When installing a thermosiphon receiver, ensure the vertical distance between the condenser and receiver is at least 3–5 feet to facilitate proper convection.
Gravity receivers operate on a similar principle but are often used in systems where the receiver is located at a lower elevation than the condenser. This design leverages gravity to separate liquid refrigerant, which collects in the receiver due to its higher density. Gravity receivers are particularly useful in low-temperature applications, such as in cold storage warehouses or ice rinks, where maintaining a consistent liquid supply is critical. To maximize efficiency, position the receiver at least 2–3 feet below the condenser and ensure the piping slope is adequate (typically 1/4 inch per foot) to prevent vapor lockout.
In summary, the choice of receiver design—float, thermosiphon, or gravity—depends on the specific requirements of the refrigeration system. Float receivers offer precise control for fluctuating flow rates, thermosiphon receivers provide passive efficiency for smaller systems, and gravity receivers excel in low-temperature applications. By understanding these design types and their operational nuances, engineers and technicians can select the most appropriate receiver to ensure reliable and efficient refrigeration system performance. Always consult manufacturer guidelines and system specifications to ensure compatibility and optimal operation.
Refrigerating Thawed Shrimp: Safe Storage Tips and Best Practices
You may want to see also
Explore related products
Maintenance Tips: Regularly check for leaks, clean strainers, and monitor refrigerant levels
The liquid receiver in a refrigeration system is a critical component, serving as a temporary storage vessel for liquid refrigerant before it enters the evaporator. Located between the condenser and the expansion valve, it ensures proper refrigerant flow, prevents liquid slugging, and maintains system efficiency. However, its effectiveness hinges on consistent maintenance. Neglecting this area can lead to reduced performance, energy inefficiency, or even system failure. Regular checks and upkeep are not optional—they are essential for longevity and reliability.
Step 1: Inspect for Leaks
Begin by examining the liquid receiver and its associated connections for signs of refrigerant leaks. Use an electronic leak detector or a soap solution to identify even minor leaks, as refrigerant loss compromises system efficiency and environmental safety. Pay close attention to welds, fittings, and valve stems, as these are common failure points. Address leaks immediately, ensuring all repairs comply with industry standards. For systems using R-410A or similar high-pressure refrigerants, use compatible materials to avoid further damage.
Step 2: Clean Strainers and Filters
Strainers and filters within the liquid receiver prevent debris from entering the expansion valve and evaporator, which can cause blockages or damage. Clean these components every 3–6 months, depending on system usage and environmental conditions. Remove the strainer, flush it with a mild solvent, and inspect for wear or corrosion. Replace it if necessary, ensuring the mesh size matches the manufacturer’s specifications. Neglecting this step can lead to restricted refrigerant flow, reduced cooling capacity, and increased energy consumption.
Step 3: Monitor Refrigerant Levels
Maintaining proper refrigerant charge is vital for system performance. Use a refrigerant gauge to check levels regularly, comparing readings to the manufacturer’s guidelines. Overcharging can lead to high head pressure and inefficiency, while undercharging results in insufficient cooling and potential compressor damage. For systems with sight glasses, observe the refrigerant flow for bubbles (indicating low charge) or excessive liquid (indicating overcharge). Adjust the charge as needed, ensuring compliance with local regulations regarding refrigerant handling.
Cautions and Best Practices
Always prioritize safety when performing maintenance. Wear protective gear, including gloves and safety goggles, and ensure the system is depressurized before opening any components. Avoid over-tightening fittings, as this can cause cracks or leaks. Keep detailed records of maintenance activities, including dates, findings, and actions taken. For older systems (over 10 years), consider a professional inspection annually to assess overall health and identify potential issues before they escalate.
Regular maintenance of the liquid receiver and its associated components is a small investment that yields significant returns in system efficiency, reliability, and lifespan. By systematically checking for leaks, cleaning strainers, and monitoring refrigerant levels, you can prevent costly downtime and ensure consistent performance. Treat these tasks as non-negotiable elements of your maintenance routine, and your refrigeration system will reward you with years of trouble-free operation.
Chilling Blooms: Can You Safely Store Flower Bouquets in the Fridge?
You may want to see also
Explore related products
Troubleshooting: Address issues like overcharging, clogging, or improper installation promptly
The liquid receiver in a refrigeration system is a critical component, often located between the condenser and the expansion valve, serving as a temporary storage tank for liquid refrigerant. However, its strategic placement doesn’t shield it from common issues like overcharging, clogging, or improper installation, which can cripple system efficiency. Addressing these problems promptly is essential to prevent further damage and ensure optimal performance.
Diagnosing Overcharging: A System Under Stress
Overcharging occurs when excess refrigerant is added to the system, leading to high head pressures, reduced cooling capacity, and potential compressor damage. Symptoms include frost buildup on the suction line, a hot condenser, and unusually high discharge temperatures. To troubleshoot, first verify the correct refrigerant charge using manufacturer specifications. If overcharged, evacuate the system partially, ensuring not to remove too much refrigerant, as this can cause other issues. Recharge to the recommended level, typically measured in pounds or kilograms, depending on system size. For residential units, overcharging by as little as 10% can reduce efficiency by 15–20%, so precision is key.
Clogging: The Silent Efficiency Killer
Clogging in the liquid receiver often stems from debris, moisture, or oil sludge, restricting refrigerant flow and causing erratic cooling. Signs include fluctuating suction pressures, reduced airflow, and ice formation on the evaporator coil. To resolve, isolate the receiver and inspect for visible obstructions. Flushing the system with a compatible solvent or replacing the receiver may be necessary. Installing a filter-drier upstream can prevent future clogs, especially in systems older than 5 years, where wear and tear increase debris accumulation.
Improper Installation: A Preventable Pitfall
Incorrectly installed liquid receivers can lead to inefficiency or failure. Common mistakes include mounting the receiver at an improper angle, failing to secure it adequately, or using incompatible fittings. For instance, a receiver installed horizontally instead of vertically can trap oil, starving the compressor. Always follow manufacturer guidelines, ensuring the receiver is mounted securely and at the correct orientation. For split systems, maintain a minimum clearance of 6 inches around the receiver for proper airflow and accessibility during maintenance.
Proactive Measures: Preventing Future Issues
Regular maintenance is the best defense against troubleshooting nightmares. Schedule biannual inspections to check for refrigerant leaks, clean coils, and verify system pressures. Use a vacuum gauge to ensure the system is evacuated to below 500 microns before recharging, removing moisture and non-condensables. For systems in humid climates, consider adding a moisture indicator to the receiver to monitor desiccant saturation. By staying proactive, you can extend the lifespan of the refrigeration system and minimize downtime caused by avoidable issues.
Pickled Green Tomatoes: Refrigerator Storage Lifespan and Freshness Tips
You may want to see also
Frequently asked questions
The liquid receiver is usually located between the condenser and the expansion valve in a refrigeration system. It is positioned after the refrigerant has condensed from a vapor to a liquid state and before it enters the expansion device.
The liquid receiver serves as a temporary storage vessel for liquid refrigerant, ensuring a steady supply to the expansion valve. It also helps to separate any remaining vapor from the liquid, prevents liquid slugging, and provides a reservoir for excess refrigerant during system operation or shutdown.
Yes, some refrigeration systems, particularly smaller or residential units, may not have a liquid receiver. However, in larger or industrial systems, a liquid receiver is often essential to ensure proper operation, prevent liquid hammer, and maintain system efficiency.
The liquid receiver is typically a cylindrical or spherical vessel located in the liquid line between the condenser and the expansion valve. It often has a sight glass, pressure gauge, or other accessories attached to monitor the refrigerant level and condition.
