The control board WPW10135901 is a critical component in Whirlpool refrigerators, responsible for managing various functions such as temperature regulation, defrost cycles, and lighting. Located typically at the back of the refrigerator, either inside the cabinet or behind the control panel, this board ensures the appliance operates efficiently. Identifying its exact location can vary depending on the specific model, but it is often accessible by removing the rear panel or the control panel cover. Understanding where this control board is situated is essential for troubleshooting issues, performing maintenance, or replacing the part if it malfunctions, ensuring your refrigerator continues to function optimally.
| Characteristics | Values |
|---|---|
| Location | Typically located behind the refrigerator's control panel or inside the fresh food compartment. |
| Function | Controls temperature settings, defrost cycles, and other refrigerator functions. |
| Compatibility | Designed for specific Whirlpool refrigerator models (check model compatibility before purchase). |
| Part Number | WPW10135901 |
| Brand | Whirlpool |
| Type | Electronic Control Board |
| Installation | Requires technical knowledge; professional installation recommended. |
| Diagnosis | Malfunction may cause temperature inconsistencies or display errors. |
| Replacement | Available for purchase through authorized Whirlpool dealers or online retailers. |
| Price Range | Typically ranges from $150 to $250 (varies by retailer). |
| Warranty | Usually comes with a limited warranty (check with the seller). |
| Access | Accessible by removing the control panel or interior panel (model-dependent). |
| Tools Required | Screwdriver, possibly other tools depending on the model. |
| Safety | Disconnect power before attempting to access or replace the control board. |
Explore related products
What You'll Learn

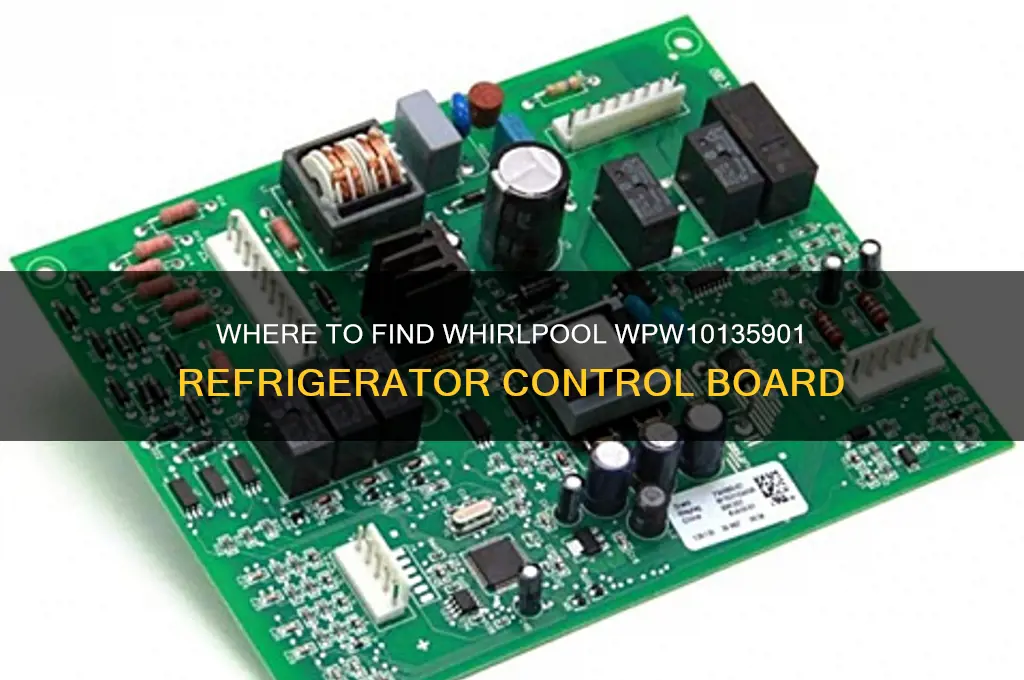

Control Board Location in Whirlpool WPW10135901 Refrigerator
The Whirlpool WPW10135901 refrigerator’s control board is a critical component, acting as the brain of the appliance. It manages temperature regulation, defrost cycles, and other essential functions. Locating this board is the first step in troubleshooting issues like erratic cooling or unresponsive displays. Typically, Whirlpool designs its refrigerators with accessibility in mind, placing the control board in a logical yet protected area. Understanding its location can save time and frustration, especially when attempting DIY repairs or diagnostics.
To find the control board in the WPW10135901 model, start by unplugging the refrigerator to ensure safety. The board is often housed in the rear of the unit, either behind the control panel on the exterior or inside the refrigerator compartment. For this specific model, the control board is usually located behind the upper back panel inside the refrigerator. Remove the screws securing this panel, and you’ll find the board nestled in a protective casing. Be cautious not to touch any exposed circuitry, as static electricity can damage the component.
Comparing this to other Whirlpool models, the WPW10135901’s control board placement is consistent with the brand’s design philosophy. For instance, some side-by-side models may have the board in the freezer compartment, while top-freezer models often place it in the refrigerator section. This variation highlights the importance of model-specific knowledge. Always consult the user manual or online resources for precise instructions tailored to your refrigerator.
For practical troubleshooting, once the control board is located, inspect it for visible damage like burnt marks or loose connections. If the board appears intact, test it using a multimeter to check for continuity. If you’re unsure about handling electronics, consider hiring a professional technician. Replacing the control board requires precision, and incorrect installation can lead to further issues. Always purchase replacement parts from authorized dealers to ensure compatibility and reliability.
In summary, the Whirlpool WPW10135901 refrigerator’s control board is typically found behind the upper back panel inside the refrigerator compartment. Locating it involves unplugging the unit, removing the panel, and exercising caution to avoid damage. Understanding its placement and function empowers homeowners to address common issues effectively, whether through DIY repairs or informed discussions with technicians. Always prioritize safety and accuracy when working with appliance components.
