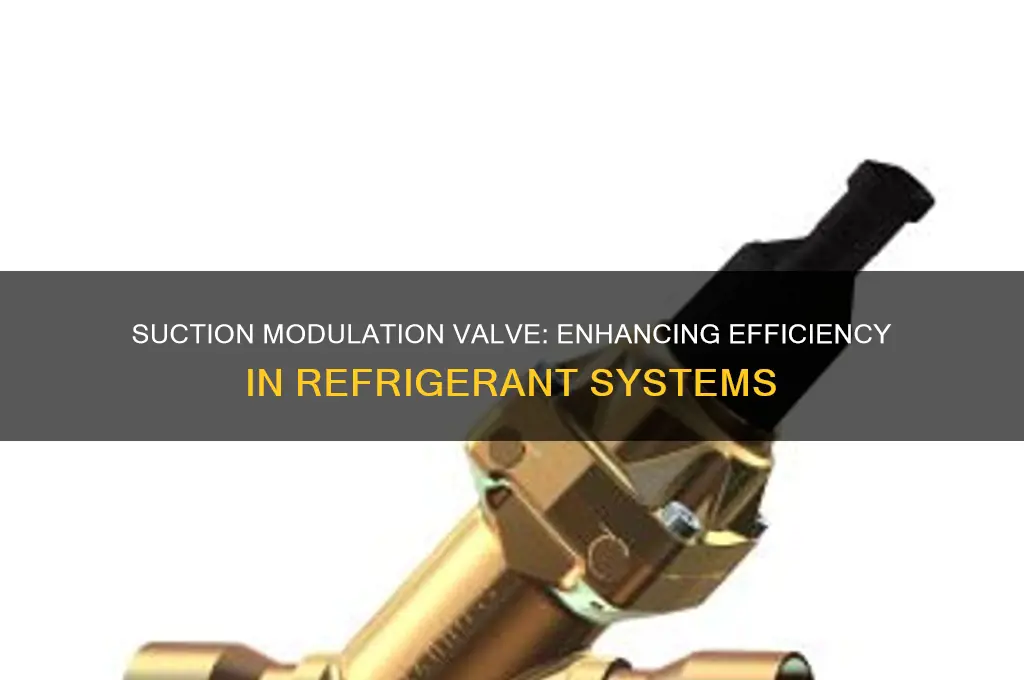

The suction modulation valve (SMV) is a critical component in refrigerant systems, designed to optimize performance and efficiency by regulating the flow of refrigerant vapor entering the compressor. Positioned in the suction line, this valve dynamically adjusts the refrigerant's pressure and flow rate based on system demands, ensuring stable operation across varying load conditions. By preventing overfeeding or underfeeding of the compressor, the SMV minimizes energy consumption, reduces wear on components, and enhances overall system reliability. Its application is particularly valuable in air conditioning and refrigeration systems, where precise control of refrigerant flow is essential for maintaining desired temperatures and improving energy efficiency. Understanding the role and functionality of the suction modulation valve is key to designing and maintaining high-performance refrigerant systems.
| Characteristics | Values |
|---|---|
| Location in Refrigerant System | Installed in the suction line between the evaporator and compressor. |
| Primary Function | Controls refrigerant flow to modulate suction pressure and capacity. |
| Type of Valve | Typically an electronically controlled expansion valve (ECEV) or stepper motor-driven valve. |
| Control Mechanism | Adjusts opening based on signals from a controller or thermostat. |
| Pressure Regulation | Modulates suction pressure to match system load requirements. |
| Capacity Control | Reduces or increases refrigerant flow to match cooling demand. |
| Energy Efficiency | Improves system efficiency by preventing overcooling and reducing compressor work. |
| Compatibility | Used in variable capacity systems, heat pumps, and air conditioning units. |
| Material | Typically made of corrosion-resistant materials like brass or stainless steel. |
| Size | Varies based on system capacity (e.g., 1/4", 3/8", 1/2" fittings). |
| Power Source | Requires electrical power (24V AC/DC or as specified by the system). |
| Response Time | Fast response to maintain precise suction pressure control. |
| Maintenance | Requires periodic inspection for leaks, debris, and proper operation. |
| Cost | Higher initial cost compared to fixed orifice systems but offers better efficiency. |
| Applications | Residential, commercial, and industrial HVAC and refrigeration systems. |
Explore related products
What You'll Learn
Suction Modulation Valve Functionality
Suction modulation valves (SMVs) are critical components in refrigerant systems, particularly in air conditioning and refrigeration units, designed to optimize performance and energy efficiency. Their primary function is to regulate the flow of refrigerant vapor entering the compressor, ensuring it operates within safe and efficient parameters. By modulating the suction pressure, SMVs prevent issues like compressor surge, liquid slugging, and capacity loss, which can arise from varying load conditions or system malfunctions. This dynamic control is essential for maintaining system stability and prolonging equipment lifespan.
Analyzing the operation of SMVs reveals their role in addressing the inherent challenges of refrigerant systems. For instance, during low-load conditions, the valve restricts refrigerant flow, preventing the compressor from operating at excessively low suction pressures that could lead to surge. Conversely, under high-load conditions, the valve opens to allow more refrigerant, ensuring the system meets demand without overloading the compressor. This adaptive functionality is particularly valuable in applications with fluctuating thermal loads, such as commercial HVAC systems or industrial refrigeration units.
From a practical standpoint, installing an SMV requires careful consideration of system design and operating conditions. The valve should be positioned on the suction line, typically near the compressor inlet, to effectively control refrigerant flow. Proper sizing is crucial; undersized valves can restrict flow excessively, while oversized ones may fail to provide adequate modulation. Manufacturers often provide guidelines for selecting the appropriate valve based on system capacity, refrigerant type, and expected load variations. Regular maintenance, including checking for debris or wear, ensures the valve operates reliably over time.
A comparative analysis highlights the advantages of SMVs over traditional fixed-orifice systems. Unlike fixed orifices, which offer no adaptability, SMVs provide real-time adjustments to match system demands. This results in reduced energy consumption, as the compressor operates closer to its optimal efficiency point. Additionally, SMVs minimize the risk of compressor damage, reducing repair costs and downtime. While the initial investment in an SMV may be higher, the long-term savings in energy and maintenance often justify the expense, making them a cost-effective solution for modern refrigerant systems.
In conclusion, the functionality of suction modulation valves is a cornerstone of efficient refrigerant system operation. By dynamically controlling suction pressure, SMVs enhance performance, protect equipment, and reduce energy consumption. Whether in residential air conditioners or large-scale industrial systems, their ability to adapt to varying conditions makes them indispensable. For engineers, technicians, and system designers, understanding and leveraging SMV technology is key to building robust, energy-efficient cooling solutions.
