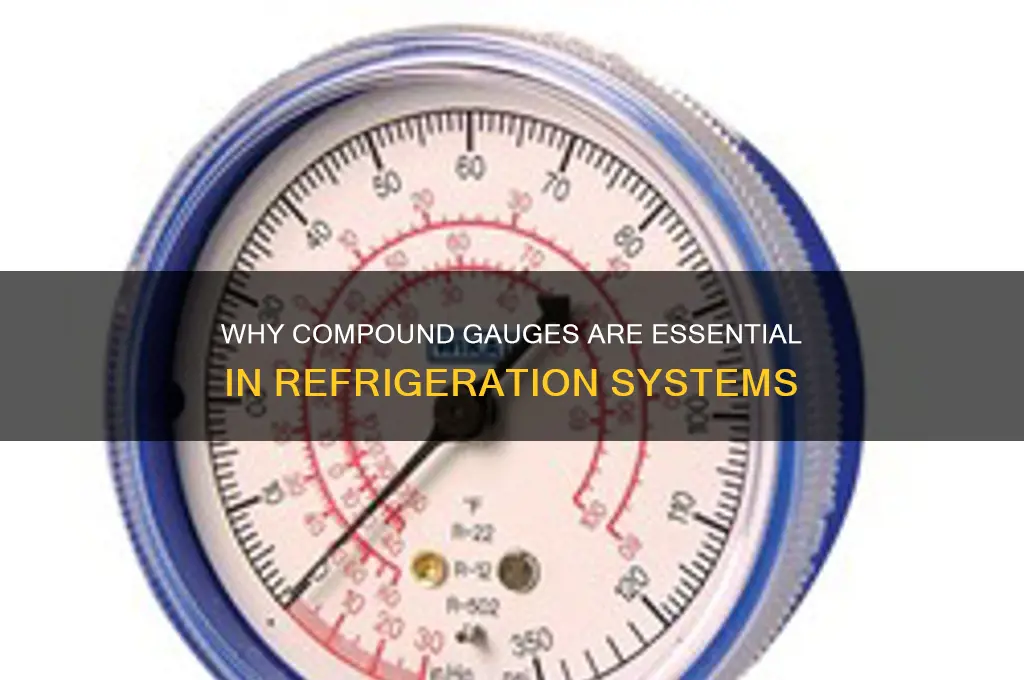

A compound gauge is an essential component in refrigeration systems, serving the critical function of measuring both high and low pressures within the system simultaneously. Unlike single-pressure gauges, a compound gauge provides a comprehensive view of the system's operation, allowing technicians to monitor the suction (low) and discharge (high) pressures, which are vital for diagnosing issues and ensuring optimal performance. This dual-pressure measurement capability helps in identifying problems such as refrigerant undercharging, overcharging, or system blockages, ensuring efficient and safe operation of the refrigeration unit. By enabling precise pressure monitoring, the compound gauge plays a key role in maintaining system reliability, energy efficiency, and compliance with safety standards.
| Characteristics | Values |
|---|---|
| Purpose | To measure both high-side (discharge) and low-side (suction) pressures simultaneously in a refrigeration system. |
| Pressure Range | Typically measures from vacuum (0 psig) up to 500 psig or higher, depending on the system. |
| Accuracy | High accuracy, often within ±1-2% of full scale, ensuring precise pressure readings. |
| Safety | Helps prevent overcharging or undercharging of refrigerant, reducing risks of system damage or failure. |
| Diagnostics | Assists in diagnosing issues like refrigerant leaks, compressor problems, or restrictions in the system. |
| Compatibility | Compatible with various refrigerants, including R-22, R-410A, R-134a, and others. |
| Construction | Durable materials like brass, stainless steel, or aluminum to withstand harsh environments. |
| Calibration | Requires periodic calibration to maintain accuracy and reliability. |
| Display | Analog or digital display, with dual needles or digital readouts for high and low pressures. |
| Hose Connections | Equipped with color-coded hoses (blue for low-side, red for high-side) for easy identification. |
| Portability | Often handheld or mounted on a manifold for ease of use in various locations. |
| Temperature Compensation | Some models include temperature compensation to account for pressure changes due to temperature variations. |
| Applications | Widely used in HVAC, refrigeration, and automotive air conditioning systems for maintenance and troubleshooting. |
| Compliance | Meets industry standards such as SAE, UL, or CE for safety and performance. |
Explore related products
What You'll Learn
- Pressure Monitoring: Compound gauge measures suction and discharge pressures for system performance and safety
- Overpressure Protection: Prevents system damage by indicating excessive pressure in refrigeration cycles
- Vacuum Measurement: Ensures proper evacuation during installation and maintenance for efficient operation
- Troubleshooting Tool: Helps diagnose issues like refrigerant leaks, compressor faults, or blockages
- System Efficiency: Maintains optimal pressure levels for energy efficiency and consistent cooling performance
Pressure Monitoring: Compound gauge measures suction and discharge pressures for system performance and safety
In refrigeration systems, pressure monitoring is critical for ensuring both performance and safety. A compound gauge is specifically designed to measure both suction and discharge pressures, providing a comprehensive view of the system's operation. Suction pressure, typically ranging from 0 to 30 psi, indicates the refrigerant’s state as it enters the compressor, while discharge pressure, often between 150 to 300 psi, reflects the compressor’s output. These readings are essential for diagnosing issues like undercharging, overcharging, or mechanical failures, ensuring the system operates within optimal parameters.
Analyzing these pressures reveals the system’s efficiency and potential problems. For instance, abnormally low suction pressure may signal a refrigerant leak or insufficient airflow over the evaporator, while high discharge pressure could indicate a blocked condenser or overheating compressor. By comparing these values to manufacturer specifications, technicians can pinpoint inefficiencies and prevent costly breakdowns. For example, a compound gauge reading 10 psi suction and 250 psi discharge in a system designed for 15 psi and 200 psi, respectively, would immediately flag a problem requiring investigation.
From a safety perspective, monitoring pressures with a compound gauge is non-negotiable. Excessive discharge pressure can lead to compressor failure or even rupture, posing a significant hazard. Conversely, suction pressures that are too low can cause the refrigerant to drop below its boiling point, leading to liquid entering the compressor and causing damage. Regularly checking these pressures ensures the system operates within safe limits, protecting both equipment and personnel. For residential systems, a monthly check is advisable, while commercial units may require weekly monitoring due to higher usage.
Practical tips for using a compound gauge include ensuring the gauge is properly calibrated and connected to both suction and discharge lines. Always allow the system to stabilize for at least 15 minutes before taking readings to ensure accuracy. Keep a log of pressure values over time to track trends and identify gradual changes that might otherwise go unnoticed. For DIY enthusiasts, investing in a quality compound gauge with dual-scale readings (psi and bar) enhances usability and precision.
In conclusion, a compound gauge is indispensable for pressure monitoring in refrigeration systems, offering insights into performance and safety. By understanding and regularly measuring suction and discharge pressures, technicians and users can maintain system efficiency, prevent failures, and ensure safe operation. Whether for troubleshooting or routine maintenance, this tool is a cornerstone of effective refrigeration management.
Refrigerated Jam Storage: How Long Does It Stay Fresh?
You may want to see also
Explore related products
Overpressure Protection: Prevents system damage by indicating excessive pressure in refrigeration cycles
Refrigeration systems operate under precise pressure conditions, and deviations can lead to catastrophic failures. A compound gauge, designed to measure both vacuum and positive pressure, serves as a critical safeguard against overpressure. Excessive pressure in a refrigeration cycle can stem from various factors, such as refrigerant overcharging, system blockages, or malfunctioning components. When pressure surpasses safe limits, the compound gauge immediately alerts operators, allowing for timely intervention before damage occurs. This proactive monitoring prevents costly repairs, extends system lifespan, and ensures operational safety.
Consider the mechanics of overpressure protection. A compound gauge typically has two scales: one for vacuum (negative pressure) and another for positive pressure, often ranging from -30 to 500 psi. In refrigeration systems, the gauge monitors the pressure of refrigerants like R-410A or R-22, which have specific operating ranges. For instance, R-410A systems operate optimally between 150 and 400 psi. If the gauge reads above 400 psi, it signals overpressure, which can lead to compressor burnout, pipe ruptures, or even explosions. By identifying these anomalies early, the gauge acts as a first line of defense, safeguarding both equipment and personnel.
Practical implementation of compound gauges requires adherence to specific guidelines. Install the gauge at a visible and accessible location, typically near the service valves, to facilitate regular monitoring. Calibrate the gauge annually to ensure accuracy, as even minor deviations can lead to misdiagnosis. Train operators to interpret readings correctly, emphasizing the importance of staying within manufacturer-recommended pressure ranges. For example, if a system’s high-side pressure exceeds 350 psi for R-22, immediate action—such as shutting down the system or checking for refrigerant leaks—is necessary to prevent damage.
Comparatively, systems without compound gauges rely on less reliable methods, such as manual pressure checks or visual inspections, which are time-consuming and prone to error. A compound gauge provides continuous, real-time data, offering a level of precision that manual methods cannot match. Additionally, modern compound gauges often feature digital displays and alarms, further enhancing their effectiveness. These advancements make them indispensable in both residential and industrial refrigeration systems, where even minor overpressure events can have significant consequences.
In conclusion, the compound gauge’s role in overpressure protection is indispensable for maintaining the integrity of refrigeration systems. By providing accurate, continuous monitoring, it enables operators to address pressure anomalies before they escalate into system failures. Whether in a small home refrigerator or a large industrial cooling unit, the compound gauge stands as a vital tool, ensuring safety, efficiency, and longevity in refrigeration operations. Its integration is not just a best practice—it’s a necessity for any system reliant on precise pressure control.
Refrigerating Similac 360: Best Practices for Safe Storage
You may want to see also
Explore related products
Vacuum Measurement: Ensures proper evacuation during installation and maintenance for efficient operation
In refrigeration systems, achieving a deep vacuum during installation and maintenance is critical to removing moisture, air, and non-condensable gases that compromise efficiency. A compound gauge, capable of measuring both positive and negative pressures, is essential for this task. It ensures that the system reaches the required vacuum level, typically below 500 microns, to prevent issues like ice formation, acid buildup, and reduced heat transfer. Without precise vacuum measurement, even trace amounts of contaminants can lead to long-term damage, such as compressor failure or shortened system lifespan.
Consider the evacuation process as a multi-step procedure requiring vigilance. First, connect the compound gauge to the system’s service ports, ensuring all valves are securely tightened to avoid leaks. Start the vacuum pump and monitor the gauge readings closely. A proper evacuation should show a steady drop in pressure, with the needle stabilizing at the target vacuum level within 30–45 minutes for most systems. If the gauge indicates fluctuating readings or fails to reach the desired micron level, inspect for leaks using a soap solution or electronic detector. Ignoring these signs can lead to inadequate evacuation, rendering the entire process ineffective.
The compound gauge’s dual-scale functionality—measuring both vacuum (negative pressure) and positive pressure—makes it indispensable in refrigeration work. Unlike single-purpose gauges, it provides a comprehensive view of system conditions, allowing technicians to diagnose issues like blocked lines or faulty valves during evacuation. For instance, if the gauge shows a sudden rise in pressure during the process, it may indicate a leak or a malfunctioning vacuum pump. This real-time feedback enables immediate corrective action, saving time and preventing costly mistakes.
Practical tips for effective vacuum measurement include calibrating the compound gauge annually to ensure accuracy and using a dedicated vacuum pump with sufficient capacity for the system size. For larger systems, consider employing a core removal tool to minimize air infiltration during gauge installation. Additionally, always perform a standing vacuum test after evacuation, maintaining the vacuum for at least 10–15 minutes to confirm the system’s integrity. These steps, combined with the compound gauge’s precision, guarantee a thorough evacuation that lays the foundation for efficient refrigeration operation.
Should Bragg's Apple Cider Vinegar Be Refrigerated? Storage Tips
You may want to see also
Explore related products
Troubleshooting Tool: Helps diagnose issues like refrigerant leaks, compressor faults, or blockages
A compound gauge is an indispensable tool in refrigeration systems, serving as the technician's first line of defense against common issues. By measuring both high and low pressures simultaneously, it provides a snapshot of the system's health, allowing for quick identification of problems such as refrigerant leaks, compressor inefficiencies, or blockages. This dual-scale functionality is critical because it reveals imbalances that single-pressure gauges cannot detect, making it a cornerstone of effective troubleshooting.
Consider a scenario where a refrigeration system is underperforming. The compound gauge can pinpoint whether the issue lies in the low-pressure side (evaporator or suction line) or the high-pressure side (condenser or discharge line). For instance, abnormally low suction pressure coupled with normal discharge pressure may indicate a refrigerant leak or an inefficient evaporator coil. Conversely, high discharge pressure paired with normal suction pressure could signal a blocked condenser or a failing compressor. These insights enable targeted repairs, saving time and resources.
To use a compound gauge effectively, follow these steps: attach the gauge to the system’s service ports, ensuring all connections are secure to prevent leaks. Observe the readings on both the high and low-pressure scales, comparing them to the manufacturer’s specifications for the specific refrigerant (e.g., R-134a or R-410A). Note any deviations, such as a suction pressure of 20 PSI (instead of the expected 30 PSI) or a discharge pressure of 250 PSI (instead of 220 PSI). These discrepancies are red flags that warrant further investigation.
While the compound gauge is powerful, it’s not foolproof. Misinterpretation of readings can lead to misdiagnosis. For example, a low suction pressure might be mistakenly attributed to a refrigerant leak when the actual cause is a clogged filter-drier. Always cross-reference gauge readings with other symptoms, such as unusual noises, ice buildup, or inadequate cooling. Additionally, ensure the gauge is calibrated and compatible with the refrigerant type to avoid inaccurate measurements.
In conclusion, the compound gauge is more than just a pressure-measuring device; it’s a diagnostic powerhouse that transforms troubleshooting from guesswork into precision work. By understanding its readings and limitations, technicians can swiftly identify and address issues, ensuring the refrigeration system operates efficiently and reliably. Whether diagnosing a minor leak or a major compressor fault, this tool remains an essential ally in maintaining system performance.
Can Mustard Be Left Out After Refrigeration? Safety Tips Revealed
You may want to see also
Explore related products
System Efficiency: Maintains optimal pressure levels for energy efficiency and consistent cooling performance
Refrigeration systems rely on precise pressure control to function efficiently. A compound gauge, measuring both high and low pressures, is essential for maintaining this balance. It ensures the system operates within optimal pressure ranges, preventing energy waste and inconsistent cooling. Without it, the system could run at suboptimal levels, leading to higher energy consumption and reduced equipment lifespan.
Consider the refrigerant cycle: the compressor raises pressure and temperature, the condenser releases heat, the expansion valve reduces pressure, and the evaporator absorbs heat. Each stage requires specific pressure levels. For instance, R-410A systems typically operate between 150–400 psi on the high side and 100–400 psi on the low side, depending on ambient temperature. A compound gauge allows technicians to monitor these levels in real-time, ensuring the system performs at peak efficiency. Deviations from these ranges can indicate issues like refrigerant leaks, clogged filters, or malfunctioning components, enabling prompt corrective action.
From a practical standpoint, maintaining optimal pressure levels directly impacts energy efficiency. Overpressure forces the compressor to work harder, increasing electricity consumption. Conversely, underpressure reduces cooling capacity, leading to longer run times. For example, a system operating 10% above optimal pressure can consume up to 5% more energy. Similarly, a 10% drop in pressure can reduce cooling efficiency by 15%. By using a compound gauge, operators can fine-tune the system to minimize energy use while maximizing performance, translating to cost savings and reduced environmental impact.
The compound gauge also ensures consistent cooling performance, critical for applications like food storage or industrial processes. Fluctuating pressures can cause temperature inconsistencies, spoiling perishable goods or disrupting manufacturing. For instance, a supermarket refrigeration system with unstable pressures might experience temperature swings of ±5°F, compromising food safety. By keeping pressures within the manufacturer’s specifications, the gauge helps maintain a steady temperature, preserving product quality and customer satisfaction.
In summary, the compound gauge is not just a diagnostic tool but a cornerstone of system efficiency. It empowers operators to monitor and adjust pressures, ensuring the refrigeration system operates at its most energy-efficient and reliable state. Whether for residential, commercial, or industrial use, this simple yet critical component plays a pivotal role in optimizing performance, reducing costs, and extending equipment life.
Mastering Refrigerated Swiss Meringue Buttercream: Tips for Perfect Frosting
You may want to see also
Frequently asked questions
A compound gauge is fitted in a refrigeration system to measure both high-side (discharge) and low-side (suction) pressures simultaneously, ensuring proper system operation and troubleshooting.
The key functions include monitoring refrigerant pressures, diagnosing system issues like undercharging or overcharging, and ensuring the system operates within safe and efficient parameters.
While a refrigeration system can technically operate without a compound gauge, it is not recommended, as the gauge is essential for accurate pressure monitoring, maintenance, and preventing potential damage to the system.
A compound gauge helps identify issues such as refrigerant leaks, compressor problems, or improper charging by providing real-time pressure readings, allowing technicians to diagnose and resolve problems efficiently.
