The 1998-2002 F-Body LS1 pan is the most commonly used LS oil pan. It is typically referred to as the F-Body or Camaro pan and fits most 1958-1964 GM cars without any modifications. The relationship between the front crossmember and the motor mounts determines the fit of the oil pan.
The Holley LS Swap oil pan is another option that takes popular fitments and improves upon them with additional clearance and the availability of complete kits to simplify the engine swap process.
When it comes to the oil pickup tube, it is supplied with the oil pan and needs to be compatible with the oil pan and the engine. For example, the GM Performance Parts Oil Pump Pickup is compatible with the GM F-Body Oil Pan 1998-2002, LS1, and the GM LS-Series.
Therefore, it is important to consider the compatibility of the oil pan and the oil pickup tube to ensure a proper fit and effective engine performance.
| Characteristics | Values |
|---|---|
| Compatibility | Fits GM LS-series engines, including LS-based Vortec truck engines |
| Vehicle compatibility | 1998-2002 Chevrolet Camaro (5.7L V8), 2002 Pontiac Firebird (5.7L V8) |
| Package dimensions | 35.9 x 20 x 23.7 cm |
| Country of origin | United States |
| Package weight | 0.863 kg |
| Fit type | Vehicle-specific |
What You'll Learn
The 1998-2002 F-Body LS1 pan is the most common LS oil pan
The F-Body LS1 pan is designed for GM's Gen III and IV LS engines, including the LS1, LS2, LS3, LS7, and many others. It has a stock depth rear sump design and includes a gasket, hardware, and an optional oil filter mounting boss. The pan's dimensions are 24.2 x 7.9 x 16.1 inches, and it has a 5.5-quart oil capacity.
When choosing an oil pan for an LS engine swap, it is essential to consider the engine bay, crossmember, and steering clearances. The relationship between the front crossmember and the motor mounts determines the fit of the oil pan. While the F-Body LS1 pan is versatile, some vehicles may require modifications to the pan or custom mounts to ensure proper clearance.
Additionally, the oil pan's sump depth is a critical factor. A deep sump can cause the oil pan to hang below the crossmember, affecting ground clearance, especially on lowered vehicles. The F-Body LS1 pan's sump depth is designed to provide adequate clearance in most applications.
The F-Body LS1 pan is a popular choice due to its compatibility with various vehicles and its ease of modification. Its design and dimensions make it a versatile option for those undertaking LS engine swaps.
Aluminum Pans and Flax Crackers: A Sticky Situation?
You may want to see also
The Holley 302-1 oil pan is a good option for LS swaps
The Holley 302-1 Oil Pan: An Ideal Option for LS Swaps
The Holley 302-1 oil pan is a highly recommended option for those undertaking LS swap projects. This oil pan is specifically designed to address the challenges of fitting an LS engine into older vehicles, ensuring a seamless and stress-free installation process. Here's why the Holley 302-1 oil pan stands out as a top choice for LS swaps:
Maximum Clearance:
The Holley 302-1 oil pan offers maximum clearance to the chassis and the ground. This is a crucial advantage, especially when swapping an LS engine into a muscle car, classic truck, or sports car. The oil pan's compact design ensures that it does not hang too low, reducing the risk of contact with obstacles and potential damage. This feature also enhances the vehicle's ground clearance, making it suitable for lowered vehicles.
OE Style Fitment:
The Holley 302-1 oil pan provides an OE (Original Equipment) style fitment, ensuring compatibility and proper sealing. It includes OE oil filter mounting, OE oil cooler port provision, OE engine NVH suppression, OE flange gasket, and OE bell-housing attachments. This attention to detail ensures a seamless integration with the vehicle's existing systems, maintaining the same level of quality and performance as the original equipment.
High-Quality Construction:
This oil pan is crafted from traditional high-quality cast aluminum, offering a clean and stylish exterior. The use of cast and machined aluminum ensures durability and structural rigidity, making it a reliable choice for LS swap projects. The oil pan's finish maintains the classic look of an LS engine while providing the necessary strength to withstand the demands of various vehicle applications.
Compatibility with GM Vehicles:
The Holley 302-1 oil pan is designed to fit a wide range of GM vehicles, including muscle cars, classic cars, and trucks. It is compatible with GM rear-wheel-drive applications that were originally equipped with Small Block or Big Block Chevy engines and traditional rear sump oil pans. This versatility makes it a go-to choice for those working on LS swaps involving GM vehicles.
Complete Kit:
The Holley 302-1 oil pan is sold as a complete kit, including essential components for a successful installation. The kit comprises a sump baffle, pick-up tube, sump plug, oil filter stud, and oil passage cover. Additionally, the kit includes a gasket, RTV silicone, and oil pan bolts for a secure and leak-free installation. This comprehensive package simplifies the LS swap process by providing all the necessary parts in one convenient bundle.
Adequate Sump Depth:
The sump depth of the Holley 302-1 oil pan measures 5.71 inches, which is significantly shallower than some other options. This reduced depth ensures that the oil pan does not hang below the crossmember, avoiding potential interference. The sump depth of this oil pan strikes a balance between adequate oil capacity and maintaining ground clearance, making it a more suitable choice for LS swaps.
Positive Customer Feedback:
The Holley 302-1 oil pan has received numerous positive reviews from customers who have successfully used it for LS swap projects. They commend the oil pan's high quality, ease of installation, and improved clearance. This real-world feedback reinforces the Holley 302-1 oil pan's reputation as a trusted and reliable option for those undertaking LS swaps.
In conclusion, the Holley 302-1 oil pan is a well-engineered and reliable solution for LS swaps. Its thoughtful design, high-quality construction, and compatibility with a range of GM vehicles make it a top choice for enthusiasts and professionals alike. By choosing the Holley 302-1 oil pan, you can streamline your LS swap project, ensuring a hassle-free fitment and enjoying the benefits of its maximum clearance and OE style fitment.
Meyer Pans: Induction-Ready?
You may want to see also
The LH8 oil pan is used in many LS swap kits
The LH8 oil pan is a special pan for the 5.3L LS engine, also known as the Hummer H3 5.3L LS engine. It has a long, shallow front section that allows it to clear most stock GM crossmembers without modification. However, the deep rear sump of the LH8 oil pan can be an issue for vehicles with low ride heights, as it hangs about 1.5 inches below the engine cross-member. This can result in insufficient clearance between the pan and the pavement, potentially damaging the pan.
The LH8 oil pan is commonly used in many LS swap kits due to its compatibility with GM A-Body cars. It is also included in the Brewer's Restoration and Performance motor mount kits, which feature specialised motor mounts that position the engine differently, allowing the LH8 pan to be effective. The pan is also used in the GM Muscle Car Oil Pan Kit (P/N 19212593), which is designed as a universal oil pan for most applications and fits all Gen III and IV engines.
When selecting an oil pan for an LS swap, it is crucial to consider the engine bay, crossmember, and steering clearances. The relationship between the front crossmember and the motor mounts determines the fit of the oil pan, and each brand of motor mount differs. While the LH8 oil pan is versatile, it may not be suitable for all vehicles, especially those with low ride heights.
In addition to the LH8 oil pan, other popular options for LS swaps include the F-Body Camaro/Firebird pan, the C5 Corvette "Batwing" pan, and the Cadillac CTS-V pan. These stock oil pans have proven to be versatile and compatible with various vehicles without modifications. However, the choice of oil pan ultimately depends on the specific vehicle and the requirements of the LS swap project.
Steel Pan Seasoning: Cuisinart Style
You may want to see also
The CTS-V Cadillac oil pan is a great stock pan option
When it comes to choosing an oil pan for an LS engine, there are a lot of options available, and it can be a confusing process to find the right one. The CTS-V Cadillac oil pan is a great stock pan option for several reasons.
Firstly, the CTS-V Cadillac oil pan is a versatile choice that works well in both trucks and muscle cars. While the rear sump is deeper than that of the F-Body pan, it still offers a good balance. The pan's dimensions make it a suitable option for a stock pan, although it may hang below the crossmember depending on the motor mounts.
The CTS-V Cadillac oil pan is also a good choice because it is similar to the F-Body and C/K truck pans, which are commonly used. The rear sump depth of the CTS-V pan is 5.5 inches, which is 3 inches less than the truck pan and half an inch deeper than the F-Body pan. This means it can clear most stock GM crossmembers without modification. The shallow front section is 11 inches long, which is shorter than the truck pan but longer than the F-Body pan, allowing for a good fit in various vehicles.
Additionally, the CTS-V Cadillac oil pan has extra mounting bosses on the side for a factory oil cooler. This is a useful feature, although it may require trimming or grinding to clear the engine cradle in some vehicles. It is a direct bolt-on option for 2008-2015 cars, and it fits all GM Gen III and IV LS family engines.
The CTS-V Cadillac oil pan is a popular choice for LS swap platforms, and it is one of the few desirable stock pans for engine swaps. It is a reliable and versatile option that can simplify the installation process, making it a great stock pan option.
Removing Soapy Taste from Cast Iron Pans
You may want to see also
The F-Body Camaro/Firebird LS1 pan is a direct fit for all GM LS-series engines
The F-Body Camaro/Firebird LS1 pan is a direct and common fit for all GM LS-series engines. This includes the LS-based Vortec truck engines. The F-Body LS1 pan is also known as the GM F-Body and was used from 1998 to 2002. It is the most frequently modified pan and fits most 1958-1964 GM cars without any modifications. The pan is also referred to as the Camaro pan or the Firebird pan.
The F-Body Camaro/Firebird LS1 pan is compatible with the following vehicles:
- 1998-2002 Chevrolet Camaro (5.7L V8)
- 2002 Pontiac Firebird (5.7L V8)
The F-Body Camaro/Firebird LS1 pan is a popular choice for LS engine swaps due to its sump design and compatibility with custom chassis crossmembers. The pan has a shallow front section, which can cause interference with the front crossmember in some vehicles, requiring modifications to the oil pan or motor mounts.
When swapping an LS engine into a vehicle, it is important to consider the fitment of the oil pan. The relationship between the front crossmember, motor mounts, and oil pan determines the compatibility of the engine with the vehicle's chassis.
In addition to the F-Body LS1 pan, there are other stock oil pans available for LS engines, each designed for a specific chassis. Some of these include the C5 Corvette "Y" or "batwing" pan, the Cadillac CTS-V pan, and the 2002-2006 C/K Truck Oil Pan.
Rinsing a Hot Pot: Warping the Inevitable?
You may want to see also
Frequently asked questions
LS engines are a series of engines produced by General Motors.
An oil pan, also known as a sump, is a receptacle located under the engine that collects excess oil as it drains from the engine.

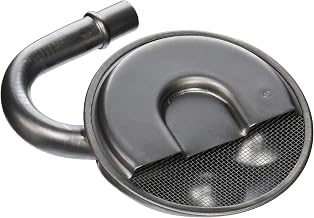

An oil pickup is a tube that draws oil from the oil pan and sends it to the engine's lubrication system.
Yes, a 5.3 oil pickup will fit an LS1 oil pan, but you may need to modify the upper tray. Additionally, you will need to use the correct oil filter for the LS1 oil pan.
