Harley-Davidson motorcycles are renowned for their powerful engines and iconic designs. However, even these mighty machines require regular maintenance, including oil changes, to keep them running smoothly. One common issue that owners may encounter is a leaking oil pan, which can lead to oil dripping onto the transmission case and other components. In such cases, it may become necessary to replace the oil pan gasket or even the entire oil pan assembly. This process can be challenging, requiring careful removal of various components and precise positioning of the new gasket or oil pan. While some owners opt to tackle this task themselves, others prefer to entrust their prized Harley-Davidson motorcycles to experienced mechanics, ensuring a professional repair.
| Characteristics | Values |
|---|---|
| Oil pan replacement | Possible |
| Oil pan gasket replacement | Possible |
| Harley-Davidson oil change kit | Available for purchase |
| Oil change kit price | $55 (during sales), $71.95 (regular price), $80 (current price) |
| Oil change kit contents | Oil, filter, drain plug O-ring |
| Oil type | Harley Davidson SAE 15W-50 H-D Genuine SYN Blend Motorcycle Oil |
| Oil price | $11.80 per quart, $9.60 per quart (including shipping and tax for three quarts) |
| Oil change procedure | Drop skid plate, remove oil drain plug, remove filter |
| Oil change duration | Half an hour |
| Oil quantity | 3 quarts, 3.75 quarts, 4 quarts, 4.75 quarts |
| Oil overfill consequences | Leaking from top breather, blowout of fill plug, leakage from transmission vent |
Explore related products
What You'll Learn

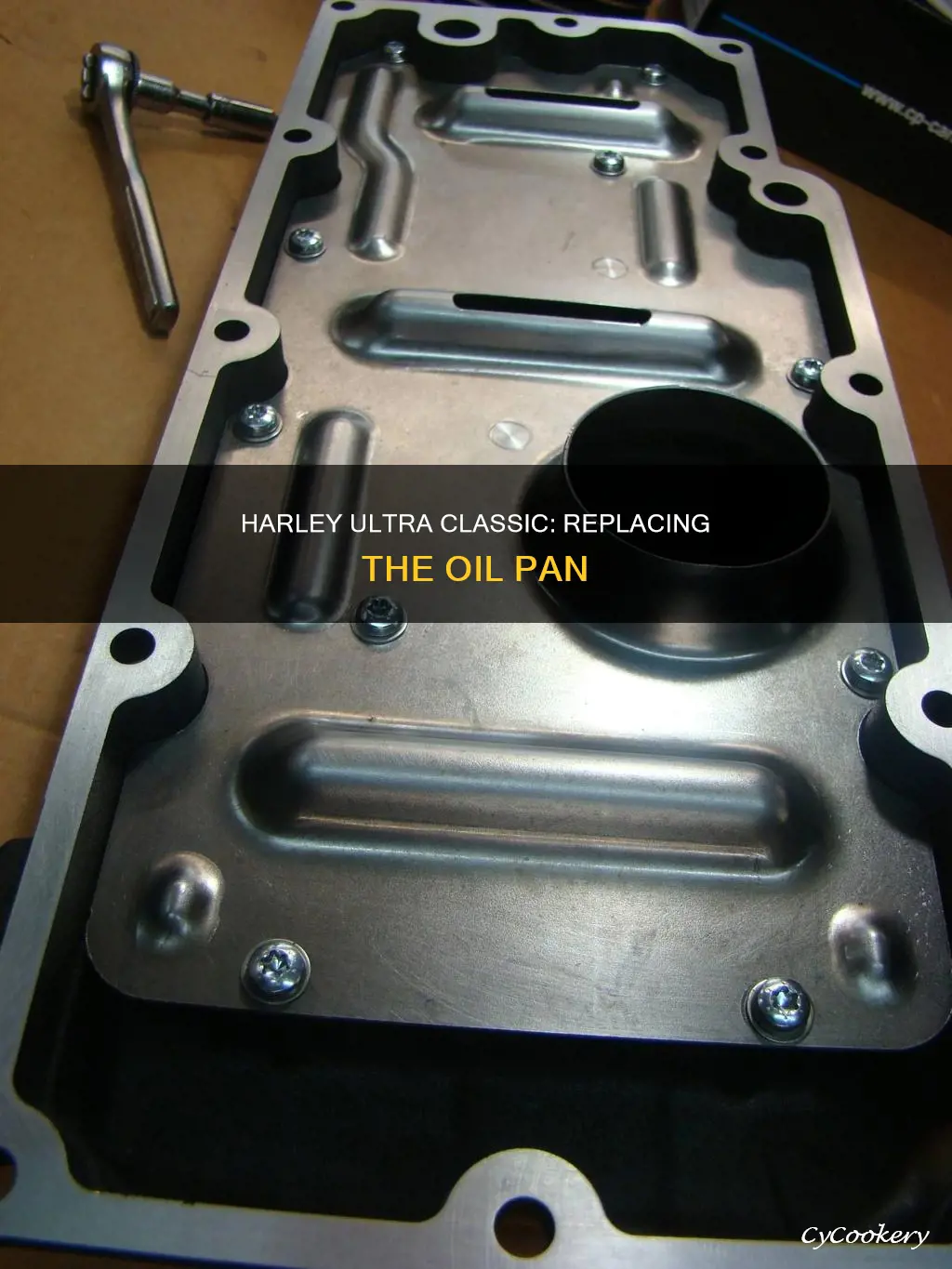

Oil pan removal
Removing the oil pan from a Harley-Davidson motorcycle is not a difficult task, but there are some important steps to follow. Firstly, it is necessary to drain the engine oil and transmission oil from the motorcycle. Removing the drain plugs will allow the oil to drain, and leaving them out overnight will ensure that the oil pan is almost completely empty.
Next, remove the oil fill plug/dipstick. If this is left in, it could obstruct the removal of the oil pan and may break. Loosen and remove the oil pan retaining hardware. There are twelve screws in total, which will not be reused. These are 1/4" allen head screws, which can be removed with a 3/16" allen bit or ball allen.
Once the screws are removed, the stock oil pan can be slid towards the primary drive side and out of the bottom of the motorcycle. It is important to then inspect the rear frame cross member. If this has been bent upward, it will need to be straightened before attempting to install a new oil pan.
Some people find it helpful to suspend the bike in the air to access the oil pan. This can be done by removing the swingarm shaft and jacking the motor up. However, this is not strictly necessary, and the rear wheel can be removed to allow the pan to slide out the rear.
Cast Iron Pans: What's the Difference?
You may want to see also
Explore related products
Oil change kits
Harley-Davidson motorcycles are known for their powerful engines and iconic design. While these bikes are built to last, proper maintenance is key to keeping them running smoothly for years to come. One important aspect of Harley-Davidson maintenance is regular oil changes, which can be made easier with the use of oil change kits.
By investing in an oil change kit, Harley-Davidson owners can save time and money while also ensuring their bikes receive the care they need. Routine oil changes are crucial for maintaining the lifespan of the motorcycle, as they help to keep the engine and its various parts in optimal condition. With the right tools provided by the kits, riders can confidently handle the oils and fluids, reducing the risk of mistakes or forgotten steps.
When it comes to the Harley-Davidson Ultra Classic model, oil changes can be performed by following the service manual instructions. However, some riders have encountered challenges with removing the oil pan, especially when dealing with leaks or stripped drain bolts. In such cases, it may be necessary to suspend the bike in the air, remove the swingarm shaft, and jack the motor up to access the oil pan and gasket for replacement.
Overall, Harley-Davidson oil change kits offer a convenient and comprehensive solution for riders looking to maintain their bikes themselves. With the provided tools and equipment, riders can ensure their motorcycles receive the proper care and attention they deserve, keeping them on the road for years to come.
Oven-Safe Pans: Bend, But Not Break
You may want to see also
Explore related products
Oil leak troubleshooting
It is possible to replace an oil pan on a Harley Davidson Ultra Classic. However, it is a complex process that requires careful attention to detail. Here is a step-by-step guide to troubleshooting an oil leak on your Harley Davidson Ultra Classic by replacing the oil pan:
Step 1: Understand the Oil System: Harley Davidson motorcycles, including the Ultra Classic, have a unique oil system. Historically, Harley engines used a "total loss" lubrication system, where oil was ejected onto the roadway after passing through the engine once. While modern Harley engines recirculate oil, they are still designed to leak small amounts. This is due to the need for crankcase pressure equalization and the design of the scavenging pump.
Step 2: Inspect the Oil Pan: If your Ultra Classic is leaking oil, the first step is to inspect the oil pan for any signs of damage or wear. Look for cracks, holes, or any other abnormalities that could be causing the leak.
Step 3: Remove the Oil Pan: If the oil pan is damaged and needs to be replaced, follow the steps outlined in the service manual. This process can be challenging, as you may need to suspend the bike in the air and remove the swingarm shaft to access the oil pan fully. Ensure you have the necessary tools and equipment to safely remove the oil pan.
Step 4: Replace the Gasket: In some cases, the oil leak may be due to a faulty or worn-out gasket. If the oil pan is in good condition, you may only need to replace the gasket. Ensure you purchase a compatible gasket for your Ultra Classic model.
Step 5: Install the New Oil Pan: Position the new oil pan, ensuring it is securely in place. Follow the instructions in the service manual for torque specifications and tightening sequences. Use new screws or hardware as recommended to secure the oil pan and gasket in place.
Step 6: Refill and Test: Once the new oil pan is installed, refill the engine with the appropriate type and amount of oil. Start the engine and inspect for any remaining leaks. Ensure that the oil pressure is stable and that there are no unusual noises coming from the engine.
It is important to note that oil leaks can also be caused by other factors, such as a faulty oil pump, damaged oil lines, or a malfunctioning oil pressure relief valve. If the oil leak persists after replacing the oil pan, further troubleshooting may be required to identify and address the root cause. Always refer to the official Harley Davidson service manuals and seek assistance from a qualified mechanic if you are unsure about any procedures.
Magnetic Pans: Induction Hob Compatibility Explained
You may want to see also
Explore related products
Oil change procedure
Before beginning the oil change, it is recommended to start the engine and let it run for a while. This will warm up the oil, making it easier to drain. For Softail models, the oil reservoir is located under the seat. Look directly below and slightly behind the seat, underneath the frame, to find the oil drain plug.
Use a ratchet and a 1.6cm socket to loosen the drain plug. Once it is loose, finish removing the plug by hand to avoid dropping it into the oil pan. Removing the oil reservoir cap at this stage will increase the oil flow.
Next, take the motorcycle for a short ride to bring the engine to operating temperature. Check the oil level and top it off as necessary. Remember to check the oil while the engine is still hot and the bike is on the kickstand. Insert the dipstick and check the fluid level again.
When changing the oil, it is important to use the correct amount of oil for your specific motorcycle model. Refer to the owner's manual for the recommended oil capacity and viscosity. Overfilling the system can lead to leaks from the top breather or a blown-out fill plug.
Additionally, pay attention to the type of oil you use. Using a good motorcycle oil and changing it according to recommendations will ensure optimum protection against wear and deposits, especially during extreme summer heat, which can break down some oils.
If you are replacing the oil pan, position the supplied gasket over the top oil pan section and move the top section over the cross member, beneath the transmission. The oil will flow first into this top pan assembly, moving from the front to the rear through a precisely machined labyrinth. Use at least two screws to hold the gasket in place and guide you as you handle the pan section.
Remember to consult a service manual for specific instructions regarding your Harley-Davidson model, as procedures may vary slightly.
Do-It-Yourself" Hot Pot: A Fun, Flavorful Dining Experienc
You may want to see also
Explore related products
Oil pan sealant
An oil pan can be replaced on a Harley-Davidson Ultra Classic. The process involves removing the old oil pan, cleaning the surfaces, applying a sealant, and installing a new oil pan.
Silicone sealant is a popular option, with many people recommending the use of RTV (Room Temperature Vulcanizing) silicone gasket makers. This type of sealant comes in a tube and can be applied directly to the gasket. It is important to use a minimal amount and ensure that the surfaces are clean and free of oil and debris. Too much silicone can lead to an unprofessional appearance and potential leaks.
Another option is to use a non-silicone sealant like Permatex High Tack, which is effective but requires a bit of drying time before torquing to prevent the gasket from popping out. Some people also recommend using an adhesive or gasket glue in addition to the sealant for a more secure hold. This would be applied to the mating surfaces of the gasket and oil pan before assembly.
When applying the sealant, it is generally recommended to put some on the oil pan, place the gasket on top, and then add a bit more sealant before attaching it to the block. This helps ensure that the sealant does not get on unwanted areas and makes it easier to control the application. It is also worth noting that silicone is not required for every gasket, only where two gaskets meet, so it is important to refer to the specific instructions for your oil pan and gasket.
Pan Pizza: Pizza Hut's Best Toppings
You may want to see also
Frequently asked questions
To replace an oil pan, first, position the supplied gasket over the top oil pan section and move the top section over the cross member, beneath the transmission. Next, locate at least two screws through the oil pan section and gasket before lifting it into position.
Harley Davidson recommends using SAE 15W-50 H-D Genuine SYN Blend Motorcycle Oil.
It is recommended to change the oil on your Harley Davidson Ultra Classic every 1,000 miles.
You need to purchase four quarts of oil for a full oil change, but rarely will you need to use more than 3 1/2 or 3 3/4 quarts.
Some tips for removing the oil pan include jacking up the engine and removing the swingarm shaft. It is also recommended to use a high-performance sealant on the pan and to let it set up before sticking the gasket to it.
