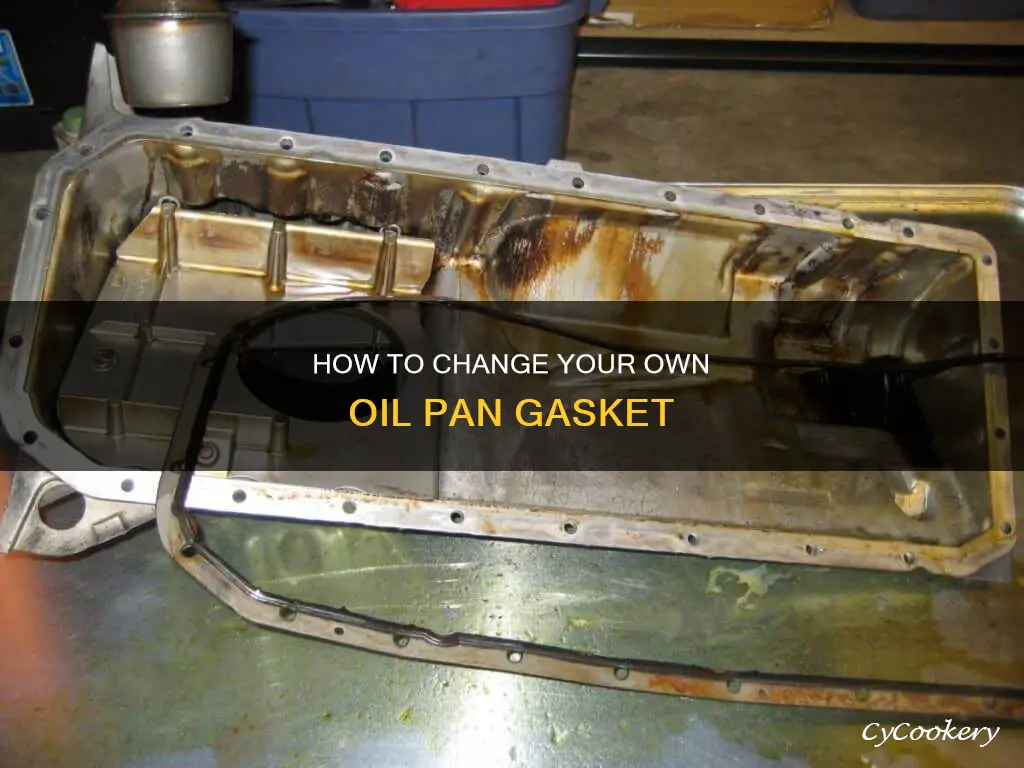

Replacing a leaking oil pan gasket is a great way to ensure your engine is receiving the oil it needs. It can sometimes be done in a few simple steps, but it can be a messy job and many oil pans are very difficult to remove. Before starting, it's important to check that the oil pan is the source of the leak. If you're confident that it is, you can begin by cleaning the engine with a degreaser and following the trail of oil to its highest point. Once you've identified the source of the leak, you can start the process of replacing the oil pan gasket. This typically involves removing the oil pan, cleaning it, and installing a new gasket. The specific steps may vary depending on the vehicle, so it's recommended to refer to a service manual for guidance.
| Characteristics | Values |
|---|---|
| Difficulty | Easy to difficult, depending on the vehicle and engine |
| Time | 60 minutes to 1.5 hours |
| Cost | Not too expensive |
| Tools | Jack, jack stands, oil filter wrench, scraper, mallet, screwdriver, wire, thread sealer, solvent, engine oil, new oil pan gasket |
| Steps | 1. Raise the vehicle; 2. Place jack stands; 3. Remove oil filter; 4. Clean the engine and oil pan; 5. Remove the old gasket; 6. Drop the oil pan; 7. Clean the oil pan and check for cracks; 8. Install the new gasket; 9. Torque the oil pan bolts; 10. Reinstall the oil pan drain plug and new oil filter; 11. Fill the engine with oil; 12. Check for leaks |
Explore related products
What You'll Learn
Detecting an oil leak
Additionally, an overheating engine could be a symptom of a leaking oil pan gasket. Motor oil helps to keep the engine cool by reducing friction and heat. If the oil levels have dropped due to a leak, the engine will have difficulty preventing the heat produced by friction, resulting in overheating. Black smoke, an illuminated oil light, and the smell of burning oil are other possible indicators of an oil leak.
To trace the source of an oil leak, it is recommended to start by cleaning the engine with a degreaser. You can do this at a self-service car wash. Once the engine is clean, keep an eye out for any external oil reappearances. Follow the trail of oil to its highest point to try to locate the source of the leak. In some cases, the culprit may be a loose oil pan drain plug, a dipstick tube that has come unseated from the engine block, or an oil filter that is not properly secured or has a cracked gasket.
It is important to note that leaks from above the gasket can sometimes mislead you into thinking that the oil pan gasket is leaking when it is not. Therefore, it is crucial to properly diagnose the source of the leak before attempting any repairs or replacements. Consulting a professional mechanic or an automotive technician can be helpful if you are unsure about the source of the leak or if you feel uncomfortable performing the repair yourself.
Bundt Pan Size Guide: 10-Cup Dimensions and More
You may want to see also
Explore related products
Removing the oil pan
Step 1: Identify the Source of the Leak
Before removing the oil pan, it is crucial to confirm that it is indeed the source of the leak. Leaks from above the gasket can sometimes mislead you into thinking that the oil pan gasket is leaking when it is not. Clean the engine with a degreaser and follow the trail of external oil to its highest point to identify the culprit.
Step 2: Prepare the Vehicle
Refer to the service manual specific to your vehicle to identify all oil-pan bolt locations. Some bolts may be hidden behind other parts, so it is essential to have a clear understanding of their positions. Additionally, other parts and brackets might need to be removed first to access the oil pan and its bolts. These could include the splash shield, bellhousing cover, exhaust-manifold support, and air-conditioning bracketry.
Step 3: Drain the Oil and Remove Obstructions
Allow the oil to drain from the pan. During this process, ensure that you have wooden blocks in place between the mounts and the engine to prevent it from falling. After the oil has drained, remove any remaining parts or obstructions that may be in the way of the oil pan. If necessary, jack up the engine off the mounts, but remember to re-bolt them afterward.
Step 4: Remove the Oil Pan
Once all the bolts are removed and the obstructions are cleared, the oil pan can be released. If it is stuck, gently tap a paint scraper or a flat-head screwdriver between the block and the oil pan, prying it loose. Be cautious, as forcefully prying with a screwdriver can bend the mounting surface. If needed, tap the oil pan lightly with a mallet to break the seal, but ensure that all bolts are removed first to avoid cracking the pan.
Foil Pans: Grease or No Grease?
You may want to see also
Explore related products
Cleaning the oil pan
Firstly, identify the location of the oil pan. The oil pan is typically located at the bottom of the engine. Once located, proceed to remove the oil pan from the vehicle. It is important to consult a service manual to identify all the bolt locations, as some may be obscured behind other parts. After removing all the bolts, the oil pan can be dropped. If it does not release easily, double-check the bolt count and locations in the manual. If necessary, tap the oil pan lightly with a mallet to break the seal.
Once the oil pan is removed, it is time to clean it thoroughly. Start by scraping off any gasket residue left on the oil pan and the mating surface. It is important to note that metal tools should not be used for this step, as they can damage the soft aluminum engine. Instead, use a plastic scraper or bristle discs to remove the gasket material. If needed, use some gasket remover solution to eliminate any remaining residue. Clean the inside of the oil pan and inspect it for cracks or other damage. Ensure that all sludge and metal shavings are removed from the pan.
After cleaning and inspecting the oil pan, it is now ready for the new gasket to be installed. Refer to the instructions that come with the replacement gasket to ensure proper installation. This typically involves using grease or thread sealer to hold the new gasket in position and torquing the bolts to the specified torque pattern and values.
By following these steps, you can effectively clean the oil pan and prepare it for the installation of a new gasket. This process helps ensure a proper seal and prevents future oil leaks.
Cast Iron and Nuwave PIC: A Perfect Match?
You may want to see also
Explore related products
Installing a new gasket
First, scrape off any residue from the old gasket and clean all surfaces thoroughly with a solvent. Clean the inside of the oil pan, checking for cracks and removing any sludge or metal shavings. It is important not to bend the oil pan when removing it, so be cautious not to pry it loose with a screwdriver as this can bend the mounting surface.
Next, obtain the appropriate oil pan gasket replacement. Gasket materials vary depending on the type of metal it is intended to seal. It is important to choose a replacement that is compatible with the oil pan's material. Name-brand gaskets typically come with any necessary sealants.
Now, install the new gasket. Some gaskets use regular grease to hold them in position, while others may require glue. If using glue, be sure to leave the bolts loose so the gasket can move until after you install the crankshaft damper.
Finally, use a thread sealer, if specified, and torque the oil pan bolts to spec in a spiral pattern, starting in the centre.
Unlocking the Shado-Pan Quests: A Guide
You may want to see also
Explore related products
Checking for leaks
To check for leaks in your oil pan gasket, look out for the following signs:
- A puddle of dark brown or black fluid underneath your engine. The larger the stain, the more severe the leak.
- A low oil warning light on your dashboard.
- A low dipstick reading soon after changing your oil.
- An acrid, burning smell when oil drips onto the outside of your engine.
- Black smoke, low oil level, or an overheating engine.
If you suspect a leak, the first step is to clean the engine with a degreaser and then follow the trail of oil to its highest point to identify the source of the leak. Leaks from above the gasket can make you think the oil pan gasket is leaking when it's not.
If you confirm that the oil pan gasket is leaking, you can attempt to replace it yourself. The process involves removing the oil pan, cleaning it, and installing a new gasket. However, it is important to note that this job can be messy and challenging, depending on your vehicle. Many oil pans are difficult to remove, and you may need to detach other parts and brackets to access the pan and its bolts. Always refer to a service manual for specific instructions and safety precautions before attempting any repairs.
Stop Bread Sticking: Tips for Perfect Pan Baking
You may want to see also
Frequently asked questions
Some common symptoms of a bad oil pan gasket include black smoke, low oil level, an overheating engine, and oil spots on the ground beneath your car.
First, make sure that the oil pan is the source of the leak. Clean the engine with a degreaser and follow the trail of oil to its highest point. If the oil pan is leaking, you can replace it by following these steps:
- Remove the oil filter and drain the oil.
- Remove any parts blocking access to the oil pan.
- Remove the oil pan bolts.
- Remove the oil pan and gasket.
- Clean the oil pan and engine block mounting surface.
- Install the new gasket and pan.
- Reinstall the oil pan drain plug and new oil filter.
- Fill the engine with the recommended oil.
- Check for leaks.
The time it takes to change an oil pan gasket can vary depending on the vehicle and your level of experience. Some people report being able to do it in around 1.5 hours, while others suggest it could take much longer. It is recommended to consult a service manual for specific instructions and estimates.
Changing an oil pan gasket can be a messy and challenging job, especially if you have a four-wheel-drive car or limited space to work with. It may be a good idea to hire a professional, especially if specialty equipment is required. However, some people choose to do it themselves to save money and time. Ultimately, the decision depends on your level of comfort and expertise in performing such repairs.
