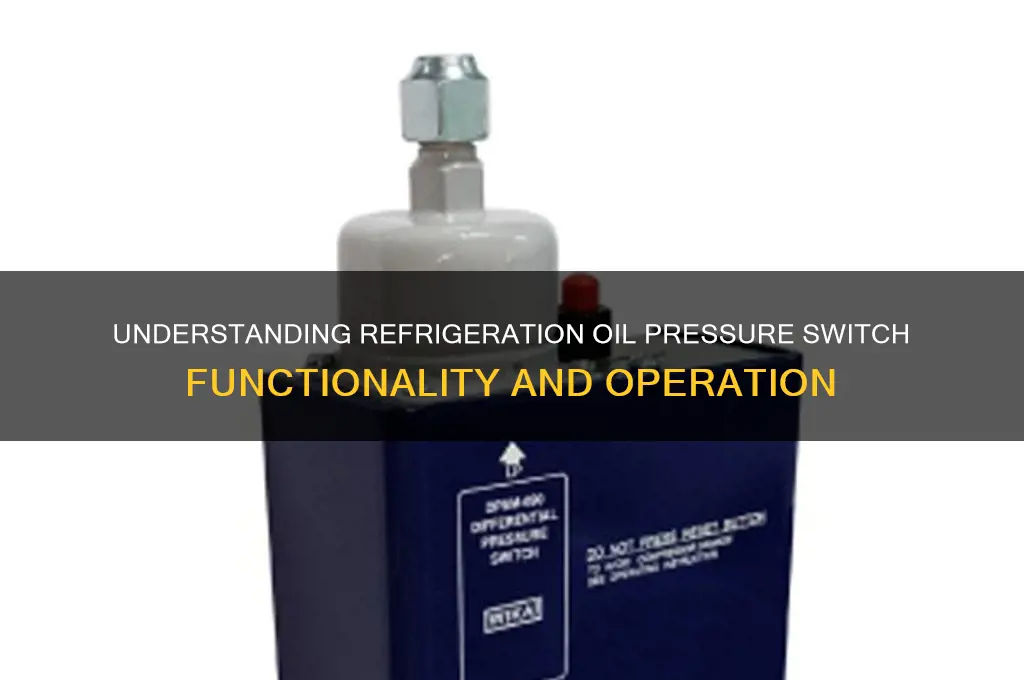

A refrigeration oil pressure switch is a critical component in HVAC and refrigeration systems, designed to monitor and maintain optimal oil pressure within the compressor. It operates by sensing the pressure of the lubricating oil, which is essential for the compressor's efficient and safe operation. When the oil pressure drops below a predetermined threshold, the switch activates, typically shutting down the compressor to prevent damage from inadequate lubrication. Conversely, if the pressure rises above the set limit, the switch may trigger an alarm or initiate corrective actions. This mechanism ensures the longevity of the compressor and the overall reliability of the refrigeration system by safeguarding against oil-related failures. Understanding its functionality is key to troubleshooting and maintaining these systems effectively.
| Characteristics | Values |
|---|---|
| Function | Monitors oil pressure in refrigeration systems to ensure proper lubrication and prevent compressor damage. |
| Operation Principle | Uses a diaphragm or bellows that responds to changes in oil pressure. |
| Pressure Range | Typically set to activate at 10-30 PSI (pounds per square inch) for low-pressure cutoff. |
| Switch Type | Normally open (NO) or normally closed (NC) contacts, depending on the application. |
| Activation Mechanism | Closes or opens the electrical circuit when oil pressure reaches the set threshold. |
| Location | Installed in the oil line between the compressor and oil separator. |
| Purpose | Protects the compressor by shutting it down if oil pressure drops too low. |
| Adjustability | Some models allow for adjustable pressure settings. |
| Power Source | Operates on system voltage (e.g., 24V, 110V, or 220V). |
| Material | Constructed from corrosion-resistant materials like brass or stainless steel. |
| Reset Type | Manual or automatic reset after pressure returns to normal. |
| Failure Modes | Can fail due to debris, wear, or incorrect calibration, leading to false trips or failure to shut down. |
| Maintenance | Requires periodic inspection and cleaning to ensure reliable operation. |
| Compatibility | Must be compatible with the refrigerant and oil type used in the system. |
| Safety Feature | Prevents compressor burnout by ensuring adequate oil flow and pressure. |
Explore related products
What You'll Learn
- Pressure Switch Mechanism: Explains how the switch detects and responds to oil pressure changes
- Oil Pressure Thresholds: Details the high and low pressure limits that trigger the switch
- Electrical Circuit Operation: Describes how the switch opens or closes the electrical circuit
- Safety Functionality: Highlights the role of the switch in preventing system damage or failure
- Installation and Calibration: Covers proper setup and adjustment for accurate pressure detection
Pressure Switch Mechanism: Explains how the switch detects and responds to oil pressure changes
The refrigeration oil pressure switch is a critical component in maintaining the health and efficiency of a refrigeration system. At its core, the pressure switch mechanism operates on a simple yet ingenious principle: it detects changes in oil pressure and responds by either completing or interrupting an electrical circuit. This function is vital for protecting the compressor, the heart of the refrigeration system, from damage due to inadequate lubrication. When oil pressure drops below a predetermined threshold, the switch acts as a safeguard, shutting down the compressor to prevent wear and potential failure.
To understand how this mechanism works, imagine a diaphragm inside the switch, exposed to the oil pressure from the compressor. This diaphragm is designed to flex in response to pressure changes. When oil pressure is within the normal operating range, the diaphragm remains in a neutral position, allowing the electrical circuit to remain closed and the compressor to function. However, if the oil pressure drops, the diaphragm retracts, triggering a set of contacts to separate and open the circuit. This immediate response halts the compressor, preventing it from running without sufficient lubrication.
The calibration of the pressure switch is key to its effectiveness. Most switches are adjustable, allowing technicians to set the activation point based on the specific requirements of the refrigeration system. For instance, a typical low-pressure cutoff switch might be set to activate at 15 to 20 psi (pounds per square inch) of oil pressure. This adjustability ensures compatibility with various compressor models and system designs, making the pressure switch a versatile tool in refrigeration maintenance.
One practical tip for technicians is to regularly inspect the pressure switch and its connections during routine maintenance. Over time, vibration and temperature fluctuations can loosen wiring or cause the switch to become less responsive. Testing the switch with a pressure gauge can verify its accuracy and ensure it activates at the correct pressure. Additionally, replacing the switch every 5–7 years, depending on system usage, can preempt failures and extend the life of the compressor.
In comparison to other protective devices in refrigeration systems, the oil pressure switch stands out for its simplicity and reliability. Unlike electronic sensors that may require complex diagnostics, the mechanical nature of the pressure switch makes it easy to troubleshoot and replace. Its straightforward design also minimizes the risk of false activations, ensuring that the compressor only shuts down when there is a genuine issue with oil pressure. By understanding and maintaining this mechanism, technicians can significantly reduce downtime and repair costs associated with compressor damage.
Should Tahini Be Refrigerated? Storage Tips for Freshness and Flavor
You may want to see also
Explore related products
Oil Pressure Thresholds: Details the high and low pressure limits that trigger the switch
Oil pressure switches in refrigeration systems are critical safety devices designed to monitor the lubrication flow within the compressor. These switches are calibrated to respond to specific pressure thresholds, ensuring the system operates within safe limits. The two primary thresholds are the high-pressure cutoff and the low-pressure cutoff, each serving a distinct purpose in protecting the compressor and maintaining system efficiency.
The low-pressure threshold is the first line of defense against inadequate lubrication. If oil pressure drops below this limit—typically around 10 to 20 PSI (pounds per square inch)—the switch activates, shutting down the compressor to prevent damage from insufficient oil flow. This scenario often occurs due to low oil levels, clogged filters, or a malfunctioning oil pump. Regular maintenance, such as checking oil levels and replacing filters, can prevent this issue. For example, in a commercial refrigeration unit, a low-pressure cutoff at 15 PSI might trigger an alarm, alerting technicians to inspect the oil system before the compressor sustains damage.
Conversely, the high-pressure threshold protects against excessive oil pressure, which can strain the compressor and lead to mechanical failure. This threshold is usually set between 60 to 80 PSI, depending on the system’s design. High oil pressure can result from a blocked oil return line, a faulty pressure regulator, or overfilling the oil reservoir. When this limit is exceeded, the switch interrupts power to the compressor, preventing potential damage. Technicians should verify oil levels and inspect the oil return lines during routine checks to avoid high-pressure events.
Understanding these thresholds is essential for troubleshooting and maintenance. For instance, if a compressor repeatedly trips due to low oil pressure, the immediate fix might involve topping up the oil, but a thorough inspection of the oil pump and filters is necessary to address the root cause. Similarly, high-pressure trips warrant a check of the oil return system and pressure regulator. Calibrating the pressure switch to manufacturer specifications ensures accurate operation, as misalignment can lead to false trips or overlooked issues.
In practice, technicians should refer to the system’s manual for exact threshold values, as these vary by model and application. For residential units, thresholds might be narrower (e.g., 12 PSI low, 70 PSI high), while industrial systems may have broader ranges to accommodate higher loads. By respecting these limits and responding promptly to switch activations, operators can extend the lifespan of their refrigeration systems and avoid costly repairs.
Refrigerating Jimmy Dean Sandwiches: Best Practices for Freshness and Safety
You may want to see also
Explore related products
Electrical Circuit Operation: Describes how the switch opens or closes the electrical circuit
The refrigeration oil pressure switch is a critical component in maintaining the health of a refrigeration system, ensuring the compressor receives adequate lubrication. At its core, the switch operates by monitoring oil pressure and responding with a simple yet effective mechanism: opening or closing an electrical circuit. This function is pivotal for system safety and efficiency, as it directly influences the compressor's operation. When oil pressure drops below a predetermined threshold, typically around 10 to 20 PSI, the switch activates, interrupting the electrical circuit and shutting down the compressor to prevent damage. Conversely, when pressure returns to normal, the circuit closes, allowing the compressor to resume operation.
Understanding the electrical circuit operation requires a closer look at the switch's internal design. Inside the oil pressure switch, a diaphragm or bellows responds to changes in oil pressure. When pressure is sufficient, the diaphragm remains in a neutral position, keeping the circuit closed. However, as pressure decreases, the diaphragm moves, actuating a set of electrical contacts. This movement breaks the circuit, effectively cutting power to the compressor. The simplicity of this design ensures reliability, a crucial factor in systems where downtime can lead to significant losses, such as in commercial refrigeration or air conditioning units.
From a practical standpoint, troubleshooting an oil pressure switch involves verifying its electrical circuit operation. Technicians often use a multimeter to check continuity across the switch’s terminals. With normal oil pressure, the circuit should show continuity, indicating a closed circuit. If the circuit is open, it suggests either low oil pressure or a faulty switch. For instance, in a walk-in cooler system, a technician might observe the compressor failing to start and use this method to diagnose whether the issue stems from the oil pressure switch. Regular maintenance, including checking oil levels and cleaning the switch’s ports, can prevent such failures.
Comparing the oil pressure switch to other safety devices in refrigeration systems highlights its unique role. While high-pressure switches protect against excessive refrigerant pressure, and low-pressure switches guard against insufficient refrigerant flow, the oil pressure switch specifically safeguards the compressor’s mechanical integrity. Its electrical circuit operation is tailored to respond to oil pressure alone, making it a specialized yet indispensable component. For example, in a supermarket refrigeration system, the oil pressure switch ensures compressors operate only when lubrication is guaranteed, preventing costly repairs and extending equipment lifespan.
In conclusion, the electrical circuit operation of a refrigeration oil pressure switch is a straightforward yet vital process. By opening or closing the circuit based on oil pressure, it protects the compressor from damage due to inadequate lubrication. Technicians and system operators must understand this mechanism to diagnose issues effectively and maintain system reliability. Whether in a small ice cream parlor or a large industrial refrigeration plant, the oil pressure switch’s role in ensuring smooth operation cannot be overstated. Regular monitoring and maintenance of this component are essential to avoid disruptions and maintain efficiency.
Troubleshooting Refrigerator Filters: Common Issues and Quick Fixes Explained
You may want to see also
Explore related products
$38.08
Safety Functionality: Highlights the role of the switch in preventing system damage or failure
The refrigeration oil pressure switch is a critical component in safeguarding the integrity of a refrigeration system. Its primary safety function is to monitor oil pressure, ensuring it remains within optimal levels for efficient compressor operation. When oil pressure drops below the prescribed threshold—typically around 15 to 25 psi for most systems—the switch activates, immediately cutting power to the compressor. This instantaneous response prevents the compressor from running dry, a condition that can lead to catastrophic damage due to friction and overheating. Without this switch, the system would continue to operate under unsafe conditions, risking expensive repairs or complete system failure.
Consider the analogy of a car’s oil pressure gauge. Just as a vehicle’s engine relies on oil to lubricate moving parts, a refrigeration compressor depends on oil to reduce wear and dissipate heat. If the oil pressure drops in a car, the engine seizes, causing irreversible harm. Similarly, in a refrigeration system, the oil pressure switch acts as a sentinel, halting operation before the compressor suffers the same fate. This preventive measure not only protects the compressor but also safeguards other interconnected components, such as the evaporator and condenser, from collateral damage.
Instructively, the installation and calibration of the oil pressure switch are paramount to its effectiveness. Technicians must ensure the switch is correctly positioned in the oil line and set to the manufacturer’s recommended pressure range. For instance, a switch set too high may fail to activate when pressure drops, while one set too low could trigger false alarms, causing unnecessary downtime. Regular maintenance, including cleaning and testing the switch, is equally vital. A clogged or malfunctioning switch can render the safety mechanism ineffective, leaving the system vulnerable.
Persuasively, the economic and operational benefits of a functioning oil pressure switch cannot be overstated. Downtime in commercial refrigeration systems can result in significant financial losses, particularly in industries like food storage and pharmaceuticals, where temperature control is critical. By preventing compressor failure, the switch not only avoids costly repairs but also minimizes the risk of product spoilage or regulatory non-compliance. Investing in high-quality switches and adhering to maintenance schedules is a proactive strategy that pays dividends in system longevity and reliability.
Descriptively, the oil pressure switch operates through a simple yet ingenious mechanism. It consists of a diaphragm or bellows that responds to changes in oil pressure. When pressure falls below the set point, the diaphragm moves, triggering an electrical contact that interrupts the power supply to the compressor. Some advanced switches also incorporate visual or audible alarms, alerting operators to low oil pressure before the system shuts down. This dual functionality—both preventive and communicative—enhances the switch’s role as a guardian of system safety.
In conclusion, the refrigeration oil pressure switch is more than a mere component; it is a vital safety device that protects the system from the devastating effects of low oil pressure. Through its proactive monitoring and immediate response, it prevents compressor damage, ensures operational continuity, and safeguards investments. Understanding its function, ensuring proper installation, and maintaining its integrity are essential practices for anyone responsible for refrigeration system upkeep. In the intricate dance of refrigeration mechanics, the oil pressure switch is the unsung hero that keeps the system running smoothly and safely.
Step-by-Step Guide to Installing Sub-Zero Refrigerator Panels Easily
You may want to see also
Explore related products
Installation and Calibration: Covers proper setup and adjustment for accurate pressure detection
Proper installation and calibration of a refrigeration oil pressure switch are critical to ensuring the system operates within safe and efficient parameters. Begin by mounting the switch securely on the refrigeration unit, ensuring it is positioned to receive an accurate oil pressure reading. Use a wrench to tighten the switch to the recommended torque specifications, typically 15 to 20 foot-pounds, to prevent leaks and ensure a reliable connection. The switch should be installed in a location free from vibration and extreme temperatures, as these factors can interfere with its accuracy.
Calibration is the next essential step, requiring precision to guarantee the switch activates at the correct pressure threshold. Start by connecting a pressure gauge to the switch’s test port and slowly increasing the oil pressure using a hand pump or calibration tool. Adjust the switch’s setpoint screw, typically located on the side or top of the device, until the switch activates at the manufacturer’s specified pressure, often between 10 and 30 PSI for refrigeration systems. Turn the screw clockwise to increase the activation pressure and counterclockwise to decrease it, making small adjustments (about 1/8 turn at a time) to avoid overshooting the target.
A common mistake during calibration is neglecting to account for system-specific variables, such as oil viscosity and temperature fluctuations. For example, thicker oils may require a slightly lower setpoint to compensate for increased resistance, while systems operating in warmer environments may need a higher setpoint to maintain consistent performance. Always refer to the system’s manual for recommended adjustments based on these factors. Additionally, test the switch’s response by simulating both high and low-pressure conditions to ensure it activates and deactivates reliably.
After calibration, perform a final system check to verify the switch’s functionality. Run the refrigeration unit under normal operating conditions and monitor the oil pressure gauge for any anomalies. If the switch fails to activate or deactivate at the correct pressure, recheck the calibration and inspect for loose connections or damaged components. Regular maintenance, including periodic recalibration every 6 to 12 months, is essential to prolong the switch’s lifespan and maintain system efficiency.
In summary, proper installation and calibration of a refrigeration oil pressure switch demand attention to detail and adherence to manufacturer guidelines. By securing the switch correctly, calibrating it with precision, and accounting for system-specific variables, technicians can ensure accurate pressure detection and prevent costly system failures. Treat this process as a critical safeguard for both equipment and operational safety.
Why Roaches Invade Your Fridge: Uncovering the Chilling Attraction
You may want to see also
Frequently asked questions
A refrigeration oil pressure switch is a safety device installed in refrigeration and air conditioning systems. It monitors the oil pressure in the compressor and shuts off the system if the pressure falls below or rises above a predetermined range, preventing damage to the compressor.
The switch uses a diaphragm or bellows mechanism connected to the oil pressure line. When the oil pressure changes, it acts on the diaphragm or bellows, which in turn triggers a set of electrical contacts to open or close, signaling the system to shut down if the pressure is out of range.
The pressure settings vary depending on the system and compressor type, but common ranges are between 10-30 PSI (low pressure) and 150-300 PSI (high pressure). These settings ensure the compressor operates within safe oil pressure limits.
If the switch fails, it may not shut off the system when oil pressure is too low or too high, leading to compressor damage, overheating, or system failure. Regular maintenance and testing are essential to ensure the switch functions correctly.
