The GM LS engine uses edge-molded rubber gaskets for the oil pan gasket, timing cover gasket, and rear main bearing seal retainer plate. Over time, the gasket can become compressed and not rebound to its original shape, causing it to leak. To change the gasket, you will need to disconnect the battery, remove the front tires, and jack up the car. You will then need to unbolt the two plastic covers on either side of the oil pan and remove the bolts holding the pan in place. With the oil pan removed, you can then access and replace the gasket.
Explore related products
What You'll Learn
- Prepare parts and tools, including a new gasket, oil pan, bolts, and RTV
- Disconnect the battery, remove front tires, and jack up the car
- Remove the oil pan by unbolting plastic covers and detaching rivets
- Access the oil pickup tube and remove the old gasket
- Install the new gasket, ensuring proper alignment and torque specifications

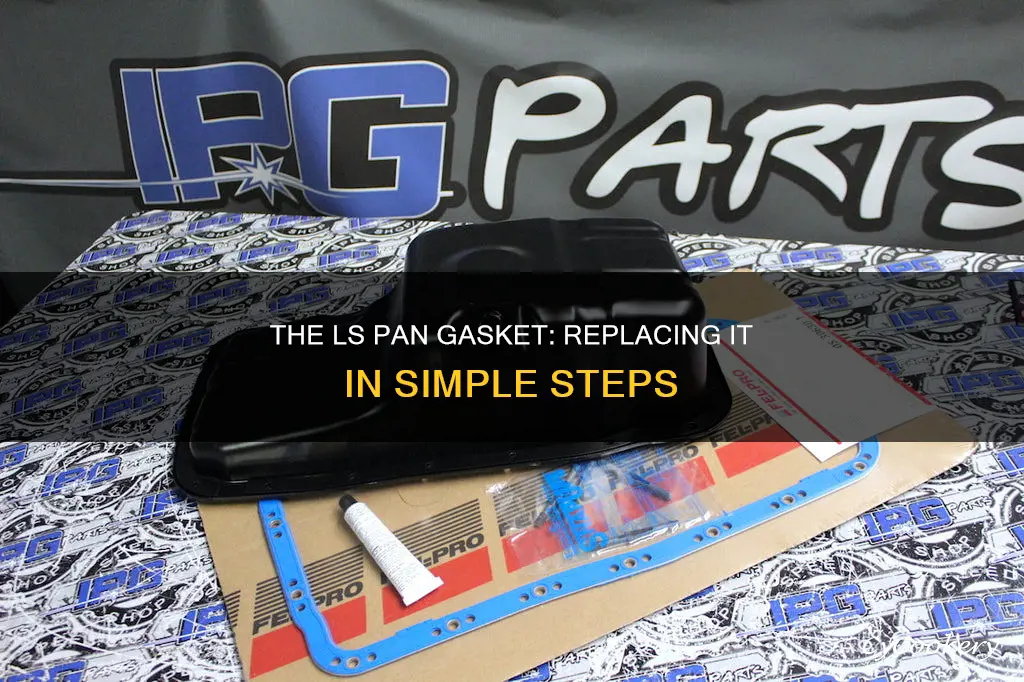

Prepare parts and tools, including a new gasket, oil pan, bolts, and RTV
To prepare for changing a GM LS pan gasket, you will need to gather the necessary parts and tools. This includes a new gasket, oil pan, bolts, and RTV. Here is a detailed list:
New Gasket
The gasket is the critical component that seals the oil pan to the engine block. The GM LS engine uses an edge-molded rubber gasket, and it is recommended to replace it with a new one designed for your vehicle's specific demands, such as the Fel-Pro premium gasket.
Oil Pan
It is recommended to get a new oil pan, specifically the GM part #12558899. This is because the oil pan is an integral structure of the engine block, and a new one ensures proper alignment and support for the transmission.
Bolts
While reusing the original bolts is possible, it is highly recommended to get new oil pan bolts. The old bolts may be brittle due to heat, and new bolts provide peace of mind.
RTV
High-temp RTV (Room Temperature Vulcanizing) is required for the process.
Optional Parts
An engine brace from Harbor Freight (around $70) is optional but recommended. Additionally, if you order a new oil pan, you may need a new oil filter fitting (GM part #12552357) as GM has changed the oil filter fitting to an M20x1.5, requiring a different filter.
Tools
You will need various tools for the job, including a flathead screwdriver, a hammer, and plastic bags to keep your bolts organized and marked.
By gathering these parts and tools, you will be well-prepared to change your GM LS pan gasket. Remember to refer to specific repair guides or seek professional advice for the complete procedure and safety precautions.
