To remove the oil pan gasket from a 1986 Mazda B2000, the engine must first be cold. Then, clean all gasket surfaces on the engine and oil pan, removing all traces of the old gasket and/or sealer. Next, apply a bead of RTV sealer to the junctions of the rear main bearing cap and block, and the front cover and block. After this, apply adhesive to the gasket mating surfaces and install a new oil pan gasket. Position the oil pan correctly and tighten the bolts. Finally, lower the vehicle and fill the crankcase with new engine oil.

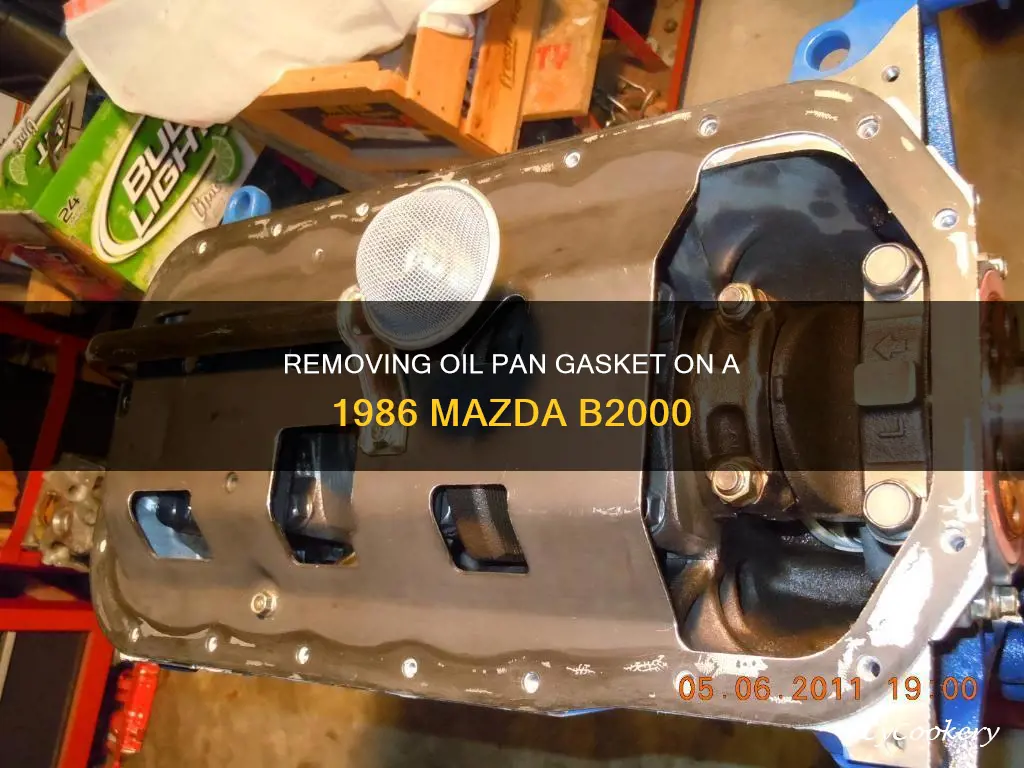

1986 Mazda B2000 Oil Pan Gasket Removal
| Characteristics | Values |
|---|---|
| Gasket Material | Cork, Rubber |
| Thickness | 2.41mm or 0.090 inches |
| Number of Bolt Holes | 19 |
| Sealant | RTV Silicone |
| Coolant | Drain and Reuse |
| Engine | Support at Crank Shaft Pulley |
| Engine Temperature | Cold |
Explore related products
What You'll Learn
Clean gasket surfaces on the engine and oil pan
To clean gasket surfaces on the engine and oil pan of your 1986 Mazda B2000, you will need to remove any old gasket material and clean the surfaces thoroughly. Here is a step-by-step guide:
- Remove Old Gasket Material: Use a plastic or composite scraper to carefully remove any remaining gasket material from the mating surfaces of the engine and oil pan. Be gentle to avoid damaging the metal surfaces. You can also use bristle discs for this step, which can be more effective in breaking down the gasket material, but be cautious not to scratch the metal.
- Clean the Surfaces: Once the old gasket material is removed, it's time to clean the surfaces. You can use a detergent or cleaner that breaks down oil, such as Simple Green, along with shop rags or paper towels. Spray the cleaner onto the surfaces and wipe them down, ensuring you get into any crevices or tight spaces. You can also use a Scotch-Brite pad or grit sandpaper (120-240 grit) to scrub the surfaces and remove any residual oil. Be careful not to spray cleaner directly into the engine or onto bearings and other sensitive components. Instead, spray it onto a clean cloth and use that to wipe down the surfaces.
- Final Rinse and Inspection: After cleaning, rinse the surfaces with a mild solvent like lacquer thinner or acetone on a clean rag to ensure all oil and grime are removed. You can also use brake cleaner for this step, being cautious to avoid overspray. Use a metal ruler to check the straightness of the mating surfaces, ensuring there are no depressions or low spots that could affect the seal of the new gasket.
- Prepare for New Gasket: With the surfaces clean and dry, you are now ready to install the new gasket. Ensure you apply a small amount of RTV (room temperature vulcanizing) sealant in the corners and along the mating surfaces to prevent leaks.
Remember to wear appropriate safety gear, such as gloves and eye protection, during the cleaning process, and work in a well-ventilated area when using chemicals.
Lasagna Pricing: 9x11 Pan
You may want to see also
Explore related products
Remove the crankshaft rear main bearing cap wedge seal
To remove the crankshaft rear main bearing cap wedge seal on a 1986 Mazda B2000, you will need to follow a series of steps to ensure a safe and effective removal process. Here is a detailed guide to assist you:
Begin by inverting the engine and placing it on a suitable workstand. This step is crucial as it provides stable access to the crankshaft and other engine components. Once the engine is securely positioned, proceed to the next step.
Remove the oil pan and the rear main oil seal. Depending on your specific engine configuration, you may also need to remove the rear cover at this stage. It is important to be cautious during this step to avoid any unnecessary spills or messes.
The next step is to remove the front cover, timing chain/belt, and oil pump. This will grant you better access to the crankshaft and the bearing cap you need to remove. Make sure to keep track of the order in which you remove these components to facilitate easier reassembly.
Before proceeding further, it is recommended to check the crankshaft end-play and main bearing oil clearances. This inspection step is important to ensure that everything is in proper working condition before you continue. If any issues are identified, address them accordingly.
Now, you can focus on the bearing cap itself. Unfasten the cap bolts securely, then carefully remove the bearing cap and the associated bearings. Keep the bearings and caps in their correct positions and maintain their original order to simplify reassembly.
If your engine utilizes manual transmission and has reached the standard interval for an overhaul, there is one additional step. Remove the pilot bearing, which is located at the rear of the crankshaft, with an appropriate puller. This step ensures that you address all necessary components during the removal process.
By carefully following these steps, you will be able to successfully remove the crankshaft rear main bearing cap wedge seal on your 1986 Mazda B2000. Remember to refer to a qualified mechanic or a detailed repair manual for any further guidance or clarification if needed.
Effective Ways to Clean a Burnt Broiler Pan Easily
You may want to see also
Explore related products
Apply silicone gasket sealant
To apply silicone gasket sealant to your 1986 Mazda B2000, follow these steps:
Firstly, ensure you have the correct type of silicone sealant for your purpose. Silicone sealants are often chosen for their durability and flexibility, but it is important to check that the product is suitable for your specific application. Grey RTV silicone is recommended for the oil pan gasket in your 1986 Mazda B2000.
Before applying the sealant, you must prepare the surface. Remove any previous silicone or gasket material from the area, being cautious not to damage the flange surface. Clean the area with a wire brush to ensure any remaining debris or residue is gone. Once clean, inspect the surface for any damage that may affect the seal. If there is any wear or damage, it is important to fix this before applying the sealant.
Now you are ready to apply the silicone. Cut the tip of the silicone cartridge seal at a 45-degree angle and screw on the nozzle. The nozzle should also be cut at a 45-degree angle, which will allow you to adjust the width of the opening. Insert the cartridge into a sealant gun, if you have one, to help produce a neater finish.
Apply the silicone sealant to the surface by dragging the gun or tube backwards towards yourself, starting in a corner. The best working position is to hold the gun or tube at a 45-degree angle while squeezing the sealant out. Work at a steady pace to ensure the sealant is applied neatly and fills all the gaps properly.
Finally, smooth out the seam with a damp finger or a plastic/rubber smoothing tool that has been wetted with soapy water. This will ensure that no sealant sticks to your finger or tool. Remove any masking tape that was applied before smoothing. Allow the silicone to dry for a full 24 hours so that it can fully set and cure.
Cleaning a Blackened Xopper Pan: Tips and Tricks
You may want to see also
Explore related products
Install the new oil pan gasket
To install the new oil pan gasket for your 1986 Mazda B2000, follow these steps:
Firstly, ensure that the new gasket is the correct size and type for your vehicle. You can refer to your Mazda's user manual or consult a mechanic to verify this. It is important to use the correct gasket to ensure a proper seal and prevent leaks.
Next, clean the oil pan and the surface of the engine block where the gasket will be installed. Use a degreaser or a suitable solvent to remove any residual oil, dirt, or debris. Ensure both surfaces are completely dry before proceeding.
Now, take the new oil pan gasket and apply a thin coat of gasket sealant or RTV silicone to both sides of the gasket. This will help create a better seal and also help hold the gasket in place during installation. Ensure you use a suitable sealant that is compatible with your gasket material.
Carefully position the new gasket onto the oil pan, ensuring it is correctly aligned with the mating surface of the engine block. Check that the gasket is seated properly and has not shifted during placement.
Secure the oil pan back onto the engine block, ensuring the gasket does not move during this process. Tighten the bolts securely but be careful not to over-tighten, as this can distort the gasket and cause leaks. Refer to your Mazda's torque specifications for the correct torque settings.
Finally, after the oil pan is securely installed, refill the engine with new oil and start the vehicle. Check for any leaks around the gasket to ensure the repair was successful.
Always refer to your Mazda B2000's repair manual for specific instructions and torque settings, and ensure you work in a safe and well-ventilated area when undertaking vehicle repairs.
Understanding PAN: A Crucial Identity Number
You may want to see also
Explore related products
Tighten the oil pan bolts
To tighten the oil pan bolts, follow these steps:
First, install the oil pan mounting bolts. The two long bolts should be installed in the two rear pan holes (holes 15 and 18) near the flywheel.
Then, tighten the oil pan bolts in a specific sequence and to a specific torque specification. Tighten the bolts to 124-141 inch lbs. (14-16 Nm).
Next, you will need to tighten the 4 corner oil pan bolts to 7-10 ft. lbs. (10-14 Nm). This is Step 1 of a 5-step process.
Step 2 is to tighten the remaining bolts to 7-10 ft. lbs.
For Step 3, go back and tighten the 4 corner oil pan bolts again to the same torque specification of 7-10 ft. lbs. (10-14 Nm).
Finally, for Step 4, loosen all of the oil pan bolts by one full turn. Then, for Step 5, tighten all of the oil pan bolts once more to 7-10 ft. lbs. (10-14 Nm).
It is important to tighten the bolts in this specific sequence and to the specified torque to ensure an even and secure fit for the oil pan.
Easy Ways to Remove Candle Wax from Pans
You may want to see also
Frequently asked questions
The engine must be cold before you start. First, drain the cooling system, being careful to securely store the engine coolant. Then, clean all gasket surfaces on the engine and oil pan, removing all traces of the old gasket and/or sealer. Next, remove the oil pan gasket and crankshaft rear main bearing cap wedge seal.
Apply a 0.16–0.23 inch (4–6mm) bead of RTV sealer to the junctions of the rear main bearing cap and block, and the front cover and block. Work quickly, as the sealer sets in 15 minutes.
Apply adhesive to the gasket mating surfaces and install a new oil pan gasket. Position the gasket to the engine block and place the oil pan in the correct position on the four locating studs.
Tighten the oil pan bolts in 5 steps, following the sequence and torque specifications outlined in the Mazda B2000 repair manual.
Install the engine assembly into the vehicle, connect the negative battery cable, and fill the engine with the proper amount and type of engine oil.
