The drip pan, or drain pan, is an essential component of an air conditioning unit. It collects water from condensation, preventing water damage and mould or mildew from forming on your floors. Over time, these pans can crack, clog, or spring a leak, requiring maintenance or replacement. While some maintenance tasks can be performed by the user, such as pouring vinegar down the drain to prevent clogs and kill mould, replacing the drain pan is a more complex task. It is recommended that a professional is called to replace a primary drain pan, as it is often attached to the main part of the system. However, replacing a secondary condensate drain pan can be a simple task for some units, requiring the user to shut off the power supply, remove the front panel, and then any clips or screws holding the pan in place.

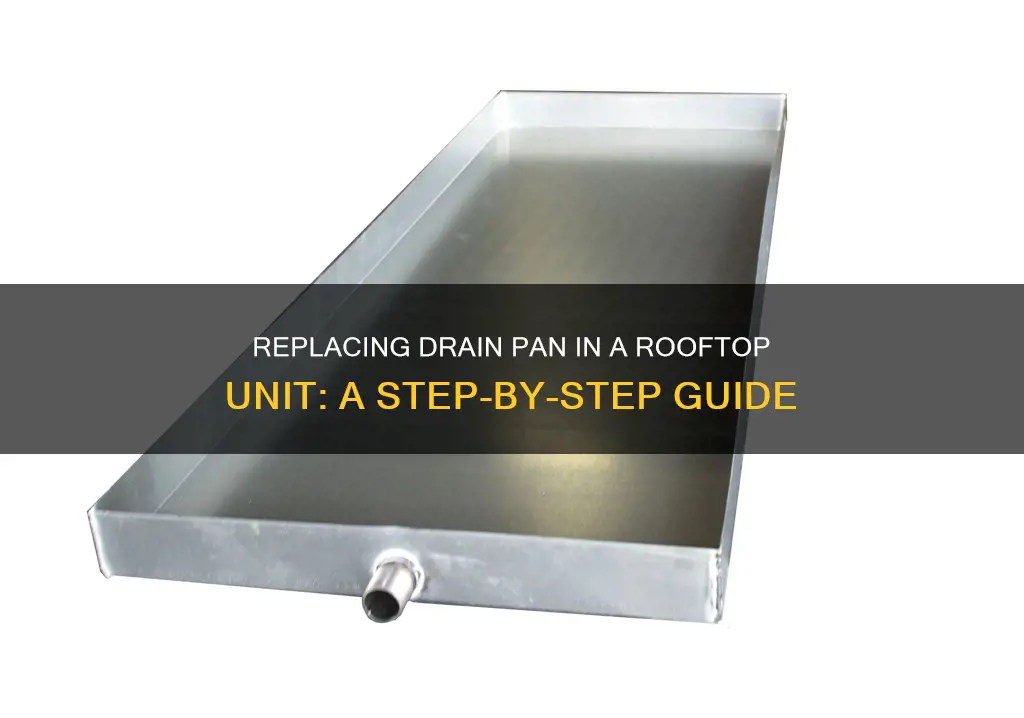

How to Replace a Drain Pan in a Rooftop Unit
| Characteristics | Values |
|---|---|
| Step 1 | Turn off the power to the unit and disconnect the power cord from the electrical outlet. |
| Step 2 | Remove the front panel. |
| Step 3 | If there are clips or screws holding the drain pan in place, remove them. |
| Step 4 | Loosen the drain line using a wrench or pliers to remove the pan. |
| Step 5 | Slide the old pan out and remove it. |
| Step 6 | Slide the new drain pan into place and secure it with clips or screws. |
| Step 7 | Reattach the outside panel. |
| Notes | It is not recommended to replace a primary drain pan as it is often attached to the main system. Only replace a secondary drain pan if your unit has one. Regularly inspect and maintain your drain pan to prevent leaks and water damage. |
Explore related products
What You'll Learn
Identify the type of drain pan and its location
To identify the type of drain pan and its location, you must first locate the indoor AC unit. Typically, the AC drain pan is located in the indoor unit, underneath the evaporator coils, and usually on the same side as the air intake. There are two types of drain pans: an overflow pan and a permanent one. The overflow pan is removable, and you can clean, fix, or replace it yourself. In contrast, the permanent pan is fixed under the coils, and you will need to contact a professional for any work on it.
The condensate drain pan in your heating and cooling system allows moisture to exit the equipment and your home. It is usually located just below the evaporator coils in a vertical application, where the furnace or air handler is in an upright position. In a horizontal application, where the furnace or air handler is installed on its side, the condensate drain pan is located below the evaporator coils, which are beside the furnace or air handler.
You can identify a damaged drain pan by looking for water or water damage around your HVAC unit. A damaged drain pan can cause water leaks, leading to water damage to your home and HVAC equipment. Regular inspections of your drain pan can help with early leak detection and prevent water damage.
Navigating Fear: Heart of Pan
You may want to see also
Explore related products
Turn off the power supply to the unit
Before you begin to replace the drain pan of your rooftop unit, it is important to turn off the power supply to the unit. This is a crucial safety step that will protect you from electrical hazards while you work. Here is a step-by-step guide to turning off the power supply:
Firstly, locate the power source. The power source for your rooftop unit is likely to be an electrical outlet or a circuit breaker box. If you are unsure, refer to the unit's manual or seek advice from a qualified electrician.
If your unit is connected to an electrical outlet, simply disconnect the power cord. This will cut off the power supply to the unit. Make sure to unplug any other devices or components connected to the same outlet to avoid accidental activation.
If your unit is hardwired into a circuit breaker, you will need to locate the specific breaker controlling the unit. This is usually located near the unit for easy access during maintenance. The breaker box will have a cover that can be flipped open, revealing the internal components.
Once you have identified the correct breaker, grip the pullout head and pull it straight out. This action interrupts the flow of electricity to the unit. To ensure the power is off, check for any indicators. Some systems will have clear labels or markings, such as "OFF" and "ON," to indicate the status of the circuit.
After turning off the power, it is a good idea to inspect the disconnect box for any debris, corrosion, or dirt. Gently remove any debris with a brush or by blowing, and clean the connectors with fine-grit sandpaper if necessary. This ensures a safe working environment and maintains a strong electrical connection.
By following these steps, you can confidently turn off the power supply to your rooftop unit, ensuring a safe and efficient replacement process for the drain pan. Remember to restore power once your maintenance is complete by reconnecting the power cord or reinserting the pullout head into the breaker box.
Resurrecting Scorched Pans: Tips for Restoration
You may want to see also
Explore related products
Remove the front panel and any screws holding the pan
Before you begin to remove the front panel, ensure that you have turned off the power to the unit and disconnected the power cord from the electrical outlet. This is an important safety precaution.
Now, you can start by removing the front panel. This can usually be done without any tools, simply by pushing up or pulling the panel away from the unit. Sometimes, the front panel is held in place by latches or screws. If it is a screwed-in panel, use a screwdriver to remove the screws.
Once the front panel is removed, you should be able to access the drain pan. Check to see if there are any screws near the front of the drain pan that attach it to the air handler. If there are screws, loosen and remove them.
If there are no screws, or once the screws have been removed, carefully grip the drain pan and try to pull it forward. If it does not move easily, check if it is welded to the condensing coils. If it is welded, you will not be able to replace the pan without replacing the entire cooling coil assembly.
If there are no welded connections, try pushing the drain port toward the inside of the air handler. This should help to loosen the pan and allow for its removal.
Anodized Pan Stain Removal: Quick and Easy Guide
You may want to see also
Explore related products
Slide out the old pan and clear clogs or debris
Before sliding out the old pan, it is important to turn off the power to the unit and disconnect the power cord from the electrical outlet. This is crucial for safety reasons and to avoid any potential hazards. Once the unit is powered off, you can begin the process of removing the old drain pan.
Locate the screws that hold the old drip pan in place and remove them carefully. This will loosen the pan and allow for easier sliding. Make sure to have a bucket or container ready to catch any residual water that may be in the pan. Slowly slide out the old pan, being careful not to spill any water. If there is a significant amount of water, you may need to carefully tilt the pan to one side to empty it before completely sliding it out.
After removing the old pan, it is important to clear any clogs or debris that may be present in the area. Use a flashlight to inspect the drain line and the opening to the condensate drain pipe for any backups, clogs, or debris. This step is crucial to ensure that the new drain pan will function properly and prevent future leaks. Use appropriate tools such as gloves and a small rake or brush to remove any debris or clogs. You can also use a leaf blower to remove debris, but be cautious not to blow it into any sensitive equipment or openings on the roof.
Once you have cleared the clogs and debris, take the opportunity to inspect the area for any signs of damage, leaks, or algae buildup. Look for any cracks, dents, holes, rust, or mold/algae growth. This step will help you identify if there are any underlying issues that need to be addressed before installing the new drain pan. It is important to address any clogs or debris in the drain line to ensure optimal functioning of the rooftop unit and to prevent water damage or leaks.
Ford Escape Oil Pan Bolt: Size and Specifications
You may want to see also
Explore related products
Install the new pan, secure with clips or screws, and reconnect power
Before installing the new pan, ensure that the power to the unit is shut off. Once this is done, you can proceed to install the new drain pan.
Slide the new drain pan into place, ensuring that it is properly aligned with the designated space. If your old pan was held in place with clips, reattach the clips to secure the new pan. If your old pan was secured with screws, fix the new pan in place by screwing in the appropriate screws.
After securing the new pan, you can proceed to reconnect the power. Reconnect the power cord to the electrical outlet and turn on the power supply to the unit. Once the power is restored, your new drain pan should be fully installed and operational.
It is important to note that if your old pan was attached to the main part of the system, it is recommended to consult a professional for replacement. Additionally, if you need to disconnect anything other than the power to the unit, it is best to seek the assistance of a professional.
Panning and Clicking: Logic's Creative Control
You may want to see also
Frequently asked questions
The drain pan is a container that collects water from condensation to prevent mould and mildew from forming.
There are two types of drain pans: an overflow pan and a permanent one.
If there is water pooling around your indoor unit, you probably have a drainage problem. Regularly inspect your drain pan for any cracks, dents, holes, rust, and mould or algae build-up.
First, shut off the power supply to your unit. Then, remove the front panel and the clips or screws holding the drain pan in place. Slide out the old drain pan and insert the new one. Reattach the clips or screws and replace the outside panel.
It is not recommended that you replace a primary drain pan as it is often attached to the main part of the system. Removing it could be dangerous or cause damage. If you have a secondary condensate drain pan, replacing it is a fairly simple task, but every unit is different. If you have to disconnect anything more than the power to the unit, it is best to call a professional.
