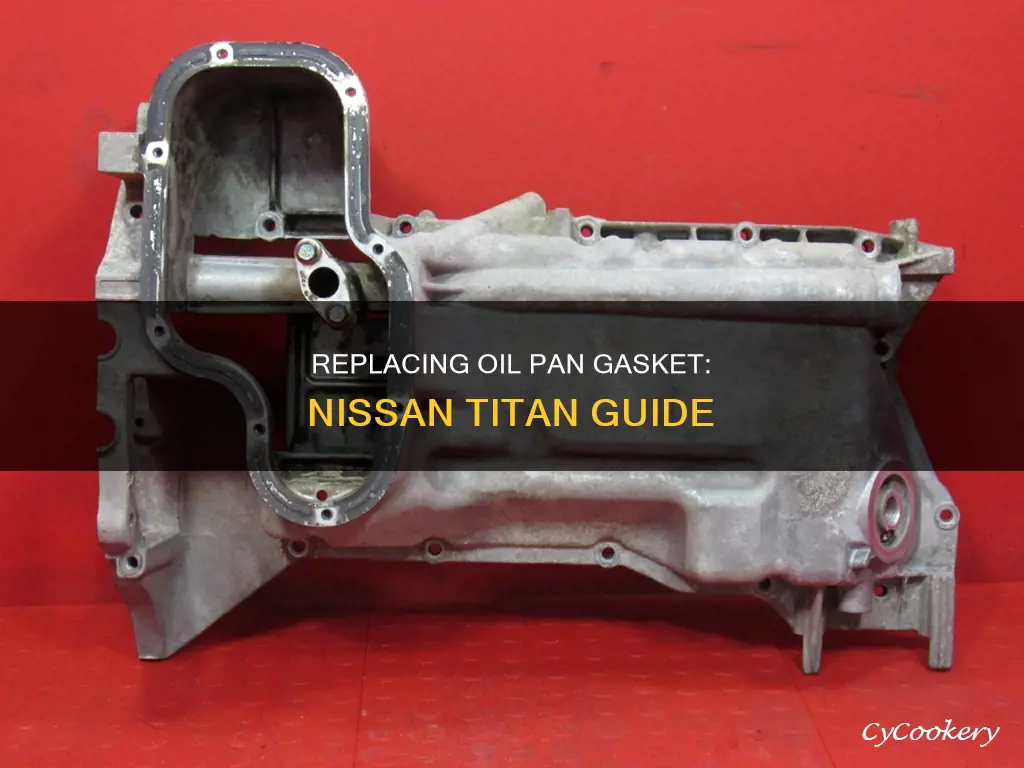

Nissans Titan Oil Pan Gasket Replacement: A Step-By-Step Guide

Replacing the oil pan gasket in a Nissan Titan is a manageable task for DIY enthusiasts, but it requires careful attention to detail to ensure a successful repair. The oil pan gasket is a critical component that seals the oil pan, preventing leaks and maintaining engine performance. This guide will provide a step-by-step process to replace the gasket, including the necessary tools, materials, and safety precautions to ensure a smooth and efficient repair.

Prepare the Vehicle: Jack up the Titan, engage parking brake, and drain old oil to prevent spills

Before you begin the process of replacing the oil pan gasket on your Nissan Titan, it's crucial to ensure the vehicle is in a safe and stable position. Here's a step-by-step guide to preparing your vehicle for the replacement:

Jacking Up the Vehicle: Start by locating the jack points on your Titan. These are typically positioned along the rockers or close to the front or rear wheels. Use a floor jack or a vehicle jack to lift the Titan. It's essential to follow the manufacturer's guidelines for the correct jacking points and the appropriate jack size. Once the vehicle is securely jacked up, ensure it is stable and won't roll or move.

Engaging the Parking Brake: After jacking up the Titan, engage the parking brake. This additional safety measure prevents the vehicle from moving accidentally while you work on it. Make sure the parking brake is firmly engaged and that the car remains stationary.

Draining Old Oil: Now, it's time to drain the old oil to avoid any messy spills during the replacement process. Locate the oil drain plug, which is usually a large bolt on the oil pan. Place an oil drain pan or container beneath the drain plug to catch the old oil. Using a wrench, carefully loosen and remove the drain plug, allowing the oil to flow into the pan. Be cautious as the oil may still be hot. Once the oil has been drained, replace the drain plug and tighten it securely.

By following these steps, you create a safe and controlled environment for the upcoming gasket replacement, minimizing the risk of accidents and oil-related stains. Remember to exercise caution throughout the process and ensure you have all the necessary tools and equipment before proceeding with the repair.

Remove the Old Pan: Locate the oil pan, disconnect the drain bolt, and carefully lift out the pan

To begin the process of replacing the oil pan gasket on your Nissan Titan, you'll need to locate the oil pan, which is typically positioned at the front of the engine, below the oil filter. Start by raising the vehicle on a jack and securing it on stable stands to ensure it remains stable and secure during the procedure. This step is crucial for your safety and the success of the repair.

Once the vehicle is securely supported, locate the drain bolt, which is usually a large bolt with a plastic or metal cover. This bolt is responsible for draining the old oil and gasket. Carefully remove the drain bolt by loosening it with a wrench or a specialized drain bolt tool. Ensure you catch any draining oil in a suitable container to avoid mess and potential spills.

With the drain bolt removed, you can now lift out the old oil pan. It might be helpful to have an assistant assist you at this point, as the pan can be heavy and difficult to handle alone. Carefully lift the pan straight up, ensuring you don't twist or force it, as this could damage the surrounding components. Once the pan is out, inspect it for any signs of damage or excessive wear, as this information will be useful for your replacement.

When replacing the oil pan, it's essential to use a new gasket to ensure a proper seal. Carefully position the new gasket onto the oil pan, ensuring it is aligned correctly. Then, carefully lower the oil pan back into place, securing it with the appropriate fasteners. Tighten these fasteners by hand first, then use a wrench to ensure they are secure.

Finally, lower the vehicle from the jack and remove the support stands. With the new oil pan in place, you can now proceed to the next steps of your repair, ensuring a proper seal and functionality of your engine's oil system. Remember to dispose of the old gasket and oil pan responsibly, and consider recycling or reusing the materials if possible.

Clean and Inspect: Thoroughly clean the pan and gasket surface, checking for damage or debris

When preparing to replace the oil pan gasket on your Nissan Titan, a crucial step is to ensure a clean and thorough inspection of the oil pan and gasket surface. This process is essential to guarantee a successful repair and prevent any potential issues in the future. Here's a detailed guide on how to approach this task:

Start by removing the oil pan from the vehicle. This might require draining the engine oil and using a jack to lift the vehicle, ensuring the oil pan is accessible. Once removed, use a wire brush or a soft-bristled brush to scrub the oil pan and the gasket surface thoroughly. This step is vital to remove any built-up oil, dirt, and debris that could interfere with the new gasket's performance. Pay close attention to the corners and crevices of the oil pan, as these areas can accumulate the most grime.

After cleaning, inspect the oil pan and gasket for any signs of damage or wear. Look for cracks, tears, or any deformation in the gasket material. Even a small tear could lead to leaks, so it's essential to be meticulous. Check the oil pan's surface for any scratches, rust, or corrosion, as these issues might affect the gasket's ability to create a proper seal. If you notice any significant damage, consider replacing the oil pan as well to ensure a comprehensive repair.

While inspecting, also check for any debris or foreign objects that might have accumulated in the oil pan. Metal shavings, small tools, or other contaminants can cause issues during the installation process. Remove any such debris to ensure a clean and smooth installation of the new gasket.

By following these steps, you'll create a solid foundation for the replacement process, ensuring that the new gasket has a clean and damage-free surface to work against. This attention to detail is key to a successful repair and will help maintain the performance and longevity of your Nissan Titan's engine.

Install New Gasket: Carefully align the new gasket with the pan, ensuring proper fit and orientation

When replacing the oil pan gasket on your Nissan Titan, proper alignment is crucial to ensure a leak-free seal. Here's a step-by-step guide to help you through the process:

• Preparation: Before you begin, ensure you have the necessary tools and materials, including the new gasket, a new oil pan (if required), and a suitable gasket sealant. It's essential to inspect the old gasket for any signs of damage or wear, as this might indicate a potential issue with the engine pan.
• Drain the Oil: Locate the oil drain plug and place an oil pan or a suitable container underneath to catch any residual oil. Carefully remove the drain plug to allow the oil to drain completely. This step is crucial to prevent any spills or mess during the replacement process.
• Remove the Old Gasket: Carefully pry open the oil pan to access the gasket. You might need a flathead screwdriver or a specialized gasket removal tool for this. Be gentle to avoid damaging the pan. Once the old gasket is removed, clean the surface of the oil pan and inspect it for any signs of damage or corrosion.
• Install the New Gasket: Now, carefully align the new gasket with the oil pan. Ensure that it is positioned correctly and matches the shape of the pan. Pay close attention to the orientation, as some gaskets have specific notches or markings to indicate the correct direction. Gently press the gasket into place, making sure it is firmly seated.
• Reassemble and Seal: Reattach the oil pan to the engine, ensuring it is properly aligned and secured. Apply a bead of gasket sealant around the perimeter of the pan where it meets the engine block. This step creates a secure seal and prevents leaks. Allow the sealant to cure according to the manufacturer's instructions.
• Final Checks: Once the sealant has set, fill the engine with new oil and reattach the drain plug. Start the engine and check for any leaks. If everything is secure, your Nissan Titan should now have a properly sealed oil pan gasket. Remember to regularly inspect and replace gaskets to maintain the health of your vehicle's engine.

Reassemble and Test: Reinstall the oil pan, tighten bolts, and check for leaks before filling with new oil

After replacing the oil pan gasket on your Nissan Titan, the reassembly process is crucial to ensure a proper seal and prevent any future leaks. Here's a step-by-step guide to help you through the reassembly and testing process:

Reinstalling the Oil Pan: Begin by carefully placing the oil pan back into its original position. Ensure that it is aligned correctly and sits flush against the engine block. The pan should have a gasket in place, providing a seal between the pan and the engine. Double-check that the gasket is not damaged or warped, as this could affect the sealing process.

Tightening the Bolts: Reinstall the bolts that secure the oil pan to the engine block. Use the appropriate torque wrench to tighten these bolts to the specified torque value as recommended by the Nissan service manual. Over-tightening can damage the oil pan or the engine block, so be cautious and use a steady hand. Ensure that all bolts are tightened evenly to maintain the structural integrity of the assembly.

Checking for Leaks: Before adding new oil, it's essential to verify that there are no leaks. Inspect the area around the oil pan for any signs of oil seepage. Check the bolts and gaskets for tightness and integrity. If you notice any leaks, tighten the affected bolts further or consider replacing the gasket if it appears damaged. It's crucial to identify and address any potential issues before proceeding.

Filling with New Oil: Once you are confident that the reassembly is complete and there are no leaks, it's time to fill the engine with new oil. Refer to your Nissan Titan's owner's manual for the correct type and amount of oil to use. Pour the new oil into the engine's oil fill hole, ensuring you follow the recommended procedure. Start the engine and check for any unusual noises or vibrations, which could indicate a problem. Let the engine run for a few minutes, then shut it off and recheck for any leaks.

By following these steps, you can ensure that the oil pan gasket replacement is successful and that your Nissan Titan's engine remains well-protected. Remember, proper reassembly and testing are vital to maintaining the vehicle's performance and longevity.
