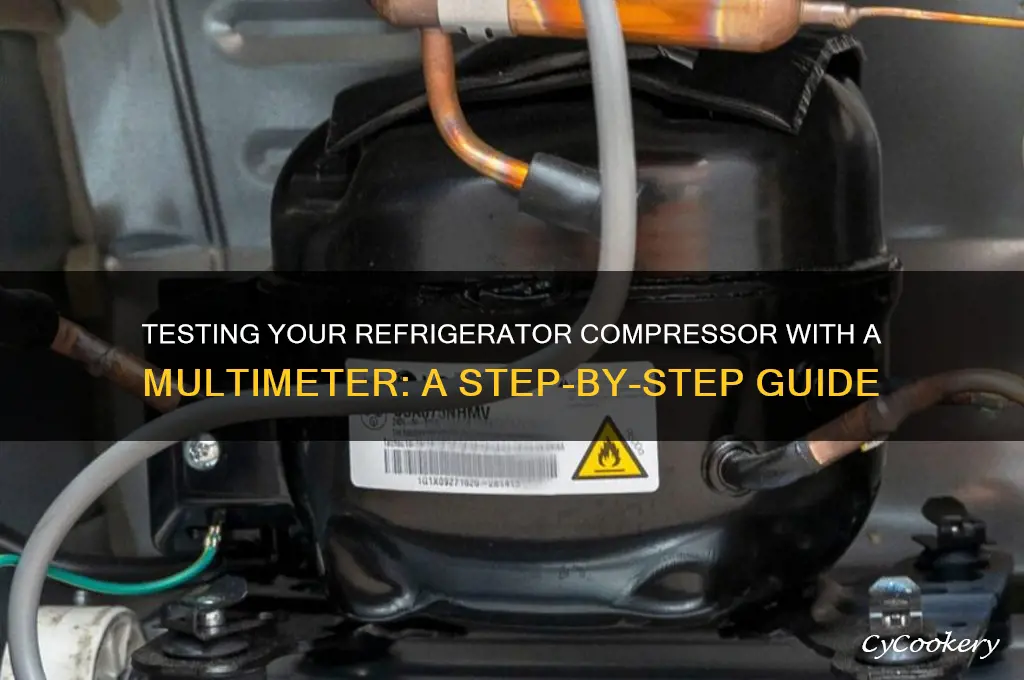

Testing a refrigerator compressor with a multimeter is a crucial step in diagnosing issues with your refrigerator's cooling system. The compressor is the heart of the refrigeration cycle, and if it fails, the appliance won't cool properly. To test it, you'll need a multimeter set to the ohms (resistance) setting. First, unplug the refrigerator and locate the compressor, typically found at the bottom rear of the unit. Access the compressor terminals by removing the protective cover. Using the multimeter, check the resistance between the start and run windings, which should fall within the manufacturer's specified range. If the reading is infinite (open circuit) or zero (short circuit), the compressor is likely faulty and needs replacement. Always consult the appliance manual or a professional if unsure about the process.
| Characteristics | Values |
|---|---|
| Tool Required | Multimeter (Digital or Analog) |
| Safety Precautions | Unplug refrigerator, discharge capacitor, wear insulated gloves |
| Compressor Components to Test | Start relay, run capacitor, overload protector, windings |
| Multimeter Settings | Ohms (Ω) for continuity and resistance, Volts (V) for voltage |
| Start Relay Test | Check continuity between pins (typically 3-5 ohms) |
| Run Capacitor Test | Measure capacitance (should match rated value, e.g., 10-20 µF) |
| Overload Protector Test | Check for continuity (should be closed when cool) |
| Winding Resistance Test | Measure resistance between terminals (common, start, run) |
| Expected Winding Resistance Range | 1-20 ohms (varies by model; consult manual) |
| Open Circuit Indication | Infinite resistance (OL on multimeter) |
| Short Circuit Indication | Very low resistance (close to 0 ohms) |
| Voltage Test (Optional) | Measure voltage at compressor terminals (if power is applied) |
| Common Terminals | C (Common), R (Run), S (Start), H (Hermetic) |
| Testing Frequency | Test annually or if refrigerator is not cooling properly |
| Professional Assistance | Consult technician if unsure or if compressor fails multiple tests |
Explore related products
What You'll Learn
Safety Precautions Before Testing
Before testing a refrigerator compressor with a multimeter, ensure the appliance is unplugged from the power source. Even if the refrigerator seems inactive, residual electrical charges can pose a shock hazard. This simple step eliminates the risk of accidental electrocution, making it the cornerstone of safety in this process.
Consider the environment where the testing will take place. Work in a well-lit, dry area to minimize the risk of slips or missteps. Damp conditions or poor lighting can lead to accidents, especially when handling electrical components. Additionally, ensure the workspace is clear of clutter and obstructions to allow for easy movement and access to the compressor.
Always wear appropriate personal protective equipment (PPE) during the testing process. Insulated gloves and safety goggles are essential to protect against potential electrical shocks and debris that may dislodge during inspection. While the risk is low, these precautions provide a critical layer of safety, especially for those unfamiliar with electrical systems.
Familiarize yourself with the multimeter’s settings and functions before beginning. Incorrect settings, such as using the wrong voltage range, can damage the multimeter or lead to inaccurate readings. For refrigerator compressors, set the multimeter to measure resistance (ohms) and ensure the probes are in good condition. A faulty multimeter can yield misleading results, potentially leading to misdiagnosis of the compressor’s condition.
Finally, if you’re unsure about any step, consult a professional. While testing a compressor is a straightforward task, it involves handling electrical components that can be hazardous if mishandled. A qualified technician can provide guidance or perform the test, ensuring both safety and accuracy. Remember, the goal is not just to diagnose the compressor but to do so without compromising your well-being.
Refrigerating Canned Biscuits: Best Practices for Freshness and Safety
You may want to see also
Explore related products
Locating Compressor Terminals
The compressor is the heart of your refrigerator, and its terminals are the critical points where electrical connections are made. Locating these terminals is the first step in testing the compressor with a multimeter. Typically, the terminals are found on the compressor’s side or top, often covered by a protective cap or shroud. If you’re unsure where to look, consult your refrigerator’s manual or search for the model online. Identifying the correct terminals ensures accurate testing and prevents damage to the compressor or multimeter.
Analyzing the compressor’s design can simplify the process. Most compressors have three terminals labeled C (common), R (run), and S (start). These labels may be engraved or printed near the terminal pins. If labels are absent, look for a wiring diagram on the compressor or inside the refrigerator’s access panel. The C terminal is usually the center pin, while R and S are on either side. Understanding this layout is crucial for setting your multimeter to the correct range and interpreting readings accurately.
To locate the terminals safely, unplug the refrigerator and discharge the capacitor. Capacitors store electricity even when the appliance is off, posing a shock risk. Use a screwdriver with an insulated handle to short the capacitor terminals if you’re unsure it’s discharged. Once safe, remove the protective cover over the compressor terminals. Be gentle to avoid damaging wires or components. If the terminals are inaccessible, consider consulting a professional to avoid accidental harm to the unit.
Comparing the compressor’s terminals to a multimeter’s testing requirements highlights their importance. For resistance testing, you’ll connect the multimeter probes to specific terminals (e.g., R to C or S to C). Incorrect terminal identification can lead to false readings or multimeter damage. For instance, testing between the wrong terminals might show an open circuit when the compressor is functional. Precision in locating and connecting to the terminals is non-negotiable for reliable diagnostics.
Instructively, here’s a practical tip: take a photo of the compressor terminals before disconnecting any wires. This visual reference helps ensure wires are reconnected correctly after testing. Label wires with tape if they aren’t color-coded. Once terminals are identified, clean them with a soft brush or compressed air to remove dust or debris. Clean terminals ensure a stable connection for accurate multimeter readings, reducing the risk of misdiagnosis.
Detecting Refrigerant Leaks: Using Blacklights for Effective HVAC Troubleshooting
You may want to see also
Explore related products
Setting Multimeter for Resistance Test
Before testing a refrigerator compressor with a multimeter, it's crucial to set the multimeter correctly for a resistance test. This ensures accurate readings and prevents damage to the multimeter or the compressor. The resistance test measures the opposition to electrical current flow through the compressor's windings, indicating whether the windings are intact or damaged.
Steps to Set Multimeter for Resistance Test
To begin, turn off the refrigerator and disconnect it from the power source. Locate the multimeter's dial and set it to the resistance (Ω) setting, typically represented by a horseshoe symbol. Choose a range that exceeds the expected resistance value of the compressor, usually between 1-10 ohms for most refrigerator compressors. If unsure, start with the highest range (e.g., 200 ohms) and adjust downward if necessary. This prevents overloading the multimeter and ensures a precise reading.
Cautions and Considerations
When setting the multimeter, be cautious not to select a range that's too low, as this can lead to inaccurate readings or damage to the meter. Additionally, ensure the test leads are connected to the correct terminals: black to common (COM) and red to ohms (Ω). Before testing the compressor, verify the multimeter's functionality by measuring a known resistor or touching the test leads together, which should display a resistance of nearly zero ohms. This confirms the multimeter is calibrated and ready for use.
Practical Tips for Accurate Readings
For optimal results, allow the compressor to cool down before testing, as heat can affect resistance readings. When measuring resistance, apply gentle pressure to the test leads against the compressor terminals to ensure a stable connection. If the multimeter displays an open circuit (OL or 1), check the connections and try again. A typical healthy compressor should show a resistance value within the manufacturer's specified range, usually found in the appliance's technical documentation or online resources.
Analyzing Results and Takeaways
After obtaining the resistance reading, compare it to the expected value. A significantly higher or lower resistance may indicate a problem, such as a short circuit or open winding. If the resistance is extremely high (open circuit) or low (short circuit), the compressor likely requires professional repair or replacement. By correctly setting the multimeter and interpreting the results, you can diagnose compressor issues effectively, saving time and money on unnecessary repairs or replacements. Remember, safety should always be a top priority when working with electrical appliances.
Can Car Coolant Replace Refrigerator Coolant? A Safety Analysis
You may want to see also
Explore related products
Interpreting Ohms Readings
A multimeter's ohms reading is the cornerstone of diagnosing a refrigerator compressor's health. This measurement, in ohms (Ω), reveals the electrical resistance within the compressor's windings. Understanding these readings is crucial for pinpointing issues like open circuits, short circuits, or winding degradation.
Compressor windings, when functioning correctly, exhibit specific resistance values. These values are typically provided in the appliance's service manual or stamped on the compressor itself. A healthy compressor will show a resistance reading within a defined range, usually between 1 and 20 ohms for common household refrigerators.
Deviations from the expected range signal potential problems. A reading of zero ohms indicates a short circuit, where the windings have inadvertently connected, causing a direct path for current flow. Conversely, an infinite or "open" reading suggests a broken wire or disconnected winding, preventing current flow altogether. Readings outside the specified range but not at the extremes may indicate winding damage or contamination. For instance, a reading significantly higher than normal could point to a partial short circuit or degraded insulation.
A systematic approach is essential for accurate interpretation. Always ensure the compressor is powered off and disconnected from the power source before testing. Set your multimeter to the ohms (Ω) setting and touch the probes to the compressor's terminals as indicated in the manual. Compare the obtained reading to the specified range, considering factors like ambient temperature which can slightly influence resistance.
Remember, ohms readings are just one piece of the diagnostic puzzle. Combining them with visual inspections, voltage checks, and other tests provides a comprehensive understanding of the compressor's condition. If in doubt, consult a qualified appliance repair technician for a definitive diagnosis and repair.
Refrigerating Cooked Food: Timing Tips for Safe Storage and Freshness
You may want to see also
Explore related products
Identifying Common Compressor Faults
A faulty compressor often manifests as a refrigerator that’s not cooling properly, but diagnosing the issue requires more than guesswork. Start by unplugging the refrigerator and accessing the compressor, typically located at the bottom rear. Using a multimeter set to the ohms (Ω) setting, test the resistance across the start and run windings. A healthy compressor should read between 3 and 10 ohms; anything outside this range indicates a winding failure. This simple test isolates one of the most common faults: open or shorted windings, which prevent the compressor from functioning.
Another frequent issue is a faulty start relay or capacitor, often mistaken for a compressor problem. Before condemning the compressor, test the relay and capacitor separately. A multimeter set to continuity mode can check the relay for open contacts, while the capacitor should be tested for capacitance (typically 5–20 microfarads). If these components fail, they can mimic compressor failure by preventing it from starting. Always replace these parts first, as they are less expensive and easier to swap out than the compressor itself.
Overheating is a less obvious but equally critical fault. Inspect the compressor for burn marks or a melted overlay, which indicate excessive heat. Use the multimeter to test the thermal overload protector, if present, by checking for continuity. A failed protector will show no continuity, meaning it’s not protecting the compressor from overheating. This fault often arises from poor ventilation or a clogged condenser coil, so ensure these areas are clean and unobstructed during troubleshooting.
Finally, consider the compressor’s age and operational history. Compressors typically last 12–15 years, but frequent cycling or voltage fluctuations can shorten their lifespan. If the multimeter tests show no obvious faults but the compressor still fails to start, it may be mechanically seized. This requires a manual rotation test: with the unit unplugged, try turning the compressor motor shaft by hand. If it’s stiff or immovable, the compressor is likely locked up and needs replacement. Always weigh the cost of repair against the age of the appliance before proceeding.
Effective Ways to Remove Mold from Your Fridge's Rubber Seal
You may want to see also
Frequently asked questions
First, unplug the refrigerator to ensure safety. Locate the compressor start relay and remove it to access the compressor terminals. Set the multimeter to the resistance (ohms) setting and touch the probes to the common and start/run terminals. A reading between 1-5 ohms indicates a functioning compressor.
Use the resistance (ohms) setting to test the compressor windings. For checking continuity, use the continuity setting (if available). Avoid using voltage or current settings while the compressor is connected to power.
If the multimeter shows an open circuit (infinite resistance) or a very low resistance (close to zero), the compressor is likely faulty. Additionally, if the readings are inconsistent or significantly outside the expected range (1-5 ohms), the compressor may be defective.
No, it’s best to remove the start relay to directly access the compressor terminals for accurate testing. Testing through the relay may yield unreliable results due to potential relay issues.
Test between the common (C) and start (S) terminals, as well as the common (C) and run (R) terminals. These readings should fall within the expected resistance range (1-5 ohms) for a functional compressor.
