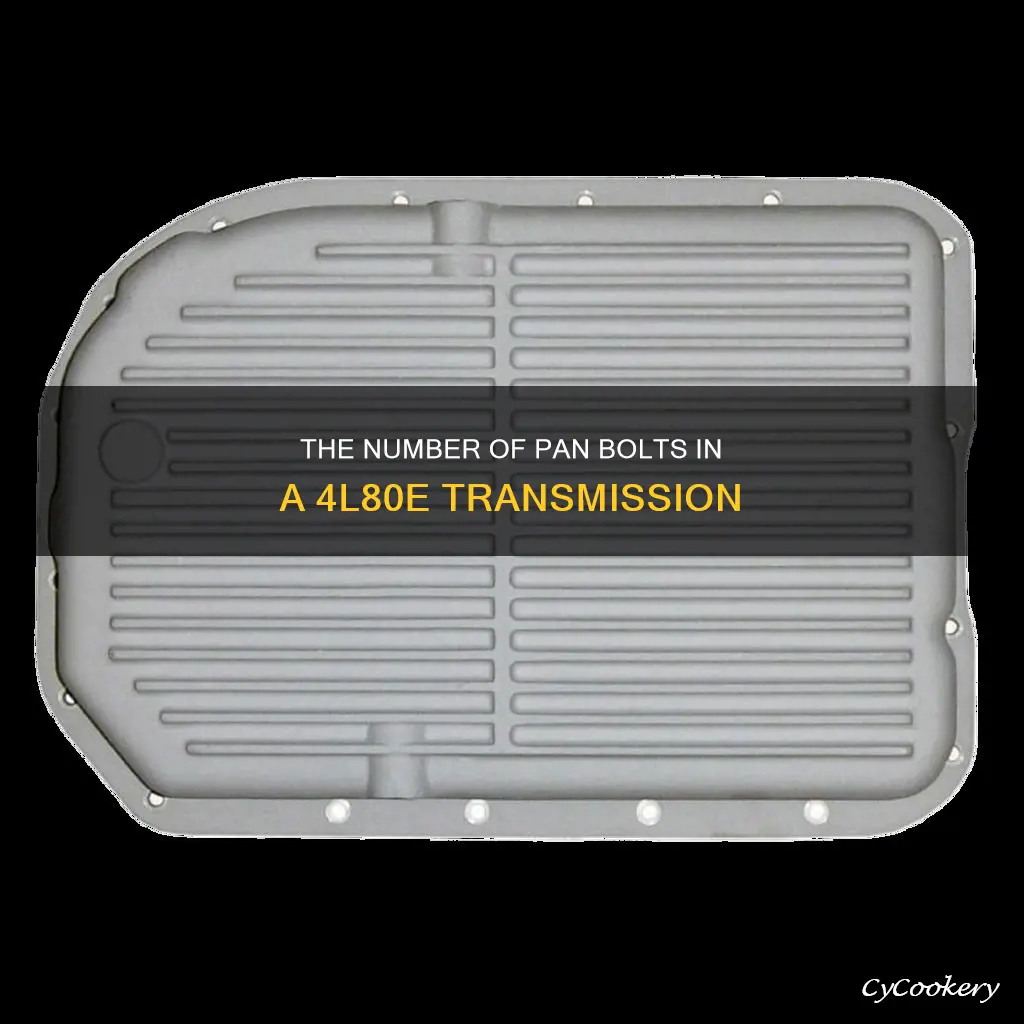

The 4L80E transmission pan is a heavy-duty unit with a lockup torque converter clutch and an overdrive. It is mostly found in Chevrolet Silverado and GMC Sierra pickup trucks. The transmission pan has a unique bolt pattern with 17 bolts, although some users have reported having 16 bolts. The pan is symmetrical left to right and mostly rectangular, with rounded indentations at the rear corners. The bolts can be challenging to access and remove due to their location and the presence of rust or corrosion.
| Characteristics | Values |
|---|---|
| Number of bolts | 17 |
| Shape | Mostly rectangular with rounded indentations at the rear corners |
| Bolt size | M8x1.25x20 Multi-Purpose Bolt |
| Drain plug | Yes |
Explore related products
What You'll Learn
The 4L80E transmission pan has 17 bolts
The 4L80E transmission pan features 17 bolts in a symmetrical left-to-right pattern. The pan is mostly rectangular, except for the rear corners, which have a rounded indentation.
The 4L80E transmission is known for its heavy-duty performance and is an upgrade from the 4L60E, which features 16 bolts. The 4L80E is recognised for its lockup torque converter clutch and overdrive capabilities.
When working with the 4L80E transmission pan bolts, it is important to use the correct tools to avoid damage. For example, six-point tools are recommended over 12-point sockets to prevent rounding off bolt heads. Additionally, the use of a good quality six-point socket with a universal joint can aid in loosening the bolts effectively.
In some cases, the bolts on the 4L80E transmission pan may be challenging to access due to the presence of the transmission crossmember. This can make the process of loosening or tightening the bolts more difficult. Proper maintenance and care are crucial to ensure the bolts remain in good condition and do not strip or break.
It is worth noting that the 4L80E transmission pan bolts require specific bolt sizes for proper installation and maintenance. The bolt size for the 4L80E transmission pan is typically an M8x1.25x20 multi-purpose bolt, which is available from GM with the part number 11515756. It is important to use the correct bolt size to ensure a secure fit and avoid potential leaks or damage to the transmission pan.
In summary, the 4L80E transmission pan features 17 bolts and requires careful maintenance and the use of appropriate tools and bolt sizes to ensure optimal performance and longevity.
Acura Pan Oil Replacement: Cost and Procedure
You may want to see also
Explore related products
Two bolts near the cross member can be problematic
The 4L80E transmission pan is reported to have 16 or 17 bolts. However, two bolts near the cross member can be problematic. These bolts are located in a tight space, making it challenging to access them with a wrench. The transmission crossmember's position further hinders maneuverability, allowing only a small fraction of a turn each time.
The rust belt environment exacerbates the issue, as the bolts are prone to corrosion and rust, making them difficult to remove. In some cases, the bolts may need to be loosened or removed, but they are tightly secured and resistant to standard methods like soaking and applying heat.
To address this challenge, it is recommended to use six-point tools instead of 12-point sockets to avoid rounding off bolt heads. Additionally, a good quality six-point socket with a universal joint may be useful for accessing these bolts. Applying a rust penetrant may also aid in loosening the bolts.
In situations where the bolts are extremely tight, it may be necessary to use a drill or a punch and hammer to attempt to break them loose. However, it is important to exercise caution and consider the surrounding components to avoid causing further complications.
To prevent similar issues in the future, it is advised to reinstall a couple of bolts halfway up the pan, one on each side. This measure ensures that even if the last two bolts are challenging to remove, there will not be a transmission fluid leak. Proper torque settings and regular maintenance can also help mitigate bolt issues.
Greasing Pampered Chef Stoneware Loaf Pan: Tips & Tricks
You may want to see also
Explore related products
Using 12-point sockets can round off bolt heads
The 4L80E transmission pan is said to have 16 or 17 bolts. However, the use of 12-point sockets can round off bolt heads, leading to stripped pan bolts. This issue is not unique to the 4L80E transmission and can occur on various vehicles and engines.
When working on the 4L80E transmission, it is essential to use the correct tools and techniques to avoid damage and ensure a successful repair or maintenance procedure. In the case of the 4L80E, some bolts may be challenging to access due to the presence of the transmission crossmember. This limited access can make it difficult to apply sufficient force or achieve the necessary clearance to remove or tighten bolts effectively.
To address this issue, it is recommended to use six-point tools instead of 12-point sockets. Six-point sockets provide a more secure grip and are less likely to result in rounded-off bolt heads. They can also access tight spaces more effectively due to their thinner walls. Additionally, using a wobble extension or swivel can help ensure that the socket is square on the bolt, optimizing the application of force.
While some mechanics may have differing preferences for six-point or 12-point sockets, the specific clearance and bolt head engagement requirements of the 4L80E transmission make six-point sockets the more suitable choice. This preference is further supported by the potential presence of rust and corrosion, which can complicate bolt removal and require the more secure grip provided by six-point sockets.
To summarize, when working on the 4L80E transmission, it is advisable to use six-point sockets instead of 12-point sockets to avoid rounding off bolt heads and ensure a more efficient and damage-free experience.
Pans for Sides: Catering for 45
You may want to see also
Explore related products
The bolts may be suffering from dielectric corrosion
The 4L80E transmission pan is reported to have 16 or 17 bolts. However, the bolts may be suffering from dielectric corrosion. This is a type of galvanic corrosion, also known as bimetallic corrosion, which occurs when two dissimilar metals are in direct contact or electrically connected and exposed to a common electrolyte. In this case, the steel and aluminium bolts are in contact and immersed in an electrolyte solution, such as water, which facilitates the flow of ions between the metals. As a result, one metal corrodes faster while the other is protected.
Galvanic corrosion can cause extensive damage and even lead to structural or component failure. It appears as rust or flaking of the metal surface. To prevent galvanic corrosion, dissimilar metals can be separated by a dielectric material such as insulation, paint, or coatings. Additionally, it is important to maintain constant stress in the fastener, as irregular loading can lead to corrosion.
In the case of the 4L80E transmission pan bolts, the use of a rust penetrant may help to mitigate the effects of corrosion. The application of heat and the use of a punch and hammer can also aid in breaking loose the corroded bolts. However, it is important to note that the transmission crossmember may obstruct access to the bolts, making it challenging to work on them.
Overall, dielectric corrosion on the bolts of the 4L80E transmission pan can be a challenging issue to address. It requires careful consideration of the materials used, maintenance practices, and access to the bolts for repair or replacement.
Pan-Seared Chicken Breasts: The Perfect Timing
You may want to see also
Explore related products
The bolt size for the 4L80E transmission pan is M8x1.25x20
The M8x1.25x20 bolt is specifically designed for the 4L80E transmission pan and features a 10mm head. This bolt size is crucial for securing the transmission fluid pan to the transmission case. It is important to note that used bolts may exhibit cosmetic corrosion, dirt, grease, or other staining due to their external exposure.
When working with the 4L80E transmission pan bolts, it is essential to take the necessary precautions and follow the correct procedures. In some cases, accessing and loosening the bolts can be challenging due to space constraints and corrosion. Proper tools, such as six-point sockets, can help improve clearance and prevent rounding off bolt heads.
Additionally, the 4L80E transmission pan bolts should be inspected for any signs of wear or damage. If replacement bolts are needed, it is important to source the correct bolt size and type to ensure a secure fit. The M8x1.25x20 bolt size is specifically designed for the 4L80E transmission pan and can be sourced from various suppliers or online platforms.
Overall, the 4L80E transmission pan bolt size of M8x1.25x20 is a critical component for securing the transmission fluid pan. By understanding the bolt size and the specific challenges associated with the 4L80E transmission, individuals can effectively maintain and service their vehicles, ensuring the transmission pan is securely fastened and functioning optimally.
Pots and Pans: Disposal Guide
You may want to see also
Frequently asked questions
There are 17 bolts on the transmission pan of the 4L80E.
If you don't need to change the filter, you can use a suction device to remove the fluid through the dipstick tube.
Six-point tools are recommended for removing pan bolts. 12-point sockets can result in rounded-off bolt heads.
M8x1.25x20 Multi-Purpose Bolts or M6x1.0 bolts.
You can try using heat, a punch and hammer, or bolt-outs. If you can create some space, you may be able to use a wrench or drill.
